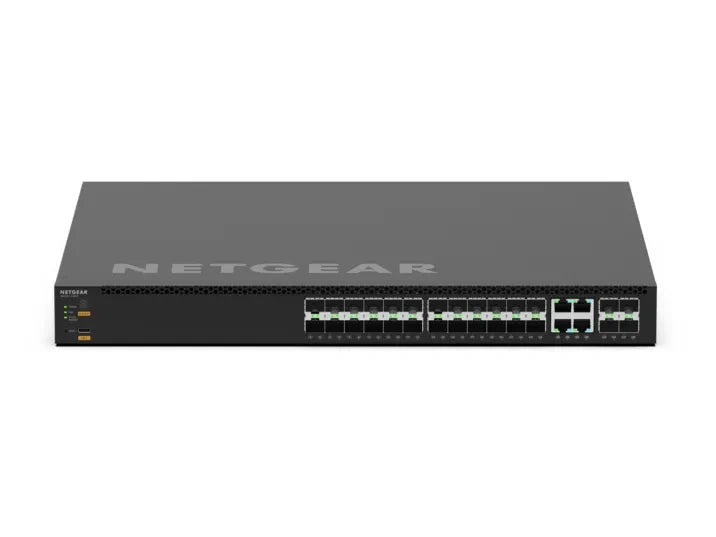

NETGEAR M4350-24F4X 24-Port 1G/2.5G SFP Fibre Fully Managed AV Switch with 4 x 10G Combo
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-24F4X 24x 1G/2.5G SFP and 4x 10G Combo Fully Managed Switch (MSM4328F-100NES) - Limited Lifetime Local Warranty
Fibre-First Switching for AV over IP

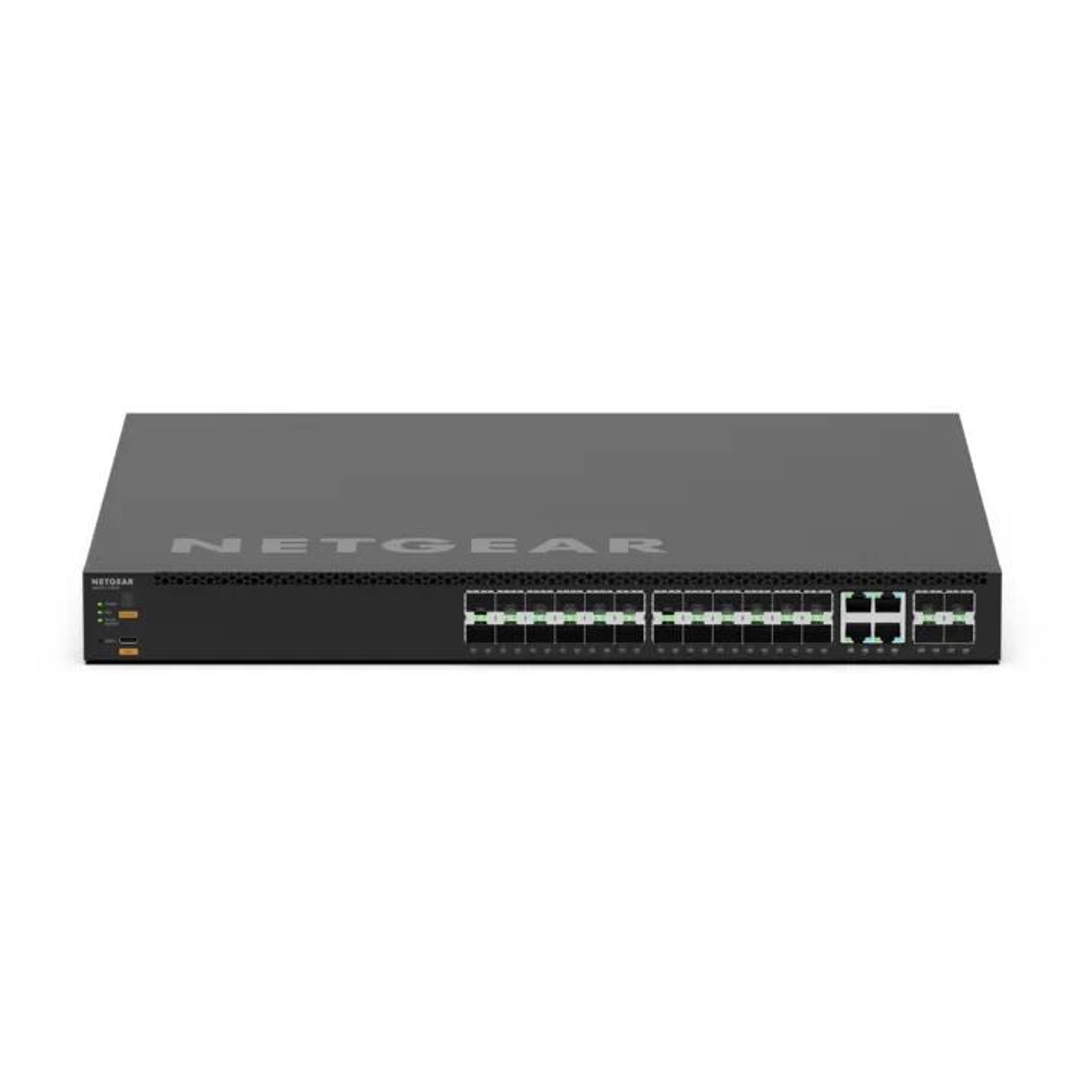

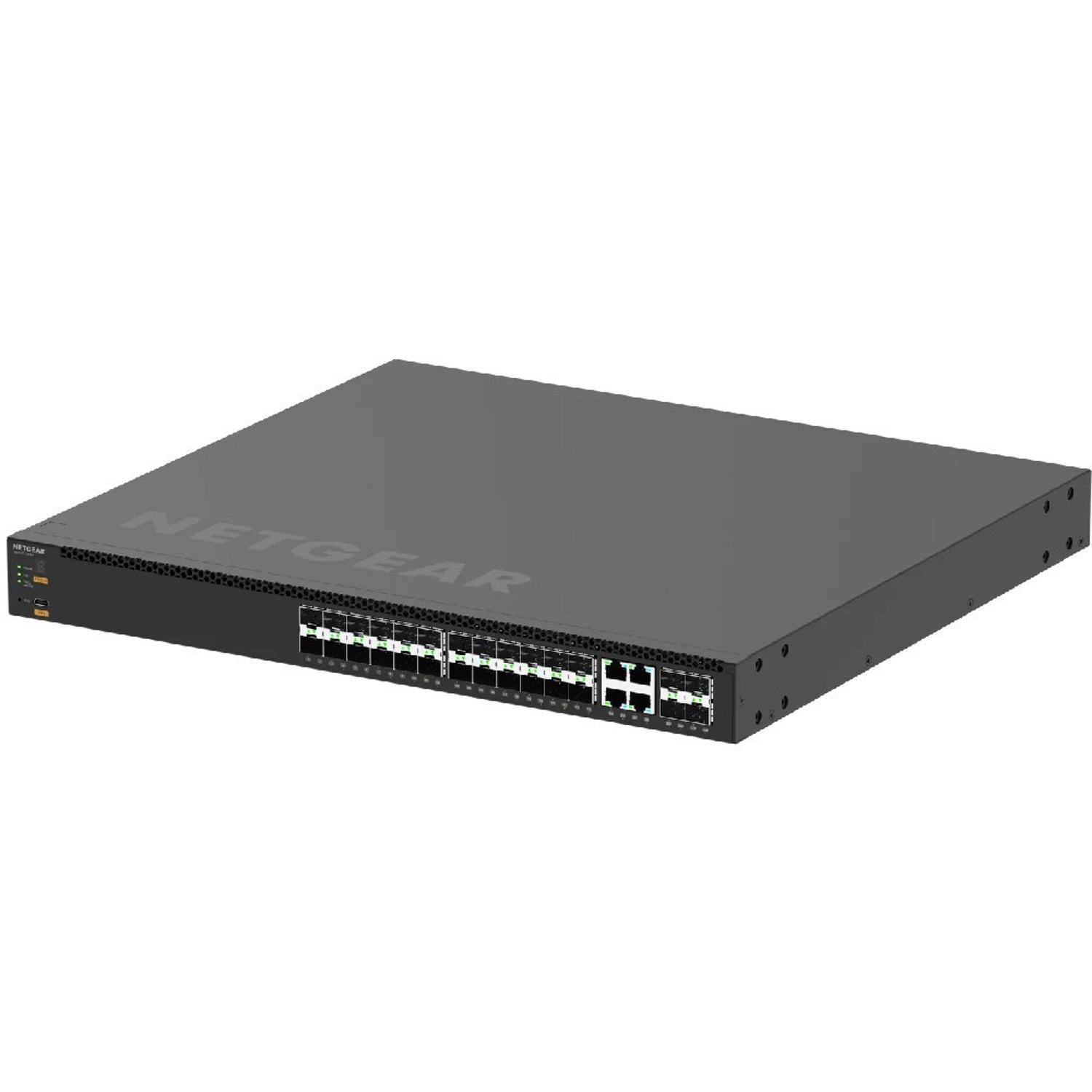

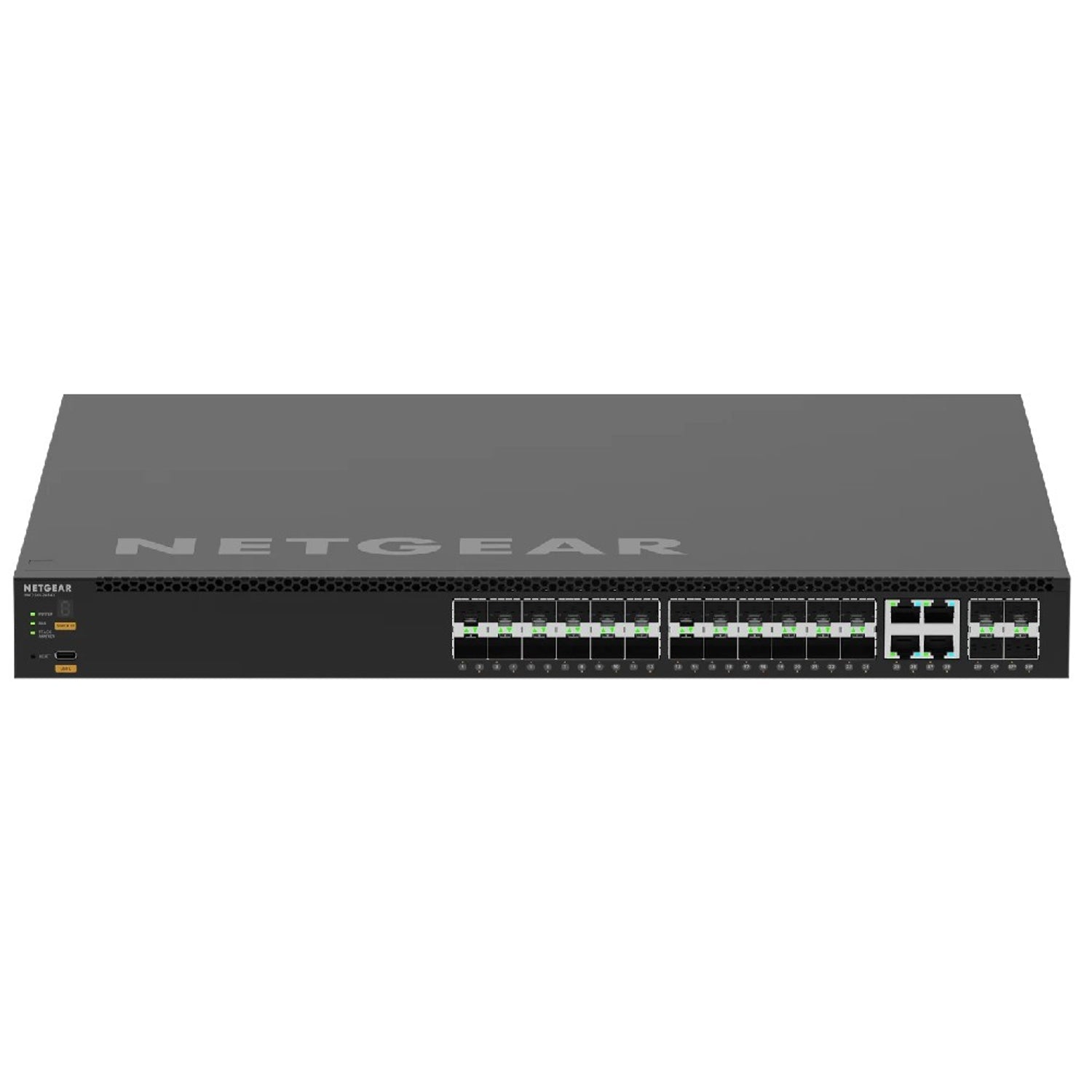

The NETGEAR M4350-24F4X is a 28-port fully managed switch with twenty-four SFP ports that accept 100M, 1G and 2.5G transceivers, plus four 10G combo ports that can be used as 10GBASE-T copper or 10G SFP+ fibre. It suits AV-over-IP installations where endpoints and racks are connected over fibre.
Redundant Power Option
A 240W internal power supply is built in, and a modular power supply slot accepts an APS600Wv3, APS1200Wv2 or APS2000Wv2 module for power redundancy. This is a non-PoE model.
Quiet, Compact 1U Design
The M4350-24F4X is a full-width 1U switch, 400 mm deep, rated at 30 dBA in Quiet Mode at 25°C ambient, so it can sit close to production areas and control rooms.
Built for AV over IP
NETGEAR IGMP Plus, the NETGEAR AV user interface and the NETGEAR Engage Controller simplify multicast setup. The switch supports AVB, and SMPTE ST 2110 Grandmaster and Boundary Clock modes for AES67 and SMPTE ST 2059-2. Static, policy-based and dynamic routing are included, and Virtual Chassis stacking provides non-stop forwarding and hitless failover.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-24F4X Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-24F4X Fully Managed Switch |
| Part Number | MSM4328F-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports

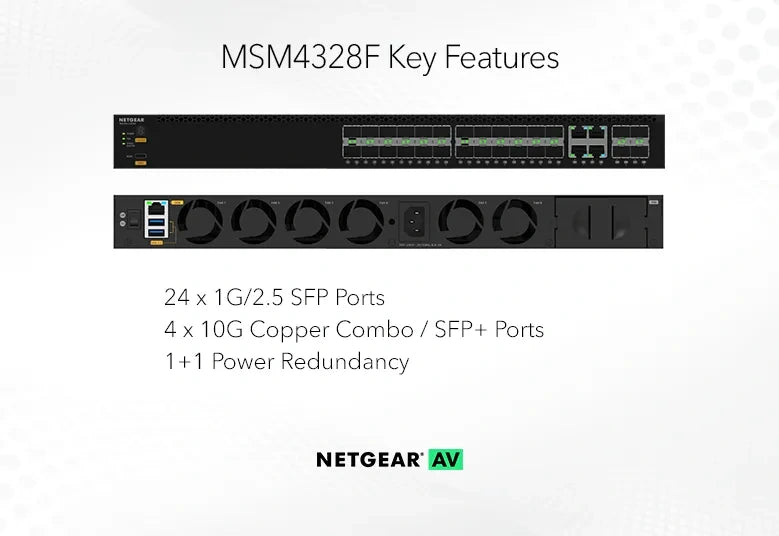

| SFP Ports | 24x SFP supporting 100M / 1G / 2.5G transceivers |
| 10G Combo Ports | 4x combo, each usable as 10GBASE-T RJ-45 (100M / 1G / 2.5G / 5G / 10G) or 10G / 1G SFP+ |
| Total Ports | 28 |
| Management Ports | USB Type-C console, 1G out-of-band port, 2x USB-A (storage) |
Performance
| Switching Fabric | 200 Gbps |
| Throughput | 148.8 Mpps |
| Latency | <1.25µs at 1G, <2.24µs at 10G copper, <0.98µs at 10G fibre |
| Packet Buffer | 32Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 4GB DDR4 |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IP Multicast Routes | 512 IPv4 / 256 IPv6 |
| IGMP Groups | Up to 12K |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
| Jumbo Frames | Up to 12KB |
Power
| Power Supply | 1x internal 240W PSU (C14 inlet) |
| Modular PSU Slot | 1 slot for redundancy: APS600Wv3, APS1200Wv2 or APS2000Wv2 |
| PoE | Not supported (non-PoE model) |
| Power Consumption | Max: 115.5W; standby (no port connection): 39W (per NETGEAR product page) |
Physical & Acoustics
| Form Factor | Full-width, 1U rack mount |
| Dimensions (W x H x D) | 440 x 43.2 x 400 mm |
| Weight | 7.38 kg (16.26 lb) (per NETGEAR product page) |
| Acoustics (Quiet Mode) | 30 dBA at 25°C ambient (25% fan duty) |
| Acoustics (Cool Mode) | 66.9 dBA at 100% fan duty |
Compatibility & Software Support
Power Supplies
The modular power supply slot accepts APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES) and APS2000Wv2 (APS2000W-200NES). The built-in 240W supply powers the switch on its own; a modular PSU adds redundancy.
Transceivers
The 24 SFP ports accept 100M, 1G and 2.5G SFP transceivers, for example NETGEAR AGM731F 1000BASE-SX multimode, AGM732F 1000BASE-LX single-mode and AGM734 1000BASE-T copper. The four combo ports take 10G or 1G SFP+ modules such as NETGEAR AXM761 10GBASE-SR, AXM762 10GBASE-LR, AXM763 10GBASE-LRM, AXM764 10GBASE-LR Lite and AXM765v2 10GBASE-T copper, or can be used as 10GBASE-T copper ports.
Management

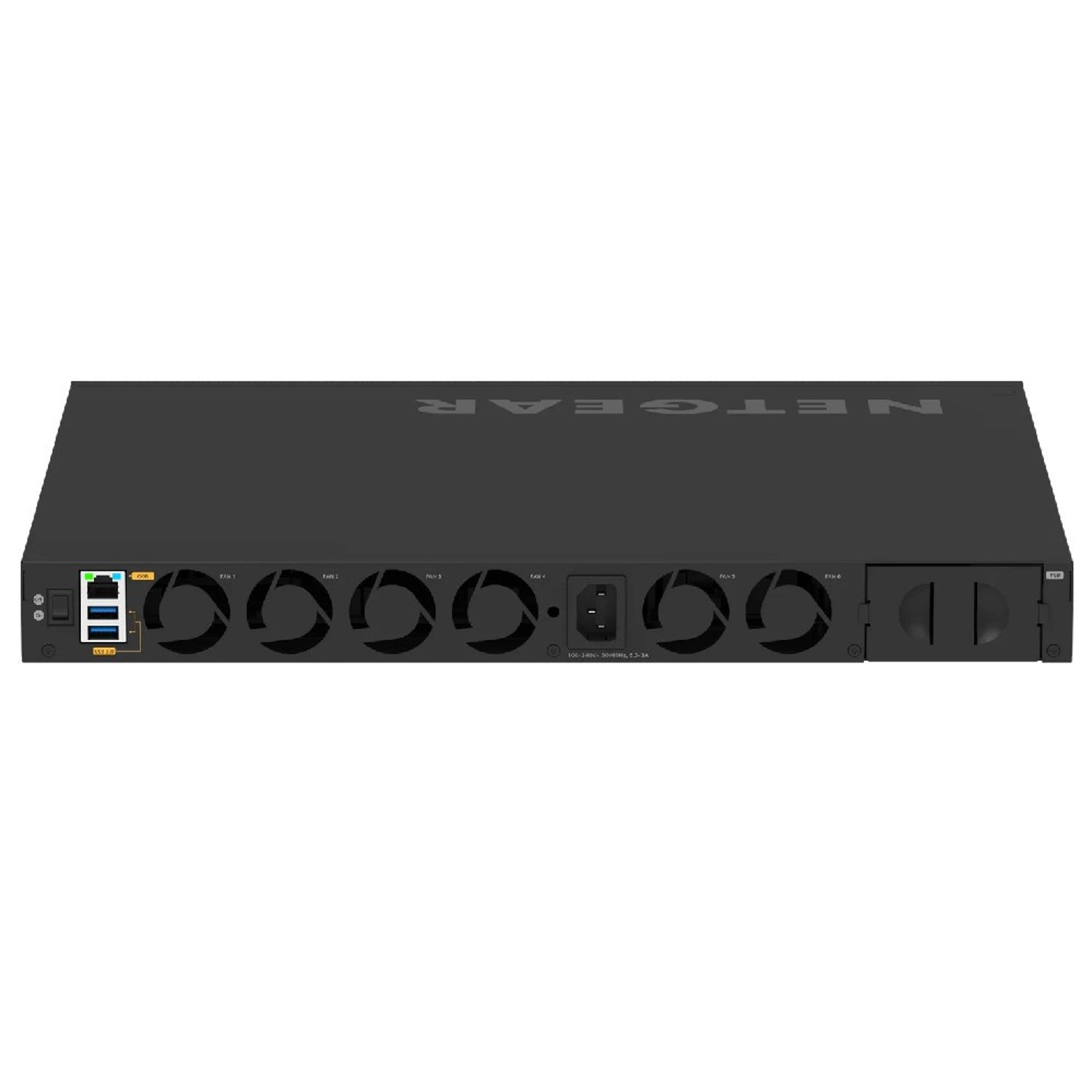

Web browser GUI (HTTPS) including the NETGEAR AV user interface with pre-configured AV profiles, plus CLI via Telnet and SSH, SNMP and MIBs. A USB Type-C console port on the front and a 1G out-of-band management port on the rear are provided.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV Protocols
NETGEAR IGMP Plus enhanced multicast, AVB, and SMPTE ST 2110 Grandmaster and Boundary Clock modes for AES67 and SMPTE ST 2059-2. NETGEAR notes that stacking, AVB and PTP Transparent Clock are mutually exclusive: a stack cannot run AVB or PTP TC.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-24F4X (MSM4328F) switch, 1x power cord, 1x USB Type-C console cable, 1x standard rack-mount bracket set, 1x set of longer brackets for recessed mounting, 4x rubber footpads, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) (this listing) | 24x 1G/2.5G SFP, 4x 10G copper/SFP+ combo |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| Hardware Installation Guide | NETGEAR M4350 Series Hardware Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-24F4X (MSM4328F) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MSM4328F-100NES.
Frequently Asked Questions — NETGEAR M4350-24F4X
Are the 24 ports copper or fibre?
They are SFP ports for fibre or copper SFP transceivers at 100M, 1G or 2.5G. Transceivers are sold separately.
How do the four 10G ports work?
They are combo ports: each can be used either as a 10GBASE-T RJ-45 copper port or as a 10G/1G SFP+ port.
Does the M4350-24F4X support PoE?
No. It is a non-PoE model powered by a 240W internal supply.
Can I add a redundant power supply?
Yes. The modular slot accepts an APS600Wv3, APS1200Wv2 or APS2000Wv2 power supply module.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
