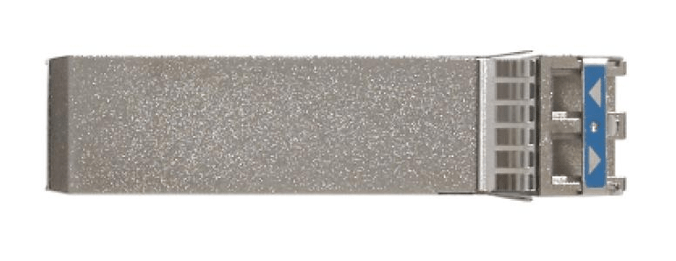

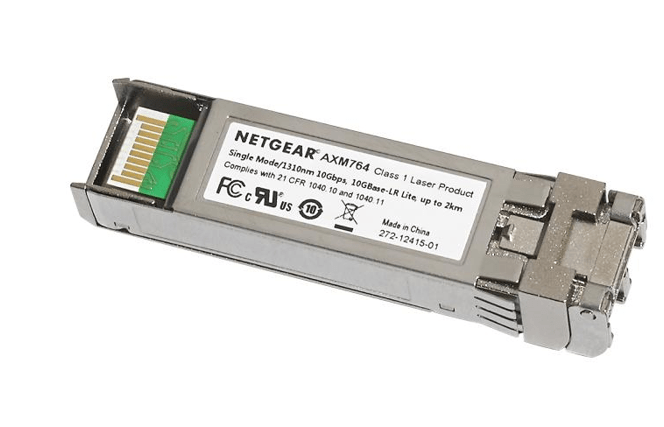

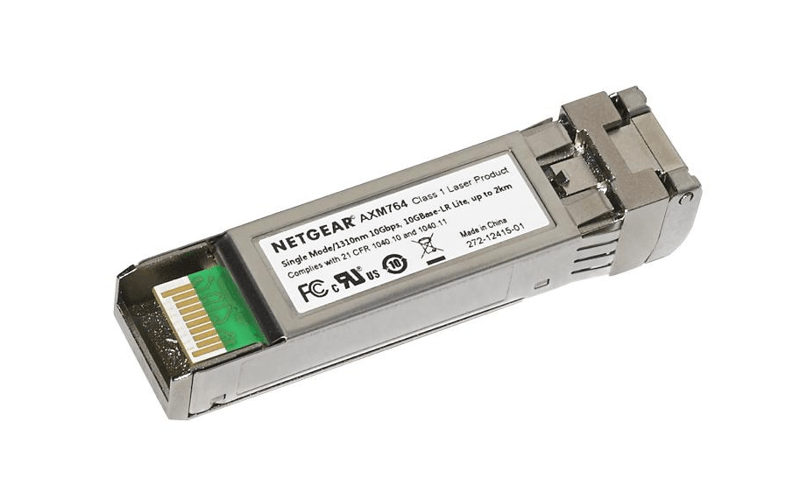

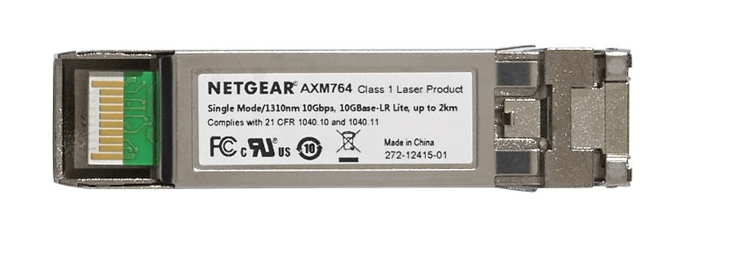

NETGEAR AXM764 10GBASE-LR Lite SFP+ Single-Mode Fibre Transceiver Module (LC, 2 km)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR AXM764 ProSAFE 10GBASE-LR Lite Single-Mode SFP+ Module (AXM764-10000S) - 5 Years Local Warranty
Cost-Effective 10G Over Single-Mode
The NETGEAR AXM764 is a 10GBASE-LR Lite SFP+ transceiver that drives 10 Gigabit Ethernet up to 2 km (1.2 miles) over legacy 9/125 µm single-mode fibre. It suits campus and inter-building links that do not need the full 10 km reach of 10GBASE-LR.
Interoperates with AXM762
NETGEAR notes that 10GBASE-LR Lite is not yet a formal standard, but the AXM764 can interoperate with the AXM762 (10GBASE-LR) as long as the distance does not exceed 2 km. It operates at 1310 nm with a standard LC duplex connector.
Low Power, Hot-Swappable
Maximum power consumption is 1.1 W and NETGEAR rates the MTBF at 2,310,000 hours. The module is RoHS compliant, FDA/CDRH and IEC 60825 safety certified, hot-swappable, and automatically detected by NETGEAR switches.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre type and link distance and we will confirm the right 10G module.
NETGEAR AXM764 Datasheet — Technical Specifications
General
| Product Name | NETGEAR ProSAFE AXM764 10GBASE-LR Lite SFP+ Module |
| Part Number | AXM764-10000S |
| Module Type | SFP+, 10 Gigabit Ethernet |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | 10GBASE-LR Lite (interoperates with 10GBASE-LR AXM762 up to 2 km) |
| Wavelength | 1310 nm |
| Fibre Type | Single-mode, 9/125 µm |
| Connector | LC duplex |
| Maximum Distance | Up to 2 km (1.2 miles) |
Power & Reliability
| Power Consumption | 1.1 W max |
| MTBF | 2,310,000 hours (264 years) |
Environmental
| Storage Temperature | -40 to 85 °C (-40–185 °F) |
| Operating Humidity | 85% at 25 °C |
Physical & Compliance
| Dimensions | 11.85 x 14.55 x 56.50 mm (0.47 x 0.57 x 2.22 in) |
| Weight | 20 g (0.04 lb) |
| Safety | FDA/CDRH, IEC 60825 |
| Environmental Compliance | RoHS |
| Installation | Hot-swappable |
Compatibility & Software Support
Supported Switches
NETGEAR states the AXM764 fits the standard SFP+ interfaces of the M5300, M6100, M7100 and M7300 series managed switches, and that select Smart and Plus switches also accept 10 Gigabit SFP+ transceivers. It is also listed in the NETGEAR M7100 series datasheet module ordering table. Please confirm your switch model with us before ordering.
Interoperability
Per NETGEAR, the AXM764 can link to an AXM762 (10GBASE-LR) at the far end as long as the link is no longer than 2 km. For links beyond 2 km, use AXM762 modules at both ends.
Software
No drivers or software are needed — NETGEAR switches detect the module automatically.
For very short 10G links between adjacent racks, NETGEAR direct attach cables are an alternative to a pair of optics: AXC761-10000S (1 m) and AXC763-10000S (3 m).
Package Contents & NETGEAR SFP/SFP+ Module Ordering Information
In the Box
1 x AXM764 SFP+ module.
NETGEAR SFP / SFP+ Modules
| Model | Type / reach (from NETGEAR) | Part No. |
| AGM731F | 1000BASE-SX SFP, multimode, LC, up to 550 m (OM3) | AGM731F |
| AGM732F | 1000BASE-LX SFP, single-mode, LC, up to 10 km | AGM732F |
| AGM734 | 1000BASE-T copper SFP, RJ-45, up to 100 m | AGM734-10000S |
| AXM761 | 10GBASE-SR SFP+, multimode, LC, up to 300 m (OM3) | AXM761-10000S |
| AXM761 (10-pack) | 10 x AXM761 10GBASE-SR SFP+ | AXM761P10-10000S |
| AXM762 | 10GBASE-LR SFP+, single-mode, LC, up to 10 km | AXM762-10000S |
| AXM763 | 10GBASE-LRM SFP+ (802.3aq), multimode, LC, up to 220 m | AXM763-10000S |
| AXM764 (this listing) | 10GBASE-LR Lite SFP+, single-mode, LC, up to 2 km | AXM764-10000S |
| AXM765 | 10GBASE-T copper SFP+ module | AXM765-20000S |
Datasheet & Downloads
| NETGEAR installation guide / specifications | AXM764 Installation Guide (PDF) |
| NETGEAR M7100 datasheet (module ordering table) | M7100 Series Datasheet (PDF) |
| NETGEAR product page | AXM764 on netgear.com |
| NETGEAR support | AXM764 support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AXM764-10000S.
Frequently Asked Questions — NETGEAR AXM764
What is 10GBASE-LR Lite?
A 10G single-mode optic for links up to 2 km. NETGEAR notes it is not yet a formal standard, but it interoperates with 10GBASE-LR (AXM762) up to 2 km.
How far can the AXM764 reach?
Up to 2 km (1.2 miles) over 9/125 µm single-mode fibre.
Should I choose the AXM764 or AXM762?
Choose the AXM764 for single-mode links up to 2 km; choose the AXM762 (10GBASE-LR) for links up to 10 km.
Which switches does it support?
NETGEAR lists the M5300, M6100, M7100 and M7300 series plus select Smart and Plus switches with SFP+ ports. Email us your switch model to confirm.
What warranty do I get with the AXM764?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
