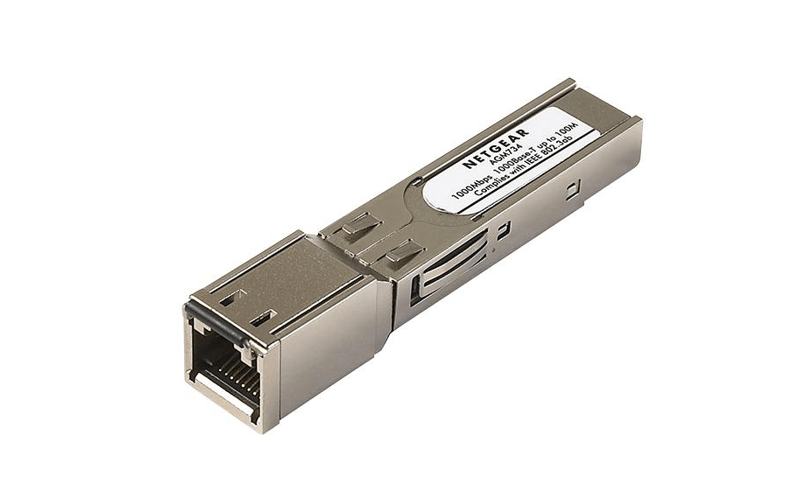

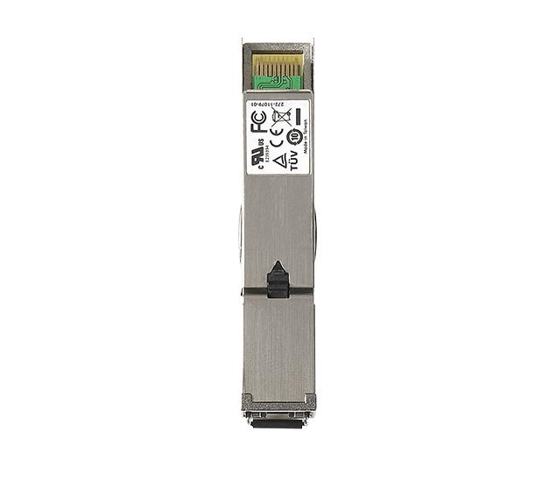

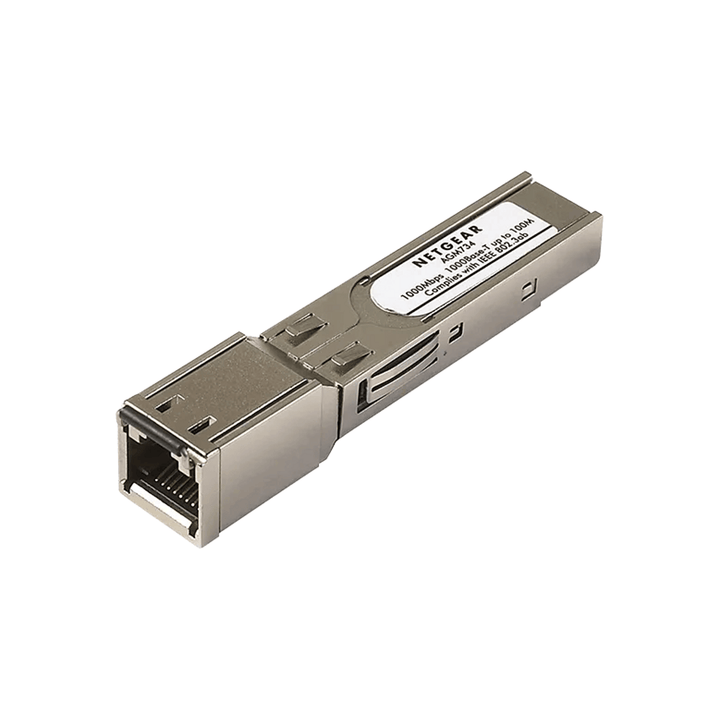

NETGEAR AGM734 1000BASE-T Copper SFP Transceiver Module (RJ-45, 100 m)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR AGM734 ProSAFE 1000BASE-T Copper SFP Module (AGM734-10000S) - 5 Years Local Warranty
Gigabit Copper in an SFP Slot
The NETGEAR AGM734 is a 1000BASE-T SFP transceiver with an RJ-45 connector. It fits into standard SFP slots and turns a fibre port into a Gigabit Ethernet copper port, driving links up to 100 m over Cat5e/Cat6 cabling.
Make Use of Spare Fibre Ports
NETGEAR positions the AGM734 as a convenient way to add 1G copper connectivity to switch fibre interfaces — useful for connecting a nearby server, firewall or access switch to an SFP or SFP+ port without buying a fibre pair.
Fixed 1000 Mbps Operation
Per the NETGEAR M4250 datasheet, the AGM734 supports only 1000 Mbps full-duplex mode, so the device at the other end must run at Gigabit speed. It is not a 10/100/1000 auto-negotiating module.
Need help choosing? Email sales@sourceit.com.sg with your switch model and the device you are connecting and we will confirm whether the AGM734 is the right module.
NETGEAR AGM734 Datasheet — Technical Specifications
General
| Product Name | NETGEAR ProSAFE AGM734 1000BASE-T SFP Module |
| Part Number | AGM734-10000S |
| Module Type | SFP, Gigabit Ethernet (1 port) |
| Local Warranty (Singapore) | 5 Years Local Warranty, supplied by SourceIT with a GST invoice |
Copper Interface
| Standard | 1000BASE-T |
| Connector | RJ-45 |
| Supported Speed | 1000 Mbps full-duplex only |
| Cabling | Cat5e/Cat6 (NETGEAR M4250/M4300 datasheets: Cat5 or better) |
| Maximum Distance | Up to 100 m (328 ft) |
Compatibility & Software Support
Supported Switches
NETGEAR's product page states the AGM734 fits the SFP+ interfaces of the XSM7224S and the SFP interfaces of the GSM7328FS. It is also listed as a supported 1G copper module in the NETGEAR M4250 and M4300 series datasheets and the M4250 hardware installation guide. Please confirm your switch model with us before ordering.
Port Restrictions
The NETGEAR M4250 datasheet notes that the M4250-16XF (XSM4216F) supports the AGM734 on ports 1 to 12 only. The module runs at 1000 Mbps full-duplex only.
Software
No drivers or software are needed — install the module in the switch SFP port and connect a standard RJ-45 Ethernet cable.
Alternatives
For Gigabit fibre links, see the AGM731F (1000BASE-SX, multimode) or AGM732F (1000BASE-LX, single-mode). For 10G copper in an SFP+ port, see the AXM765 (10GBASE-T).
Package Contents & NETGEAR SFP/SFP+ Module Ordering Information
In the Box
1 x AGM734 SFP module.
NETGEAR SFP / SFP+ Modules
| Model | Type / reach (from NETGEAR) | Part No. |
| AGM731F | 1000BASE-SX SFP, multimode, LC, up to 550 m (OM3) | AGM731F |
| AGM732F | 1000BASE-LX SFP, single-mode, LC, up to 10 km | AGM732F |
| AGM734 (this listing) | 1000BASE-T copper SFP, RJ-45, up to 100 m | AGM734-10000S |
| AXM761 | 10GBASE-SR SFP+, multimode, LC, up to 300 m (OM3) | AXM761-10000S |
| AXM761 (10-pack) | 10 x AXM761 10GBASE-SR SFP+ | AXM761P10-10000S |
| AXM762 | 10GBASE-LR SFP+, single-mode, LC, up to 10 km | AXM762-10000S |
| AXM763 | 10GBASE-LRM SFP+ (802.3aq), multimode, LC, up to 220 m (OM1/OM2) or 260 m (OM3/OM4) | AXM763-10000S |
| AXM764 | 10GBASE-LR Lite SFP+, single-mode, LC, up to 2 km | AXM764-10000S |
| AXM765 | 10GBASE-T copper SFP+, RJ-45, up to 80 m (Cat6a or better) | AXM765-20000S |
Datasheet & Downloads
| NETGEAR product page | AGM734 on netgear.com |
| NETGEAR M4250 datasheet (module ordering table) | M4250 Series Datasheet (PDF) |
| NETGEAR M4300 datasheet (module ordering table) | M4300 Series Datasheet (PDF) |
| NETGEAR support | AGM734 support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AGM734-10000S.
Frequently Asked Questions — NETGEAR AGM734
What does the AGM734 do?
It converts an SFP port into a 1000BASE-T RJ-45 copper port for Gigabit Ethernet links up to 100 m.
Does the AGM734 support 10/100 Mbps?
No. The NETGEAR M4250 datasheet states it supports only 1000 Mbps full-duplex mode.
What cable do I need?
A standard RJ-45 Ethernet cable — NETGEAR specifies Cat5e/Cat6 (Cat5 or better in its switch datasheets) for up to 100 m.
Which switches does it support?
NETGEAR lists the XSM7224S (SFP+ ports), GSM7328FS (SFP ports), and the M4250 and M4300 series. On the M4250-16XF it works on ports 1 to 12 only. Email us your switch model to confirm.
What warranty do I get with the AGM734?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
