NETGEAR M4350-24X8F8V 24-Port 10G PoE++ Fully Managed Switch with 8 x SFP+ and 8 x 25G SFP28
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-24X8F8V 24x 10G PoE++, 8x SFP+ and 8x 25G Fully Managed Switch (XSM4340V-100NES) - Limited Lifetime Local Warranty
Copper, SFP+ and SFP28 in One Switch

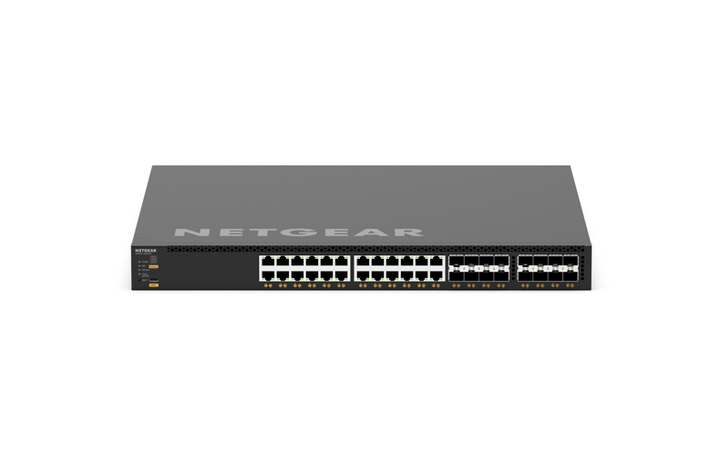

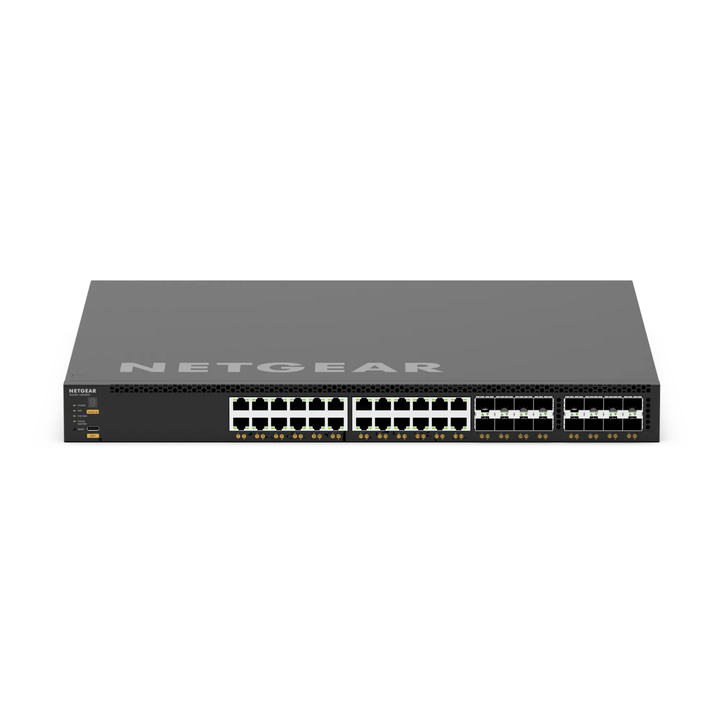

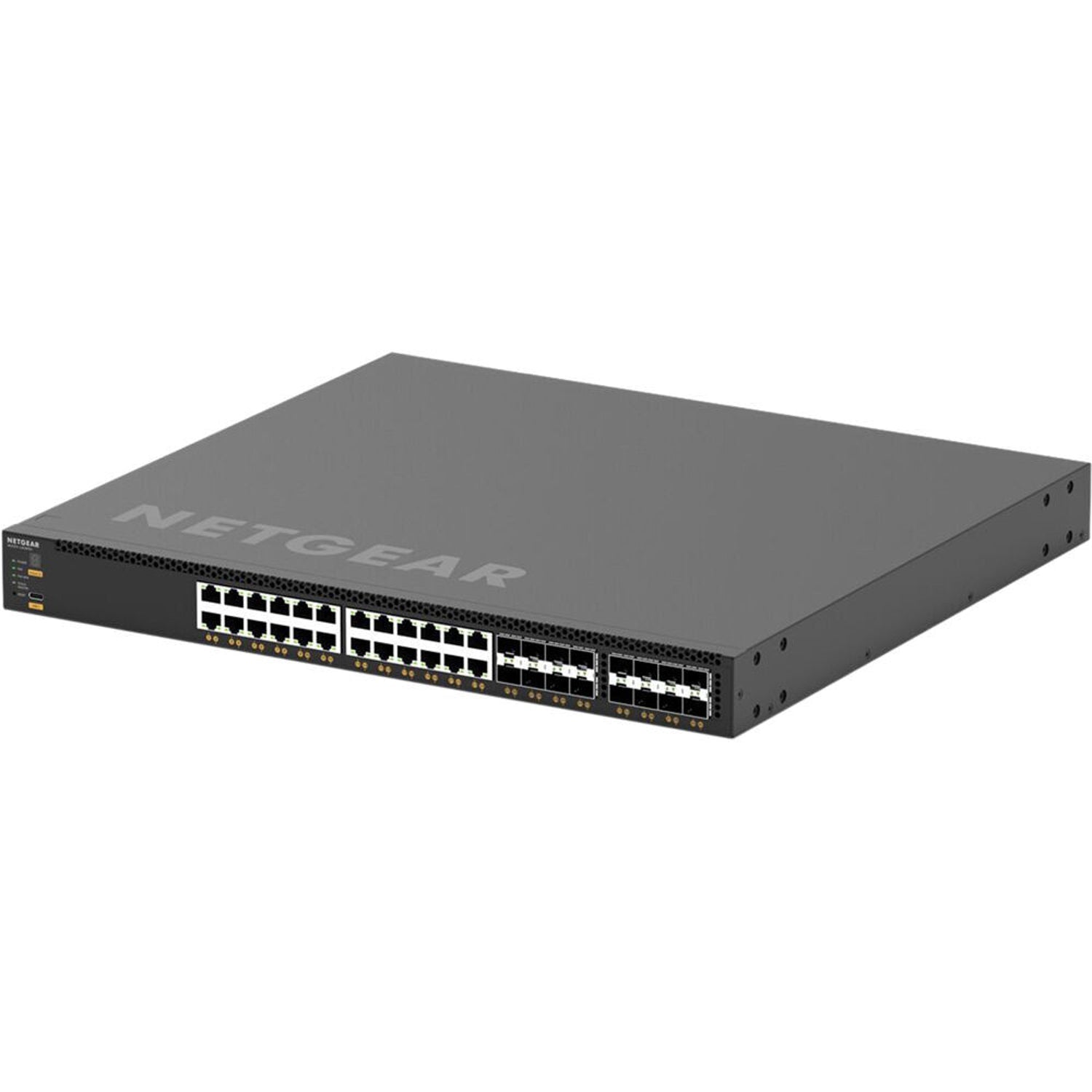

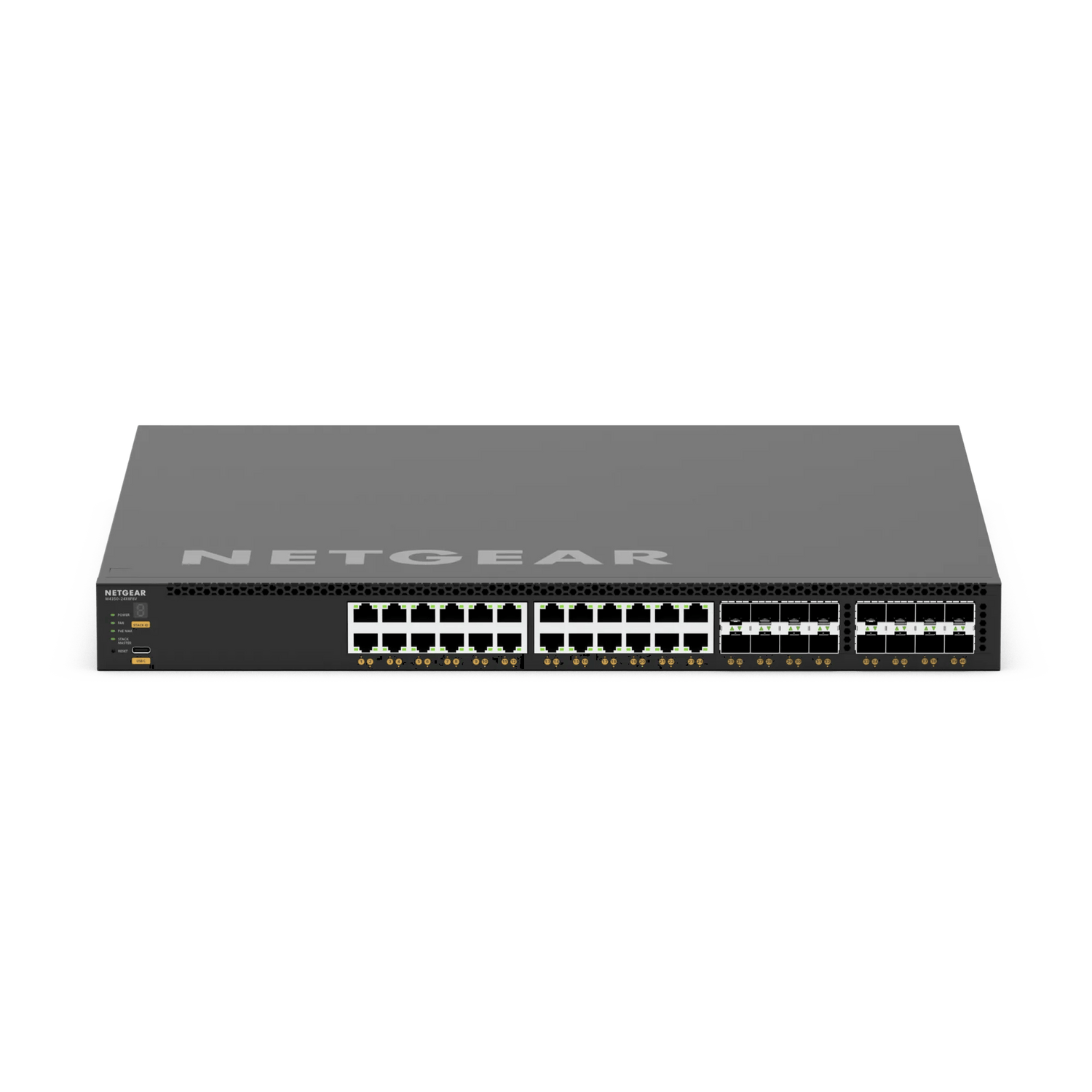

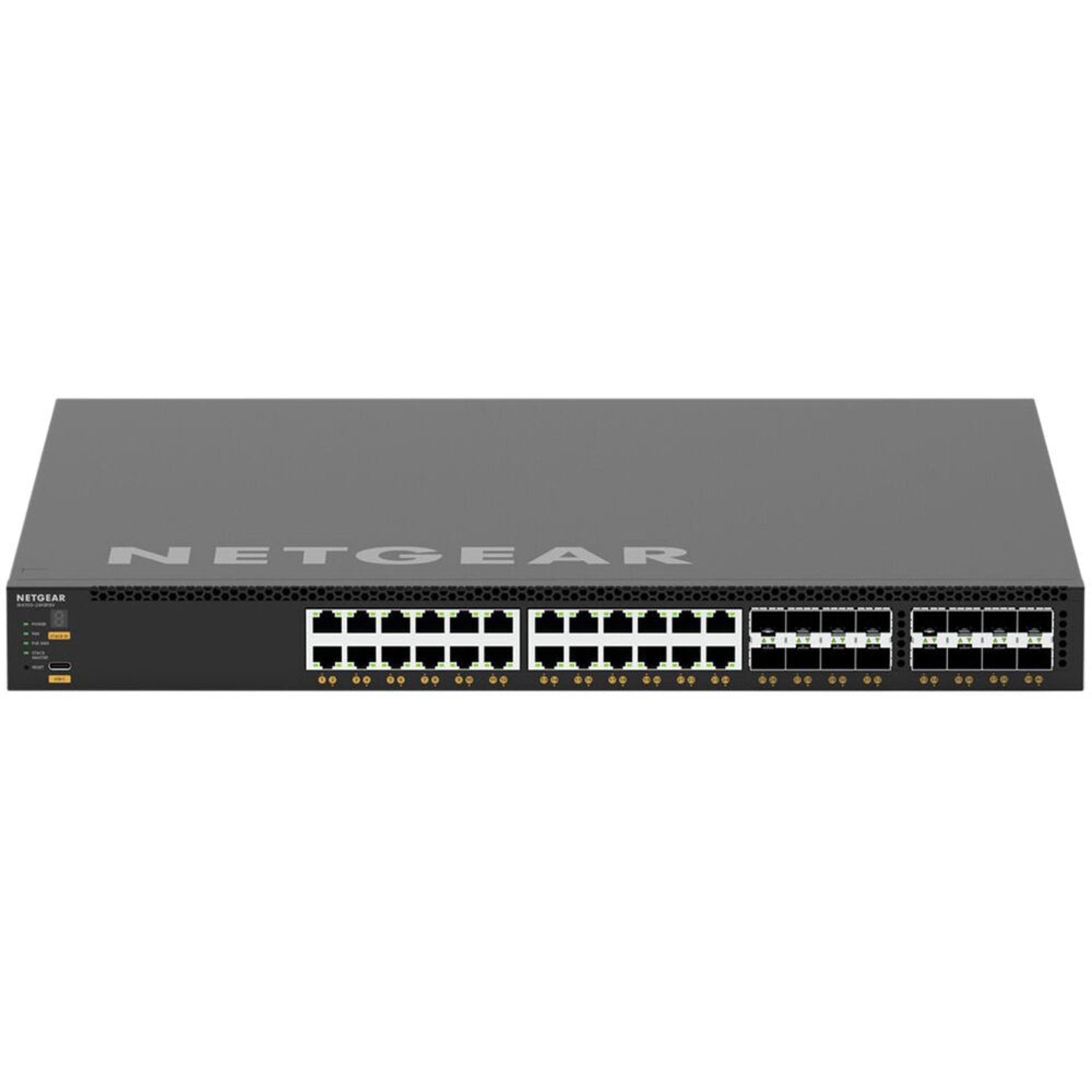

The NETGEAR M4350-24X8F8V is a 40-port, full-width 1U fully managed switch with twenty-four 100M/1G/2.5G/5G/10G copper PoE++ ports (up to 90W per port), eight 10G SFP+ ports (1G also supported on ports 25-28) and eight 10G/25G SFP28 ports. A 1.04 Tbps switching fabric and 773.76 Mpps throughput suit it to mixed copper and fibre AV-over-IP deployments.
PoE Budget Up to 1,770W
A fixed internal 750W power supply provides a 290W PoE budget. One modular power slot accepts an APS600Wv3, APS1200Wv2 or APS2000Wv2 module, raising the PoE budget to up to 1,770W (APS2000Wv2 at 220VAC) or providing 1+1 power redundancy.
Built for AV over IP
NETGEAR IGMP Plus enhanced multicast, the AV-optimised web interface with pre-configured AV profiles and the NETGEAR Engage Controller simplify multicast setup. The switch supports AVB, jumbo frames up to 12KB, and static, policy-based and dynamic routing, all license-free.
Virtual Chassis Stacking
The SFP28 ports can be used for Virtual Chassis stacking with non-stop forwarding and hitless failover, so several switches are managed as one.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-24X8F8V Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-24X8F8V Fully Managed Switch |
| Part Number | XSM4340V-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| 10G Copper PoE++ Ports | 24x 100M/1G/2.5G/5G/10G RJ45, PoE++ up to 90W per port |
| 10G Fibre Ports | 8x 10G SFP+ (1G on ports 25-28 only) |
| 25G Fibre Ports | 8x 10G / 25G SFP28 (each 4-port block runs at one speed: 4x 10G or 4x 25G) |
| Total Ports | 40 |
| Management Ports | USB Type-C console (front), 1G out-of-band port (rear), 2x USB-A storage (rear) |
Performance
| Switching Fabric | 1.04 Tbps |
| Throughput | 773.76 Mpps |
| Latency | <2.7µs at 10G copper, <1.27µs at 10G fibre, <1.09µs at 25G |
| Packet Buffer | 64Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 4GB DDR4 |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IP Multicast Routes | 512 IPv4 / 256 IPv6 |
| IGMP Groups | Up to 12K |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
| Jumbo Frames | Up to 12KB |
Power

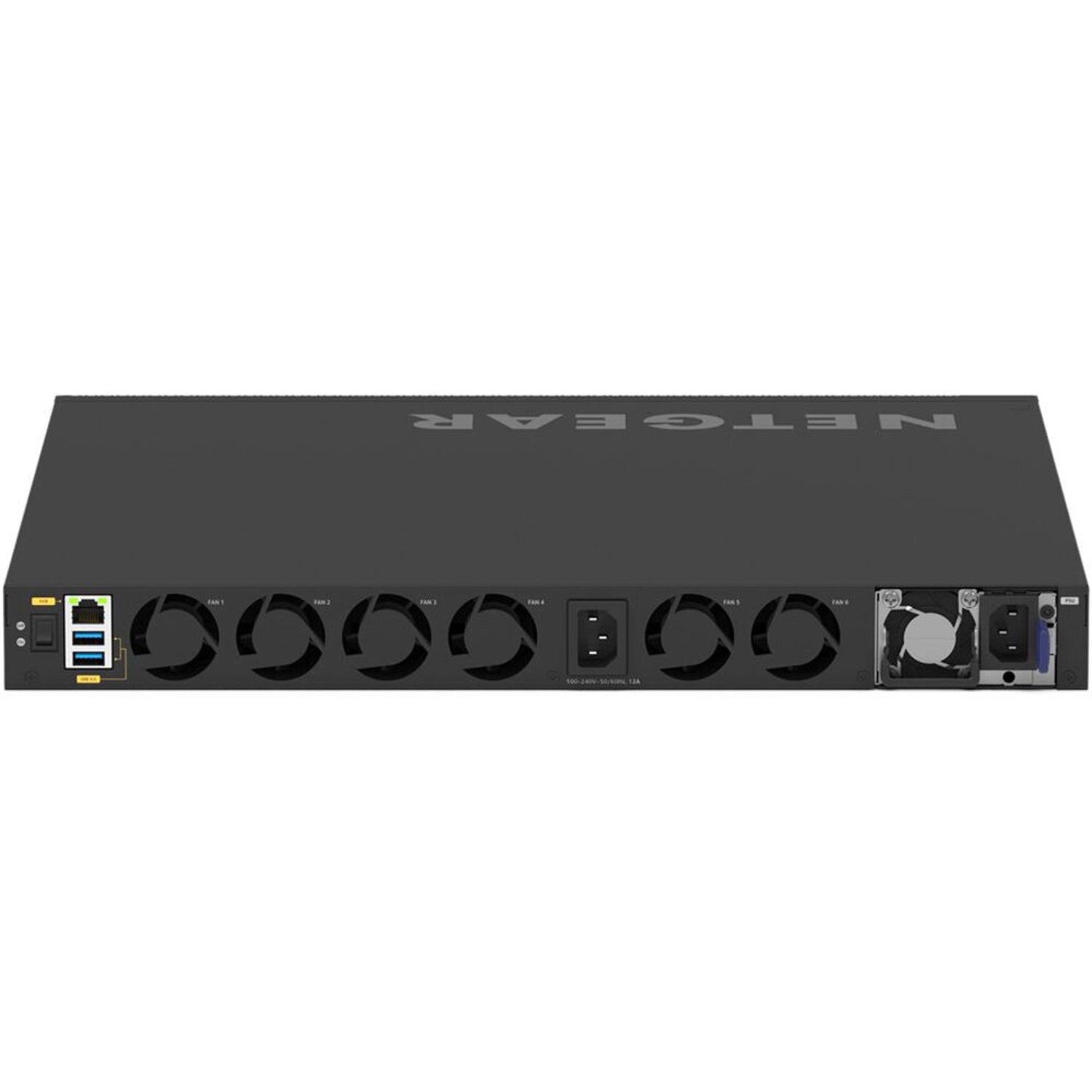

| Power Supply | 1x fixed internal 750W PSU (C14) plus 1x modular PSU slot for 1+1 redundancy or additional PoE budget |
| Compatible Modular PSUs | APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES), APS2000Wv2 (APS2000W-200NES) |
| Power Consumption | With PoE: 464W (1582.24 Btu/hr); without PoE: 151.8W (476.65 Btu/hr); standby: 53.4W (167.68 Btu/hr) |
| PoE | 24x PoE++ (up to 90W per port) |
PoE Budget (per NETGEAR datasheet)
| Internal 750W only | 290W |
| 750W + APS600Wv3 | 650W |
| 750W + APS1200Wv2 | 970W (110VAC) / 1,130W (220VAC) |
| 750W + APS2000Wv2 | 970W (110VAC) / 1,770W (220VAC) |
Physical & Acoustics
| Form Factor | Full-width, 1U rack mount |
| Dimensions (W x H x D) | 440 x 43.2 x 400 mm |
| Weight | 7.24 kg (15.96 lb) |
| Acoustics (Quiet Mode) | 32.6 dBA at 25°C ambient; 53.3 dBA at 45°C ambient |
| Acoustics (Cool Mode) | 53.3 dBA at 60% fan duty |
Compatibility & Software Support
Power Supplies
The modular power slot accepts the following NETGEAR power supplies: APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES) and APS2000Wv2 (APS2000W-200NES). A module adds PoE budget (up to 1,770W in total with an APS2000Wv2 at 220VAC) or provides 1+1 power redundancy with the internal 750W supply, with a 290W redundant PoE budget.
Ports and Modules
The 24 RJ45 ports run at 100M, 1G, 2.5G, 5G and 10G and deliver PoE++ at up to 90W per port. The eight SFP+ ports take 10G SFP+ modules, and ports 25-28 also accept 1G SFP modules. The eight SFP28 ports take 10G SFP+ or 25G SFP28 modules; each 4-port block runs at a single speed, and when a 25G module is inserted, 10G modules in the same block go down. In stacking mode, a 25G port operates at 25G only.
Management
Web browser GUI (HTTPS) including the NETGEAR AV user interface with pre-configured AV profiles, plus CLI via Telnet and SSH, SNMP and MIBs. A USB Type-C console port on the front and a 1G out-of-band management port on the rear are provided.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV Protocols
NETGEAR IGMP Plus enhanced multicast and AVB (IEEE 802.1BA, 802.1AS gPTP, 802.1Qav, 802.1Qat), up to 500 AVB streams per switch. NETGEAR notes that stacking and AVB are mutually exclusive: a stack cannot run AVB. SMPTE ST 2110 Grandmaster and Boundary Clock modes are not listed for this model.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-24X8F8V (XSM4340V) switch, 1x power cord, 1x USB Type-C console cable, 1x standard rack-mount bracket set, 1x set of brackets for recessed mounting, 4x rubber footpads, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) | 24x 1G/2.5G SFP, 4x 10G copper/SFP+ combo |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) (this listing) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| Hardware Installation Guide | NETGEAR M4350 Series Hardware Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-24X8F8V (XSM4340V) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4340V-100NES.
Frequently Asked Questions — NETGEAR M4350-24X8F8V
How much PoE does the M4350-24X8F8V deliver?
All 24 copper ports are PoE++ at up to 90W per port. The internal 750W supply gives a 290W PoE budget; adding a modular PSU raises it to 650W (APS600Wv3), up to 1,130W (APS1200Wv2) or up to 1,770W (APS2000Wv2 at 220VAC).
Which power supplies fit the modular slot?
NETGEAR lists the APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES) and APS2000Wv2 (APS2000W-200NES).
Can the SFP+ ports run at 1G?
Yes, on ports 25-28, per the NETGEAR datasheet.
Does it support SMPTE ST 2110 and AES67 clocking?
No. NETGEAR lists SMPTE ST 2110 Grandmaster and Boundary Clock modes only for other M4350 models, such as the M4350-24F4X and M4350-16M4V. The M4350-24X8F8V supports AVB and NETGEAR IGMP Plus multicast.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
