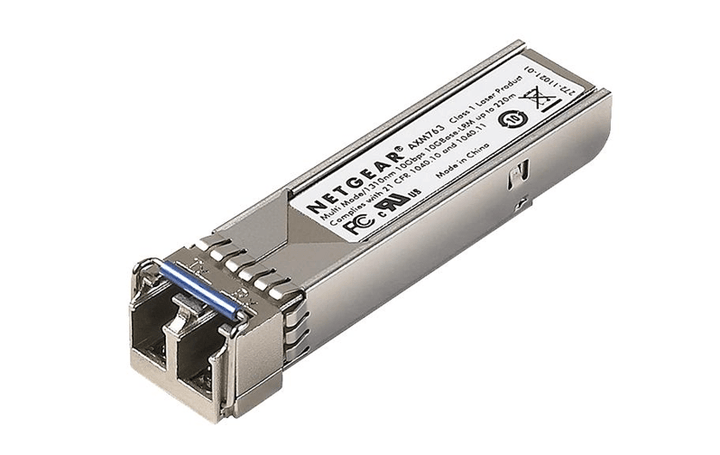

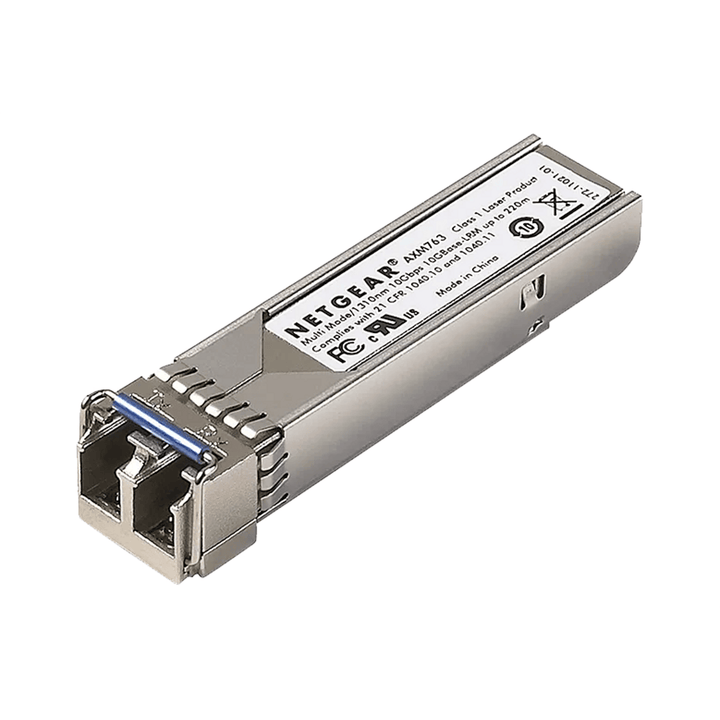

NETGEAR AXM763 10GBASE-LRM SFP+ Multimode Fibre Transceiver Module (LC, 220 m OM1/OM2)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR AXM763 ProSAFE 10GBASE-LRM Multimode SFP+ Module (AXM763-10000S) - 5 Years Local Warranty
10G Over Legacy Multimode Fibre
The NETGEAR AXM763 is a 10GBASE-LRM (IEEE 802.3aq) SFP+ transceiver built for existing multimode cabling. It carries 10 Gigabit Ethernet up to 220 m over 62.5/125 µm OM1/OM2 fibre — far beyond the 33 m that 10GBASE-SR manages on the same legacy fibre.
Up to 260 m on OM3/OM4
On 50/125 µm OM3/OM4 multimode fibre, NETGEAR's current datasheets rate the AXM763 up to 260 m (853 ft). It operates at 1310 nm with a standard LC duplex connector.
Reliable, Hot-Swappable
Power consumption is under 1.5 W and NETGEAR rates the MTBF at 966,837 hours. The module is RoHS compliant, a Class 1 laser product, and can be inserted or removed while the switch is operational.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre grade (OM1–OM4) and link distance and we will confirm the right 10G module.
NETGEAR AXM763 Datasheet — Technical Specifications
General
| Product Name | NETGEAR ProSAFE AXM763 10GBASE-LRM SFP+ Module |
| Part Number | AXM763-10000S |
| Module Type | SFP+, 10 Gigabit Ethernet |
| Local Warranty (Singapore) | 5 Years Local Warranty, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | IEEE 802.3aq, 10GBASE-LRM |
| Wavelength | 1310 nm |
| Fibre Type | Multimode, 62.5/125 µm or 50/125 µm |
| Connector | LC duplex |
Operating Distance
| 62.5/125 µm MMF (OM1/OM2) | Up to 220 m (722 ft) |
| 50/125 µm MMF (OM3/OM4) | Up to 260 m (853 ft) |
Power & Reliability
| Power Consumption | < 1.5 W |
| MTBF | 966,837 hours (110 years) |
Environmental
| Operating Temperature | -5 to 70 °C (23–158 °F) |
| Storage Temperature | -40 to 85 °C (-40–185 °F) |
| Operating Humidity | 85% at 25 °C |
Physical & Compliance
| Dimensions | 11.9 x 13.7 x 55.7 mm (0.46 x 0.53 x 2.19 in) |
| Weight | 18 g |
| Safety | UL 1950, CSA 22.2 No. 950; Class 1 laser product |
| Environmental Compliance | RoHS |
| Installation | Hot-swappable |
Compatibility & Software Support
Supported Switches
NETGEAR states the AXM763 fits the standard SFP+ interfaces of the M4300, M5300, M7100 and M7300 series managed switches, and the SFP+ interfaces of select Smart and Plus switches. It is also listed in the NETGEAR M4250 datasheet and hardware installation guide and the M7100 datasheet. Please confirm your switch model with us before ordering.
Cabling
Use a multimode LC-to-LC duplex fibre cable. 10GBASE-LRM is the NETGEAR option for 10G over older OM1/OM2 fibre where the AXM761 (10GBASE-SR) is limited to 33 m.
Software
No drivers or software are needed — NETGEAR switches detect the module automatically.
For very short 10G links between adjacent racks, NETGEAR direct attach cables are an alternative to a pair of modules: AXC761-10000S (1 m) and AXC763-10000S (3 m).
Package Contents & NETGEAR SFP/SFP+ Module Ordering Information
In the Box
1 x AXM763 SFP+ module.
NETGEAR SFP / SFP+ Modules
| Model | Type / reach (from NETGEAR) | Part No. |
| AGM731F | 1000BASE-SX SFP, multimode, LC, up to 550 m (OM3) | AGM731F |
| AGM732F | 1000BASE-LX SFP, single-mode, LC, up to 10 km | AGM732F |
| AGM734 | 1000BASE-T copper SFP, RJ-45, up to 100 m | AGM734-10000S |
| AXM761 | 10GBASE-SR SFP+, multimode, LC, up to 300 m (OM3) | AXM761-10000S |
| AXM761 (10-pack) | 10 x AXM761 10GBASE-SR SFP+ | AXM761P10-10000S |
| AXM762 | 10GBASE-LR SFP+, single-mode, LC, up to 10 km | AXM762-10000S |
| AXM763 (this listing) | 10GBASE-LRM SFP+ (802.3aq), multimode, LC, up to 220 m (OM1/OM2) or 260 m (OM3/OM4) | AXM763-10000S |
| AXM764 | 10GBASE-LR Lite SFP+, single-mode, LC, up to 2 km | AXM764-10000S |
| AXM765 | 10GBASE-T copper SFP+, RJ-45, up to 80 m (Cat6a or better) | AXM765-20000S |
Datasheet & Downloads
| NETGEAR installation guide / specifications | AXM763 Installation Guide (PDF) |
| NETGEAR M4250 datasheet (module ordering table) | M4250 Series Datasheet (PDF) |
| NETGEAR M7100 datasheet (module ordering table) | M7100 Series Datasheet (PDF) |
| NETGEAR product page | AXM763 on netgear.com |
| NETGEAR support | AXM763 support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AXM763-10000S.
Frequently Asked Questions — NETGEAR AXM763
What is 10GBASE-LRM?
An IEEE 802.3aq standard for 10 Gigabit Ethernet over multimode fibre at 1310 nm, designed to reach further than 10GBASE-SR on legacy OM1/OM2 fibre.
How far can the AXM763 reach?
Per NETGEAR's datasheets: up to 220 m over 62.5/125 µm OM1/OM2 and up to 260 m over 50/125 µm OM3/OM4 multimode fibre.
Should I choose the AXM763 or AXM761?
On OM3/OM4 fibre the AXM761 (10GBASE-SR) reaches further (300 m on OM3, 550 m on OM4). On older OM1/OM2 fibre, where the AXM761 is limited to 33 m, choose the AXM763.
Which switches does it support?
NETGEAR lists the M4250, M4300, M5300, M7100 and M7300 series plus select Smart and Plus switches with SFP+ ports. Email us your switch model to confirm.
What warranty do I get with the AXM763?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
