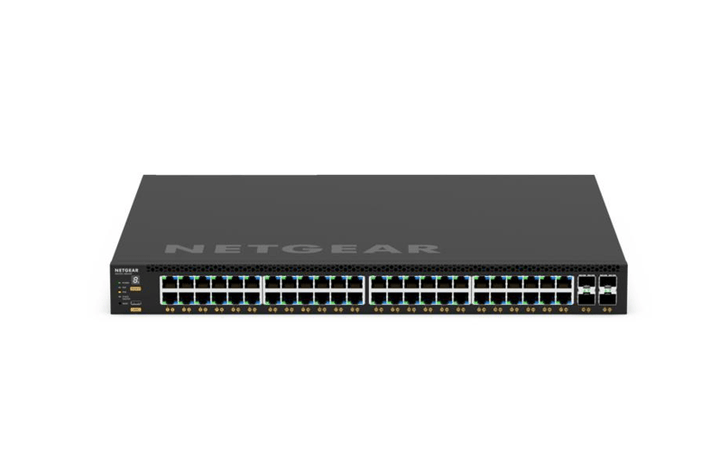

NETGEAR M4350-48G4XF 48-Port Gigabit PoE+ Fully Managed AV Switch with 4 x 10G SFP+
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-48G4XF 48-Port Gigabit PoE+ Fully Managed AV Switch with 4 x 10G SFP+ (GSM4352-100NES) - Limited Lifetime Local Warranty
48 PoE+ Ports, Scalable to 1,440W
The M4350-48G4XF provides 48 Gigabit PoE+ ports at up to 30W each and four 10GBASE-X SFP+ uplinks. The 550W internal power supply gives a 236W PoE budget, and two modular power supply slots let you scale PoE up to 1,440W as your device count grows.
Layer 3 and Virtual Chassis
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover, and the Layer 3 feature set covers static, policy-based and dynamic routing. NETGEAR IGMP Plus handles AV-over-IP multicast with little-to-no setup, AVB is included, and jumbo frames up to 12KB are supported.
Two Slots for Redundancy and EPS
Two modular power supply slots support 1+1 redundancy and/or EPS power sharing. The full-width 1U chassis is only 40cm deep and runs at 33dBA at 25°C in Quiet Mode.
Configured for AV in Minutes
The NETGEAR AV user interface applies certified port profiles for AV protocols, and NETGEAR Engage Controller support speeds up multi-switch AV projects.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-48G4XF Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-48G4XF 48x 1G PoE+ and 4x SFP+ Fully Managed Switch |
| Part Number | GSM4352-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| Copper ports | 48x 10M/100M/1G RJ45 PoE+ |
| Fibre uplinks | 4x 1G/10G SFP+ (10GBASE-X) |
| Management | Industry-standard CLI, NETGEAR IT web GUI and NETGEAR AV user interface; USB-C console (front), 1G out-of-band Ethernet port (rear), 2x USB-A (rear) |
Performance
| Switching fabric | 176Gbps |
| Throughput | 130.94Mpps |
| Latency | <2.20µs (1G); <0.70µs (10G fibre) |
| Packet buffer | 32Mb |
| Memory | 2GB DDR4 |
| Route table | Static: 256 IPv4 / 64 IPv6; RIP: 512; OSPF: 1,024 |
| MAC address table | 16K |
| ARP / NDP | 4K ARP / 512 NDP |
| VLANs | 4K |
| IGMP multicast groups | Up to 12K |
| CPU | Quad-Core Cortex-A57 ARMv8 1.8GHz 64-bit |
Layer 3 & AV Features
| Routing | Layer 3: static, policy-based and dynamic routing (RIP, OSPF), VRRP; IPv4 and IPv6 |
| Multicast | NETGEAR IGMP Plus |
| AVB | Included |
| Jumbo frames | Up to 12KB |
| Stacking | Virtual Chassis with non-stop forwarding (NSF) and hitless failover |
PoE
| PoE standard | PoE+ (up to 30W per port) on all 48 copper ports |
| PoE budget | 236W base; up to 1,440W with modular PSUs |
| Budget with one modular PSU (datasheet) | + APS350W: 436W; + APS600Wv2: 636W; + APS920W: 892W; + APS2000W: 956W (110VAC) / 1,440W (220VAC) |
Power
| Internal power supply | 550W fixed (C14) |
| Modular PSU slots | 2 (1+1 redundancy and/or EPS share) |
| Compatible PSUs | APS350Wv1, APS600Wv2, APS920Wv1, APS2000Wv1 |
| Power consumption | 348W with PoE; 99W without PoE; 48.5W standby (per NETGEAR product page) |
Physical & Environmental
| Form factor | Full-width 1U rack mount |
| Dimensions (W x D x H) | 440 x 400 x 43.2mm |
| Weight | 7.19kg (15.85lb) (per NETGEAR product page) |
| Cooling | Front-to-back airflow, 4 fans |
| Acoustics (Quiet Mode) | 33dBA at 25°C (28% fan duty); 52dBA at 45°C (60% fan duty) |
Compatibility & Software Support
Management & AV Software
Configure the switch through the NETGEAR AV user interface (port profiles for AV protocols, colour-matched port LEDs), the main NETGEAR IT web GUI or the industry-standard CLI. NETGEAR states the M4350 works with NETGEAR Engage Controller for centralised AV project management. NETGEAR IGMP Plus provides out-of-the-box multicast for AV over IP.
Modular Power Supplies
NETGEAR lists these power supplies as compatible with this model: APS350Wv1 (APS350W-100NES), APS600Wv2 (APS600W-200NES), APS920Wv1 (APS920W-100NES), APS2000Wv1 (APS2000W-100NES).
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-48G4XF switch, 1x power cord, 1x USB Type-C console cable, rack-mounting standard bracket set, set of longer brackets for recessed mounting, 4x rubber footpads for tabletop installation, installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (incl. 8x Neutrik etherCON), 4x 25G SFP28 |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 10G PoE++, 4x 25G SFP28 |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G SFP28 |
| M4350-24F4X (MSM4328F-100NES) | 24x 1G/2.5G SFP, 4x 10G |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G SFP+ |
| M4350-48G4XF (GSM4352-100NES) (this listing) | 48x 1G PoE+, 4x 10G SFP+ |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G SFP28 |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G SFP+, 4x 25G SFP28 |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G SFP28 |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G SFP+, 8x 25G SFP28 |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G SFP+, 8x 25G SFP28 |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G QSFP28 |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G SFP+, 4x 100G QSFP28 |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G SFP28, 4x 100G QSFP28 |
| M4350-16C (CSM4316-100NES) | 16x 100G QSFP28 |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Hardware Installation Guide | M4350 Series Hardware Installation Guide (PDF) |
| User Manual | M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-48G4XF (GSM4352) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GSM4352-100NES.
Frequently Asked Questions — NETGEAR M4350-48G4XF
How much PoE power does the M4350-48G4XF provide?
236W from the internal 550W power supply. Adding modular power supplies raises the budget, up to 1,440W, with up to 30W (PoE+) per port.
Which power supply do I need for full PoE+ on all 48 ports?
48 ports at 30W needs 1,440W. Per the NETGEAR datasheet, one APS2000W on 220VAC brings the budget to 1,440W; email us to confirm the right PSU combination for your load.
What uplinks does it have?
Four SFP+ ports supporting 1G and 10G (10GBASE-X).
Is it suitable for AV over IP?
Yes. NETGEAR IGMP Plus, AVB support, the AV user interface and 12KB jumbo frames are included, and it works with NETGEAR Engage Controller.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
