NETGEAR M4350-40F4C 40-Port 10G SFP+ Fully Managed Switch with 4 x 100G QSFP28
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-40F4C 40x 10G SFP+ and 4x 100G Fully Managed Switch (XSM4344FC-100NES) - Limited Lifetime Local Warranty

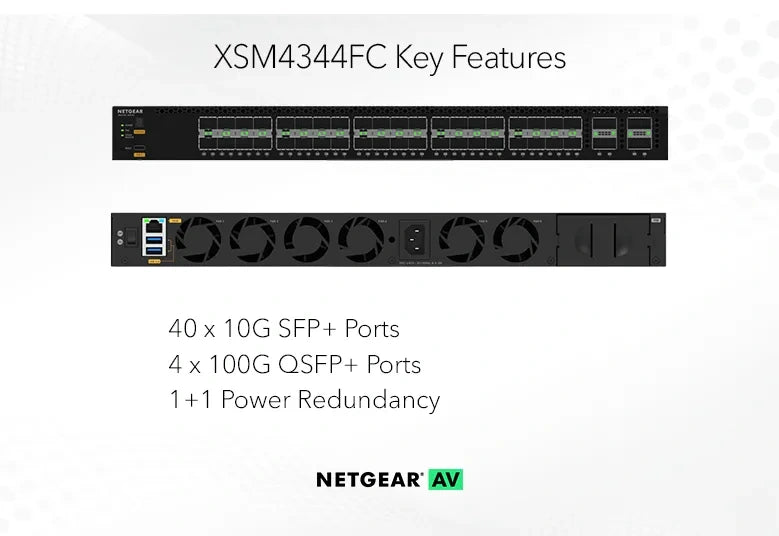

40 SFP+ Fibre Ports with 100G Uplinks

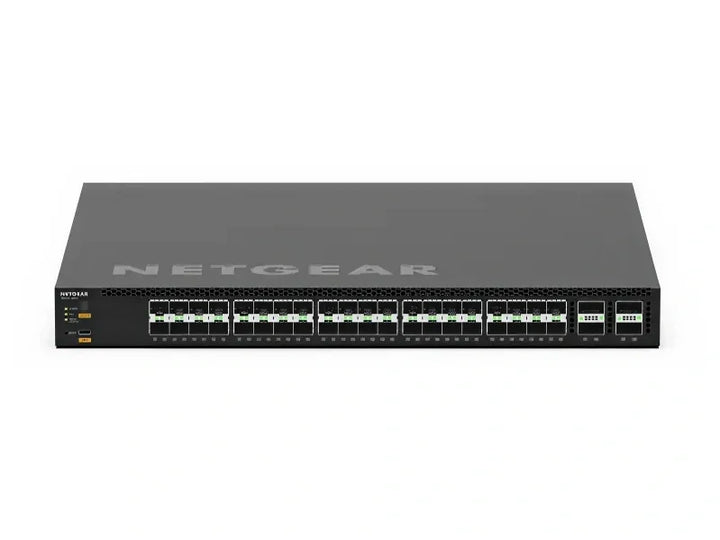

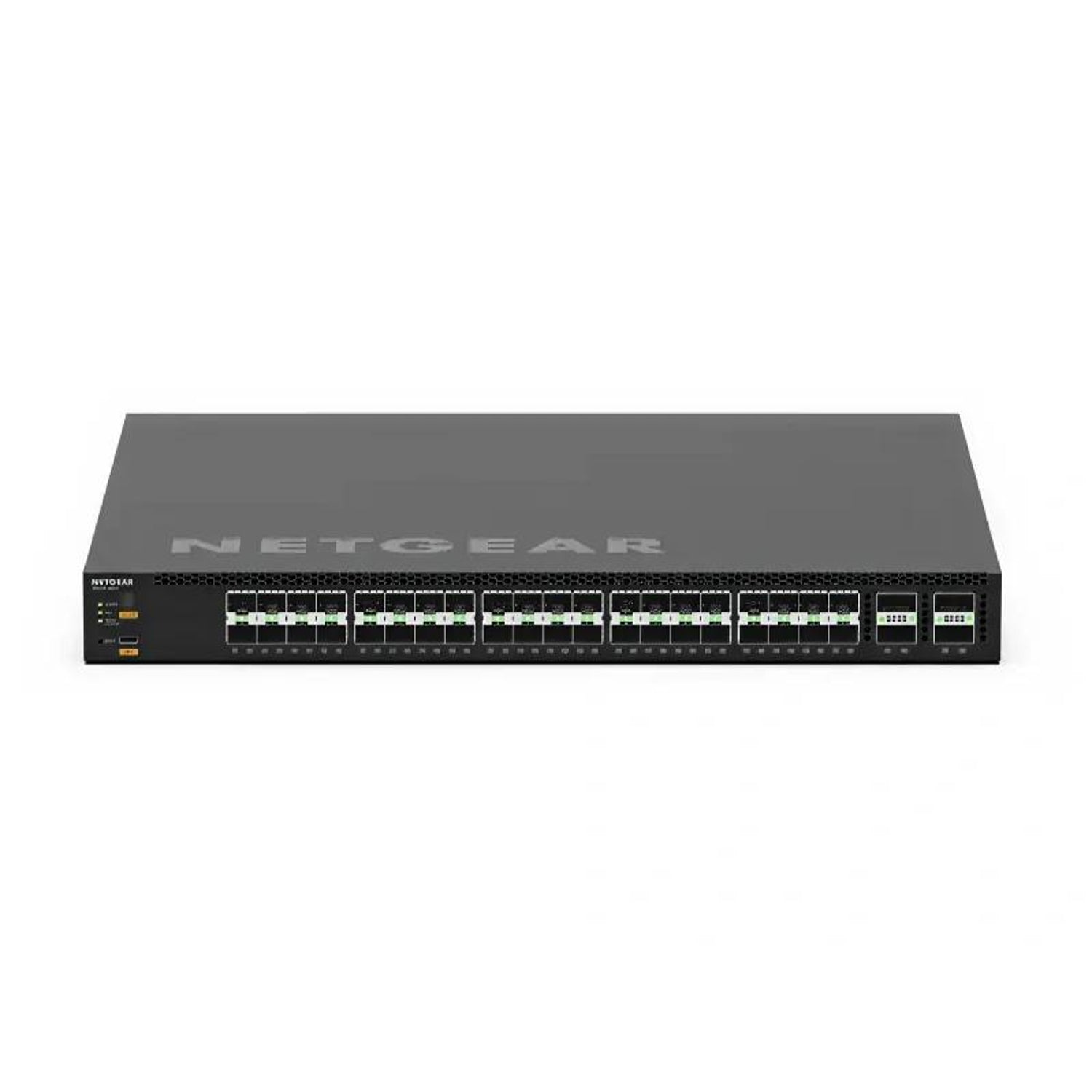

The NETGEAR M4350-40F4C is a 44-port, full-width 1U fully managed switch with forty 10G SFP+ ports and four 40G/100G QSFP28 ports. A 1.6 Tbps switching fabric, 1190.4 Mpps throughput and a 256Mb packet buffer suit it to fibre aggregation and AV-over-IP distribution cores.
Redundant Power
A fixed internal 420W power supply runs the switch, and a modular power slot accepts an APS600Wv3, APS1200Wv2 or APS2000Wv2 module for 1+1 power redundancy.
Built for AV and Broadcast over IP
NETGEAR IGMP Plus enhanced multicast, the AV-optimised web interface with pre-configured AV profiles and the NETGEAR Engage Controller simplify multicast setup. The switch supports AVB, SMPTE ST 2110 Grand Master and Boundary Clock, jumbo frames up to 12KB, and static, policy-based and dynamic routing.
Virtual Chassis Stacking
The QSFP28 ports can be used for Virtual Chassis stacking at 100G with non-stop forwarding and hitless failover, so several switches are managed as one.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-40F4C Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-40F4C Fully Managed Switch |
| Part Number | XSM4344FC-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| 10G Fibre Ports | 40x 10G SFP+ |
| 100G Fibre Ports | 4x 40G/100G QSFP28 (100G in stacking mode) |
| Total Ports | 44 |
| Management Ports | USB Type-C console (front), 1G out-of-band port (rear), 2x USB 3.0 (rear) |
Performance
| Switching Fabric | 1.6 Tbps |
| Throughput | 1190.4 Mpps |
| Latency | <1.20µs at 10G fibre, <1.30µs at 100G |
| Packet Buffer | 256Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 4GB |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IGMP Groups | 2K IPv4 / 2K IPv6 |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
| Jumbo Frames | Up to 12KB |
Power

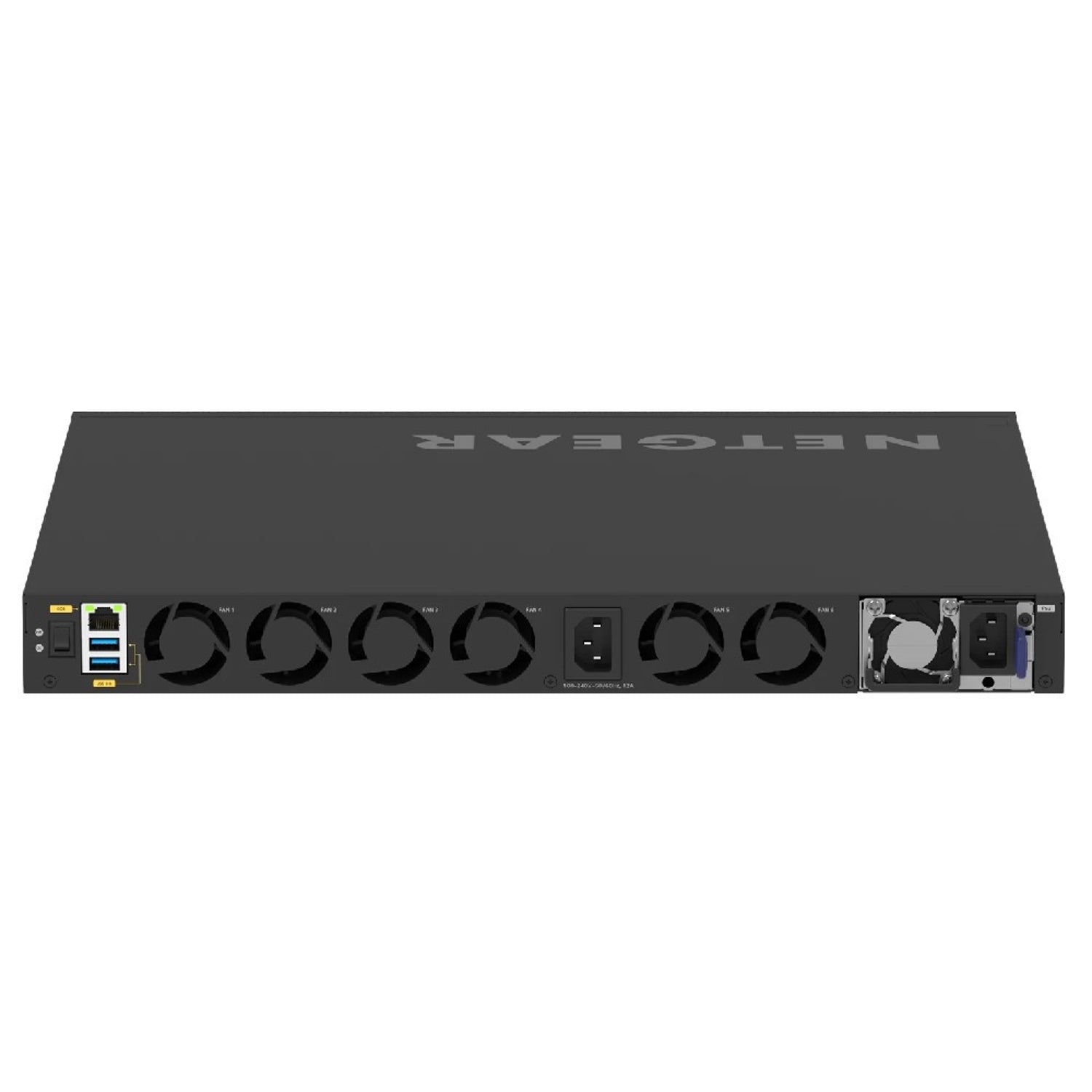

| Power Supply | 1x fixed internal 420W PSU (C14) plus 1x modular PSU slot for 1+1 redundancy |
| Compatible Modular PSUs | APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES), APS2000Wv2 (APS2000W-200NES) |
| Power Consumption | Max: 213.6W (728.21 Btu/hr); standby: 65W (221.12 Btu/hr) |
| PoE | Not supported |
Physical & Acoustics
| Form Factor | Full-width, 1U rack mount, front-to-back airflow |
| Dimensions (W x H x D) | 440 x 43.2 x 400 mm |
| Weight | 7.38 kg (16.26 lb) |
| Acoustics (Quiet Mode) | 34 dBA at 25°C ambient |
Compatibility & Software Support
Power Supplies
The modular power slot accepts the following NETGEAR power supplies: APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES) and APS2000Wv2 (APS2000W-200NES). Any of these, together with the internal 420W supply, gives 1+1 power redundancy.
Fibre Ports
The 40 SFP+ ports take 10G SFP+ modules. The four QSFP28 ports take 40G QSFP+ or 100G QSFP28 modules; in stacking mode they run at 100G.
Management
Web browser GUI (HTTPS) including the NETGEAR AV user interface with pre-configured AV profiles, plus CLI via Telnet and SSH, SNMP and MIBs. A USB Type-C console port on the front and a 1G out-of-band management port on the rear are provided.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV and Broadcast Protocols
NETGEAR IGMP Plus enhanced multicast and AVB, up to 500 AVB streams per switch (AVB is not available in stacking mode). NETGEAR lists SMPTE ST 2110 Grand Master Clock and Boundary Clock support for AES67 and ST 2059-2 applications on this model.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-40F4C (XSM4344FC) switch, 1x power cord, 1x USB Type-C console cable, 1x standard rack-mount bracket set, 1x set of longer brackets for recessed mounting, 4x rubber footpads, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) | 24x 1G/2.5G SFP, 4x 10G copper/SFP+ combo |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) (this listing) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| Hardware Installation Guide | NETGEAR M4350 Series Hardware Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-40F4C (XSM4344FC) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4344FC-100NES.
Frequently Asked Questions — NETGEAR M4350-40F4C
Does the M4350-40F4C support PoE?
No. It is an all-fibre switch without PoE. For 40 Multi-Gig PoE++ copper ports with the same 100G uplinks, see the M4350-40X4C (XSM4344C).
Can the QSFP28 ports run at 40G?
Yes. The four QSFP28 ports support 40G and 100G. They can also be used for Virtual Chassis stacking at 100G.
Does it have redundant power?
Yes. It has a fixed internal 420W power supply and one modular slot for an APS600Wv3, APS1200Wv2 or APS2000Wv2 module, giving 1+1 redundancy.
Does it support SMPTE ST 2110 and AES67 clocking?
Yes. NETGEAR lists SMPTE ST 2110 Grand Master Clock and Boundary Clock support for AES67 and ST 2059-2 applications on the M4350-40F4C.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
