NETGEAR AXM765v2 10GBASE-T Copper SFP+ Transceiver Module (RJ-45, 80 m)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR AXM765v2 10GBASE-T Copper SFP+ Module (AXM765-20000S) - 5 Years Local Warranty
10G Copper in an SFP+ Port

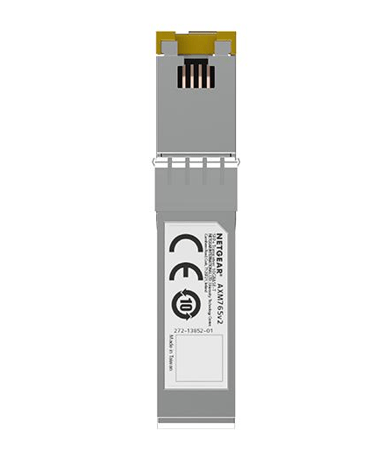

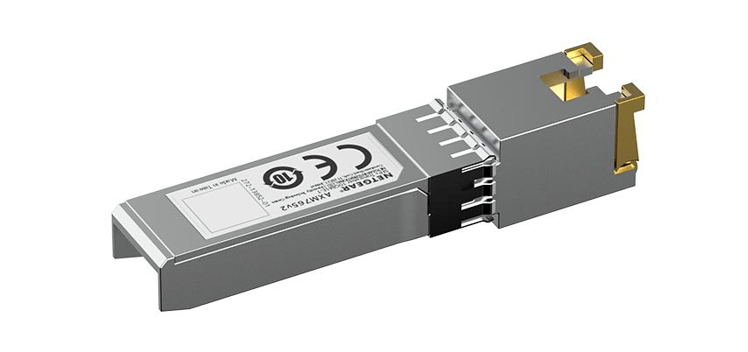

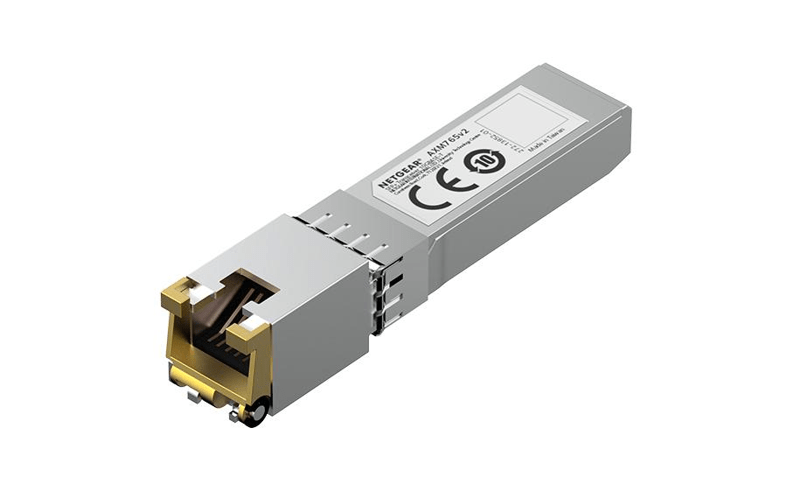

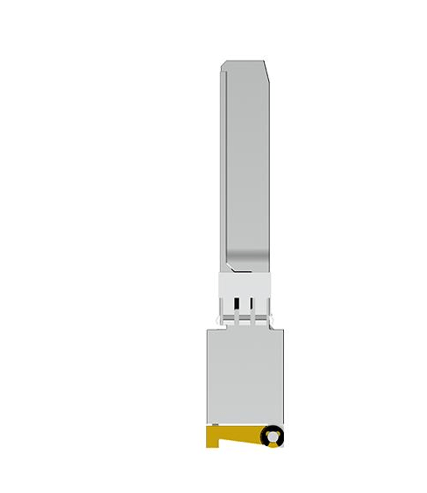

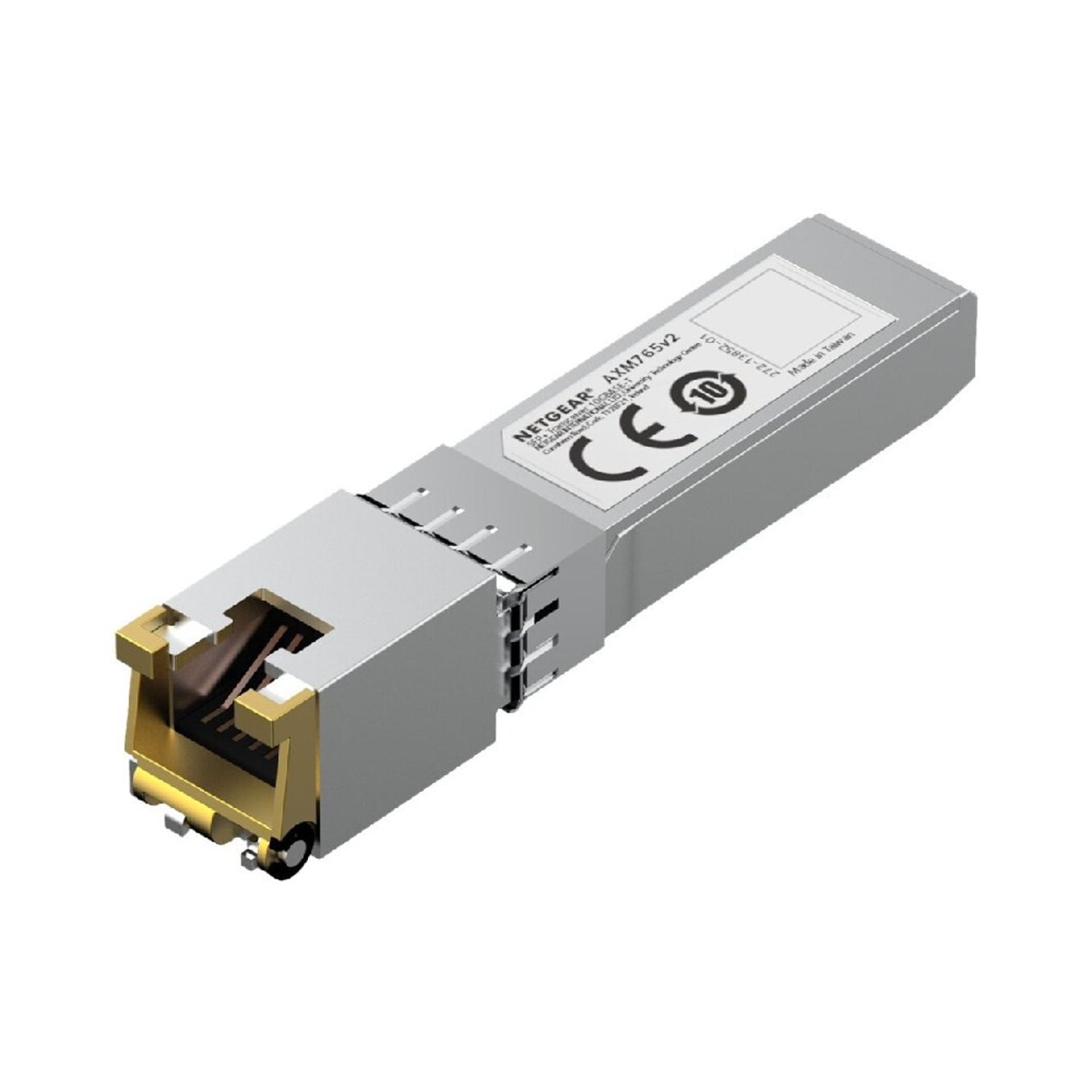

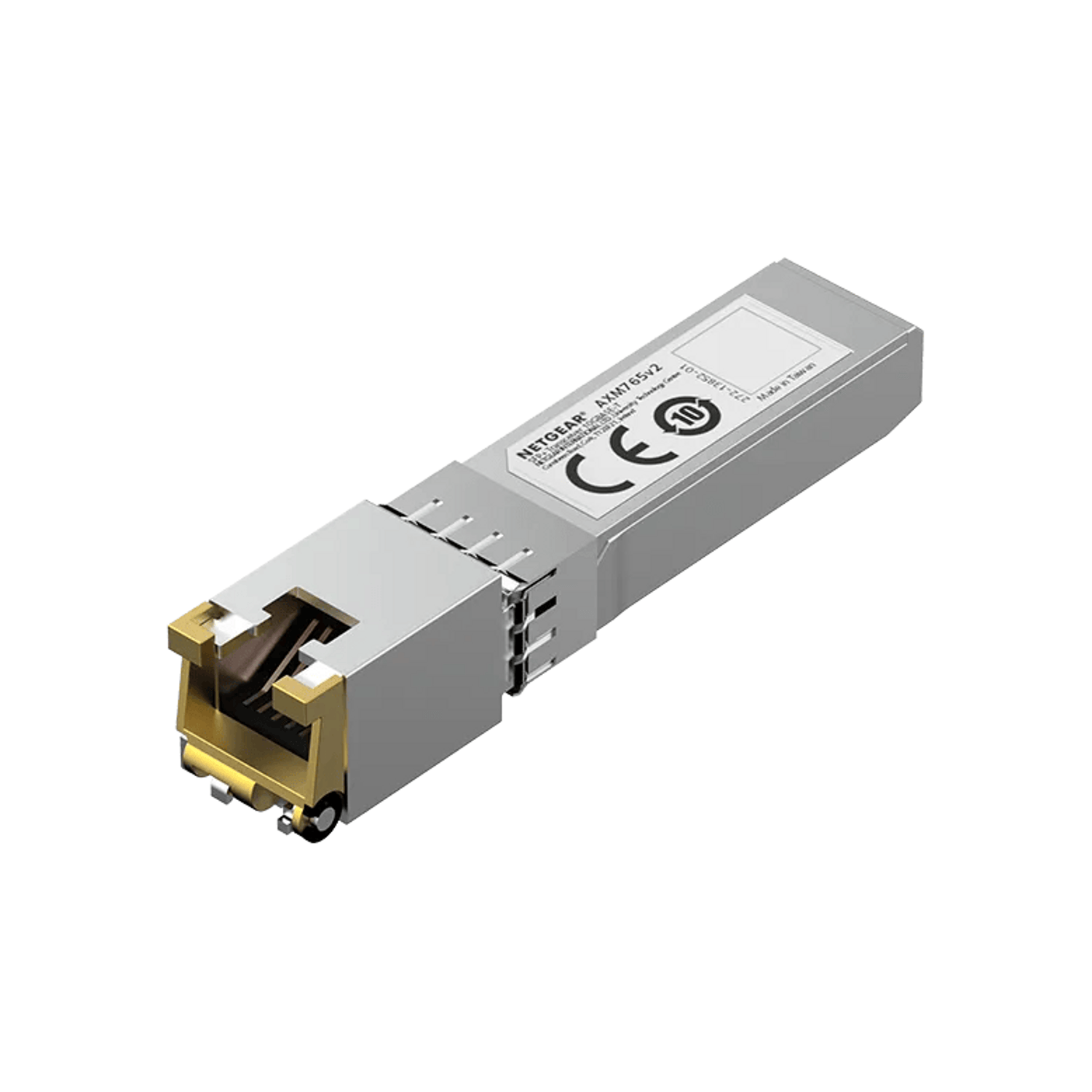

The NETGEAR AXM765v2 (AXM765-20000S) is a 10GBASE-T SFP+ transceiver with an RJ-45 connector. It adds 10G copper connectivity to switch fibre interfaces, so you can connect 10GBASE-T servers, NAS units or switches to an SFP+ port.
Up to 80 m on Cat6a
This current version reaches up to 80 m (262 ft) over Cat6a or Cat7 cabling — well beyond the 30 m of the original AXM765. It complies with IEEE 802.3an and the SFF-8431/SFF-8432 SFP+ MSA.
For M4250, M4300 and M4500
NETGEAR states the AXM765v2 fits the SFP+ or SFP28 interfaces of its M4250, M4300 and M4500 managed switches. The module draws 2.5 W, is hot-swappable and is detected automatically by the switch.
Need help choosing? Email sales@sourceit.com.sg with your switch model, cable category and run length and we will confirm the right 10G copper or fibre option.
NETGEAR AXM765 Datasheet — Technical Specifications
General
| Product Name | NETGEAR AXM765v2 10GBASE-T SFP+ Module |
| Part Number | AXM765-20000S |
| Module Type | SFP+, 10 Gigabit Ethernet (1 port) |
| Local Warranty (Singapore) | 5 Years Local Warranty, supplied by SourceIT with a GST invoice |
Copper Interface
| Standard | IEEE 802.3an, 10GBASE-T |
| MSA Compliance | SFF-8431, SFF-8432 |
| Connector | RJ-45 |
| Cabling | Cat6a or Cat7 |
| Maximum Distance | Up to 80 m (262.5 ft) |
Power
| Power Consumption | 2.5 W |
Environmental
| Operating Temperature | 0 to 40 °C (32–104 °F) |
| Operating Humidity | 85% at 25 °C (77 °F) |
Physical & Compliance
| Dimensions | 13.8 x 13.7 x 68.8 mm (0.54 x 0.54 x 2.71 in) |
| Weight | 14.17 g (0.5 oz) |
| Safety | IEC/EN 60950-1, UL 60950 |
| Environmental Compliance | RoHS |
| Installation | Hot-swappable |
Compatibility & Software Support
Supported Switches
NETGEAR states the AXM765v2 fits the SFP+ or SFP28 interfaces of the M4250, M4300 and M4500 managed switches. The AXM765-20000S is listed in the NETGEAR M4250 datasheet ordering table ("conveniently adds 10G copper connectivity to M4250 fibre interfaces"). Please confirm your switch model with us before ordering.
Version Note
The AXM765-20000S is the AXM765v2. The original AXM765 (AXM765-10000S) was rated for 30 m on Cat6a; the v2 is rated for 80 m on Cat6a/Cat7. Note that the v2 installation guide specifies an operating temperature of 0–40 °C.
Software
No drivers or software are needed — the switch detects the module automatically.
Alternatives
For Gigabit copper in an SFP port, see the AGM734 (1000BASE-T). For longer runs, use fibre modules such as the AXM761 (10GBASE-SR).
For very short 10G links between adjacent racks, NETGEAR direct attach cables are an alternative to a pair of modules: AXC761-10000S (1 m) and AXC763-10000S (3 m).
Package Contents & NETGEAR SFP/SFP+ Module Ordering Information
In the Box
1 x AXM765v2 SFP+ module.
NETGEAR SFP / SFP+ Modules
| Model | Type / reach (from NETGEAR) | Part No. |
| AGM731F | 1000BASE-SX SFP, multimode, LC, up to 550 m (OM3) | AGM731F |
| AGM732F | 1000BASE-LX SFP, single-mode, LC, up to 10 km | AGM732F |
| AGM734 | 1000BASE-T copper SFP, RJ-45, up to 100 m | AGM734-10000S |
| AXM761 | 10GBASE-SR SFP+, multimode, LC, up to 300 m (OM3) | AXM761-10000S |
| AXM761 (10-pack) | 10 x AXM761 10GBASE-SR SFP+ | AXM761P10-10000S |
| AXM762 | 10GBASE-LR SFP+, single-mode, LC, up to 10 km | AXM762-10000S |
| AXM763 | 10GBASE-LRM SFP+ (802.3aq), multimode, LC, up to 220 m (OM1/OM2) or 260 m (OM3/OM4) | AXM763-10000S |
| AXM764 | 10GBASE-LR Lite SFP+, single-mode, LC, up to 2 km | AXM764-10000S |
| AXM765 (this listing) | 10GBASE-T copper SFP+, RJ-45, up to 80 m (Cat6a or better) | AXM765-20000S |
Datasheet & Downloads
| NETGEAR installation guide / specifications (v2) | AXM765v2 Installation Guide (PDF) |
| NETGEAR M4250 datasheet (module ordering table) | M4250 Series Datasheet (PDF) |
| NETGEAR product page | AXM765 on netgear.com |
| NETGEAR support | AXM765v2 support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AXM765-20000S.
Frequently Asked Questions — NETGEAR AXM765
Is the AXM765-20000S the AXM765v2?
Yes. NETGEAR datasheets list the AXM765v2 10GBASE-T SFP+ RJ45 transceiver (80 m) under part number AXM765-20000S.
How far can the AXM765v2 reach?
Up to 80 m (262.5 ft) over Cat6a or Cat7 cabling.
Which switches does it support?
NETGEAR lists the SFP+ or SFP28 interfaces of the M4250, M4300 and M4500 managed switches. Email us your switch model to confirm.
How much power does it use?
2.5 W per module, per the NETGEAR installation guide. Operating temperature is 0–40 °C.
What warranty do I get with the AXM765?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
