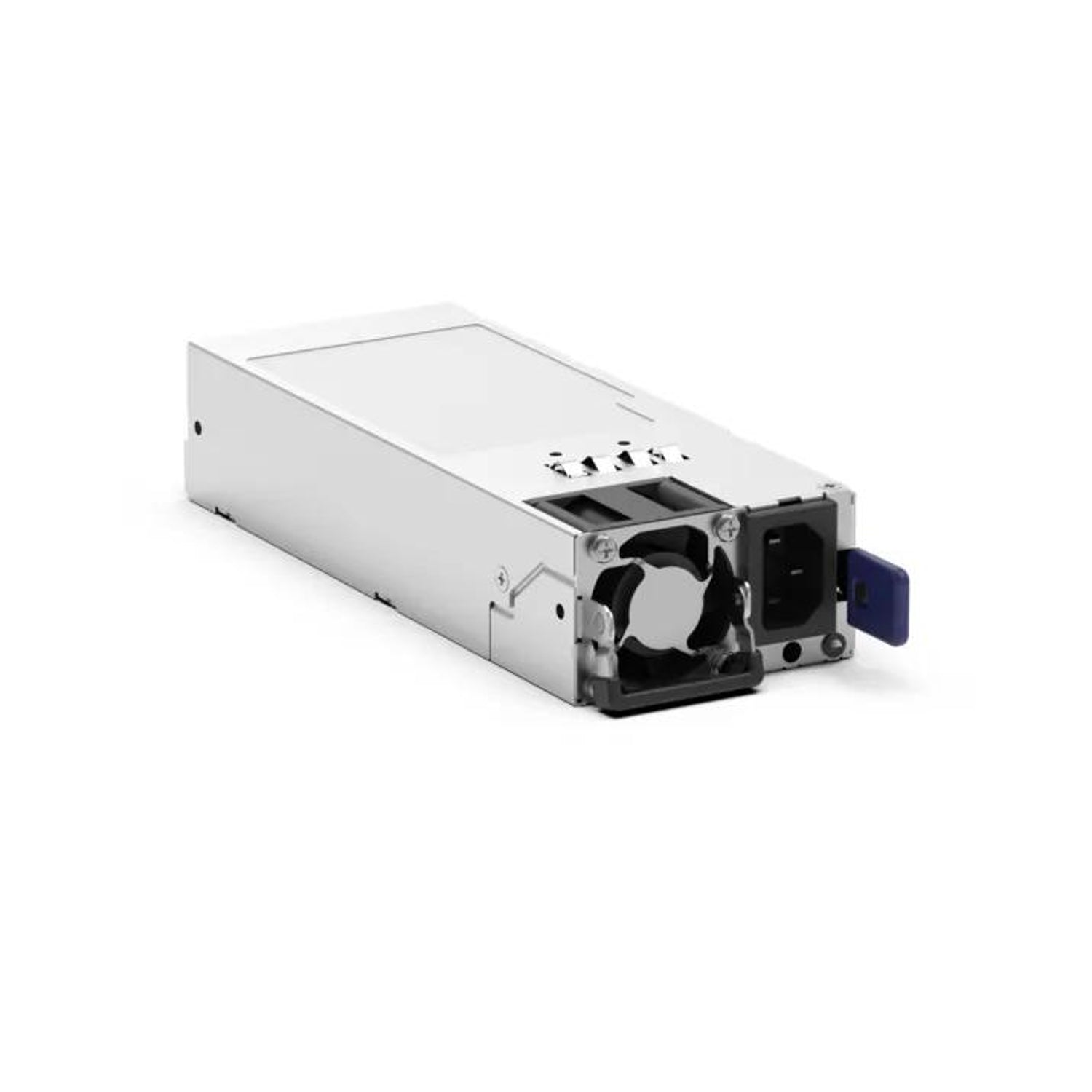

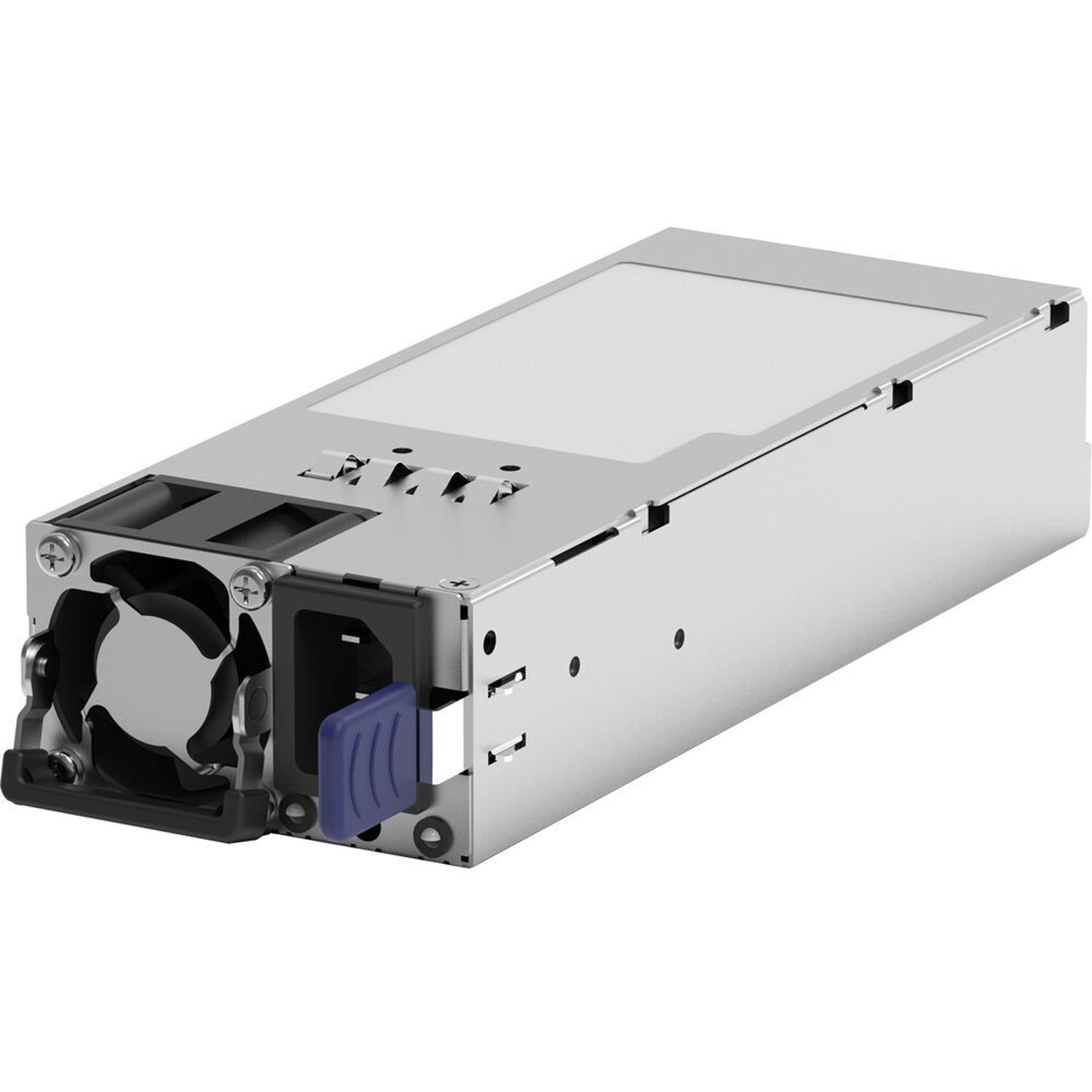

NETGEAR APS600Wv2 600W Modular Power Supply Unit for M4350 Switches
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR APS600Wv2 600W Modular Power Supply Unit for M4350 Switches (APS600W-200NES) - 2 Years Local Warranty
Auxiliary Power for Five M4350 Models
The NETGEAR APS600Wv2 is a 600W auxiliary power supply (APS) for the NETGEAR M4350 fully managed switches. NETGEAR lists it for the M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V and M4350-24F4V. It takes 110–240V AC input through a C14 connector and delivers up to 600W output.
Hot-Pluggable in Multi-PSU Switches
NETGEAR states that in models with more than one APS the power supplies are hot-pluggable, so a unit can be replaced without powering down the switch. In a switch with a single APS, power the switch down before replacing it.
Choose the Right Version
M4350 power supplies come in versions for different switch groups. The APS600Wv2 is part of the group APS350W, APS600Wv2 (APS600W-200NES), APS920W and APS2000W (v1). The APS600Wv3, APS1200Wv2 and APS2000Wv2 serve the other M4350 models — check the Compatibility section before ordering.
Not sure which PSU your switch needs? Email sales@sourceit.com.sg with your switch model and SKU and we will confirm it for you.
NETGEAR APS600Wv2 Datasheet — Technical Specifications
General
| Product Name | NETGEAR APS600Wv2 600W Modular Power Supply Unit |
| Part Number | APS600W-200NES |
| Local Warranty (Singapore) | 2 years, supplied by SourceIT with a GST invoice |
Electrical
| AC input | 100–127VAC, 9A / 200–240VAC, 5A, 50–60 Hz |
| DC output | +56VDC, 11A |
| Output power (per netgear.com) | Up to 600W at 110/220V AC |
| AC connector (per netgear.com) | C14 |
Physical
| Form factor | Modular, slide-in auxiliary power supply (APS) |
| Hot-swap | Supported in models with more than one APS |
| Dimensions (per installation guide) | 40 x 73 x 185 mm (1.6 x 2.9 x 7.3 in) |
| Weight (per netgear.com) | 0.793 kg |
Environmental
| Operating temperature | –5°C to +55°C (23°F to 131°F) |
| Operating humidity | 5% to 90% relative humidity |
| MTBF | Minimum 200,000 hours at continuous operation |
LED Indicators
| DC OK solid green, AC OK solid green | DC output is present and voltage is good |
| DC OK blinking green, AC OK solid green | AC power is present but DC output is for standby only |
| DC OK solid red, AC OK solid green | A power supply failure occurred |
| DC OK solid green, AC OK blinking red | Loss of AC power occurred or AC power is not present |
Compatibility & Software Support
Compatible NETGEAR switches
Per the NETGEAR installation guide: M4350-24G4XF (GSM4328), M4350-48G4XF (GSM4352), M4350-44M4X4V (MSM4352), M4350-24X4V (XSM4328CV), M4350-24F4V (XSM4328FV).
Not for these models
The APS600Wv2 is not listed for M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C. Those models use the APS600Wv3, APS1200Wv2 or APS2000Wv2.
PoE budget
The PoE budget available depends on the switch model and its power supply combination. See the PoE power tables in the NETGEAR M4350 Series Datasheet (see Datasheet & Downloads).
Package Contents & M4350 Power Supply Ordering Information
In the Box
Auxiliary power supply, power cord (varies by region) and installation guide.
NETGEAR M4350 Auxiliary Power Supplies
| PSU | Used in (M4350) |
| APS350W (APS350W-100NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS600Wv2 (APS600W-200NES) (this listing) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS920W (APS920W-100NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS2000W (v1) (APS2000W-100NES) | M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V |
| APS600Wv3 (APS600W-300NES) | M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C |
| APS1200Wv2 (APS1200W-200NES) | M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C |
| APS2000Wv2 (APS2000W-200NES) | M4350-24X8F8V, M4350-36X4V, M4350-32F8V, M4350-16V4C, M4350-40X4C, M4350-24M4X4V, M4350-24F4X, M4350-40F4C |
Datasheet & Downloads
| Installation guide | NETGEAR Auxiliary Power Supplies APS350W / APS600Wv2 / APS920W / APS2000W Installation Guide (PDF) |
| M4350 datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| NETGEAR product page | APS600Wv2 on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting APS600W-200NES.
Frequently Asked Questions — NETGEAR APS600Wv2
Which switches use the APS600Wv2?
M4350-24G4XF, M4350-48G4XF, M4350-44M4X4V, M4350-24X4V, M4350-24F4V.
Can I replace it while the switch is running?
Yes, in switches running on more than one APS — NETGEAR states the power supplies are hot-pluggable. With a single APS, power the switch down first.
What is the difference between APS600Wv2 and the other versions?
NETGEAR splits M4350 power supplies into two groups. APS350W, APS600Wv2, APS920W and APS2000W (v1) fit the M4350-24G4XF, 48G4XF, 44M4X4V, 24X4V and 24F4V. APS600Wv3, APS1200Wv2 and APS2000Wv2 fit the M4350-36X4V, 24X8F8V, 32F8V, 16V4C, 40X4C, 24M4X4V, 24F4X and 40F4C (per the APS600Wv3/APS1200Wv2/APS2000Wv2 installation guide).
Is a power cord included?
Yes. Per the NETGEAR installation guide, a power cord (varies by region) is included.
What warranty do I get?
2 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
