NETGEAR M4350-24X4V 24-Port 10G Multi-Gig PoE+ Fully Managed Switch with 4 x 25G SFP28
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-24X4V 24x 10G PoE+ and 4x 25G Fully Managed Switch (XSM4328CV-100NES) - Limited Lifetime Local Warranty
24 Multi-Gig 10G PoE+ Ports with 25G Uplinks

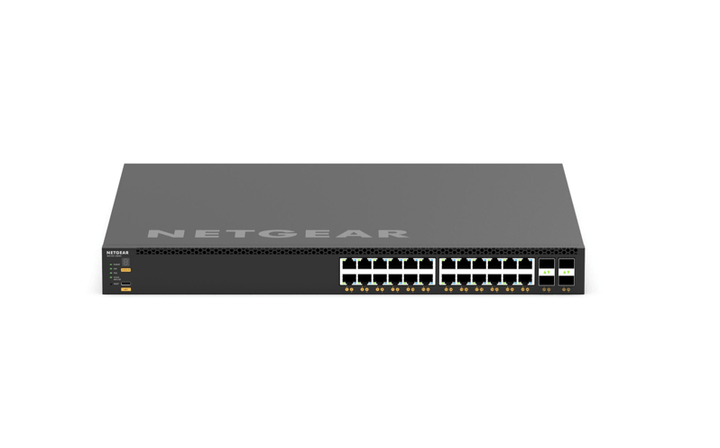

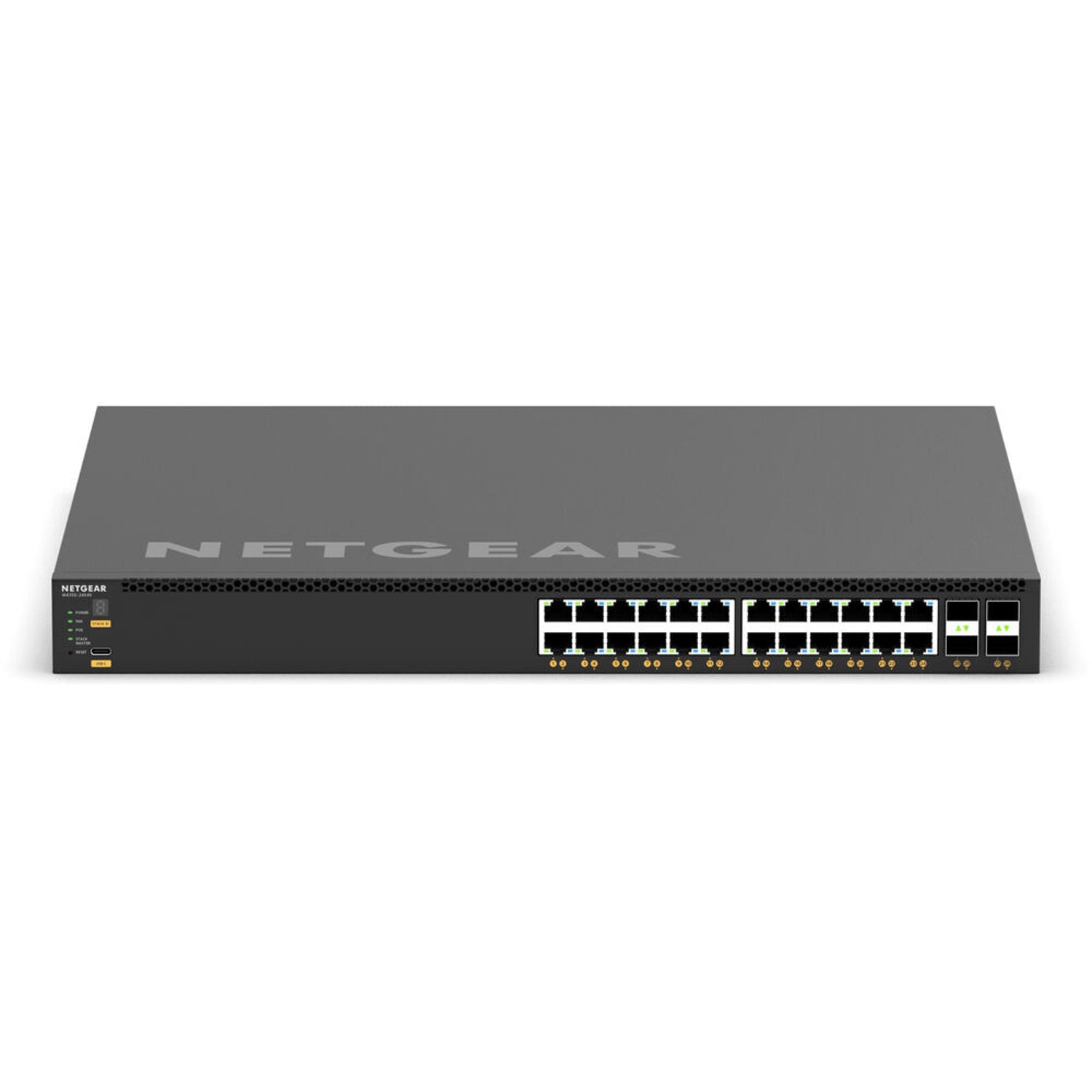

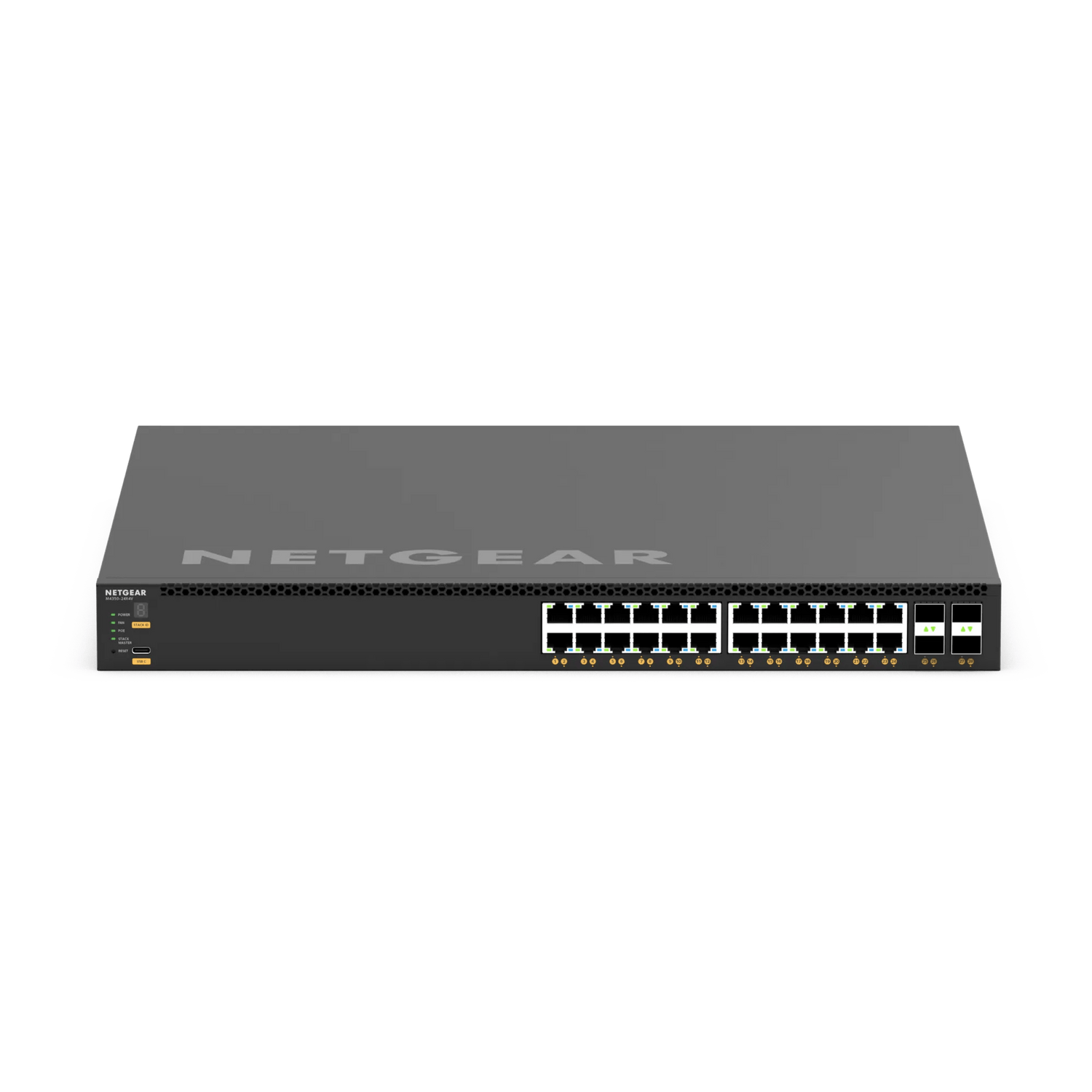

The NETGEAR M4350-24X4V is a 28-port, full-width 1U fully managed switch with twenty-four 1G/2.5G/5G/10G copper PoE+ ports (100M on ports 1-16) and four 10G/25G SFP28 ports. A 680 Gbps switching fabric and 505.92 Mpps throughput give line-rate performance for AV-over-IP, Wi-Fi 6/6E/7 access points and high-bandwidth edge deployments.
720W PoE+ Budget with Redundant Power
A fixed internal 880W power supply delivers a 576W PoE budget. Adding an APS350W, APS600Wv2, APS920W or APS2000W module to the modular power slot raises the budget to up to 720W, enough for all 24 ports at 30W, and provides power redundancy.
Built for AV over IP
NETGEAR IGMP Plus enhanced multicast, the AV-optimised web interface with pre-configured AV profiles and the NETGEAR Engage Controller simplify multicast setup. The switch supports AVB, jumbo frames up to 12KB, and static, policy-based and dynamic routing, all license-free.
Virtual Chassis Stacking
The SFP28 ports can be used for Virtual Chassis stacking with non-stop forwarding and hitless failover, so several switches are managed as one.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-24X4V Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-24X4V Fully Managed Switch |
| Part Number | XSM4328CV-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| 10G Copper PoE+ Ports | 24x 1G / 2.5G / 5G / 10G (100M on ports 1-16 only) |
| 25G Fibre Ports | 4x 10G / 25G SFP28 (each 4-port block runs at one speed: 4x 10G or 4x 25G) |
| Total Ports | 28 |
| Management Ports | USB Type-C console (front), 1G out-of-band port (rear), 2x USB-A storage (rear) |
Performance
| Switching Fabric | 680 Gbps |
| Throughput | 505.92 Mpps |
| Latency | <2.43µs at 1G, <2.20µs at 10G copper, <0.97µs at 25G |
| Packet Buffer | 32Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 2GB DDR4 |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IP Multicast Routes | 512 IPv4 / 256 IPv6 |
| IGMP Groups | Up to 12K |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
| Jumbo Frames | Up to 12KB |
PoE
| PoE Standard | PoE+ IEEE 802.3at (30W per port), compatible with 802.3af PoE (15.4W) |
| PoE Ports | 24 |
| PoE Budget | 576W with the internal PSU; up to 720W with internal PSU plus APS600Wv2, APS920W or APS2000W (700W with APS350W) |
Power

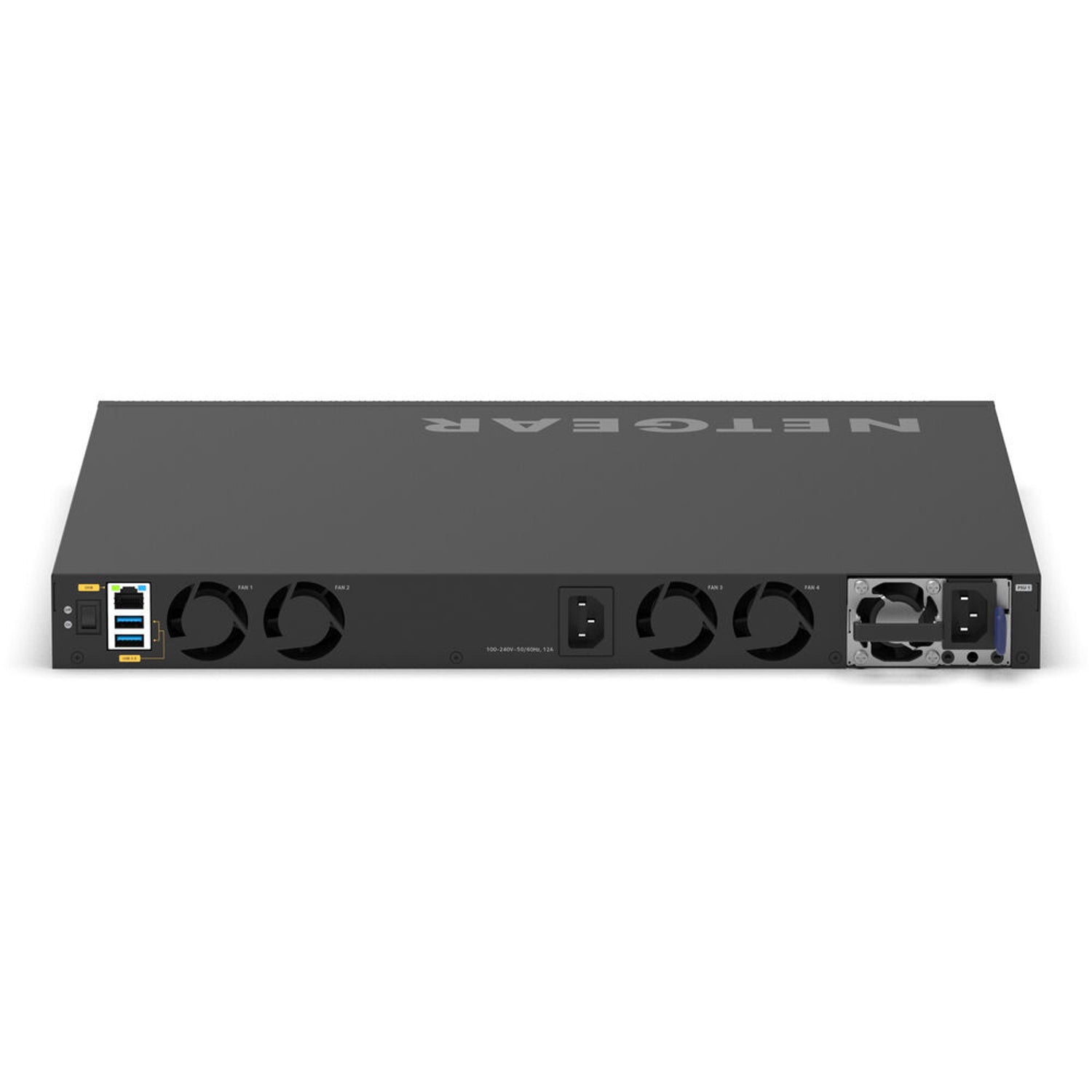

| Power Supply | 1x fixed internal 880W PSU (C14) plus 1x modular PSU slot for redundancy |
| Compatible Modular PSUs | APS350W (APS350W-100NES), APS600Wv2 (APS600W-200NES), APS920W (APS920W-100NES), APS2000W (APS2000W-100NES) |
| Power Consumption | Max with PoE: 750.1W (2,557.84 Btu/hr); without PoE: 119.4W (374.92 Btu/hr); standby: 53.6W (168.3 Btu/hr) |
Physical & Acoustics

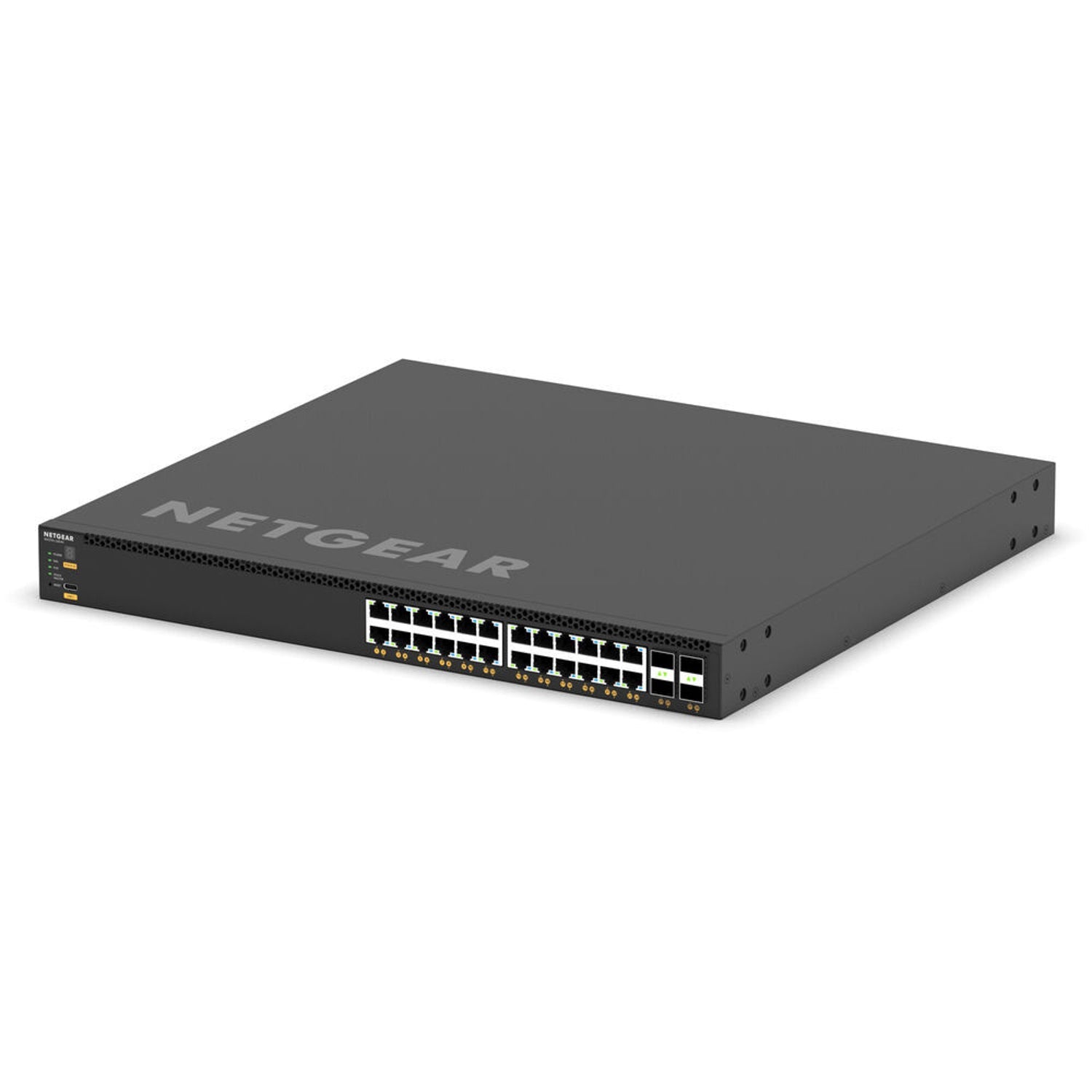

| Form Factor | Full-width, 1U rack mount, front-to-back airflow |
| Dimensions (W x H x D) | 440 x 43.2 x 400 mm |
| Weight | 6.58 kg (14.51 lb) |
| Acoustics (Quiet Mode) | 34.7 dBA at 25°C ambient (30% fan duty); 57.2 dBA at 45°C ambient (70% fan duty) |
| Acoustics (Cool Mode) | 57.2 dBA at 70% fan duty |
Compatibility & Software Support
Power Supplies
The modular power slot accepts the following NETGEAR power supplies: APS350Wv1 (APS350W-100NES), APS600Wv2 (APS600W-200NES), APS920Wv1 (APS920W-100NES) and APS2000Wv1 (APS2000W-100NES). With the internal 880W supply and a module installed, the switch has redundant system power and a PoE budget of up to 720W.
Uplink Ports
The four SFP28 ports take 10G SFP+ or 25G SFP28 modules. Each 4-port block runs at a single speed; when a 25G module is inserted, 10G modules in the same block go down. In stacking mode, a 25G port operates at 25G only.
Management
Web browser GUI (HTTPS) including the NETGEAR AV user interface with pre-configured AV profiles, plus CLI via Telnet and SSH, SNMP and MIBs. A USB Type-C console port on the front and a 1G out-of-band management port on the rear are provided.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV Protocols
NETGEAR IGMP Plus enhanced multicast and AVB (IEEE 802.1BA, 802.1AS gPTP, 802.1Qav, 802.1Qat), up to 500 AVB streams per switch. NETGEAR notes that stacking and AVB are mutually exclusive: a stack cannot run AVB. SMPTE ST 2110 Grandmaster and Boundary Clock modes are not listed for this model.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-24X4V (XSM4328CV) switch, 1x power cord, 1x USB Type-C console cable, 1x standard rack-mount bracket set, 1x set of brackets for recessed mounting, 4x rubber footpads, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) | 24x 2.5G, 4x 10G combo with SFP+ |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) (this listing) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| Hardware Installation Guide | NETGEAR M4350 Series Hardware Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-24X4V (XSM4328CV) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4328CV-100NES.
Frequently Asked Questions — NETGEAR M4350-24X4V
What is the PoE budget?
576W with the internal 880W power supply, and up to 720W when an APS600Wv2, APS920W or APS2000W module is added (700W with an APS350W). 720W is enough to power all 24 ports at 30W.
Are the ports PoE+ or PoE++?
All 24 copper ports are PoE+ (IEEE 802.3at, up to 30W per port) and also support 802.3af PoE devices.
What speeds do the copper ports support?
1G, 2.5G, 5G and 10G on all 24 ports; 100M is supported on ports 1-16 only.
Does it support SMPTE ST 2110 and AES67 clocking?
No. NETGEAR lists SMPTE ST 2110 Grandmaster and Boundary Clock modes only for other M4350 models, such as the M4350-16M4V and M4350-24M4X4V. The M4350-24X4V supports AVB and NETGEAR IGMP Plus multicast.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
