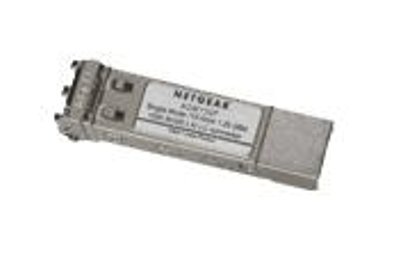

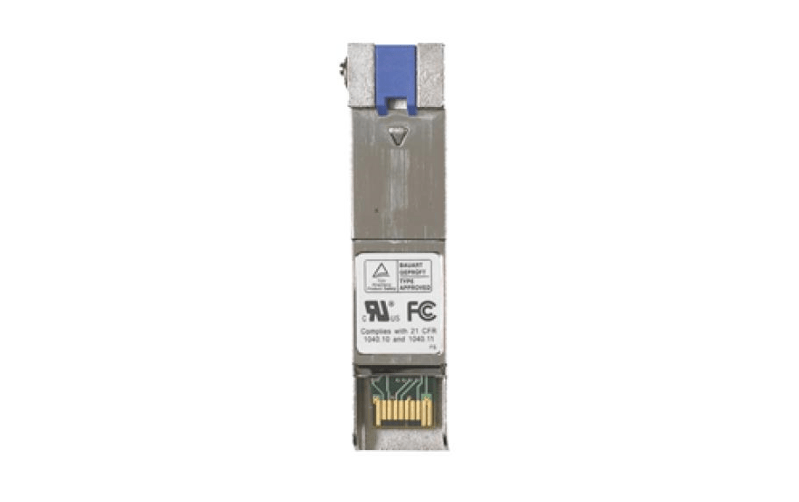

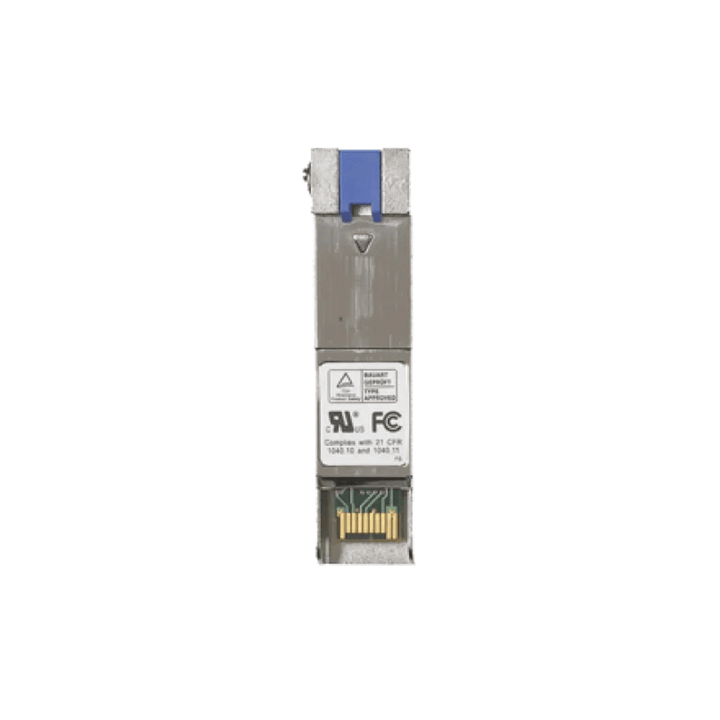

NETGEAR AGM732F 1000BASE-LX SFP Single-Mode Fibre Transceiver Module (LC, 10 km)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR AGM732F ProSAFE 1000BASE-LX Single-Mode Fibre SFP Module (AGM732F) - 5 Years Local Warranty
Gigabit Fibre Links up to 10 km
The NETGEAR AGM732F is a 1000BASE-LX SFP (mini-GBIC) transceiver that drives Gigabit Ethernet up to 10 km over 9/125 µm single-mode fibre. It is the module to use for long building-to-building and campus backbone links from NETGEAR managed and smart switches.
Standards-Based Optics
The module complies with IEEE 802.3z Gigabit Ethernet and the SFP MSA, operates at 1310 nm and is a Class 1 laser product under IEC 60825-1. It uses a standard LC duplex connector.
Low Power, Hot-Swappable
At 1.1 W power consumption and with an MTBF of more than 10 years according to NETGEAR, the AGM732F is RoHS compliant and UL 60950-1 / CSA-C22.2 No. 60950-1 certified. NETGEAR switches detect it automatically when it is inserted.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre type and link distance and we will confirm the right module.
NETGEAR AGM732F Datasheet — Technical Specifications
General
| Product Name | NETGEAR ProSAFE AGM732F 1000BASE-LX SFP GBIC Module |
| Part Number | AGM732F |
| Module Type | SFP (mini-GBIC), 1 Gigabit Ethernet |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | IEEE 802.3z, 1000BASE-LX; SFP MSA compliant |
| Wavelength | 1310 nm (transmitter centre wavelength 1270–1355 nm) |
| Fibre Type | Single-mode, 9/125 µm |
| Connector | LC duplex |
| Maximum Distance | Up to 10 km (6.2 miles) |
| Laser Safety | Class 1 laser product (IEC 60825-1) |
Power & Reliability
| Power Consumption | 1.1 W |
| Supply Voltage | 3.135–3.465 V |
| MTBF | More than 10 years |
Environmental
| Operating Case Temperature | -5 to 70 °C (23–158 °F) |
| Storage Temperature | -40 to 85 °C (-40–185 °F) |
| Operating Humidity | 85% at 25 °C |
Physical & Compliance
| Dimensions | 57.4 x 13.4 x 8.5 mm (2.26 x 0.53 x 0.33 in) |
| Weight | 16.0 g (0.56 oz) |
| Safety | UL 60950-1, CSA-C22.2 No. 60950-1 |
| Environmental Compliance | RoHS |
Compatibility & Software Support
Supported Switches
NETGEAR states the AGM732F fits the SFP interfaces of all NETGEAR Fully Managed switches, all Smart switches and the JGS524F, and meets the SFP GBIC standard for use in any SFP GBIC-compliant slot. It is also listed as a supported Gigabit SFP module in the NETGEAR M7100 series datasheet.
Software
No drivers or software are needed — NETGEAR switches detect the module automatically.
Choosing the Right Module
Use the AGM732F on single-mode fibre up to 10 km. For multimode fibre up to 550 m choose the AGM731F.
Package Contents & NETGEAR SFP/SFP+ Module Ordering Information
In the Box
1 x AGM732F SFP module.
NETGEAR SFP / SFP+ Modules
| Model | Type / reach (from NETGEAR) | Part No. |
| AGM731F | 1000BASE-SX SFP, multimode, LC, up to 550 m (OM3) | AGM731F |
| AGM732F (this listing) | 1000BASE-LX SFP, single-mode, LC, up to 10 km | AGM732F |
| AGM734 | 1000BASE-T copper SFP, RJ-45, up to 100 m | AGM734-10000S |
| AXM761 | 10GBASE-SR SFP+, multimode, LC, up to 300 m (OM3) | AXM761-10000S |
| AXM761 (10-pack) | 10 x AXM761 10GBASE-SR SFP+ | AXM761P10-10000S |
| AXM762 | 10GBASE-LR SFP+, single-mode, LC, up to 10 km | AXM762-10000S |
| AXM763 | 10GBASE-LRM SFP+ (802.3aq), multimode, LC, up to 220 m | AXM763-10000S |
| AXM764 | 10GBASE-LR Lite SFP+, single-mode, LC, up to 2 km | AXM764-10000S |
| AXM765 | 10GBASE-T copper SFP+ module | AXM765-20000S |
Datasheet & Downloads
| NETGEAR module datasheet | AGM732F Module Datasheet (PDF) |
| NETGEAR installation guide / specifications | AGM731F & AGM732F Installation Guide (PDF) |
| NETGEAR M7100 datasheet (module ordering table) | M7100 Series Datasheet (PDF) |
| NETGEAR product page | AGM732F on netgear.com |
| NETGEAR support | AGM732F support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AGM732F.
Frequently Asked Questions — NETGEAR AGM732F
Is the AGM732F single-mode or multimode?
Single-mode. It is a 1000BASE-LX module for 9/125 µm single-mode fibre. For multimode fibre, use the AGM731F.
How far can the AGM732F reach?
Up to 10 km (6.2 miles) over single-mode fibre.
What wavelength and connector does it use?
1310 nm, with an LC duplex connector.
Will it work in my NETGEAR switch?
NETGEAR states it fits the SFP ports of all NETGEAR Fully Managed and Smart switches and the JGS524F. Email us your switch model if you want us to double-check.
What warranty do I get with the AGM732F?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
