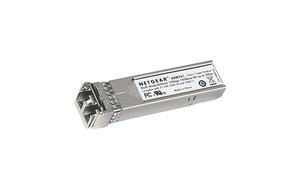

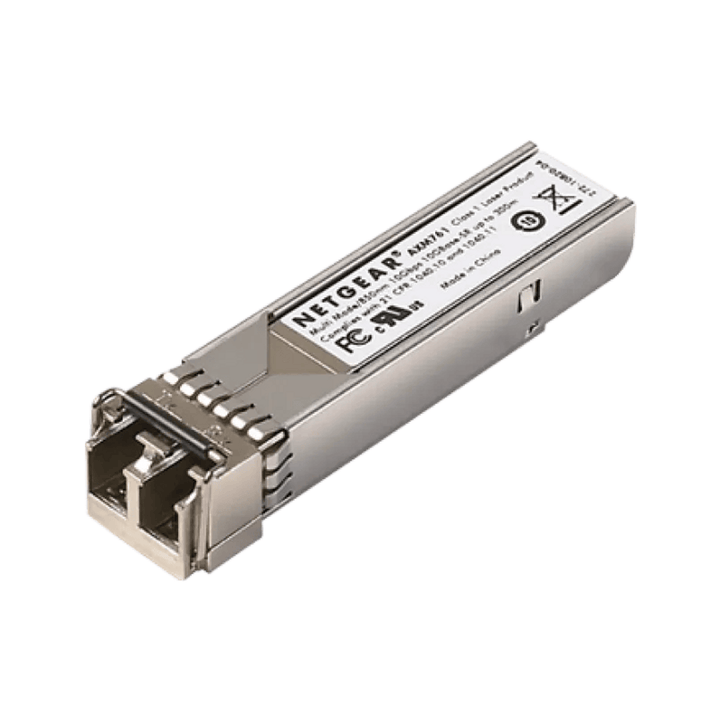

NETGEAR AXM761 10GBASE-SR SFP+ Multimode Fibre Transceiver Module (LC)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR AXM761 ProSAFE 10GBASE-SR Multimode SFP+ Module (AXM761-10000S) - 5 Years Local Warranty
10 Gigabit Over Multimode Fibre
The NETGEAR AXM761 is a 10GBASE-SR SFP+ transceiver for short-reach 10 Gigabit Ethernet over multimode fibre. It is the standard optic for 10G uplinks, stacking and server links within a building or data centre from NETGEAR switches with SFP+ ports.
Reach by Fibre Type
According to NETGEAR's installation guide, the AXM761 operates at 850 nm and runs 2–300 m over 50/125 µm multimode fibre and 2–33 m over legacy 62.5/125 µm multimode fibre, with a standard LC duplex connector. It complies with IEEE 802.3ae 10GBASE-SR.
Low Power, Hot-Swappable
The module draws less than 1.0 W, supports hot-swappable installation and removal, and is RoHS compliant. NETGEAR switches detect the AXM761 automatically when it is inserted.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre grade and link distance and we will confirm the right 10G module.
NETGEAR AXM761 Datasheet — Technical Specifications
General
| Product Name | NETGEAR ProSAFE AXM761 10GBASE-SR SFP+ Module |
| Part Number | AXM761-10000S |
| Module Type | SFP+, 10 Gigabit Ethernet |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | IEEE 802.3ae, 10GBASE-SR |
| Wavelength | 850 nm |
| Fibre Type | Multimode, 50/125 µm or 62.5/125 µm |
| Connector | LC duplex |
Operating Distance
| 50/125 µm MMF (OM3) | 2–300 m |
| 62.5/125 µm MMF | 2–33 m |
Power
| Power Consumption | < 1.0 W |
Environmental
| Operating Temperature | 0 to 70 °C (32–158 °F) |
| Storage Temperature | 0 to 85 °C (32–185 °F) |
Physical & Compliance
| Dimensions | 11.9 x 13.7 x 55.7 mm (0.46 x 0.53 x 2.19 in) |
| Environmental Compliance | RoHS |
| Installation | Hot-swappable |
Compatibility & Software Support
Supported Switches
NETGEAR states the AXM761 fits the SFP+ interfaces of select NETGEAR Managed switches, and that select Smart and Plus switches also accept 10 Gigabit SFP+ transceivers. It is listed as a supported 10G SFP+ module in the NETGEAR M7100 series datasheet. Please confirm your switch model with us before ordering.
Software
No drivers or software are needed — NETGEAR switches detect the module automatically.
Alternatives
For multimode runs beyond the SR limit on legacy fibre, see the AXM763 (10GBASE-LRM); for single-mode fibre, see the AXM762 (10 km) or AXM764 (2 km). Buying in quantity? The AXM761 is also available as a 10-pack (AXM761P10-10000S).
For very short 10G links between adjacent racks, NETGEAR direct attach cables are an alternative to a pair of optics: AXC761-10000S (1 m) and AXC763-10000S (3 m).
Package Contents & NETGEAR SFP/SFP+ Module Ordering Information
In the Box
1 x AXM761 SFP+ module.
NETGEAR SFP / SFP+ Modules
| Model | Type / reach (from NETGEAR) | Part No. |
| AGM731F | 1000BASE-SX SFP, multimode, LC, up to 550 m (OM3) | AGM731F |
| AGM732F | 1000BASE-LX SFP, single-mode, LC, up to 10 km | AGM732F |
| AGM734 | 1000BASE-T copper SFP, RJ-45, up to 100 m | AGM734-10000S |
| AXM761 (this listing) | 10GBASE-SR SFP+, multimode, LC, up to 300 m (OM3) | AXM761-10000S |
| AXM761 (10-pack) | 10 x AXM761 10GBASE-SR SFP+ | AXM761P10-10000S |
| AXM762 | 10GBASE-LR SFP+, single-mode, LC, up to 10 km | AXM762-10000S |
| AXM763 | 10GBASE-LRM SFP+ (802.3aq), multimode, LC, up to 220 m | AXM763-10000S |
| AXM764 | 10GBASE-LR Lite SFP+, single-mode, LC, up to 2 km | AXM764-10000S |
| AXM765 | 10GBASE-T copper SFP+ module | AXM765-20000S |
Datasheet & Downloads
| NETGEAR installation guide / specifications | AXM761 Installation Guide (PDF) |
| NETGEAR M7100 datasheet (module ordering table) | M7100 Series Datasheet (PDF) |
| NETGEAR product page | AXM761 on netgear.com |
| NETGEAR support | AXM761 support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AXM761-10000S.
Frequently Asked Questions — NETGEAR AXM761
Is the AXM761 multimode or single-mode?
Multimode. It is a 10GBASE-SR module operating at 850 nm. For single-mode fibre use the AXM762 or AXM764.
How far can the AXM761 reach?
Per NETGEAR's installation guide: 2–300 m over 50/125 µm (OM3) multimode fibre and 2–33 m over 62.5/125 µm multimode fibre.
Does it fit a standard SFP (1G) port?
The AXM761 is a 10G SFP+ module designed for SFP+ ports. NETGEAR lists it for SFP+ interfaces of select Managed, Smart and Plus switches — email us your switch model to confirm.
Can I buy it in bulk?
Yes — the AXM761P10-10000S 10-pack is listed in the family table below.
What warranty do I get with the AXM761?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
