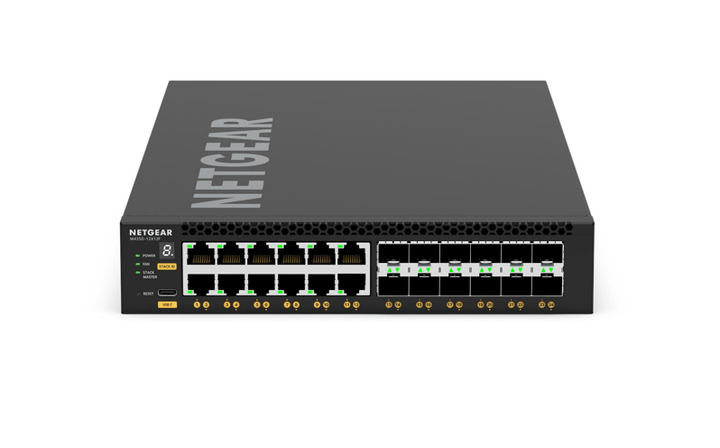

NETGEAR M4350-12X12F 24-Port 10G (12x Multi-Gig, 12x SFP+) Half-Width Fully Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-12X12F 12x 10G Multi-Gig and 12x 10G SFP+ Fully Managed Switch (XSM4324-100NES) - Limited Lifetime Local Warranty
Balanced 10G Copper and Fibre in a Half-Width Chassis

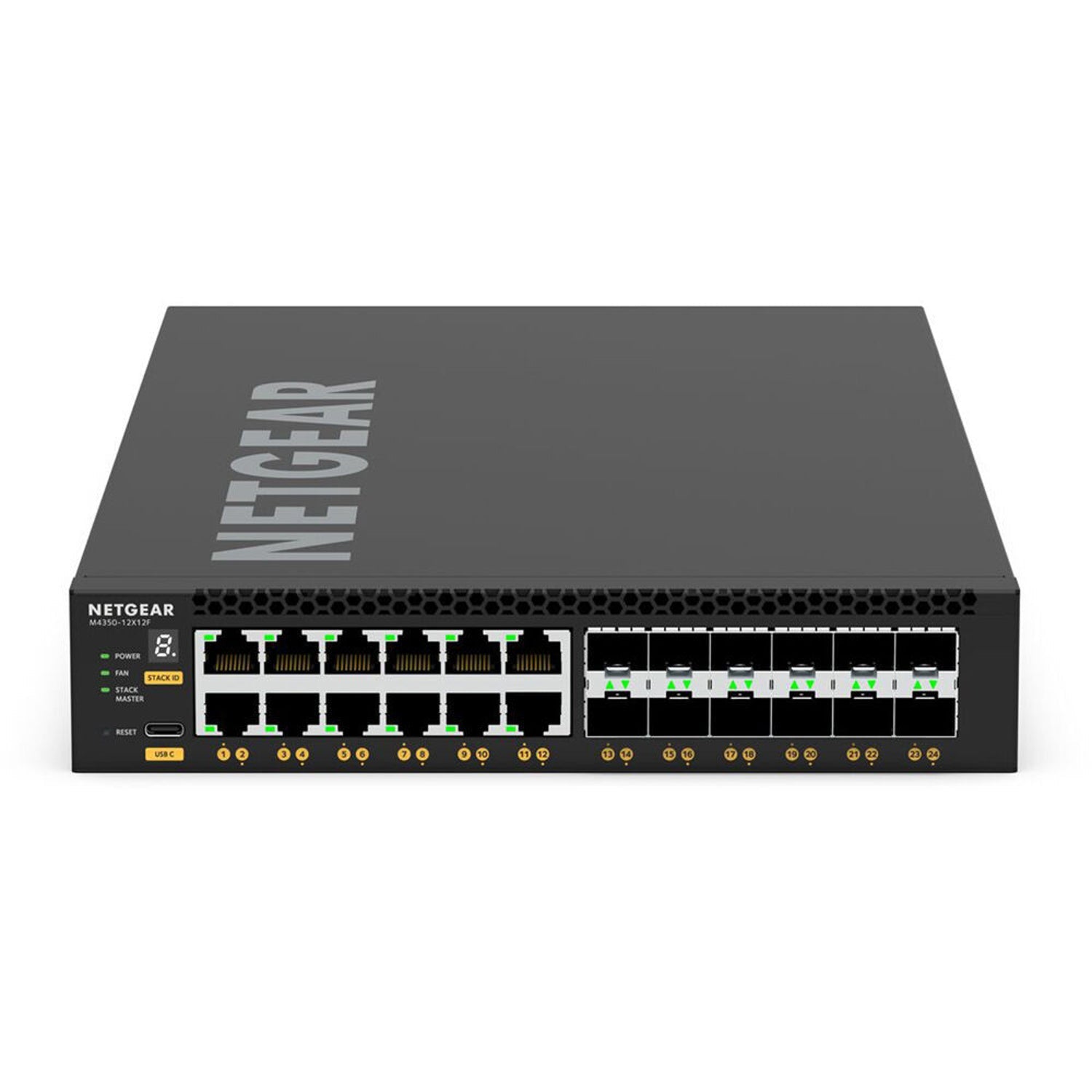

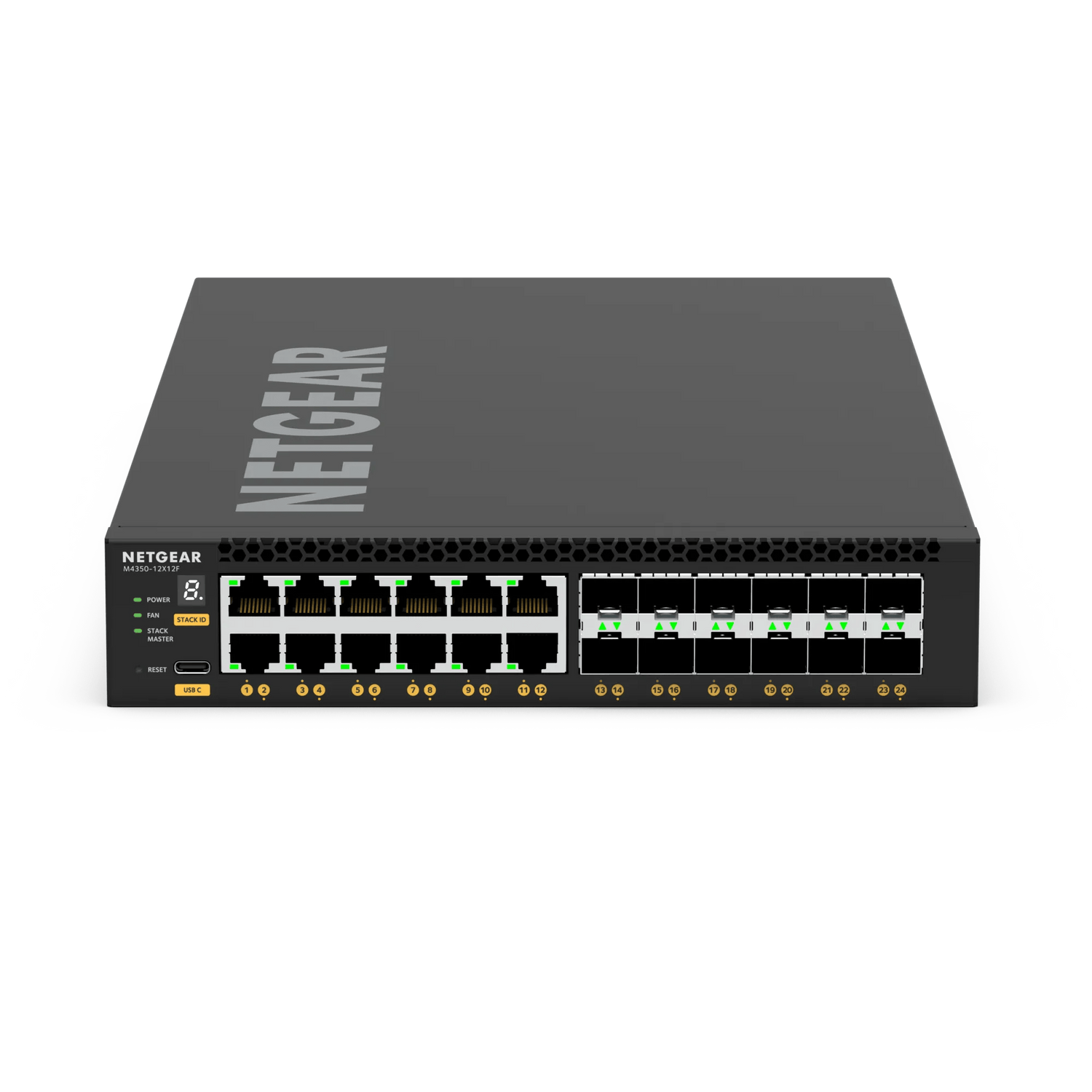

The NETGEAR M4350-12X12F is a 24-port fully managed switch with 12 RJ-45 ports running at 100M, 1G, 2.5G, 5G or 10G and 12 SFP+ ports running at 10G, with 1G supported on ports 13-20. The half-width 1U chassis lets you install one switch, or two side by side in a single rack space using the included pairing kit.
Non-Blocking 480 Gbps Performance
A 480 Gbps switching fabric and 357.12 Mpps forwarding rate keep every port at wire speed. Latency is under 0.72µs on 10G fibre, with a 32Mb packet buffer, a quad-core 1.8GHz ARM CPU and 2GB of memory.
Built for AV over IP
The dedicated NETGEAR AV web interface provides pre-configured profiles for Dante, Q-SYS, AES67, NVX, NDI, SDVoE and other AV-over-IP systems. NETGEAR IGMP Plus simplifies multicast setup, NETGEAR lists AVB support for this model, and the NETGEAR Engage Controller manages AV and IT switches from one place.
Layer 3 Routing and Virtual Chassis Stacking
Static, policy-based and dynamic routing (RIP and OSPF) are included, and Virtual Chassis stacking provides non-stop forwarding and hitless failover. A fixed internal 240W power supply and a Quiet Mode fan profile (34.34 dBA at 25°C) suit installations close to people.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-12X12F Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-12X12F Fully Managed Switch |
| Part Number | XSM4324-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| 10G Multi-Gig Ports | 12x RJ-45, 100M / 1G / 2.5G / 5G / 10G |
| SFP+ Ports | 12x 10G SFP+; 1G supported on ports 13-20 only |
| Total Ports | 24 |
| PoE | Not supported |

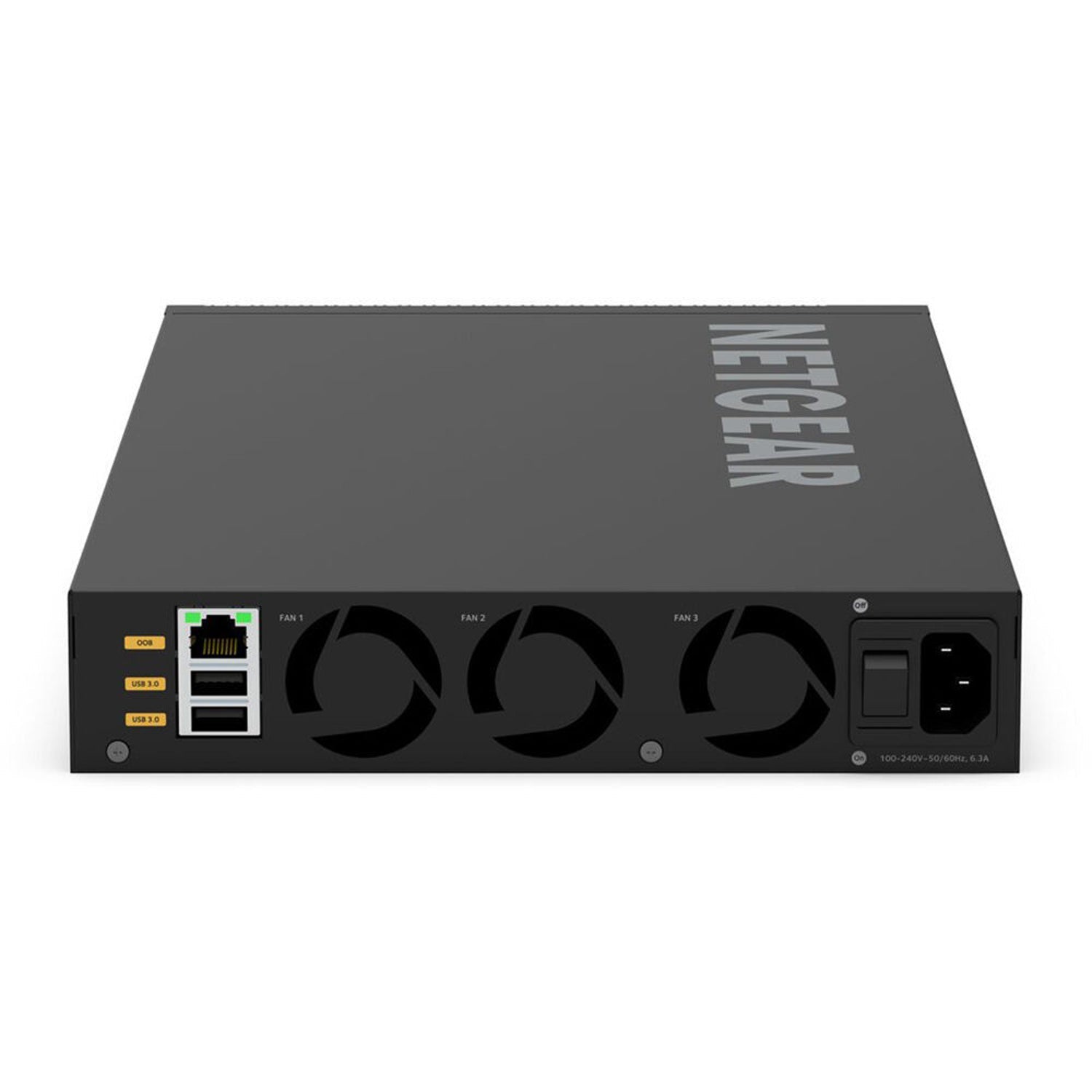

| Management Ports | USB Type-C console (front), 1G out-of-band port (rear), 2x USB-A (storage, rear) |
Performance
| Switching Fabric | 480 Gbps |
| Throughput | 357.12 Mpps |
| Latency | <2.14µs at 1G, <2.29µs at 10G copper, <0.72µs at 10G fibre |
| Packet Buffer | 32Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 2GB |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IP Multicast Routes | 512 IPv4 / 256 IPv6 |
| IGMP Groups | Up to 12K |
| Routing Entries | Static: 256 IPv4 / 64 IPv6; RIP: 512; OSPF: 1,024 |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
| Jumbo Frames | Up to 12KB |
Power

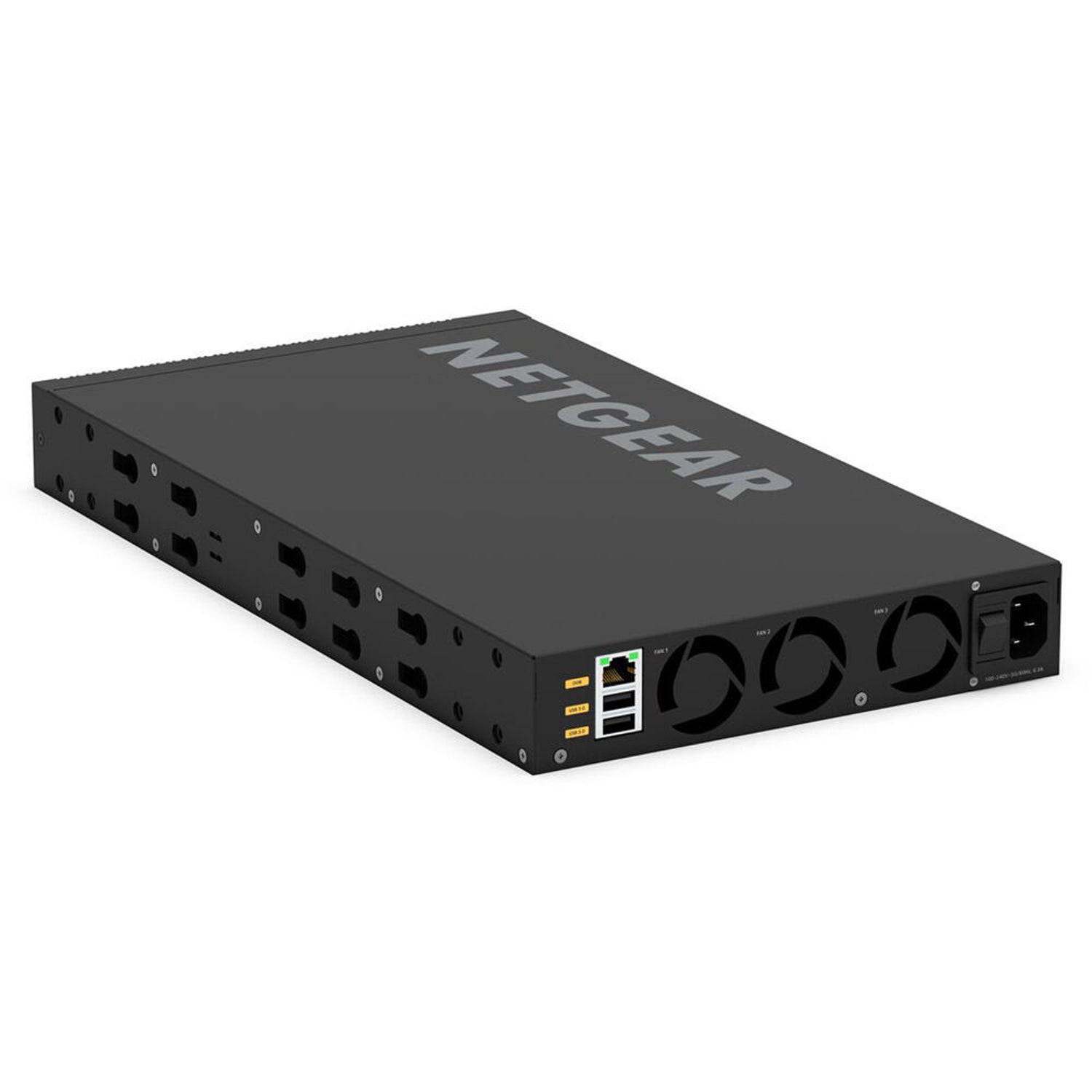

| Power Supply | 1x fixed internal 240W PSU (C14 inlet) |
| Power Consumption | Operating: 95.8W (300.81 BTU/hr); standby: 34W (106.76 BTU/hr) |
Physical & Acoustics
| Form Factor | Half-width 1U rack mount; one or two units per rack space |
| Dimensions (W x H x D) | 220 x 43.2 x 400 mm |
| Weight | 4.3 kg (9.48 lb) |
| Fans | Fixed, front-to-back airflow |
| Acoustics (Quiet Mode) | 34.34 dBA at 25°C ambient (27% fan duty) |
| Acoustics (High Fan Duty) | Up to 64 dBA at 100% fan duty |
Compatibility & Software Support
SFP+ and SFP Transceivers
All 12 SFP+ ports run at 10G, and ports 13-20 also run at 1G. SFP modules and cables are sold separately. NETGEAR 10G SFP+ transceivers available from SourceIT include AXM761 10GBASE-SR multimode (AXM761-10000S), AXM761P10 10GBASE-SR multimode 10-pack (AXM761P10-10000S), AXM762 10GBASE-LR single-mode (AXM762-10000S), AXM763 10GBASE-LRM multimode (AXM763-10000S) and AXM764 10GBASE-LR Lite single-mode (AXM764-10000S). For 1G links on ports 13-20, NETGEAR 1G SFP transceivers include AGM731F 1000BASE-SX multimode (AGM731F) and AGM732F 1000BASE-LX single-mode (AGM732F).
Power
Power is provided by a single fixed internal 240W supply with a C14 inlet; no external power modules are required. This model has fixed ports and no modular slot, so APM414 interface cards are not used.
Management
Web browser GUI including the NETGEAR AV user interface with pre-configured AV profiles, plus the main NETGEAR IT web interface, CLI, SNMP, sFlow and RSPAN. A USB Type-C console port on the front and a 1G out-of-band management port on the rear are provided.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV Protocols
NETGEAR IGMP Plus enhanced multicast and AVB (IEEE 802.1BA, 802.1AS gPTP, 802.1Qav, 802.1Qat), with AV profiles for Dante, Q-SYS, AES67, NVX, AMX, IPMX, NDI, SDVoE and others. SMPTE ST 2110 PTP Boundary Clock and Grandmaster modes are listed by NETGEAR only for other M4350 models, not the M4350-12X12F. NETGEAR notes that stacking and AVB are mutually exclusive: a stack cannot run AVB.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-12X12F (XSM4324) switch, 1x power cord, 1x USB Type-C console cable, 1x standard rack-mount bracket set, 1x set of longer brackets for recessed mounting, 2x pairing kits for mounting two half-width M4350 switches in a single rack space, 4x rubber footpads, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) | 24x 2.5G, 4x 10G combo with SFP+ |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) (this listing) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| Hardware Installation Guide | NETGEAR M4350 Series Hardware Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-12X12F (XSM4324) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4324-100NES.
Frequently Asked Questions — NETGEAR M4350-12X12F
Do the SFP+ ports support 1G modules?
All 12 SFP+ ports run at 10G. 1G SFP modules are supported on ports 13-20 only.
Can I fit two switches in one rack unit?
Yes. The M4350-12X12F is a half-width 1U switch, and the included pairing kit lets you mount two half-width M4350 switches side by side in a single rack space.
Does it provide PoE?
No. This model has no PoE. For 10G PoE, see the M4350-24X4V or M4350-36X4V in the series table above.
Does it support SMPTE ST 2110 PTP?
NETGEAR lists SMPTE ST 2110 Boundary Clock and Grandmaster modes only for the M4350-8M2V, 16M4V, 24M4X4V, 24F4X, 16V4C, 40X4C, 40F4C and 16C, not the M4350-12X12F. It does support AVB and NETGEAR IGMP Plus for Dante, AES67 and other AV-over-IP systems.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
