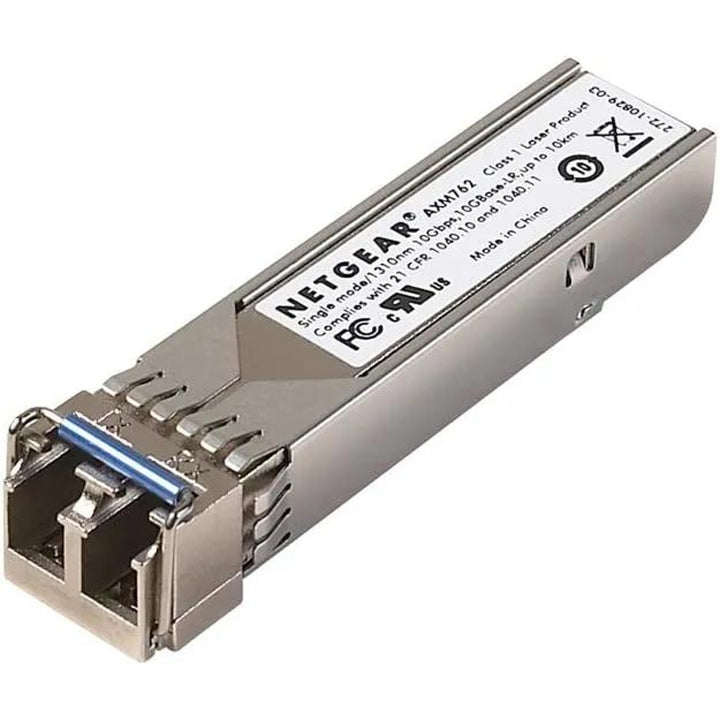

NETGEAR AXM762 10GBASE-LR SFP+ Single-Mode Fibre Transceiver Module (LC, 10 km)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR AXM762 ProSAFE 10GBASE-LR Single-Mode SFP+ Module (AXM762-10000S) - 5 Years Local Warranty
10 Gigabit Links up to 10 km
The NETGEAR AXM762 is a 10GBASE-LR SFP+ transceiver that drives 10 Gigabit Ethernet up to 10 km (6.2 miles) over 9/125 µm single-mode fibre — the long-reach optic for campus backbones and building-to-building links from NETGEAR switches with SFP+ ports.
Standards-Based 1310 nm Optics
The module complies with IEEE 802.3ae 10GBASE-LR, operates at 1310 nm and uses a standard LC duplex connector. NETGEAR specifies an operating range of 2 m to 10 km.
Reliable and Hot-Swappable
NETGEAR rates the AXM762 at an MTBF of 4,986,536 hours with power consumption under 1.5 W. It supports hot-swappable installation and removal, is RoHS compliant, and is detected automatically by NETGEAR switches.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre type and link distance and we will confirm the right 10G module.
NETGEAR AXM762 Datasheet — Technical Specifications
General
| Product Name | NETGEAR ProSAFE AXM762 10GBASE-LR SFP+ Module |
| Part Number | AXM762-10000S |
| Module Type | SFP+, 10 Gigabit Ethernet |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | IEEE 802.3ae, 10GBASE-LR |
| Wavelength | 1310 nm |
| Fibre Type | Single-mode, 9/125 µm |
| Connector | LC duplex |
| Operating Distance | 2 m – 10 km (6.2 miles) |
Power & Reliability
| Power Consumption | < 1.5 W |
| MTBF | 4,986,536 hours (569 years) |
Environmental
| Operating Temperature | 0 to 70 °C (32–158 °F) |
| Storage Temperature | 0 to 85 °C (32–185 °F) |
| Operating Humidity | 85% at 25 °C |
Physical & Compliance
| Dimensions | 11.9 x 13.7 x 55.7 mm (0.46 x 0.53 x 2.19 in) |
| Weight | 19.2 g |
| Safety | UL 1950, CSA 22.2 No. 950 |
| Environmental Compliance | RoHS |
| Installation | Hot-swappable |
Compatibility & Software Support
Supported Switches
NETGEAR states the AXM762 fits the standard SFP+ interfaces of the M5300, M7100 and M7300 series managed switches, and that select Smart and Plus switches also accept 10 Gigabit SFP+ transceivers. It is also listed in the fibre optics ordering tables of the NETGEAR M7100 and M4300 series datasheets. Please confirm your switch model with us before ordering.
Software
No drivers or software are needed — NETGEAR switches detect the module automatically.
Alternatives
For single-mode links of 2 km or less, NETGEAR offers the AXM764 10GBASE-LR Lite, which NETGEAR states can interoperate with the AXM762 as long as the distance does not exceed 2 km.
For very short 10G links between adjacent racks, NETGEAR direct attach cables are an alternative to a pair of optics: AXC761-10000S (1 m) and AXC763-10000S (3 m).
Package Contents & NETGEAR SFP/SFP+ Module Ordering Information
In the Box
1 x AXM762 SFP+ module.
NETGEAR SFP / SFP+ Modules
| Model | Type / reach (from NETGEAR) | Part No. |
| AGM731F | 1000BASE-SX SFP, multimode, LC, up to 550 m (OM3) | AGM731F |
| AGM732F | 1000BASE-LX SFP, single-mode, LC, up to 10 km | AGM732F |
| AGM734 | 1000BASE-T copper SFP, RJ-45, up to 100 m | AGM734-10000S |

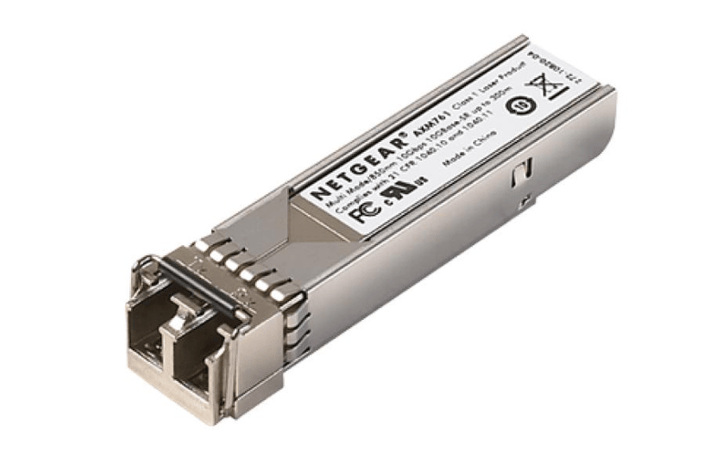

| AXM761 | 10GBASE-SR SFP+, multimode, LC, up to 300 m (OM3) | AXM761-10000S |
| AXM761 (10-pack) | 10 x AXM761 10GBASE-SR SFP+ | AXM761P10-10000S |
| AXM762 (this listing) | 10GBASE-LR SFP+, single-mode, LC, up to 10 km | AXM762-10000S |
| AXM763 | 10GBASE-LRM SFP+ (802.3aq), multimode, LC, up to 220 m | AXM763-10000S |
| AXM764 | 10GBASE-LR Lite SFP+, single-mode, LC, up to 2 km | AXM764-10000S |
| AXM765 | 10GBASE-T copper SFP+ module | AXM765-20000S |
Datasheet & Downloads
| NETGEAR installation guide / specifications | AXM762 Installation Guide (PDF) |
| NETGEAR M4300 datasheet (fibre optics ordering) | M4300 Series Datasheet (PDF) |
| NETGEAR M7100 datasheet (module ordering table) | M7100 Series Datasheet (PDF) |
| NETGEAR product page | AXM762 on netgear.com |
| NETGEAR support | AXM762 support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AXM762-10000S.
Frequently Asked Questions — NETGEAR AXM762
Is the AXM762 single-mode or multimode?
Single-mode. It is a 10GBASE-LR module for 9/125 µm single-mode fibre, operating at 1310 nm.
How far can the AXM762 reach?
From 2 m up to 10 km (6.2 miles).
Can the AXM762 link to an AXM764 at the other end?
NETGEAR states the AXM764 (10GBASE-LR Lite) can interoperate with the AXM762 as long as the link does not exceed 2 km.
Which switches does it support?
NETGEAR lists the M5300, M7100 and M7300 series plus select Smart and Plus switches with SFP+ ports. Email us your switch model to confirm.
What warranty do I get with the AXM762?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
