NETGEAR M4350-8M2V 8-Port 2.5G PoE++ Fully Managed AV Switch with 2 x 25G SFP28
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-8M2V 8x 2.5G PoE++ and 2x 25G SFP28 Fully Managed Switch (MSM4310-100NES) - Limited Lifetime Local Warranty
Compact 2.5G PoE++ Switching for AV and Edge Deployments

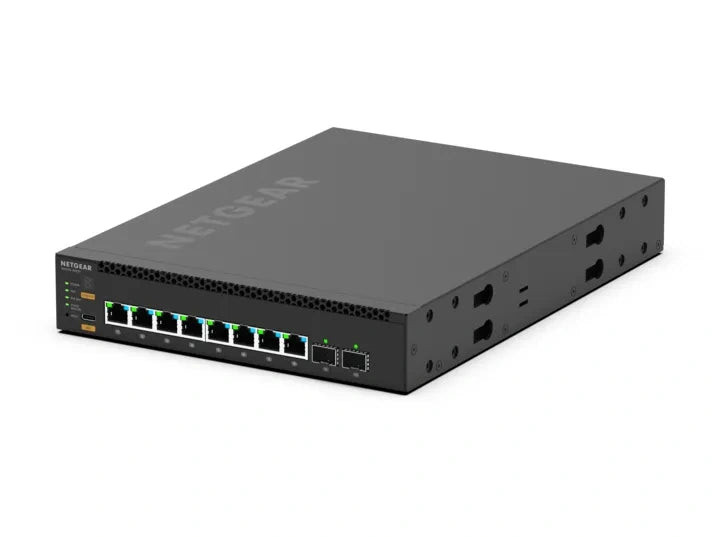

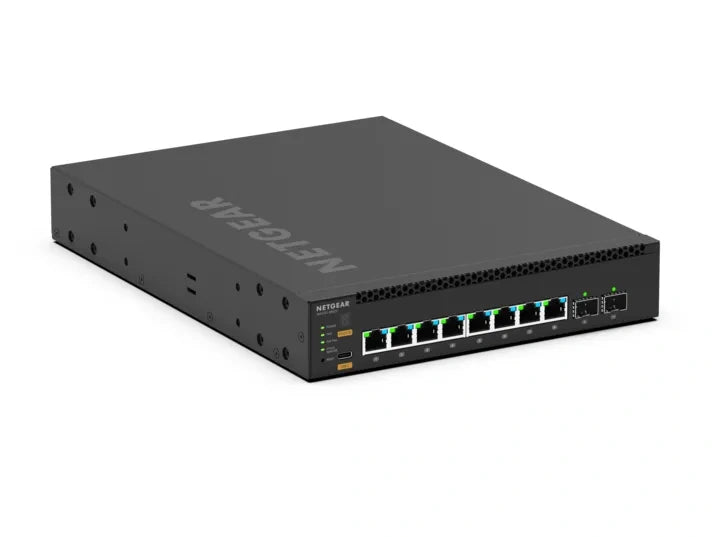

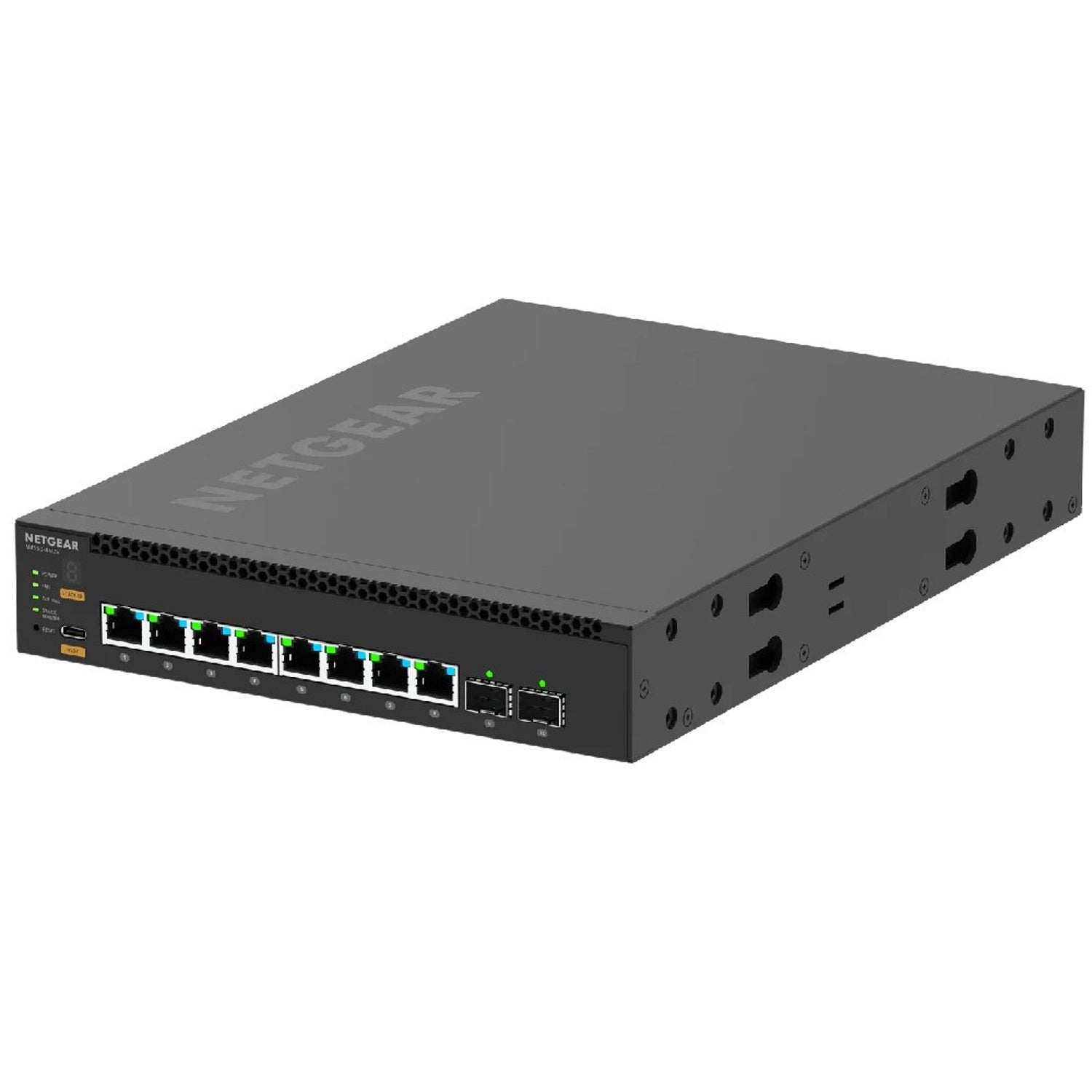

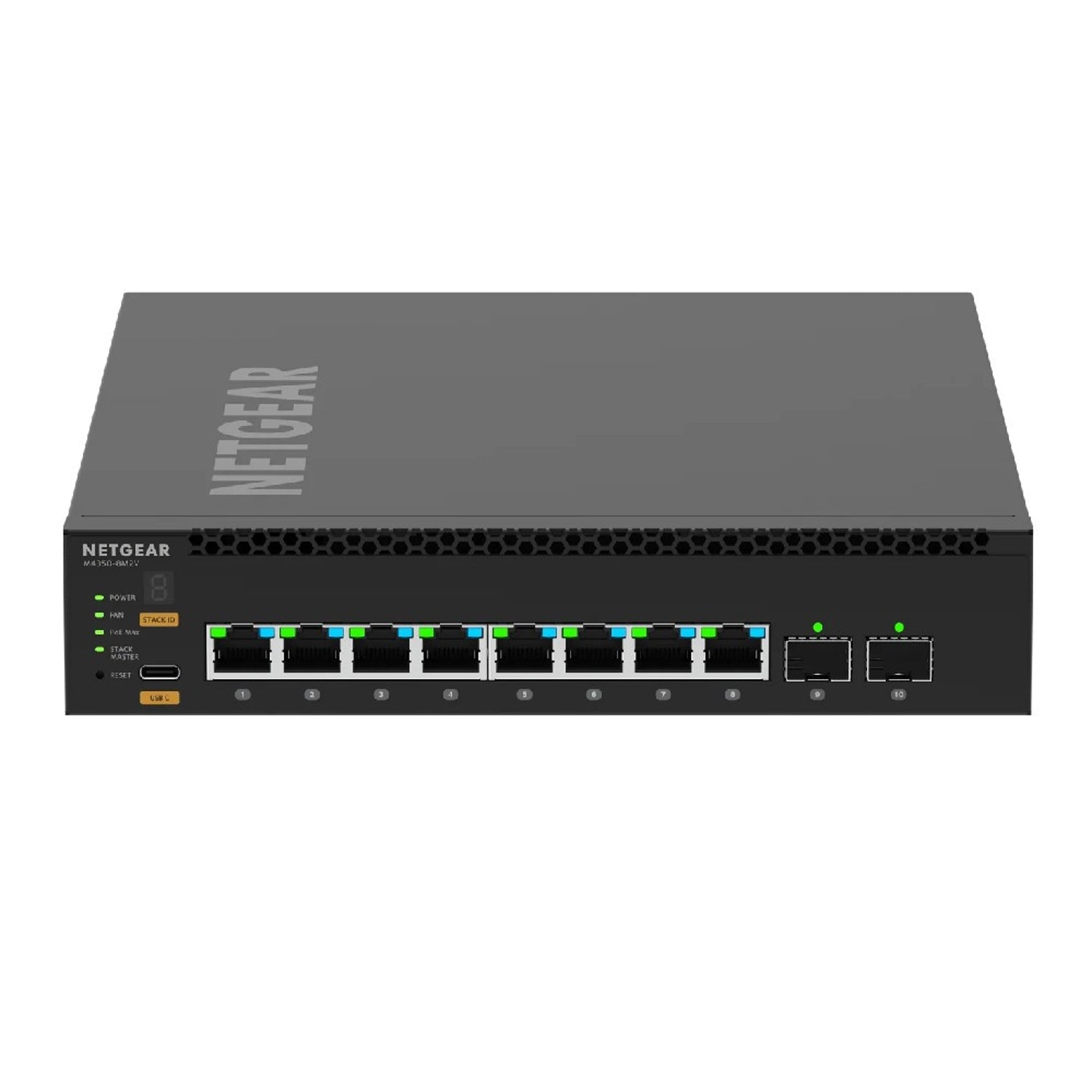

The NETGEAR M4350-8M2V is a fully managed switch with eight 100M/1G/2.5G PoE++ ports and two 10G/25G SFP28 uplinks. Its half-width, 1U form factor lets you mount one or two switches in a single rack space, which suits control rooms, stage racks and equipment closets where space is tight.
PoE Budget That Scales with Your Project
The switch ships with one APS254W external power adapter for a 119W PoE budget. It has three DC connectors, so you can add APS254W adapters to raise the budget to 322W with two adapters and 551W with three. Ultra90 PoE++ (IEEE 802.3bt) ports are backward compatible with 802.3af PoE and 802.3at PoE+ devices and support 60W, 75W and 90W 802.3bt loads.
Built for AV over IP
NETGEAR IGMP Plus, NETGEAR AV OS and the NETGEAR Engage Controller simplify multicast video and audio setup. The switch supports AVB, and SMPTE ST 2110 Grandmaster and Boundary Clock modes for SMPTE ST 2059-2 and AES67 workflows. A multi-colour LED on each port shows the colour of the AV profile applied to it.
Layer 3 Features and Virtual Chassis Stacking
Static, policy-based and dynamic routing are included. Virtual Chassis stacking combines up to eight M4350 switches into one logical switch using 10G, 25G or 100G ports, with non-stop forwarding (NSF) and hitless failover.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-8M2V Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-8M2V Fully Managed Switch |
| Part Number | MSM4310-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports

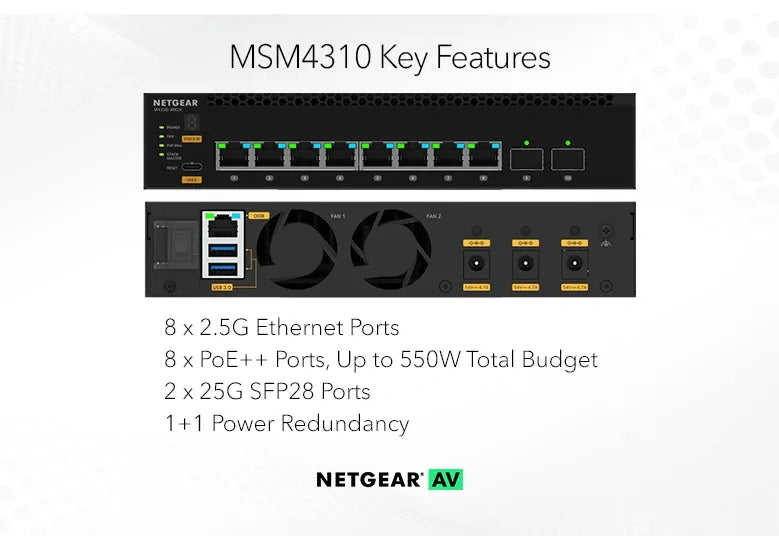

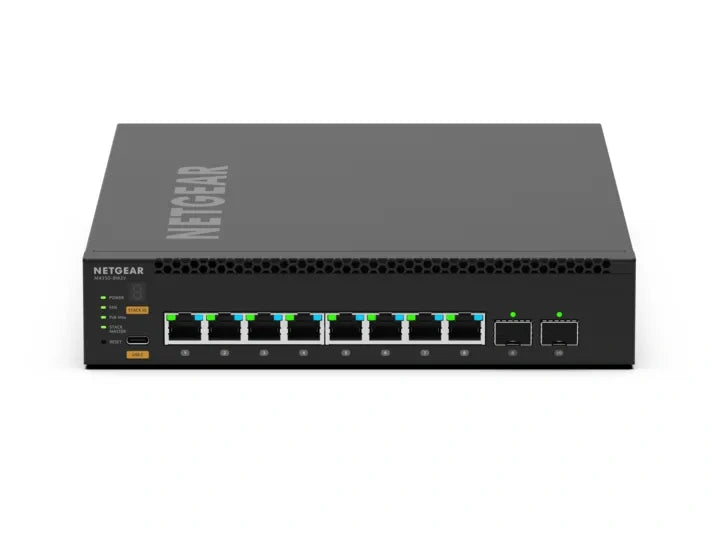

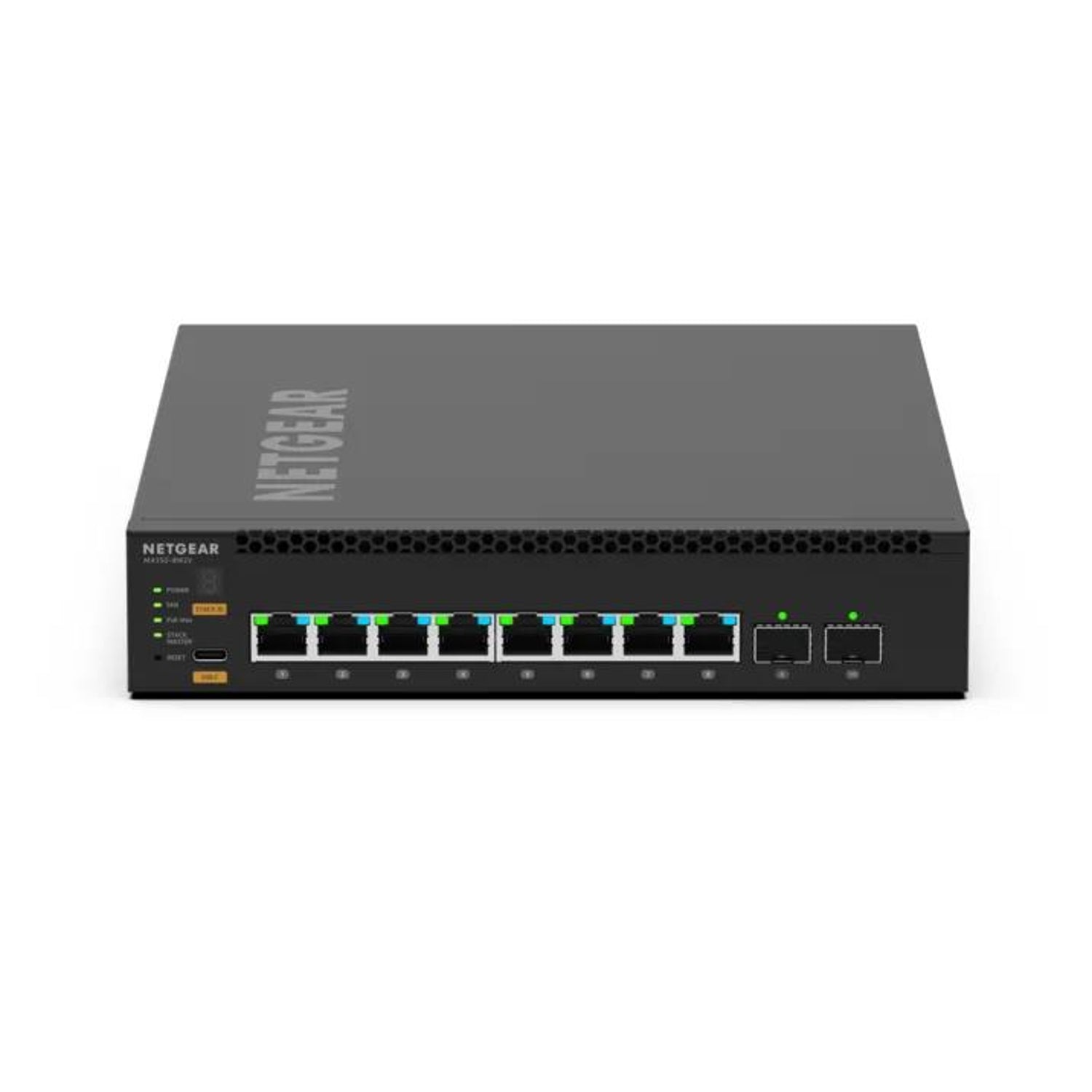

| 2.5G PoE++ Ports | 8x RJ-45, 100M / 1G / 2.5G |
| Uplink Ports | 2x SFP28, 10G / 25G (Ethernet or stacking mode) |

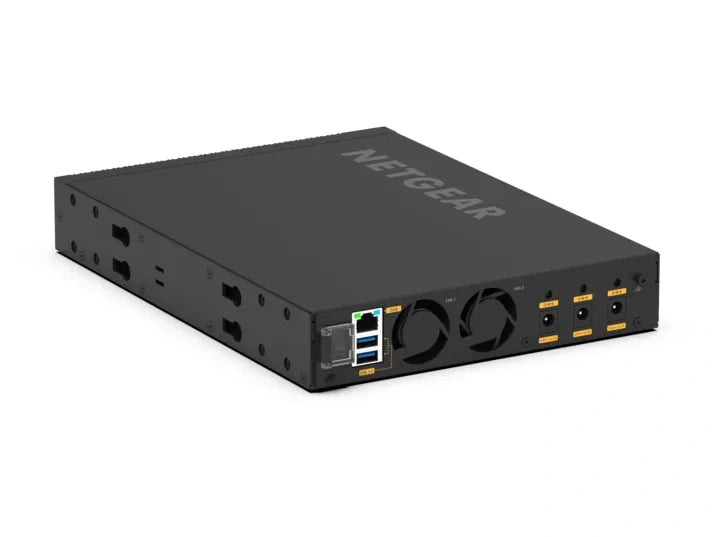

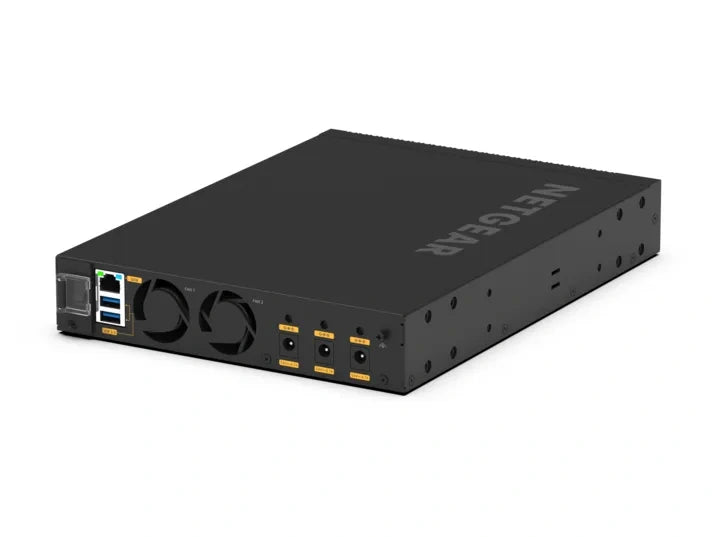

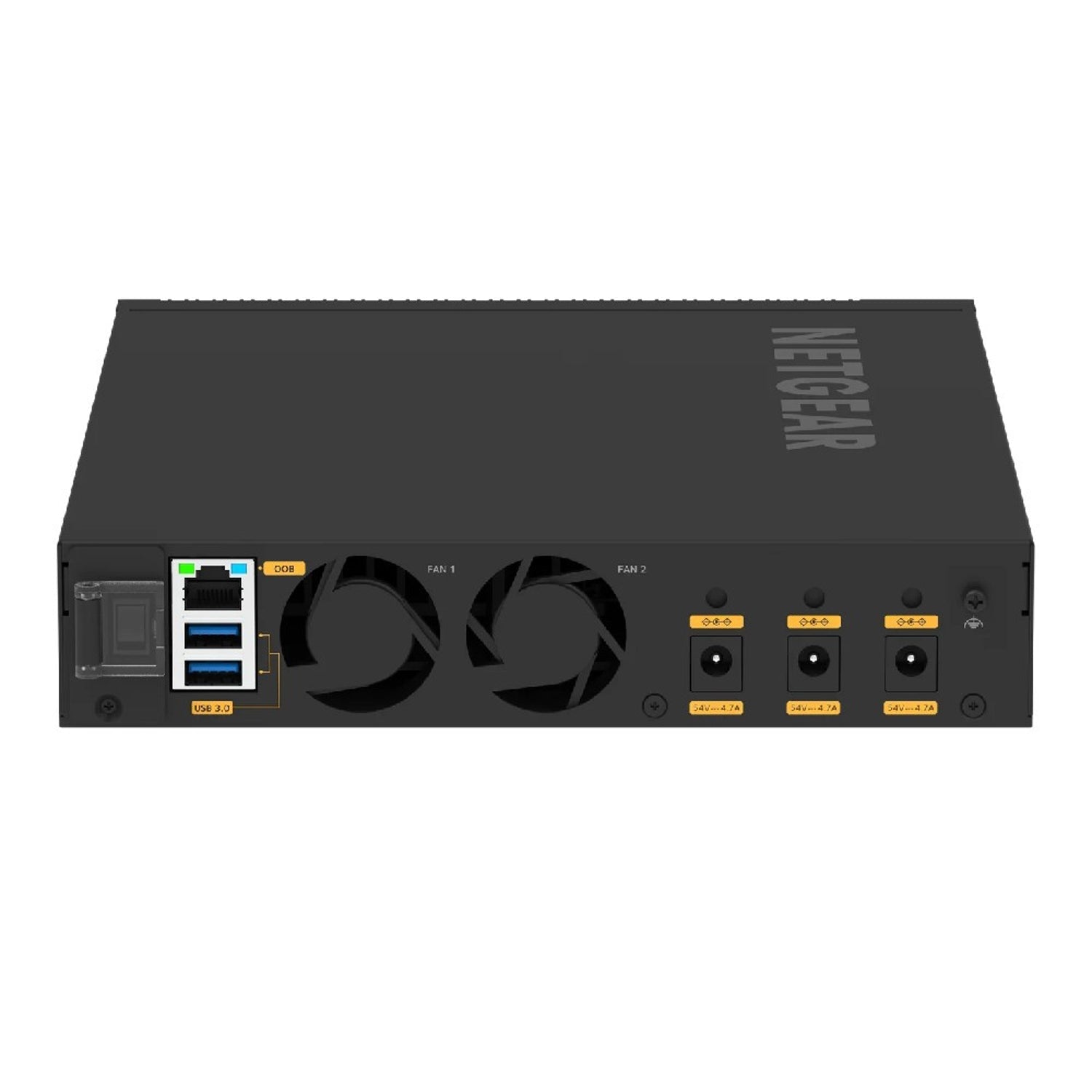

| Management Ports | USB Type-C console (front), 1G out-of-band port (rear), 2x USB-A (rear) |
| Port LEDs | Multi-colour LED on each port reflecting the AV profile colour |
Performance
| Switching Fabric | 140 Gbps |
| Throughput | 104.16 Mpps |
| Latency | <5.50µs at 2.5G, <0.70µs at 10G fibre, <0.64µs at 25G |
| Packet Buffer | 32Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 4GB DDR4 |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IP Multicast Routes | 512 IPv4 / 256 IPv6 |
| IGMP Groups | Up to 12K |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
| Jumbo Frames | Up to 12KB |
PoE
| PoE Standard | Ultra90 PoE++ IEEE 802.3bt (60W, 75W, 90W), compatible with 802.3af PoE (15.4W) and 802.3at PoE+ (30W) |
| PoE Budget | 119W with 1x APS254W (included); 322W with 2x APS254W; 551W with 3x APS254W |
Power
| Power Supply | External APS254W power adapter (C14), 1 included; 3 DC connectors for up to 3x APS254W |
| Power Consumption | Max with PoE: 682W; without PoE: 82W; standby: 61.2W |
Physical & Acoustics
| Form Factor | Half-width, 1U rack mount |
| Dimensions (W x H x D) | 220 x 43.2 x 300 mm |
| Weight | 2.9 kg (6.39 lb) |
| Acoustics (Quiet Mode) | 32.2 dBA at 25°C ambient (32% fan duty, 551W PoE); 51.2 dBA at 45°C ambient (65% fan duty) |
| Acoustics (Cool Mode) | 59.4 dBA at 100% fan duty |
Compatibility & Software Support
Power Adapters
Compatible with the NETGEAR APS254W external power adapter, up to three per switch. One APS254W is included in the box.
Uplinks
The two SFP28 ports are fixed on the front panel and accept 10G or 25G connections. This model does not have a modular interface card slot.
Management
Web browser GUI (HTTPS) including the NETGEAR AV user interface with pre-configured AV profiles, plus CLI via Telnet and SSH, SNMP and MIBs. A USB Type-C console port on the front and a 1G out-of-band management port on the rear are provided.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV Protocols
NETGEAR IGMP Plus enhanced multicast, AVB (IEEE 802.1AS), PTPv2 Transparent Clock, and SMPTE ST 2110 Grandmaster and Boundary Clock modes with one BC/GM PTP profile active at a time (SMPTE ST 2059-2, AES67 or AES-R16-2016). NETGEAR notes that stacking, AVB and PTP Transparent Clock are mutually exclusive: a stack cannot run AVB or PTP TC.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-8M2V (MSM4310) switch, 1x APS254W external power adapter, 1x power cord, 1x USB Type-C console cable, 1x standard rack-mount bracket set, 1x set of longer brackets for recessed mounting, 4x rubber footpads for tabletop installation, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) (this listing) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) | 24x 2.5G, 4x 10G combo with SFP+ |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-8M2V (MSM4310) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MSM4310-100NES.
Frequently Asked Questions — NETGEAR M4350-8M2V
How much PoE power does the M4350-8M2V provide?
119W with the included APS254W adapter, 322W with two APS254W adapters and up to 551W with three.
Can I mount two of these switches side by side?
Yes. The M4350-8M2V is half-width, so one or two switches fit in a single 1U rack space.
Does it support 90W PoE devices?
Yes. The 2.5G ports are Ultra90 PoE++ IEEE 802.3bt and support 60W, 75W and 90W loads, within the total PoE budget.
Can it be stacked with other M4350 switches?
Yes. Virtual Chassis stacking supports up to eight M4350 switches as one logical switch over 10G, 25G or 100G ports. Note that a stack cannot run AVB or PTP Transparent Clock.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
