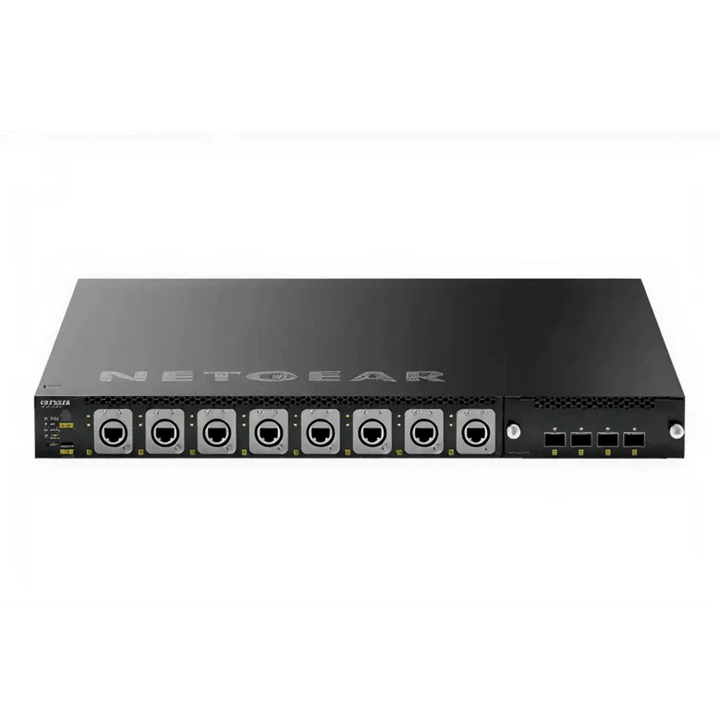

NETGEAR M4350-16M4V 16-Port 2.5G PoE++ Fully Managed AV Switch with 8 x etherCON and 4 x 25G
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-16M4V 16x 2.5G PoE++ (8x etherCON) and 4x 25G Fully Managed Switch (MSM4320-100NES) - Limited Lifetime Local Warranty

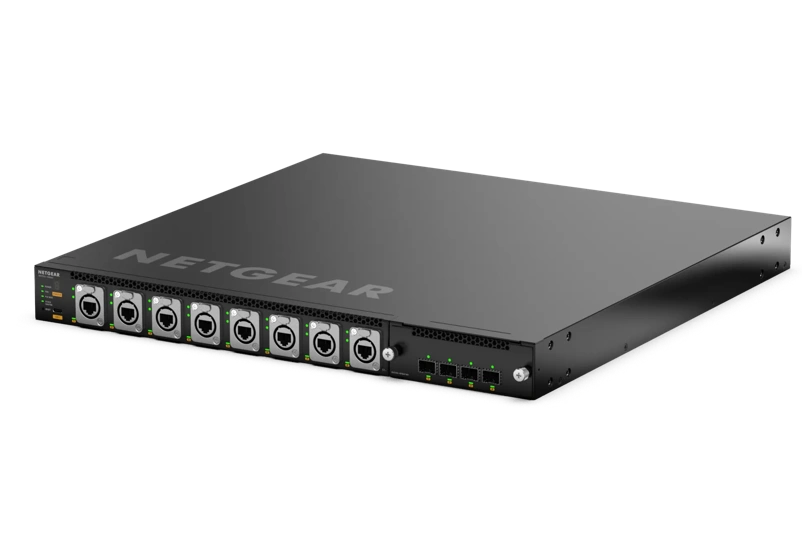

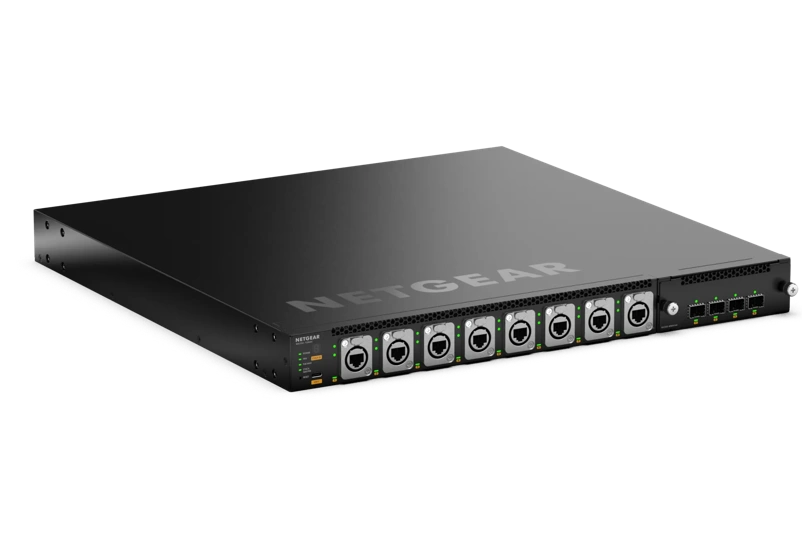

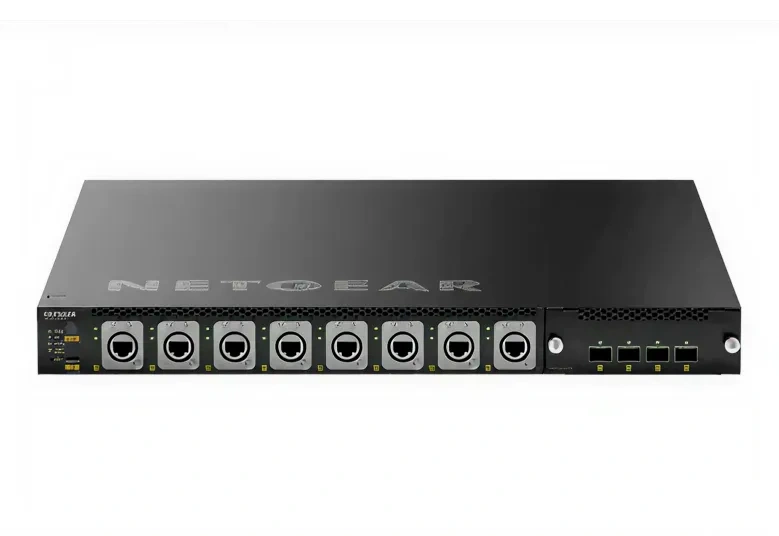

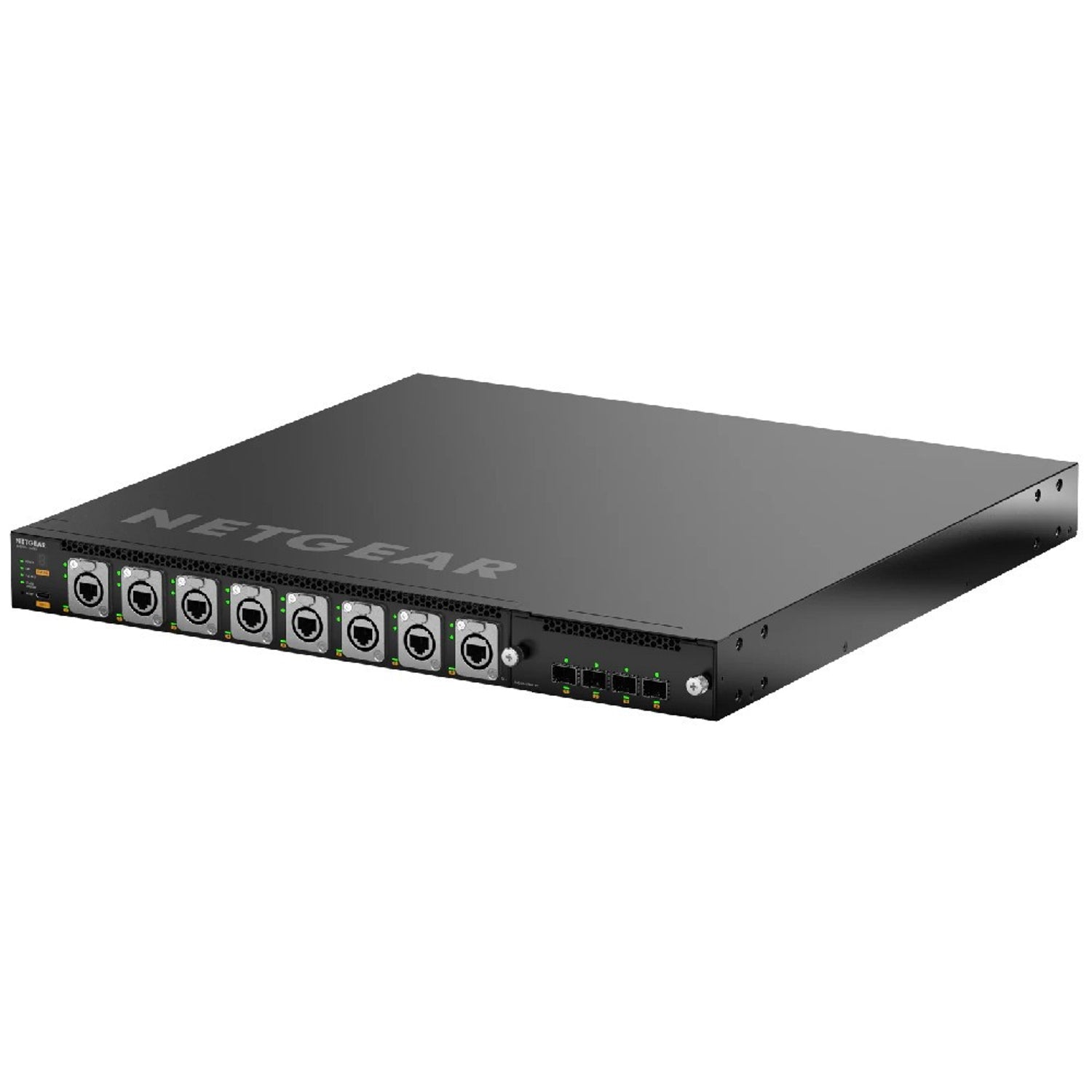

Rugged 2.5G PoE++ Switching with Neutrik etherCON

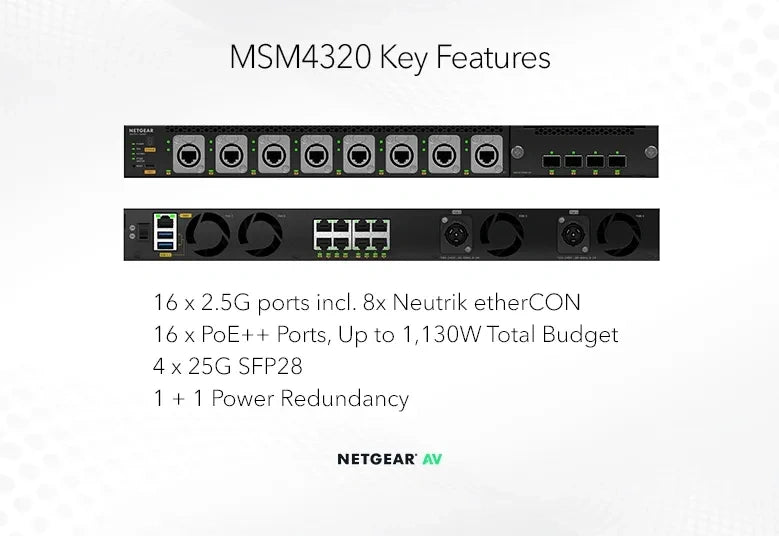

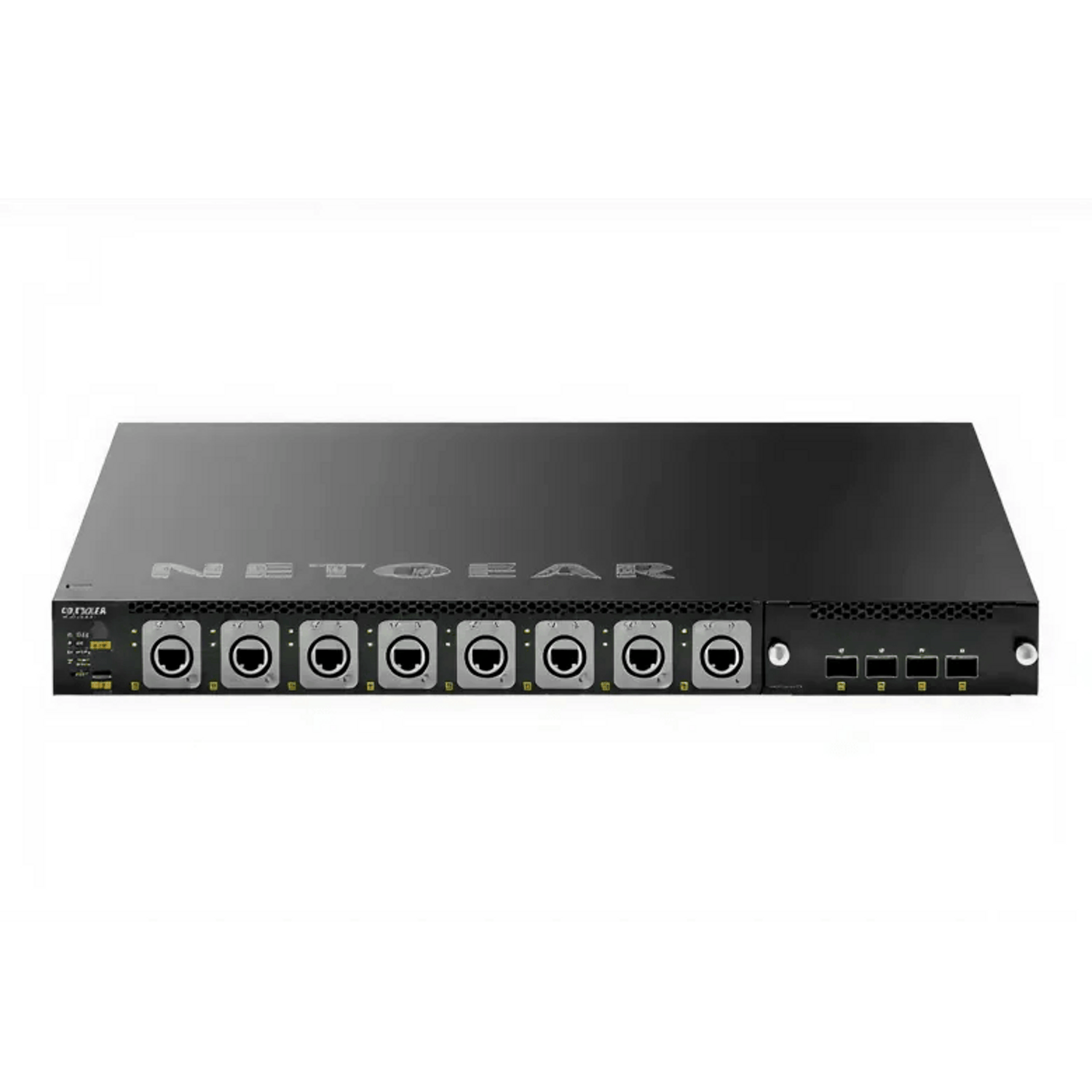

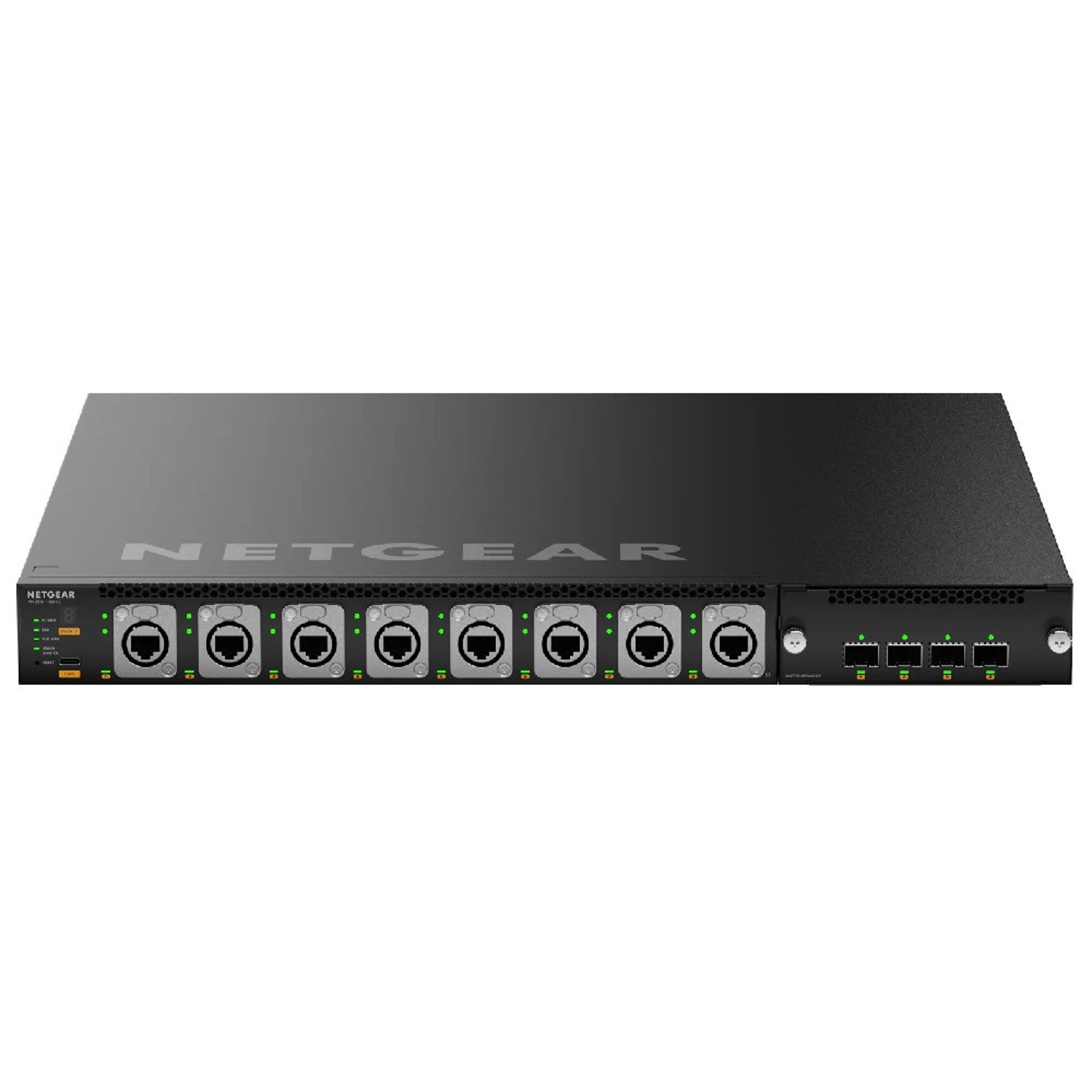

The NETGEAR M4350-16M4V is a 20-port fully managed switch with sixteen 100M/1G/2.5G PoE++ ports, eight of which use Neutrik etherCON connectors, plus a modular slot for four 10G/25G ports. It is designed for live production, touring and AV-over-IP installations where locking connectors matter.
Redundant Power and a 1,130W PoE Budget
Two internal 800W power supplies with Neutrik powerCON connectors provide 530W of redundant base PoE budget, rising to 1,130W with both supplies in use. Ultra90 PoE++ (IEEE 802.3bt) ports support 60W, 75W and 90W devices and remain compatible with 802.3af PoE and 802.3at PoE+.
Flexible 25G Uplinks and Fibre Options
The modular slot takes NETGEAR APM414 interface cards: 4x 25G SFP28, 4x 10G RJ-45, or 2x Neutrik opticalCON QUAD with multimode or single-mode transceivers. NETGEAR lists the switch with the APM414V 4x 25G SFP28 card.
Built for AV over IP
NETGEAR IGMP Plus, NETGEAR AV OS and the NETGEAR Engage Controller simplify multicast setup. The switch supports AVB, and SMPTE ST 2110 Grandmaster and Boundary Clock modes for AES67 and SMPTE ST 2059-2. Static, policy-based and dynamic routing are included, and Virtual Chassis stacking provides non-stop forwarding and hitless failover.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-16M4V Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-16M4V Fully Managed Switch |
| Part Number | MSM4320-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| 2.5G PoE++ Ports | 16x 100M / 1G / 2.5G, including 8x Neutrik etherCON |
| Modular Slot | 1x slot for 4 ports of 10G / 25G (APM414V, APM414C, APM414SD, APM414LD) |
| Total Ports | 20 (16x 2.5G PoE++, 4x 25G SFP28 per NETGEAR product page) |
| Management Ports | USB Type-C console, 1G out-of-band port, 2x USB-A (storage) |
| Port LEDs | Multi-colour LED on each port reflecting the AV profile colour |
Performance
| Switching Fabric | 280 Gbps |
| Throughput | 208.32 Mpps |
| Latency | <5.30µs at 2.5G, <0.80µs at 10G fibre, <0.70µs at 25G |
| Packet Buffer | 32Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 4GB DDR4 |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IP Multicast Routes | 512 IPv4 / 256 IPv6 |
| IGMP Groups | Up to 12K |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
| Jumbo Frames | Up to 12KB |
PoE
| PoE Standard | Ultra90 PoE++ IEEE 802.3bt (60W, 75W, 90W), compatible with 802.3af PoE (15.4W) and 802.3at PoE+ (30W) |
| PoE Budget | 530W with one internal PSU (redundant base); 1,130W with both internal PSUs |
Power

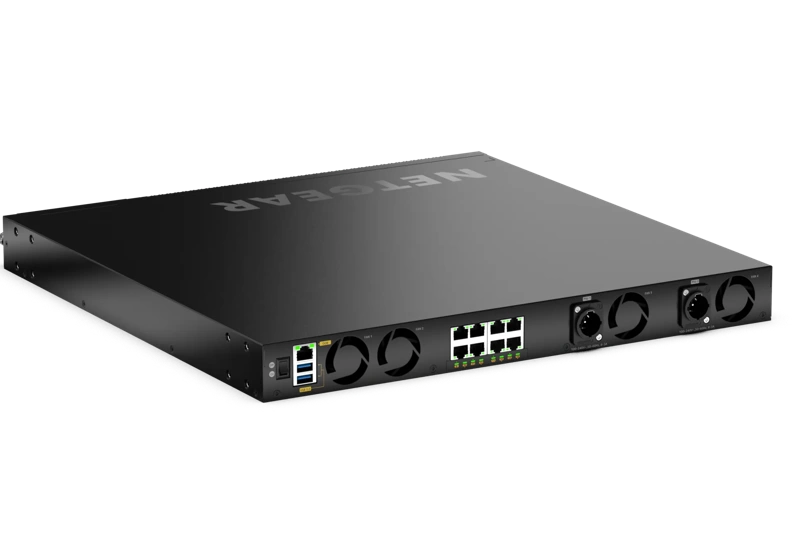

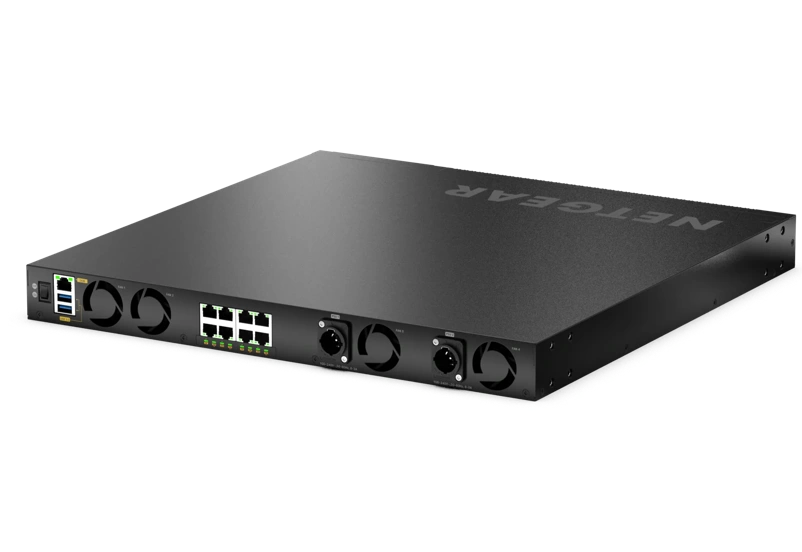

| Power Supply | 2x fixed internal 800W PSUs with Neutrik powerCON connectors |
| Power Consumption | Max with PoE: 1,359.8W; without PoE: 109.6W; standby: 50.6W |
Physical & Acoustics
| Form Factor | Full-width, 1U rack mount |
| Dimensions (W x H x D) | 440 x 43.2 x 432 mm |
| Weight | 7.85 kg (17.31 lb) |
| Acoustics (Quiet Mode) | 35.6 dBA at 25°C ambient (22% fan duty, 1,130W PoE); 58.8 dBA at 40°C ambient (60% fan duty) |
| Acoustics (Cool Mode) | 70.7 dBA at 100% fan duty |
Compatibility & Software Support
Interface Cards
The modular slot is compatible with the following NETGEAR interface cards: APM414V 4x 25G SFP28 (APM414V-10000S), APM414C 4x 10G RJ-45 (APM414C-10000S), APM414SD 2x Neutrik opticalCON QUAD with multimode transceivers (APM414SD-10000S) and APM414LD 2x Neutrik opticalCON QUAD with single-mode transceivers (APM414LD-10000S).
Power

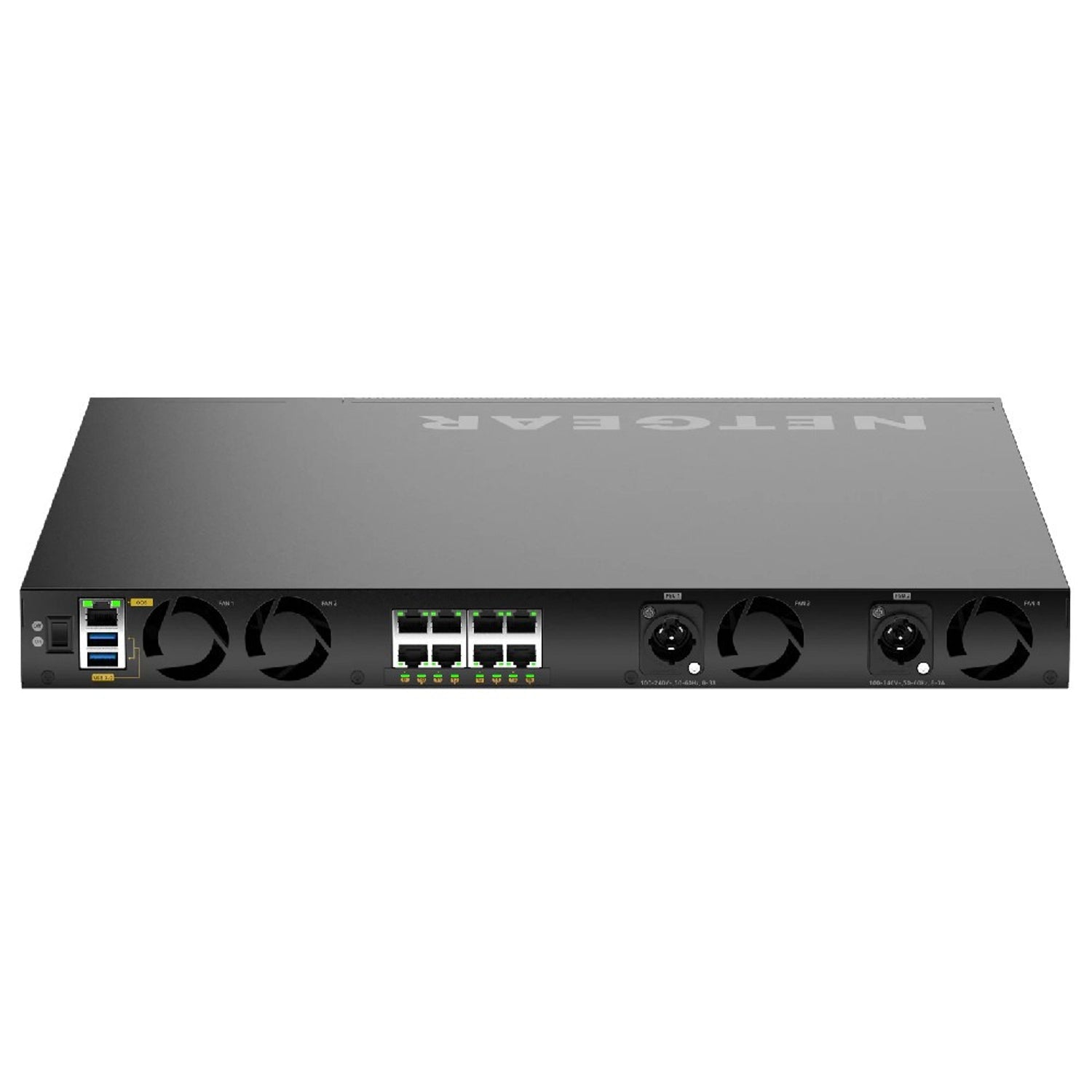

Power is provided by two fixed internal 800W supplies with Neutrik powerCON inputs; no external power modules are required. Neutrik powerCON connectors and C14 adapters are included.
Management
Web browser GUI (HTTPS) including the NETGEAR AV user interface with pre-configured AV profiles, plus CLI via Telnet and SSH, SNMP and MIBs. A USB Type-C console port on the front and a 1G out-of-band management port on the rear are provided.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV Protocols
NETGEAR IGMP Plus enhanced multicast, AVB (IEEE 802.1AS), PTPv2 Transparent Clock, and SMPTE ST 2110 Grandmaster and Boundary Clock modes with one BC/GM PTP profile active at a time (SMPTE ST 2059-2, AES67 or AES-R16-2016). NETGEAR notes that stacking, AVB and PTP Transparent Clock are mutually exclusive: a stack cannot run AVB or PTP TC.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-16M4V (MSM4320) switch, 1x power cord (standard AC to C13), 2x Neutrik powerCON connectors and C14 adapters, 1x USB Type-C console cable, 1x standard rack-mount bracket set, 1x set of longer brackets for recessed mounting, 4x rubber footpads, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) (this listing) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) | 24x 2.5G, 4x 10G combo with SFP+ |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-16M4V (MSM4320) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MSM4320-100NES.
Frequently Asked Questions — NETGEAR M4350-16M4V
How many of the ports use Neutrik etherCON?
Eight of the sixteen 2.5G PoE++ ports use Neutrik etherCON connectors.
What is the PoE budget?
530W of redundant base PoE budget, and up to 1,130W with both internal 800W power supplies in use.
Can I change the 25G uplink ports?
Yes. The modular slot accepts APM414V (4x 25G SFP28), APM414C (4x 10G RJ-45), APM414SD (2x opticalCON QUAD, multimode) or APM414LD (2x opticalCON QUAD, single-mode) interface cards.
Does it support SMPTE ST 2110 and AES67?
Yes. The M4350-16M4V supports SMPTE ST 2110 Grandmaster and Boundary Clock modes, with one PTP profile active at a time: SMPTE ST 2059-2, AES67 or AES-R16-2016.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
