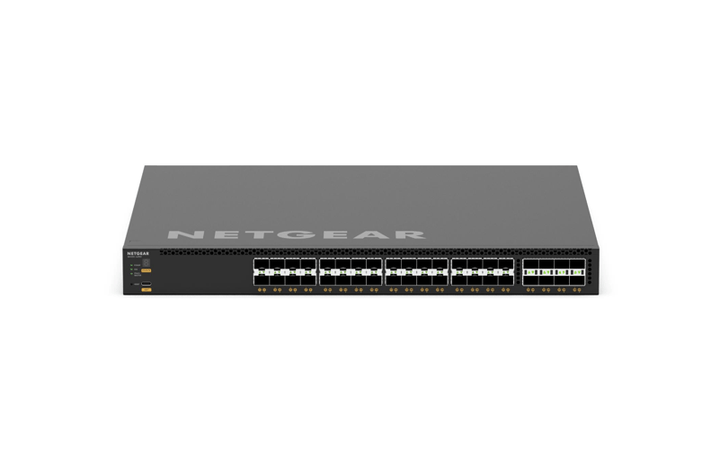

NETGEAR M4350-32F8V 32-Port 10G SFP+ Fully Managed Switch with 8 x 25G SFP28
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-32F8V 32x 10G SFP+ and 8x 25G Fully Managed Switch (XSM4340FV-100NES) - Limited Lifetime Local Warranty
32 SFP+ Fibre Ports with 25G Uplinks

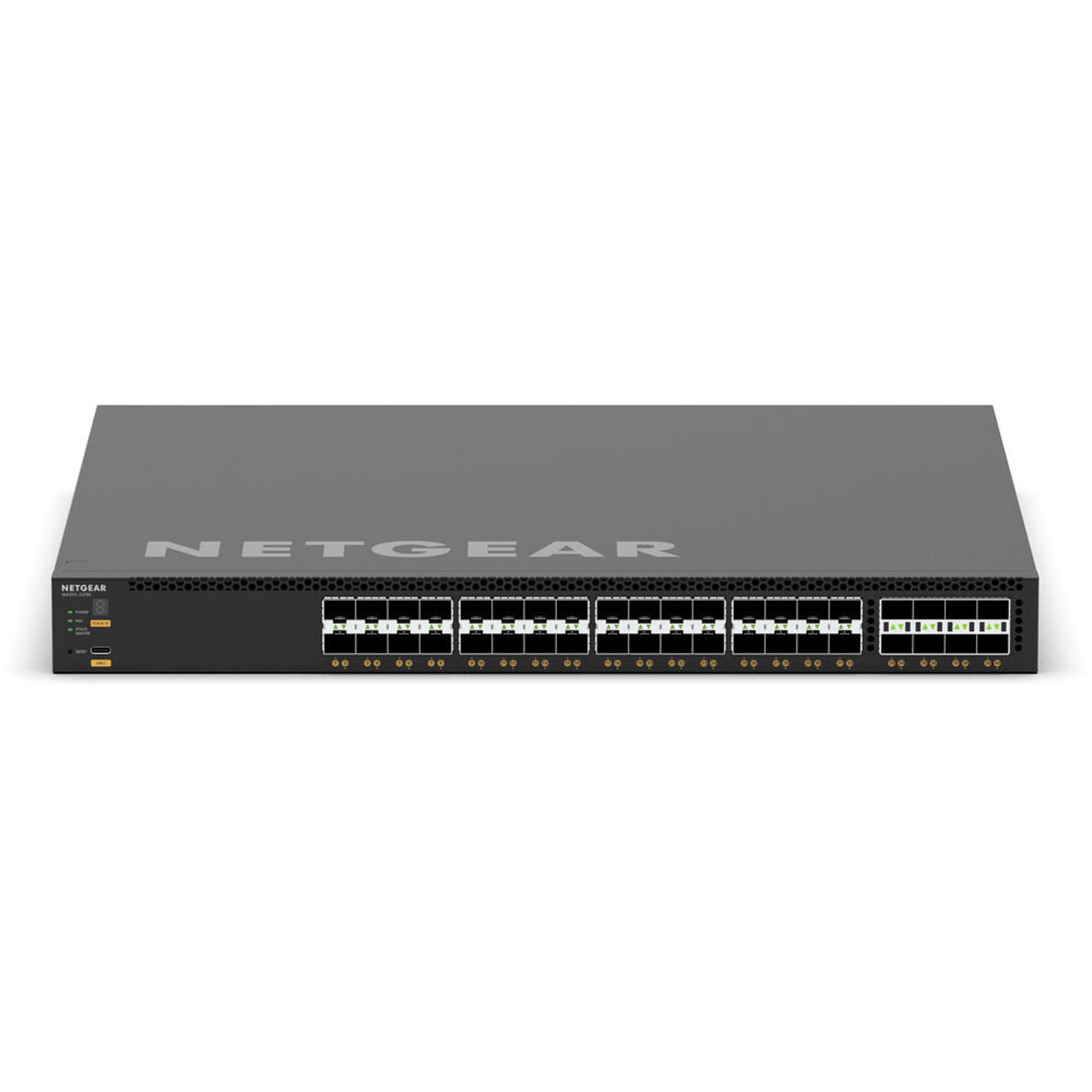

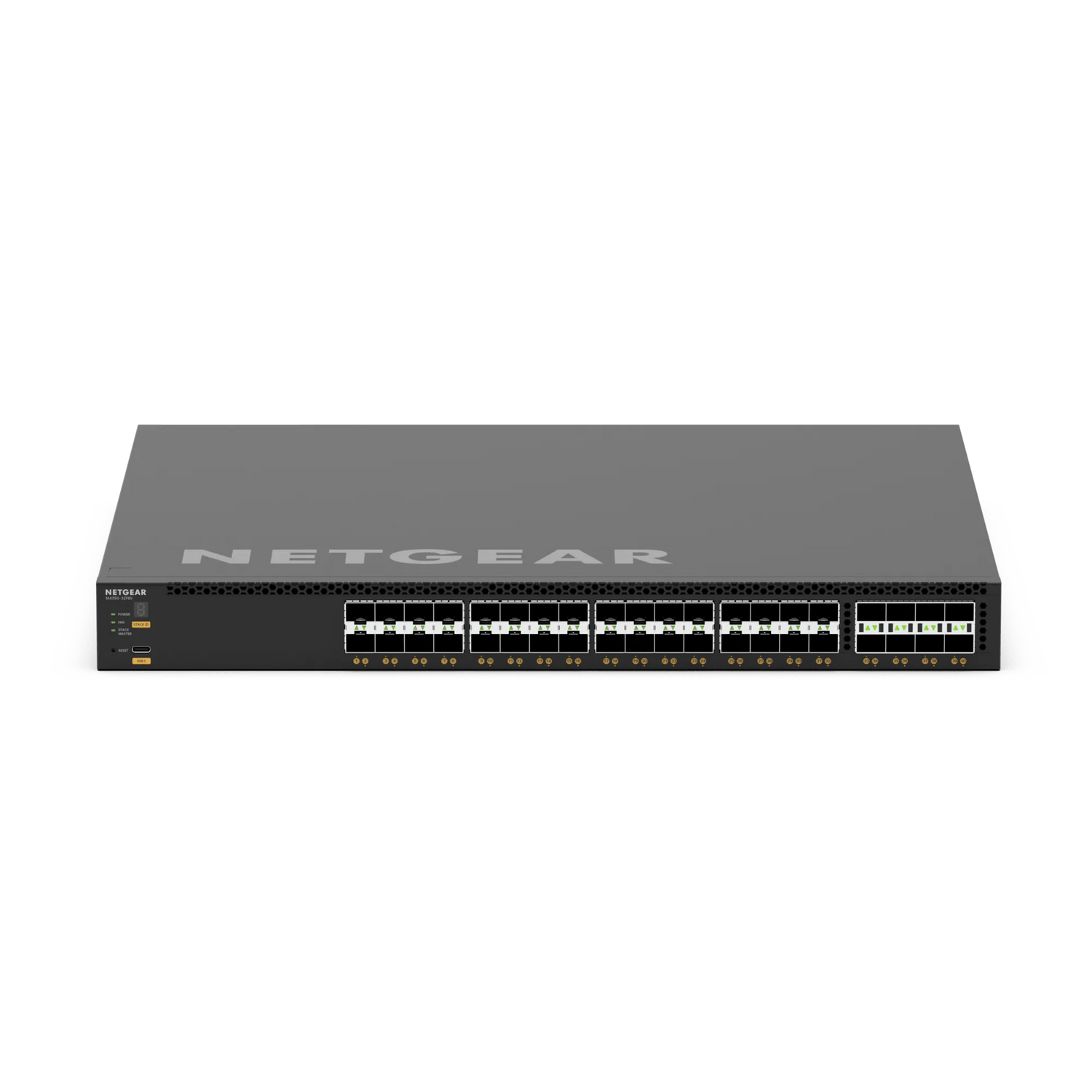

The NETGEAR M4350-32F8V is a 40-port, full-width 1U fully managed switch with thirty-two 10G SFP+ ports (1G also supported on ports 1-28) and eight 10G/25G SFP28 ports. A 1.04 Tbps switching fabric and 773.76 Mpps throughput make it suited to fibre aggregation and AV-over-IP distribution cores.
Low Latency and Redundant Power
Latency is under 1.27µs at 10G fibre and under 1.08µs at 25G. A fixed internal 420W power supply runs the switch, and a modular power slot accepts an APS600Wv3, APS1200Wv2 or APS2000Wv2 module for 1+1 power redundancy.
Built for AV over IP
NETGEAR IGMP Plus enhanced multicast, the AV-optimised web interface with pre-configured AV profiles and the NETGEAR Engage Controller simplify multicast setup. The switch supports AVB, jumbo frames up to 12KB, and static, policy-based and dynamic routing, all license-free.
Virtual Chassis Stacking
The SFP28 ports can be used for Virtual Chassis stacking with non-stop forwarding and hitless failover, so several switches are managed as one.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-32F8V Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-32F8V Fully Managed Switch |
| Part Number | XSM4340FV-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| 10G Fibre Ports | 32x 10G SFP+ (1G on ports 1-28 only) |
| 25G Fibre Ports | 8x 10G / 25G SFP28 (each 4-port block runs at one speed: 4x 10G or 4x 25G) |
| Total Ports | 40 |
| Management Ports | USB Type-C console (front), 1G out-of-band port (rear), 2x USB-A storage (rear) |
Performance
| Switching Fabric | 1.04 Tbps |
| Throughput | 773.76 Mpps |
| Latency | <1.27µs at 10G fibre, <1.08µs at 25G |
| Packet Buffer | 64Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 4GB DDR4 |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IP Multicast Routes | 512 IPv4 / 256 IPv6 |
| IGMP Groups | Up to 12K |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
| Jumbo Frames | Up to 12KB |
Power

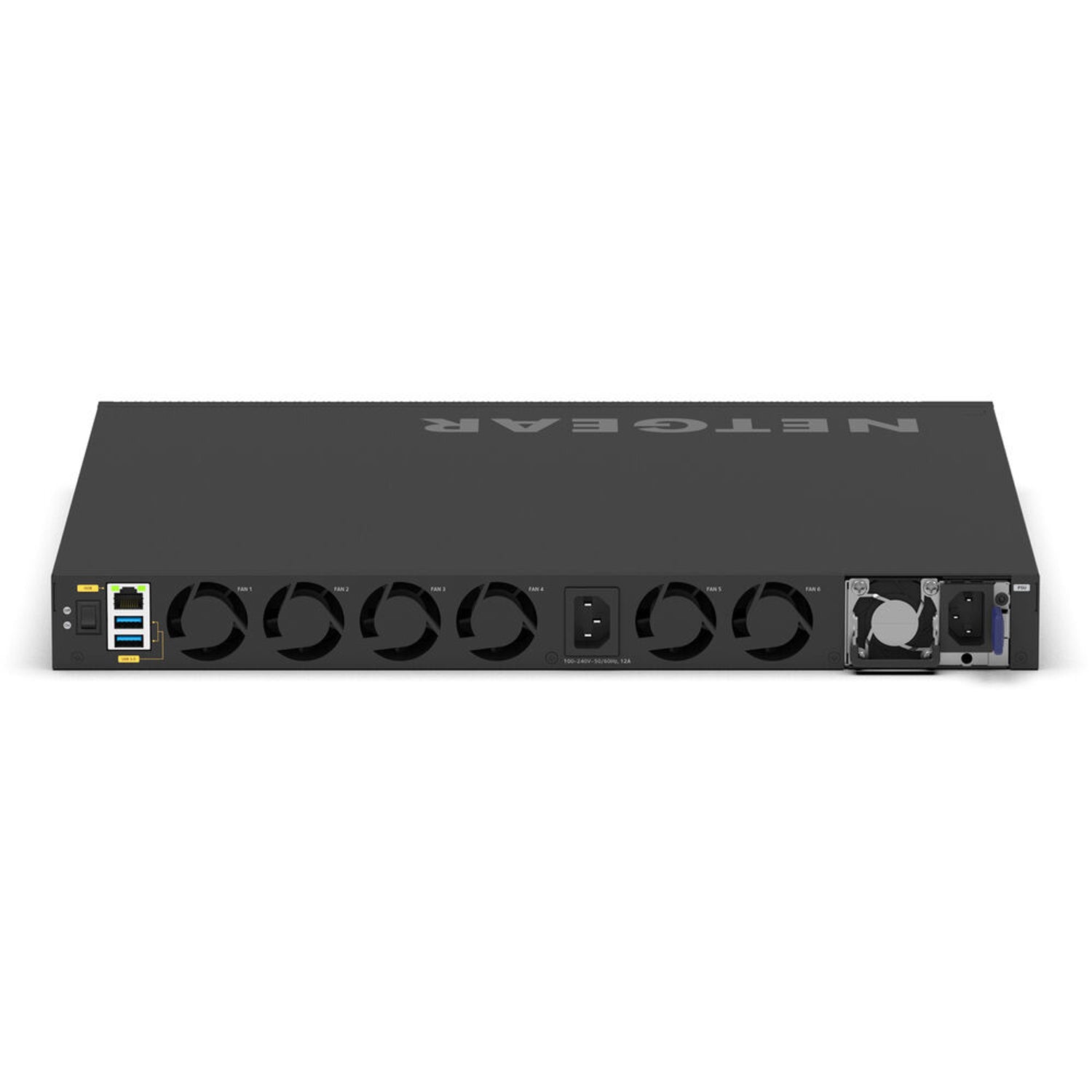

| Power Supply | 1x fixed internal 420W PSU (C14) plus 1x modular PSU slot for 1+1 redundancy |
| Compatible Modular PSUs | APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES), APS2000Wv2 (APS2000W-200NES) |
| Power Consumption | Max: 156.4W (491.1 Btu/hr); standby: 42.6W (133.76 Btu/hr) |
| PoE | Not supported |
Physical & Acoustics

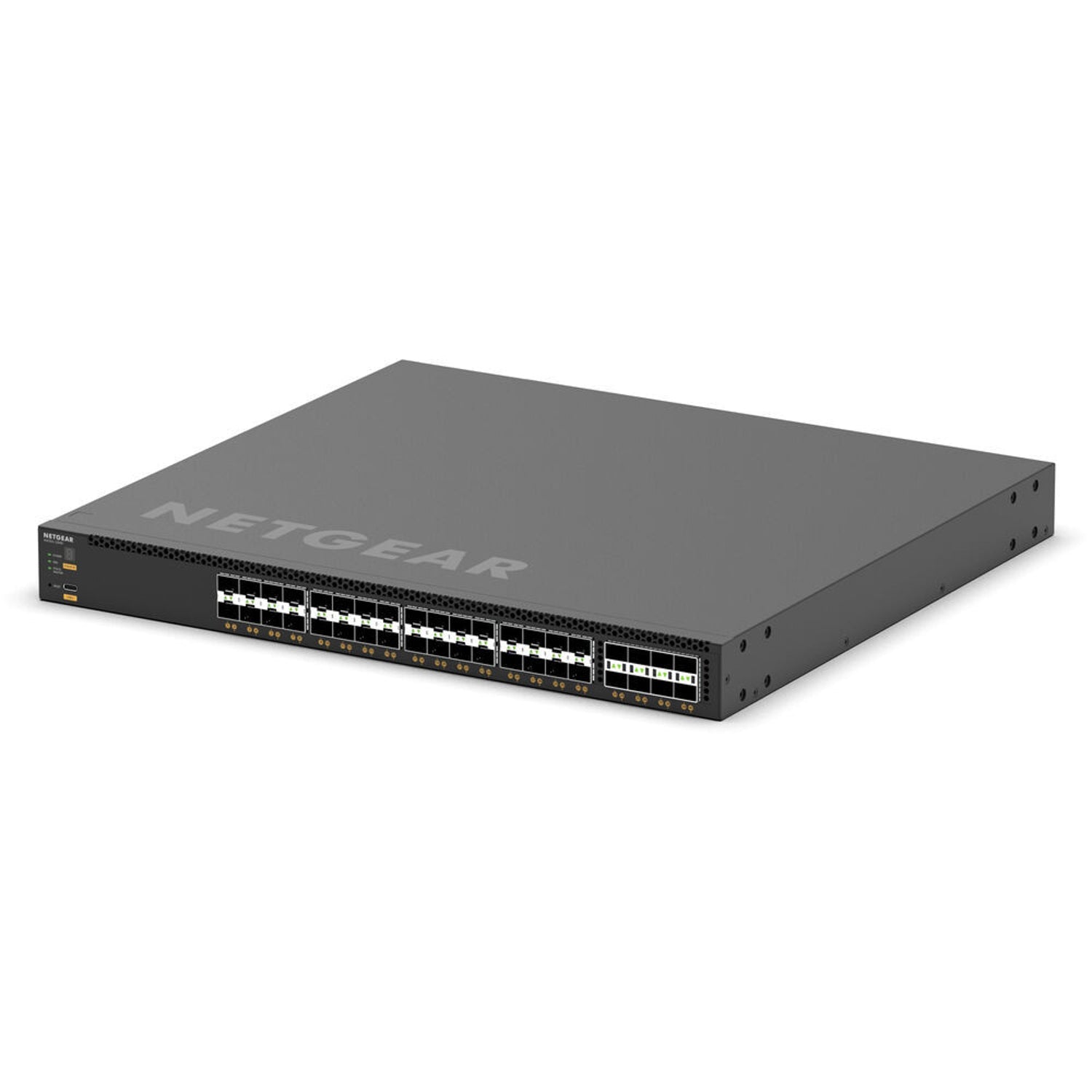

| Form Factor | Full-width, 1U rack mount |
| Dimensions (W x H x D) | 440 x 43.2 x 400 mm |
| Weight | 6.95 kg (15.32 lb) |
| Acoustics (Quiet Mode) | 32.7 dBA at 25°C ambient; 63 dBA at 50°C ambient |
| Acoustics (Cool Mode) | 63 dBA at 80% fan duty |
Compatibility & Software Support
Power Supplies
The modular power slot accepts the following NETGEAR power supplies: APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES) and APS2000Wv2 (APS2000W-200NES). Any of these, together with the internal 420W supply, gives 1+1 power redundancy.
Ports and Modules
The 32 SFP+ ports take 10G SFP+ modules, and ports 1-28 also accept 1G SFP modules. The eight SFP28 ports take 10G SFP+ or 25G SFP28 modules; each 4-port block runs at a single speed, and when a 25G module is inserted, 10G modules in the same block go down. In stacking mode, a 25G port operates at 25G only.
Management
Web browser GUI (HTTPS) including the NETGEAR AV user interface with pre-configured AV profiles, plus CLI via Telnet and SSH, SNMP and MIBs. A USB Type-C console port on the front and a 1G out-of-band management port on the rear are provided.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV Protocols
NETGEAR IGMP Plus enhanced multicast and AVB (IEEE 802.1BA, 802.1AS gPTP, 802.1Qav, 802.1Qat), up to 500 AVB streams per switch. NETGEAR notes that stacking and AVB are mutually exclusive: a stack cannot run AVB. SMPTE ST 2110 Grandmaster and Boundary Clock modes are not listed for this model.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-32F8V (XSM4340FV) switch, 1x power cord, 1x USB Type-C console cable, 1x standard rack-mount bracket set, 1x set of brackets for recessed mounting, 4x rubber footpads, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) | 24x 1G/2.5G SFP, 4x 10G copper/SFP+ combo |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) (this listing) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| Hardware Installation Guide | NETGEAR M4350 Series Hardware Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-32F8V (XSM4340FV) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XSM4340FV-100NES.
Frequently Asked Questions — NETGEAR M4350-32F8V
Does the M4350-32F8V support PoE?
No. It is an all-fibre switch without PoE. For 10G copper PoE++ ports in the same 40-port form factor, see the M4350-36X4V (XSM4340CV) or M4350-24X8F8V (XSM4340V).
Can the SFP+ ports run at 1G?
Yes, on ports 1-28, per the NETGEAR datasheet.
Does it have redundant power?
Yes. It has a fixed internal 420W power supply and one modular slot for an APS600Wv3, APS1200Wv2 or APS2000Wv2 module, giving 1+1 redundancy.
Does it support SMPTE ST 2110 and AES67 clocking?
No. NETGEAR lists SMPTE ST 2110 Grandmaster and Boundary Clock modes only for other M4350 models, such as the M4350-24F4X and M4350-16M4V. The M4350-32F8V supports AVB and NETGEAR IGMP Plus multicast.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
