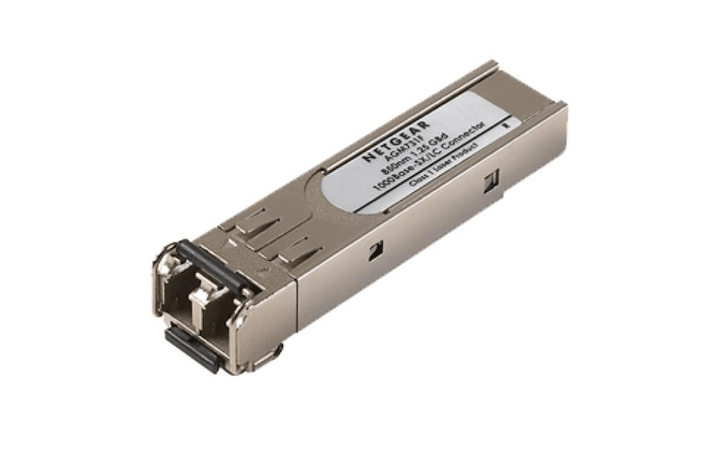

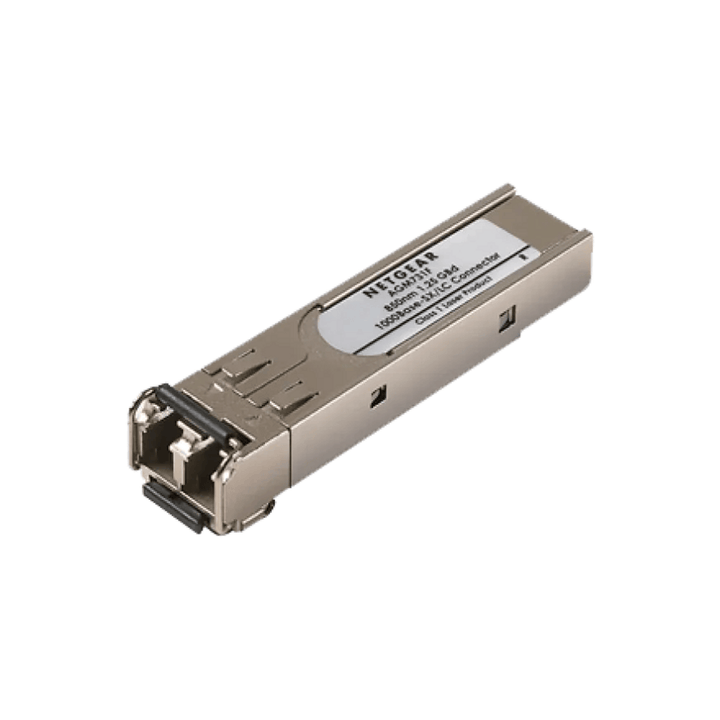

NETGEAR AGM731F 1000BASE-SX SFP Multimode Fibre Transceiver Module (LC)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR AGM731F ProSAFE 1000BASE-SX Multimode Fibre SFP Module (AGM731F) - 5 Years Local Warranty
Gigabit Fibre Uplinks Over Multimode
The NETGEAR AGM731F is a 1000BASE-SX SFP (mini-GBIC) transceiver for short-reach Gigabit Ethernet over multimode fibre. It meets IEEE 802.3z and plugs into any SFP slot on NETGEAR managed and smart switches to add a fibre uplink between wiring closets, floors or buildings on a campus.
Reach by Fibre Grade
According to NETGEAR's installation guide, the AGM731F runs up to 275 m over OM1 (62.5/125 µm), 275–550 m over OM2 and up to 550 m over OM3 (50/125 µm) laser-optimised multimode fibre, using a standard LC duplex connector.
Low Power, Hot-Swappable
The module draws just 1.1 W, has an MTBF of more than 10 years according to NETGEAR, and is RoHS compliant with UL 60950-1 / CSA-C22.2 No. 60950-1 safety certification. The switch automatically detects the module when it is inserted.
Need help choosing? Email sales@sourceit.com.sg with your switch model, fibre type (OM1/OM2/OM3 or single-mode) and link distance and we will confirm the right module.
NETGEAR AGM731F Datasheet — Technical Specifications
General
| Product Name | NETGEAR ProSAFE AGM731F 1000BASE-SX SFP GBIC Module |
| Part Number | AGM731F |
| Module Type | SFP (mini-GBIC), 1 Gigabit Ethernet |
| Local Warranty (Singapore) | 5 years, supplied by SourceIT with a GST invoice |
Optical Interface
| Standard | IEEE 802.3z, 1000BASE-SX |
| Fibre Type | Multimode, 62.5/125 µm or 50/125 µm |
| Connector | LC duplex |
Operating Distance
| OM1 (62.5/125 µm) | Up to 275 m (900 ft) |
| OM2 | 275–550 m (900–1,800 ft) |
| OM3 (50/125 µm) | Up to 550 m (1,800 ft) |
Power & Reliability
| Power Consumption | 1.1 W |
| MTBF | More than 10 years |
Environmental
| Operating Case Temperature | -5 to 70 °C (23–158 °F) |
| Storage Temperature | -40 to 85 °C (-40–185 °F) |
| Operating Humidity | 85% at 25 °C |
Physical & Compliance
| Dimensions | 56.8 x 13.6 x 8.6 mm (2.23 x 0.53 x 0.34 in) |
| Weight | 16.3 g (0.58 oz) |
| Safety | UL 60950-1, CSA-C22.2 No. 60950-1 |
| Environmental Compliance | RoHS |
Compatibility & Software Support
Supported Switches
NETGEAR states the AGM731F fits the SFP interfaces of all NETGEAR Fully Managed switches, all Smart switches and the JGS524F, and meets the SFP GBIC standard for use in any SFP GBIC-compliant slot. It is also listed as a supported Gigabit SFP module in the NETGEAR M7100 series datasheet.
Software
No drivers or software are needed — NETGEAR switches detect the module automatically when it is inserted.
Choosing the Right Module
Use the AGM731F for multimode fibre runs up to 550 m. For single-mode fibre up to 10 km choose the AGM732F; for 10G links see the AXM761/AXM762/AXM764 SFP+ modules below.
Package Contents & NETGEAR SFP/SFP+ Module Ordering Information
In the Box
1 x AGM731F SFP module.
NETGEAR SFP / SFP+ Modules
| Model | Type / reach (from NETGEAR) | Part No. |
| AGM731F (this listing) | 1000BASE-SX SFP, multimode, LC, up to 550 m (OM3) | AGM731F |
| AGM732F | 1000BASE-LX SFP, single-mode, LC, up to 10 km | AGM732F |
| AGM734 | 1000BASE-T copper SFP, RJ-45, up to 100 m | AGM734-10000S |
| AXM761 | 10GBASE-SR SFP+, multimode, LC, up to 300 m (OM3) | AXM761-10000S |
| AXM761 (10-pack) | 10 x AXM761 10GBASE-SR SFP+ | AXM761P10-10000S |
| AXM762 | 10GBASE-LR SFP+, single-mode, LC, up to 10 km | AXM762-10000S |
| AXM763 | 10GBASE-LRM SFP+ (802.3aq), multimode, LC, up to 220 m | AXM763-10000S |
| AXM764 | 10GBASE-LR Lite SFP+, single-mode, LC, up to 2 km | AXM764-10000S |
| AXM765 | 10GBASE-T copper SFP+ module | AXM765-20000S |
Datasheet & Downloads
| NETGEAR installation guide / specifications | AGM731F & AGM732F Installation Guide (PDF) |
| NETGEAR M7100 datasheet (module ordering table) | M7100 Series Datasheet (PDF) |
| NETGEAR product page | AGM731F on netgear.com |
| NETGEAR support | AGM731F support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AGM731F.
Frequently Asked Questions — NETGEAR AGM731F
Is the AGM731F multimode or single-mode?
Multimode. It is a 1000BASE-SX module for 62.5/125 µm or 50/125 µm multimode fibre. For single-mode fibre, use the AGM732F.
How far can the AGM731F reach?
Per NETGEAR's installation guide: up to 275 m on OM1, 275–550 m on OM2 and up to 550 m on OM3.
What connector does it use?
A standard LC duplex connector.
Will it work in my NETGEAR switch?
NETGEAR states it fits the SFP ports of all NETGEAR Fully Managed and Smart switches and the JGS524F. Email us your switch model if you want us to double-check.
What warranty do I get with the AGM731F?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
