NETGEAR M4350-16C 16-Port 100G QSFP28 Fully Managed AV Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-16C 16-Port 100G QSFP28 Fully Managed AV Switch (CSM4316-100NES) - Limited Lifetime Local Warranty
100G Spine for AV-over-IP and IT Networks

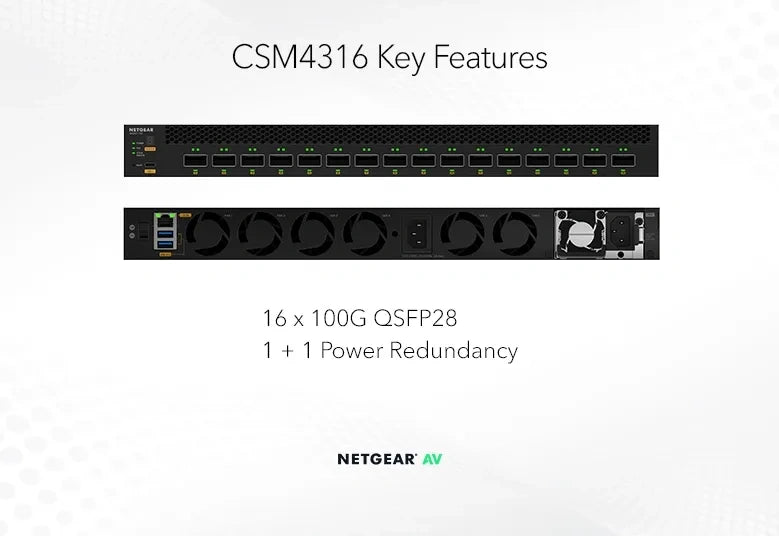

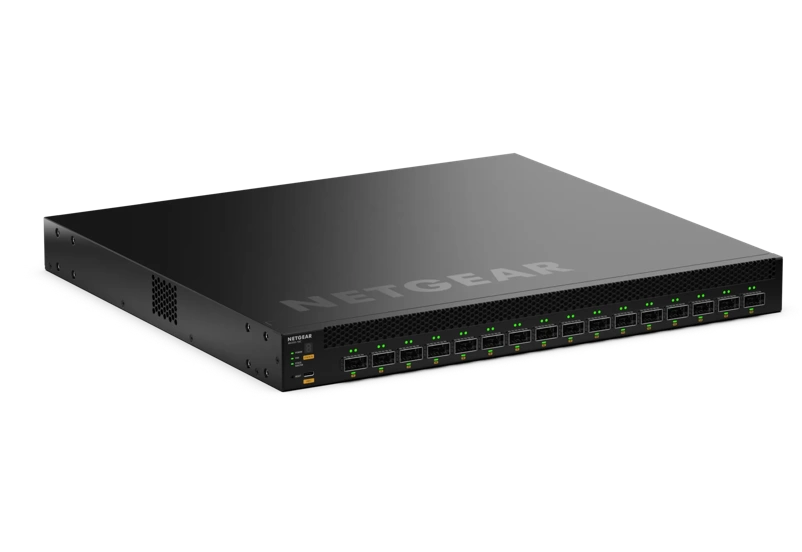

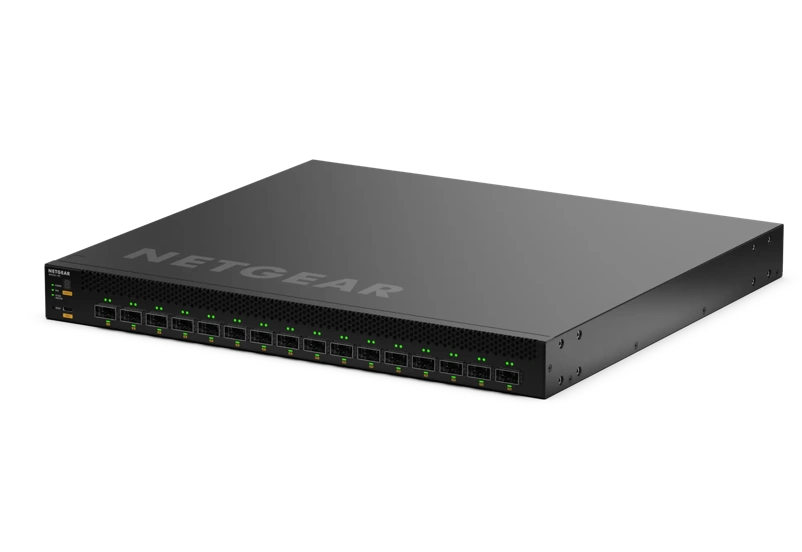

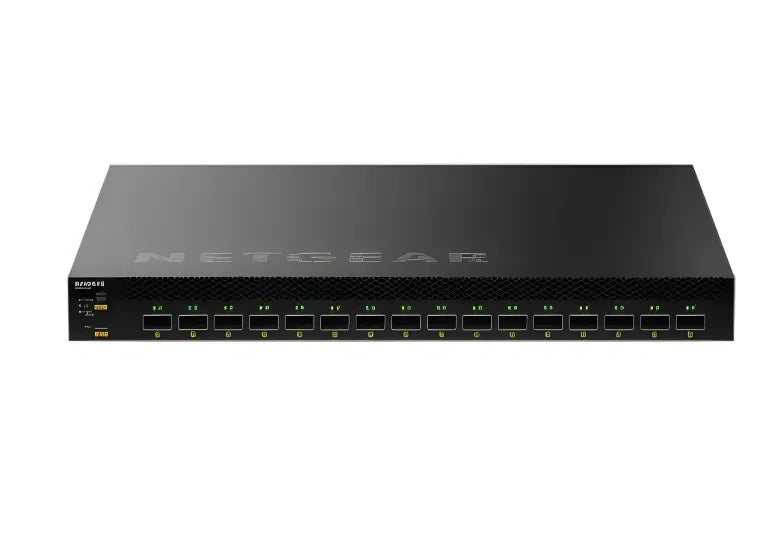

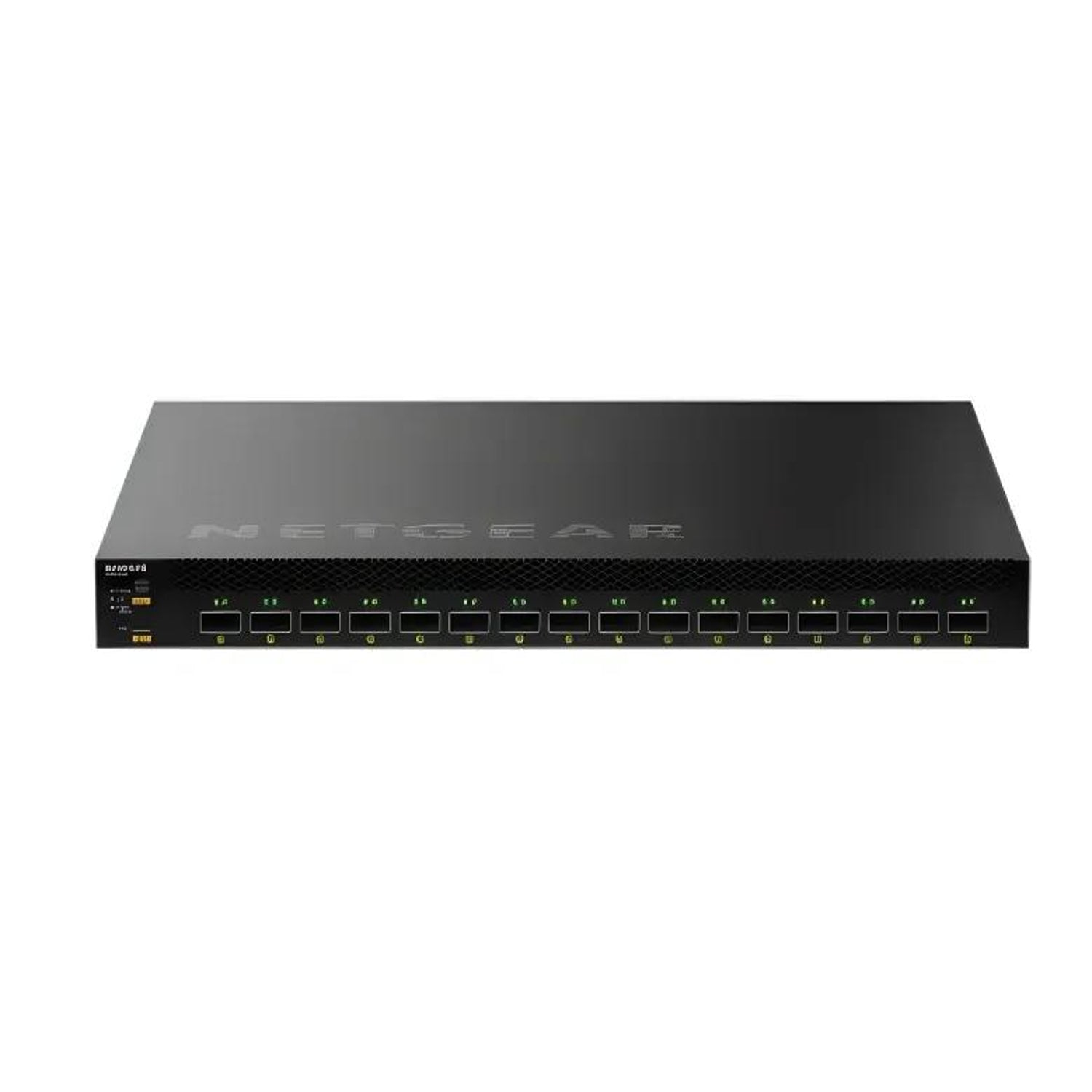

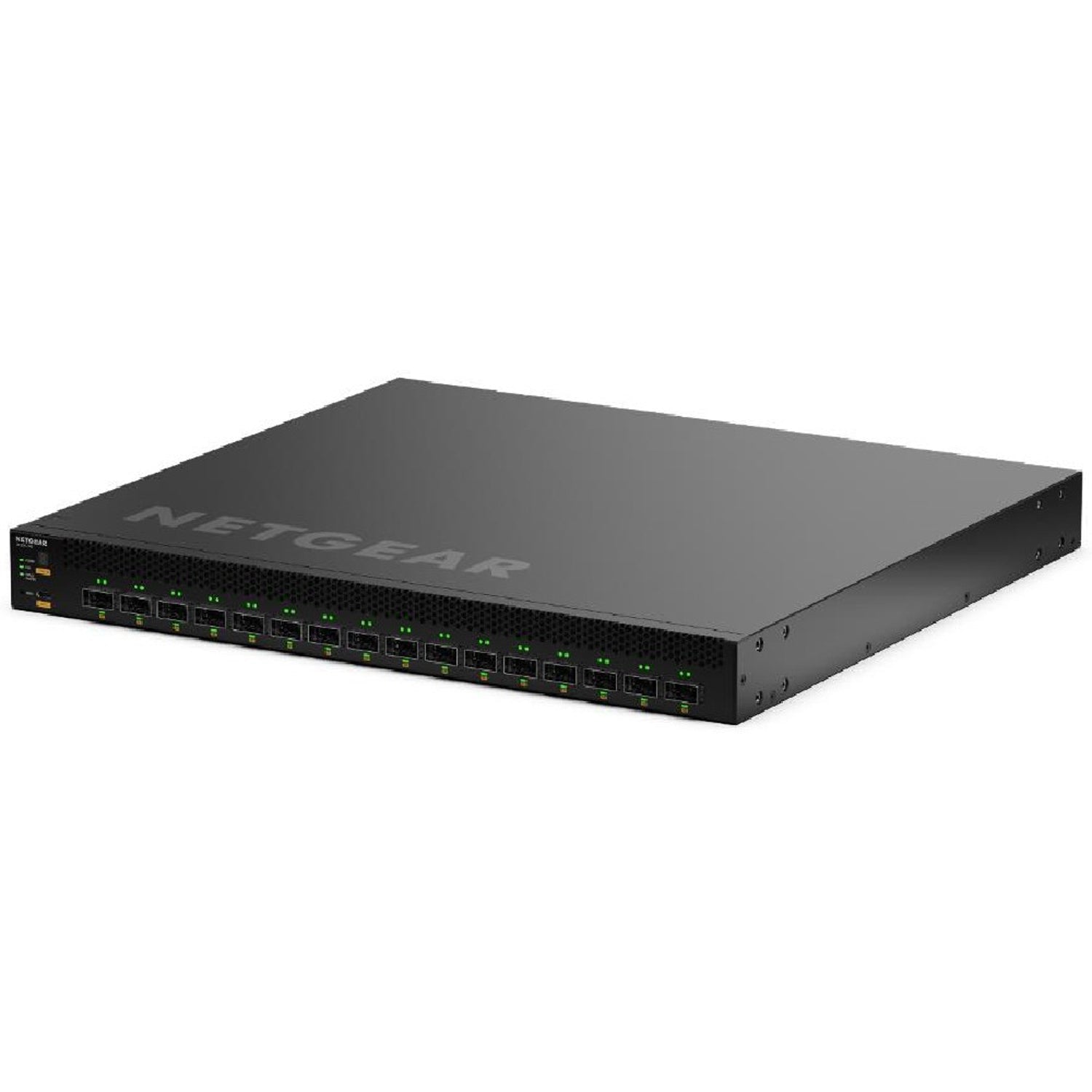

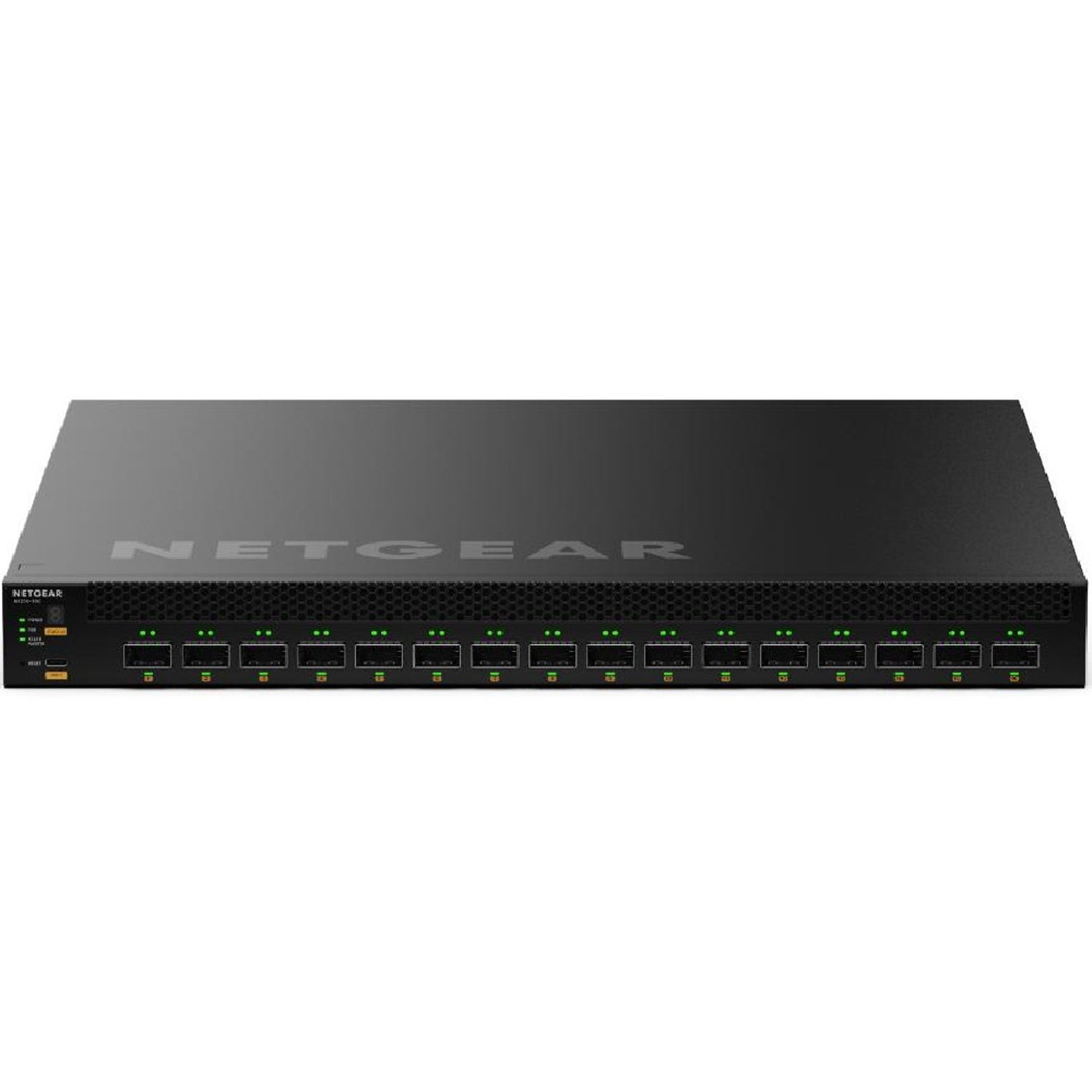

The M4350-16C packs 16 QSFP28 ports running at 40G or 100G into a full-width 1U chassis only 40cm deep. With 3.2Tbps of switching fabric and 2,380.8Mpps of throughput, it is built to aggregate 10G and 25G M4350 edge switches into a high-capacity core for large AV-over-IP and converged IT deployments.
Resilient Layer 3 Core
Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover, and the Layer 3 feature set covers static, policy-based and dynamic routing. NETGEAR IGMP Plus handles AV-over-IP multicast with little-to-no setup, AVB is included, and jumbo frames up to 12KB are supported. For broadcast and ProAV timing, NETGEAR lists SMPTE ST 2110 Grandmaster Clock and Boundary Clock support.
Redundant Power, Quiet Operation

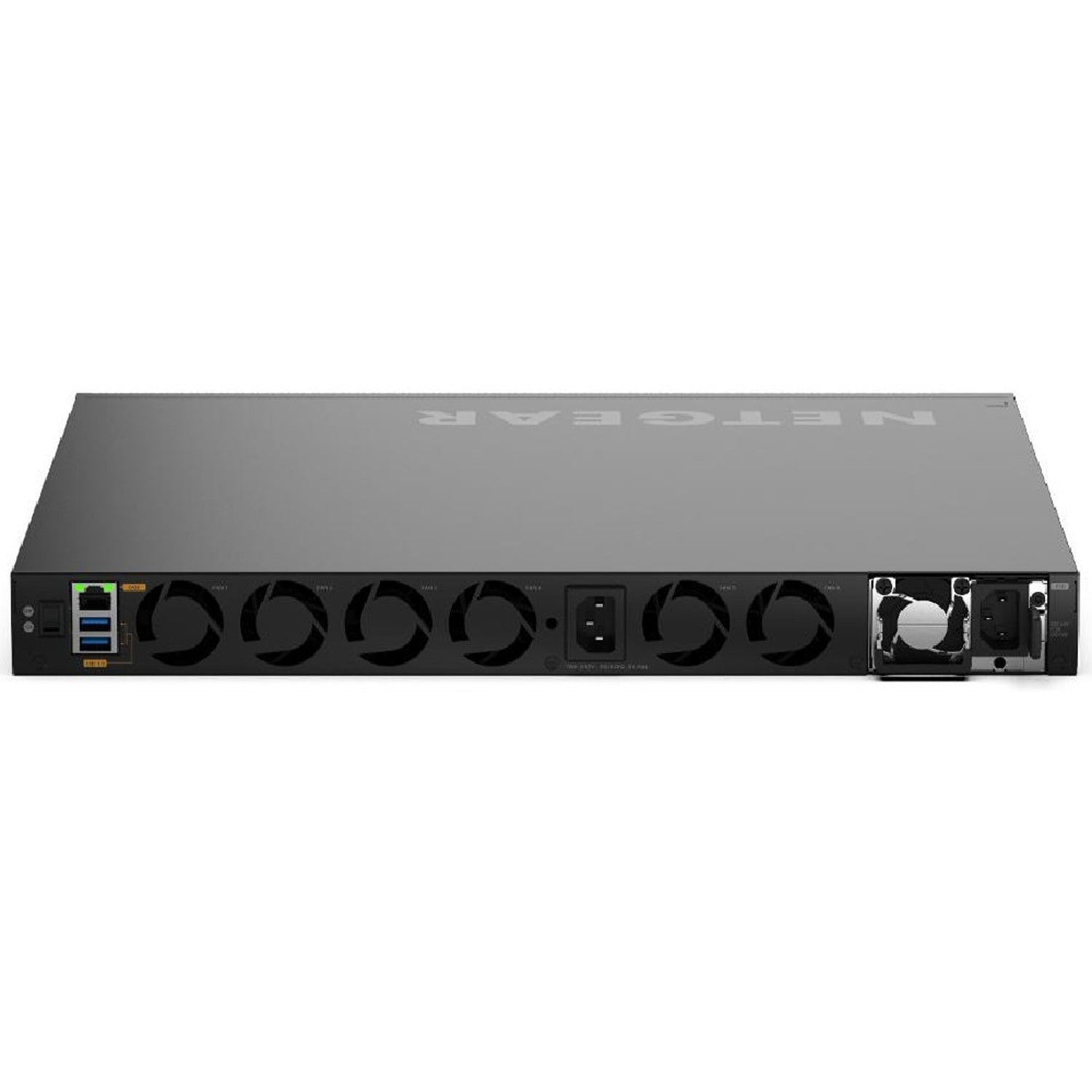

A 420W internal power supply is paired with one modular power supply slot for 1+1 redundancy. Front-to-back cooling and Quiet Mode keep noise down to 30.4dBA at 25°C, so the switch suits rooms where fan noise matters.
Made for AV Integrators
The AV user interface assigns certified port profiles in a few clicks, multi-colour LEDs on each port reflect the profile colours, and auto-trunk and auto-LAG speed up multi-switch builds.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-16C Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-16C 16x 100G QSFP28 Fully Managed Switch |
| Part Number | CSM4316-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| 100G ports | 16x QSFP28 (40G / 100G) |
| Management | Industry-standard CLI, NETGEAR IT web GUI and NETGEAR AV user interface; USB-C console (front), 1G out-of-band Ethernet port (rear), 2x USB-A (rear) |
Performance
| Switching fabric | 3.2Tbps |
| Throughput | 2,380.8Mpps (64-byte packets) |
| Latency | <1.22µs (100G) |
| Packet buffer | 256Mb |
| Memory | 4GB DDR4 RAM |
| Route table | Static: 256 IPv4 / 64 IPv6; RIP: 512; OSPF: 1,024 |
| MAC address table | 16K |
| ARP / NDP | 4K ARP / 512 NDP |
| VLANs | 4K |
| IGMP multicast groups | Up to 12K |
| CPU | Quad-Core Cortex-A57 ARMv8 1.8GHz 64-bit |
Layer 3 & AV Features
| Routing | Layer 3: static, policy-based and dynamic routing (RIP, OSPF), VRRP; IPv4 and IPv6 |
| Multicast | NETGEAR IGMP Plus |
| AVB | Included |
| Jumbo frames | Up to 12KB |
| Stacking | Virtual Chassis with non-stop forwarding (NSF) and hitless failover |
| Timing | SMPTE ST 2110 Grandmaster Clock and Boundary Clock (per NETGEAR product page) |
Power
| Internal power supply | 420W fixed (C14) |
| Modular PSU slots | 1 (1+1 redundancy) |
| Compatible PSUs | APS600Wv3, APS1200Wv2, APS2000Wv2 |
| Power consumption | Max 161.9W; standby 69.1W (per NETGEAR product page) |
| PoE | None |
Physical & Environmental
| Form factor | Full-width 1U rack mount |
| Dimensions (W x D x H) | 440 x 400 x 43.2mm |
| Weight | 8.03kg (17.70lb) (per NETGEAR product page) |
| Cooling | Front-to-back airflow, fixed fans |
| Acoustics (Quiet Mode) | 30.4dBA at 25°C (22% fan duty); 60.2dBA at 45°C (70% fan duty) |
Compatibility & Software Support
Management & AV Software
Configure the switch through the NETGEAR AV user interface (port profiles for AV protocols, colour-matched port LEDs), the main NETGEAR IT web GUI or the industry-standard CLI. NETGEAR states the M4350 works with NETGEAR Engage Controller for centralised AV project management. NETGEAR IGMP Plus provides out-of-the-box multicast for AV over IP.
Modular Power Supplies
NETGEAR lists these power supplies as compatible with this model: APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES), APS2000Wv2 (APS2000W-200NES).
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-16C switch, 1x power cord, 1x USB Type-C console cable, rack-mounting standard bracket set, set of longer brackets for recessed mounting, 4x rubber footpads for tabletop installation, installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (incl. 8x Neutrik etherCON), 4x 25G SFP28 |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 10G PoE++, 4x 25G SFP28 |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G SFP28 |
| M4350-24F4X (MSM4328F-100NES) | 24x 1G/2.5G SFP, 4x 10G |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G SFP+ |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G SFP+ |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G SFP28 |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G SFP+, 4x 25G SFP28 |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G SFP28 |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G SFP+, 8x 25G SFP28 |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G SFP+, 8x 25G SFP28 |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G QSFP28 |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G SFP+, 4x 100G QSFP28 |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G SFP28, 4x 100G QSFP28 |
| M4350-16C (CSM4316-100NES) (this listing) | 16x 100G QSFP28 |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Hardware Installation Guide | M4350 Series Hardware Installation Guide (PDF) |
| User Manual | M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-16C (CSM4316) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CSM4316-100NES.
Frequently Asked Questions — NETGEAR M4350-16C
What port speeds does the M4350-16C support?
All 16 ports are QSFP28 and run at 40G or 100G according to the NETGEAR datasheet.
Does the M4350-16C have PoE?
No. It is a 100G aggregation/core switch with no PoE ports.
Can I add a redundant power supply?
Yes. It has a 420W internal power supply and one modular slot for 1+1 redundancy, compatible with the APS600Wv3, APS1200Wv2 and APS2000Wv2.
Is it Layer 3?
Yes. It supports static, policy-based and dynamic routing including RIP, OSPF and VRRP, plus Virtual Chassis stacking with hitless failover.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
