NETGEAR M4350-24M4X4V 28-Port 2.5G/10G PoE++ Fully Managed AV Switch with 4 x 25G SFP28
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-24M4X4V 24x 2.5G PoE++, 4x 10G PoE++ and 4x 25G Fully Managed Switch (MSM4332-100NES) - Limited Lifetime Local Warranty
Multi-Gig PoE++ for AV and Wi-Fi

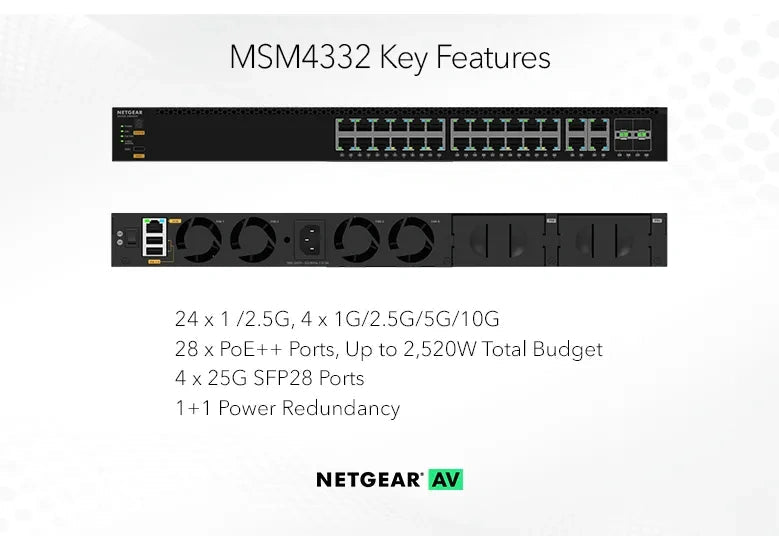

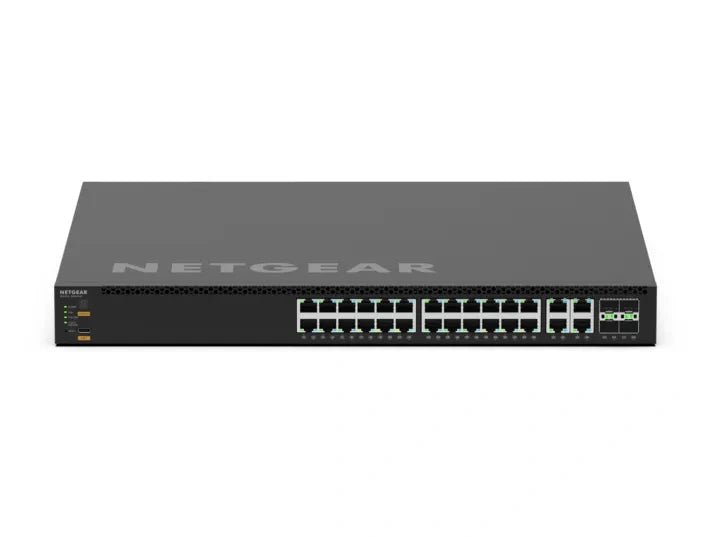

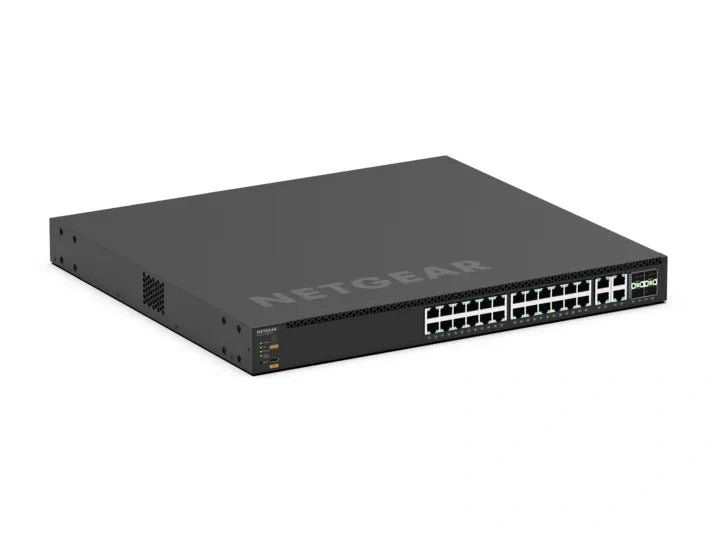

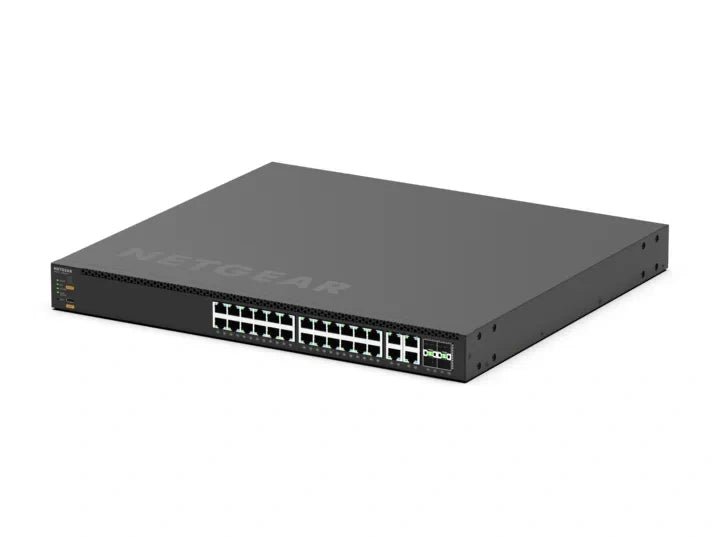

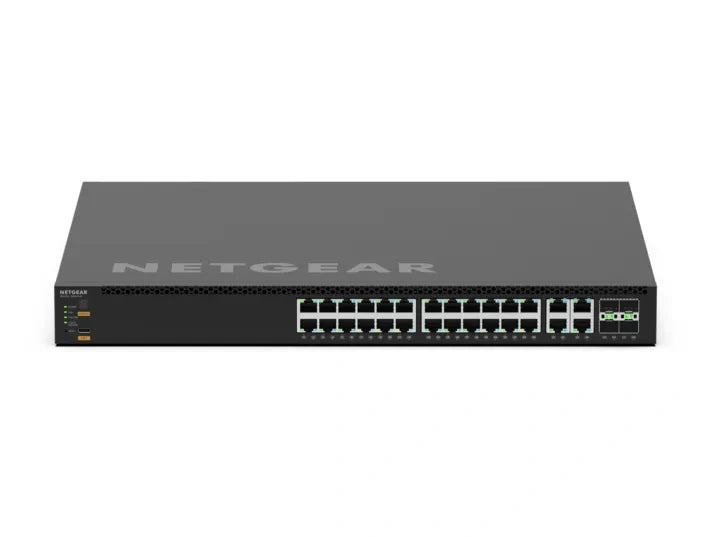

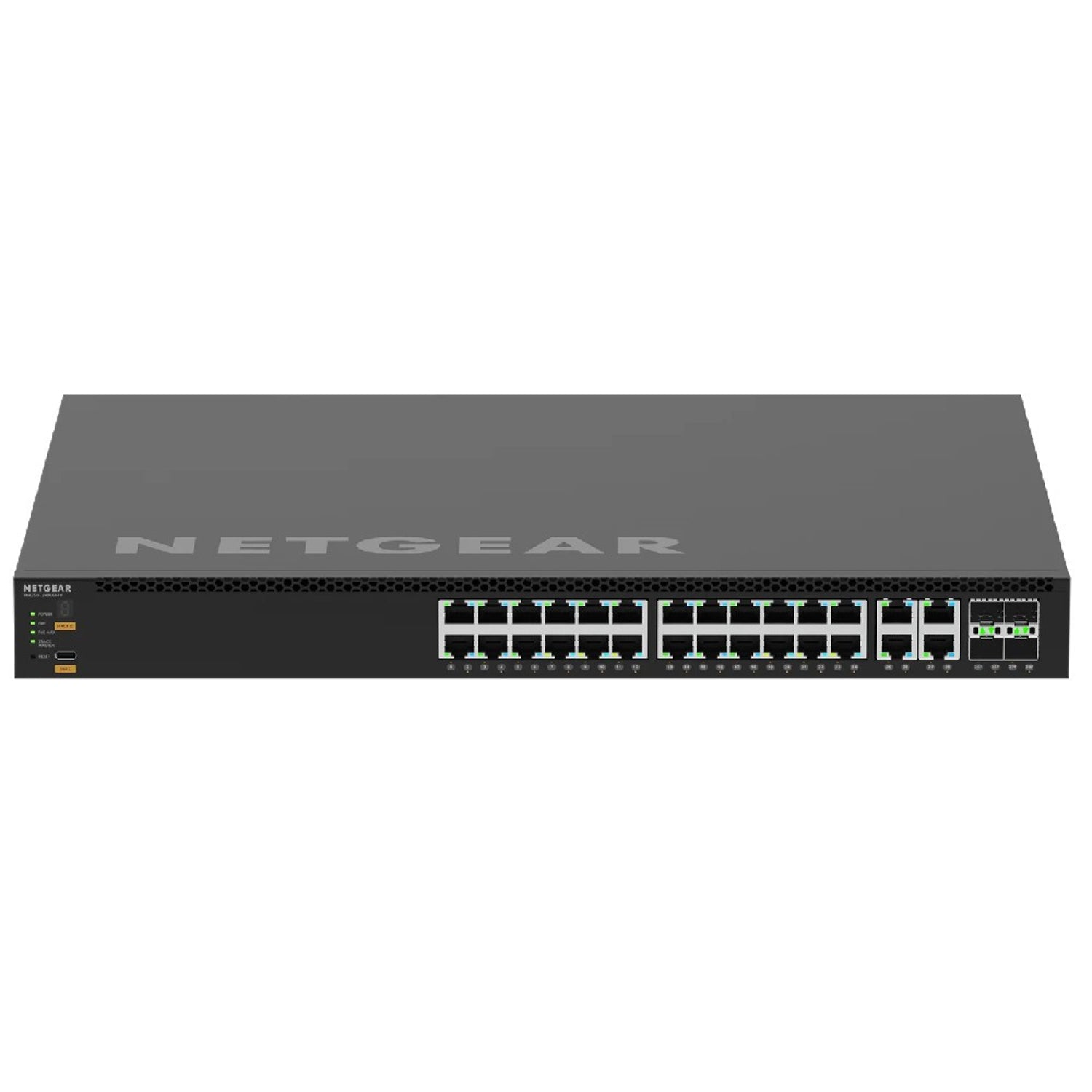

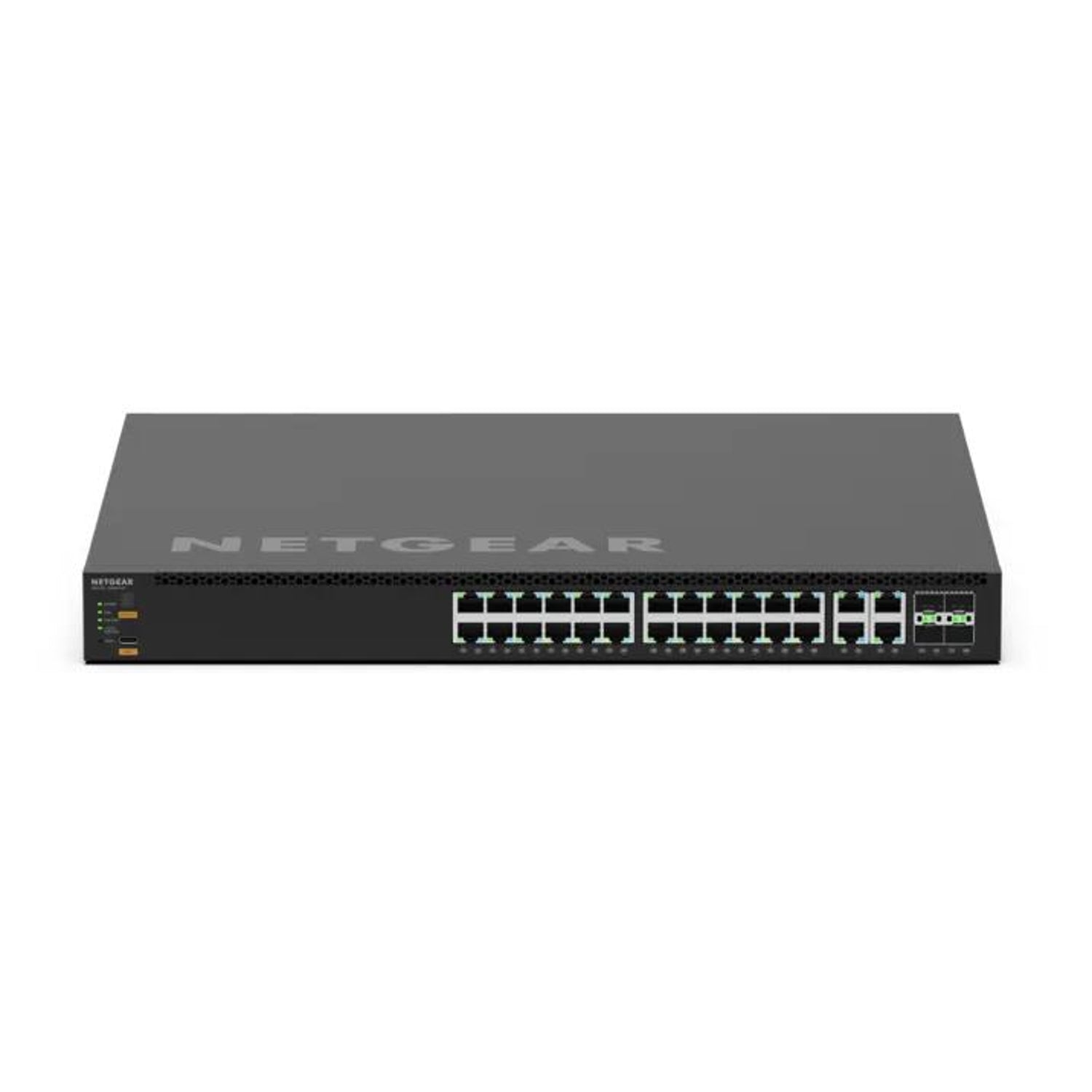

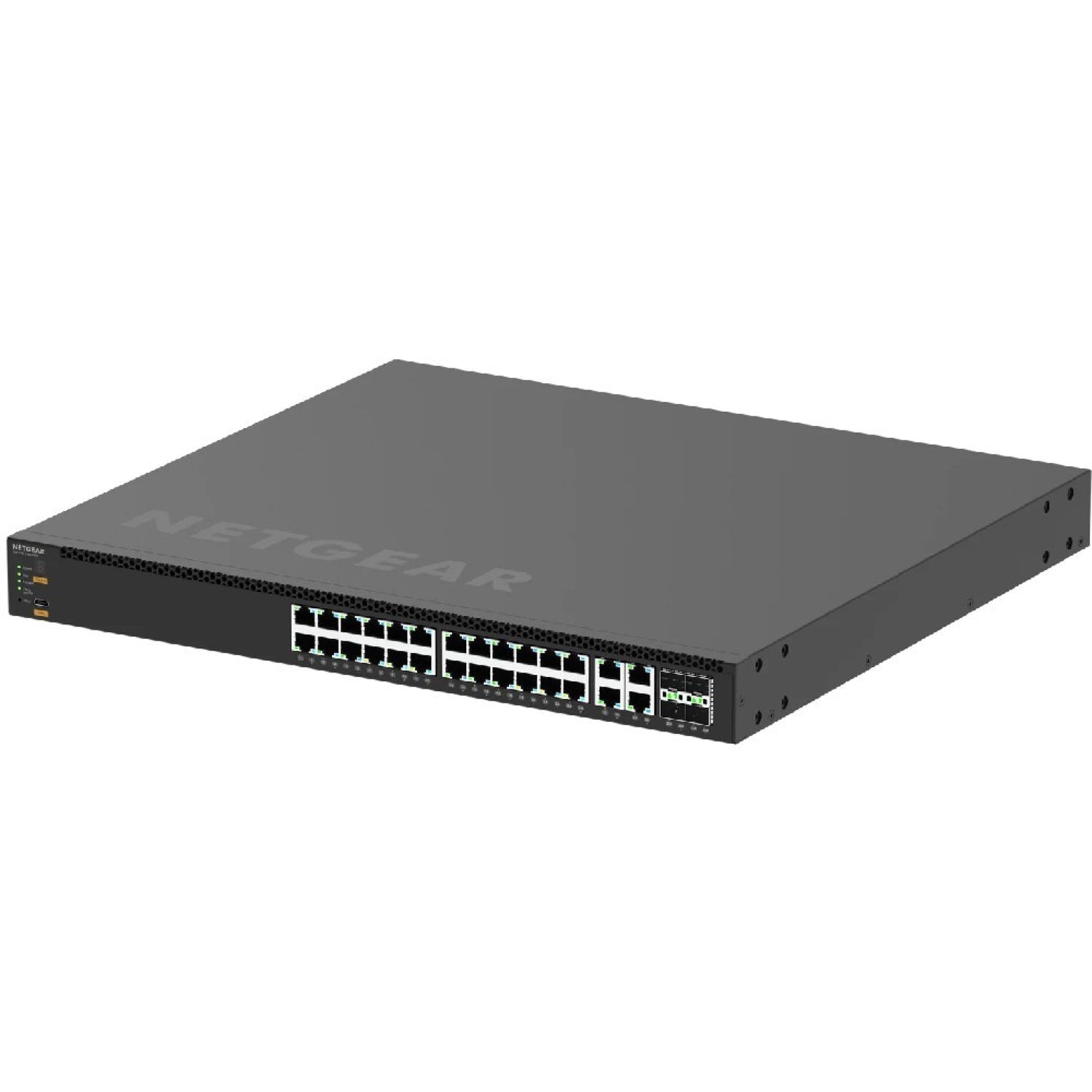

The NETGEAR M4350-24M4X4V is a 32-port fully managed switch with twenty-four 100M/1G/2.5G PoE++ ports, four 1G/2.5G/5G/10G PoE++ ports and four 10G/25G SFP28 ports. It suits AV-over-IP, PTZ camera and high-bandwidth access point deployments that need speed and power at the edge.
522W Base PoE, Up to 2,520W
An 800W internal power supply provides a 522W PoE budget. Two modular power supply slots accept APS600Wv3, APS1200Wv2 or APS2000Wv2 modules, raising the budget up to 2,520W with two APS2000Wv2 modules on 220VAC. Ultra90 PoE++ (IEEE 802.3bt) ports support 60W, 75W and 90W devices and remain compatible with 802.3af PoE and 802.3at PoE+.
Four 25G SFP28 Uplinks
Four fixed SFP28 ports run at 10G or 25G for uplinks to the core or to other M4350 switches, with a 400 Gbps switching fabric.
Built for AV over IP
NETGEAR IGMP Plus, the NETGEAR AV user interface and the NETGEAR Engage Controller simplify multicast setup. The switch supports AVB, and SMPTE ST 2110 Grandmaster and Boundary Clock modes for AES67 and SMPTE ST 2059-2. Static, policy-based and dynamic routing are included, and Virtual Chassis stacking provides non-stop forwarding and hitless failover.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-24M4X4V Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-24M4X4V Fully Managed Switch |
| Part Number | MSM4332-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| 2.5G PoE++ Ports | 24x 100M / 1G / 2.5G |
| 10G PoE++ Ports | 4x 1G / 2.5G / 5G / 10G |
| 25G Ports | 4x 10G / 25G SFP28 |
| Total Ports | 32 (28 PoE++) |
| Management Ports | USB Type-C console, 1G out-of-band port, 2x USB-A (storage) |
Performance
| Switching Fabric | 400 Gbps |
| Throughput | 297.6 Mpps |
| Latency | <5.50µs at 2.5G, <2.28µs at 10G copper, <0.65µs at 25G |
| Packet Buffer | 32Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 4GB DDR4 |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IP Multicast Routes | 512 IPv4 / 256 IPv6 |
| IGMP Groups | Up to 12K |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
| Jumbo Frames | Up to 12KB |
PoE
| PoE Standard | Ultra90 PoE++ IEEE 802.3bt (60W, 75W, 90W), compatible with 802.3af PoE (15.4W) and 802.3at PoE+ (30W) |
| PoE Budget | 522W with the internal 800W PSU; up to 2,520W with two APS2000Wv2 modules on 220VAC |
| Redundant PoE Budget | Up to 1,972W (per NETGEAR product page) |
Power

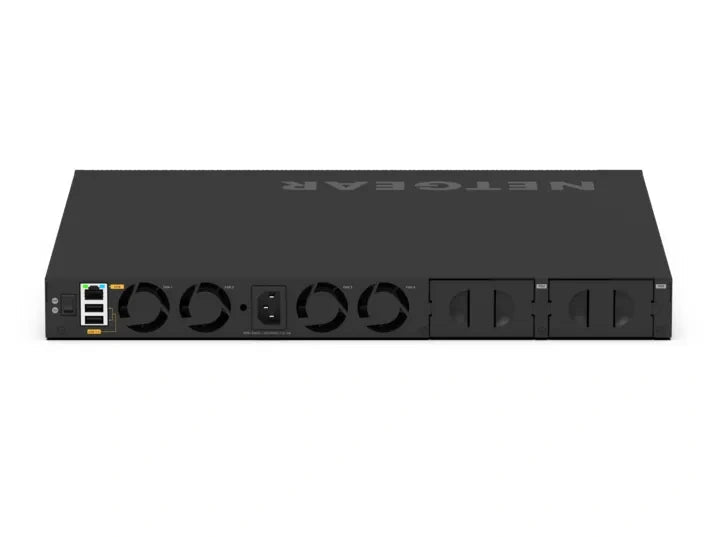

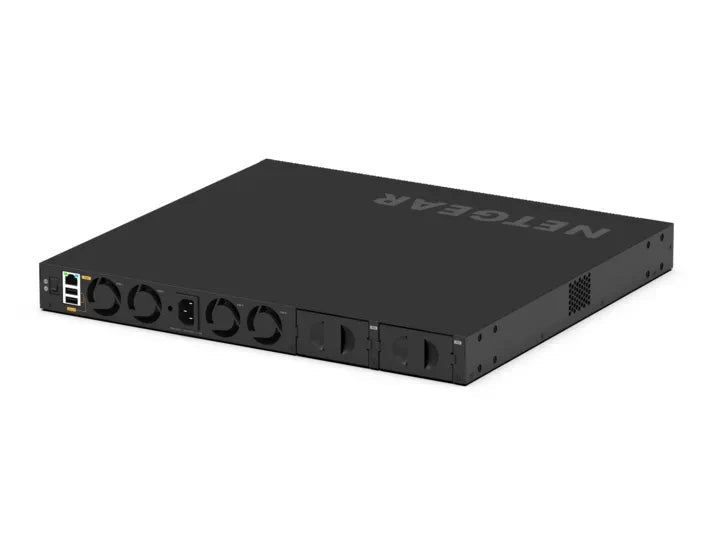

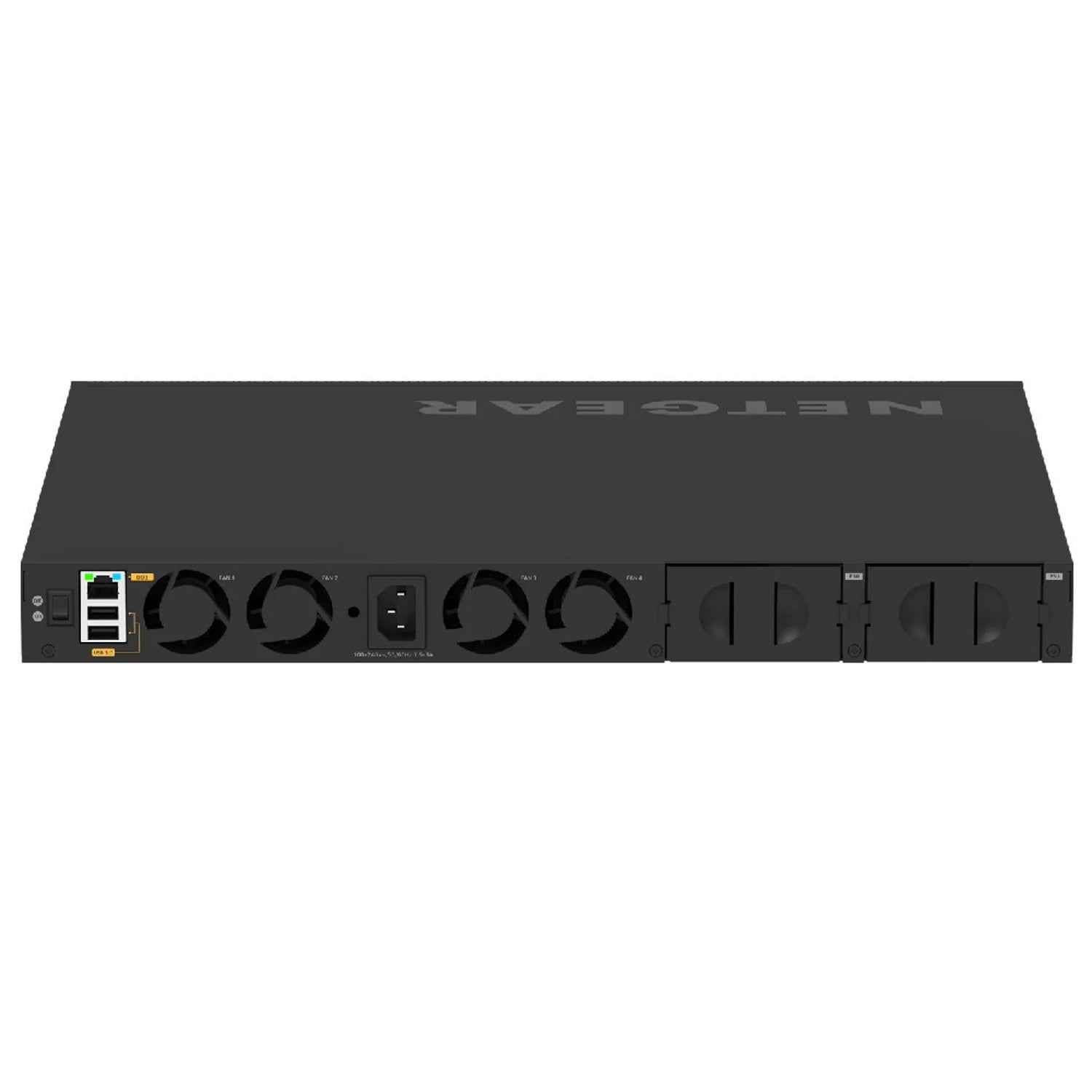

| Power Supply | 1x internal 800W PSU (C14 inlet) |
| Modular PSU Slots | 2 slots (1+1 redundancy and/or EPS): APS600Wv3, APS1200Wv2 or APS2000Wv2 |
| Power Consumption | Max with PoE: 2,845W; without PoE: 123.4W; standby: 53W (per NETGEAR product page) |
Physical & Acoustics
| Form Factor | Full-width, 1U rack mount |
| Dimensions (W x H x D) | 440 x 43.2 x 400 mm |
| Acoustics (Quiet Mode) | 34.8 dBA at 25°C ambient (30% fan duty) |
| Acoustics (Cool Mode) | 66 dBA at 100% fan duty |
Compatibility & Software Support
Power Supplies
The two modular power supply slots accept APS600Wv3 (APS600W-300NES), APS1200Wv2 (APS1200W-200NES) and APS2000Wv2 (APS2000W-200NES), for redundancy and/or extra PoE budget.
Transceivers
The four SFP28 ports run at 25G or 10G. For 10G links, NETGEAR SFP+ modules such as AXM761 10GBASE-SR, AXM762 10GBASE-LR, AXM763 10GBASE-LRM, AXM764 10GBASE-LR Lite and AXM765v2 10GBASE-T copper can be used.
Management
Web browser GUI (HTTPS) including the NETGEAR AV user interface with pre-configured AV profiles, plus CLI via Telnet and SSH, SNMP and MIBs. A USB Type-C console port on the front and a 1G out-of-band management port on the rear are provided.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV Protocols
NETGEAR IGMP Plus enhanced multicast, AVB, and SMPTE ST 2110 Grandmaster and Boundary Clock modes for AES67 and SMPTE ST 2059-2. NETGEAR notes that stacking, AVB and PTP Transparent Clock are mutually exclusive: a stack cannot run AVB or PTP TC.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-24M4X4V (MSM4332) switch, 1x power cord, 1x USB Type-C console cable, 1x standard rack-mount bracket set, 1x set of longer brackets for recessed mounting, 4x rubber footpads, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) (this listing) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) | 24x 1G/2.5G SFP, 4x 10G copper/SFP+ combo |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| Hardware Installation Guide | NETGEAR M4350 Series Hardware Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-24M4X4V (MSM4332) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MSM4332-100NES.
Frequently Asked Questions — NETGEAR M4350-24M4X4V
What is the PoE budget?
522W with the internal 800W power supply, rising to as much as 2,520W with two APS2000Wv2 modules on 220VAC. The exact figure depends on the PSU combination and input voltage.
Which ports support 90W PoE?
All 28 copper ports (24x 2.5G and 4x 10G) are Ultra90 PoE++ IEEE 802.3bt ports supporting up to 90W, within the total PoE budget.
Are the 25G ports modular?
No. The M4350-24M4X4V has four fixed SFP28 ports that run at 10G or 25G; transceivers are sold separately.
Does it support SMPTE ST 2110 and AES67?
Yes. It supports SMPTE ST 2110 Grandmaster and Boundary Clock modes for AES67 and SMPTE ST 2059-2.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
