NETGEAR M4350-44M4X4V 44x 2.5G PoE++, 4x 10G PoE++ and 4x 25G SFP28 Fully Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR M4350-44M4X4V 44x 2.5G PoE++, 4x 10G PoE++ and 4x 25G Fully Managed Switch (MSM4352-100NES) - Limited Lifetime Local Warranty
52 Ports of Multi-Gigabit PoE++ and 25G

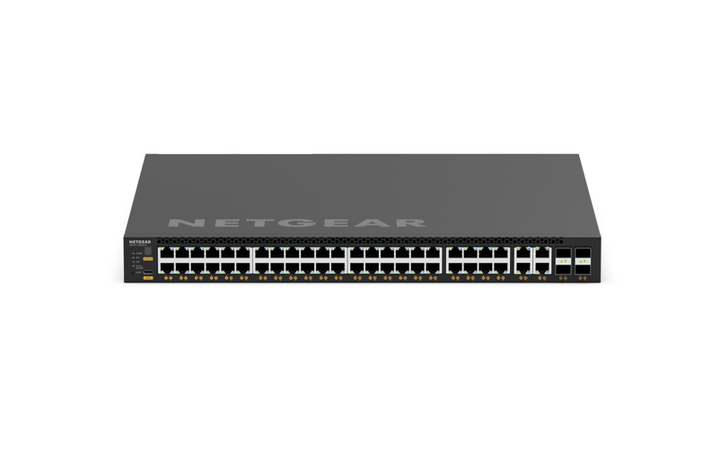

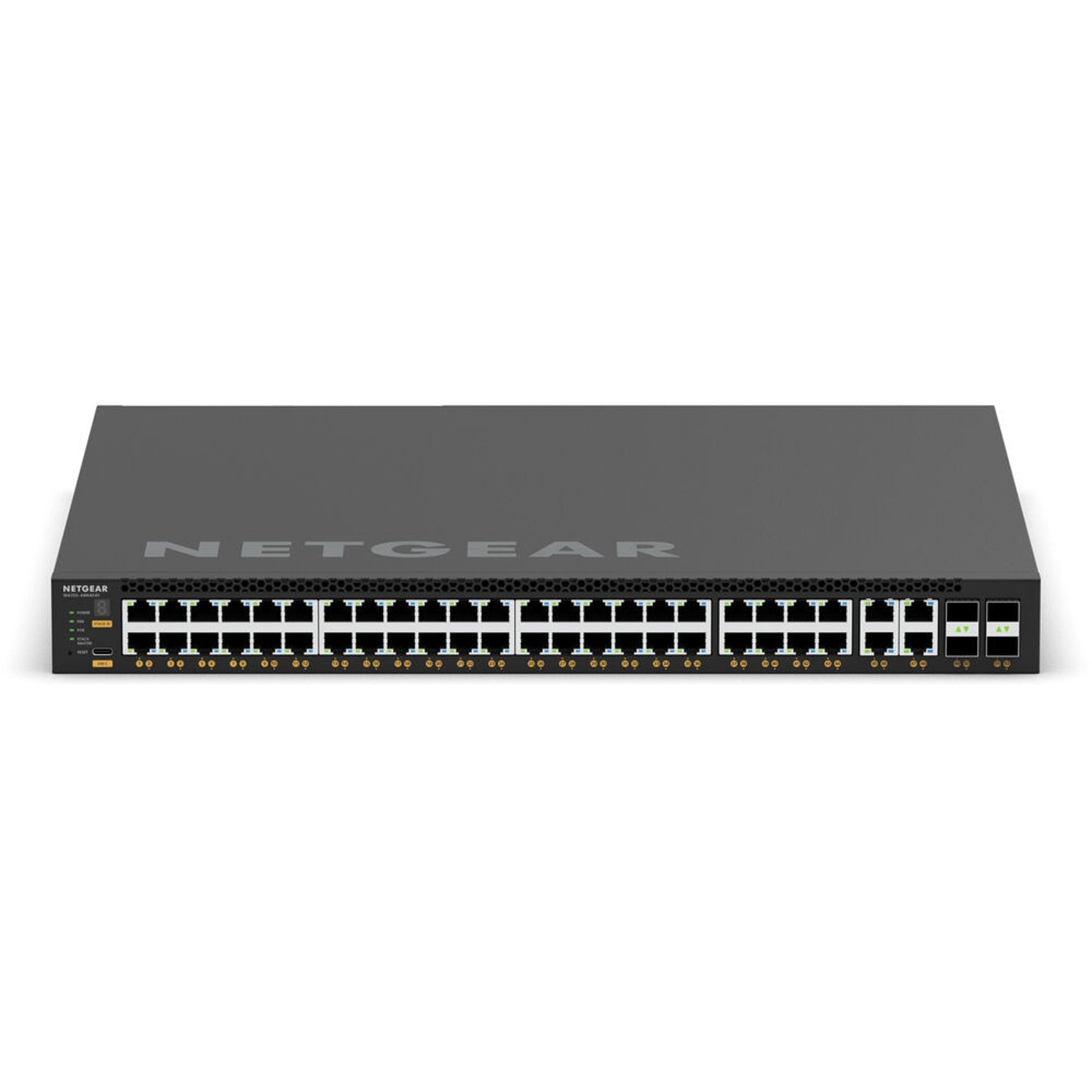

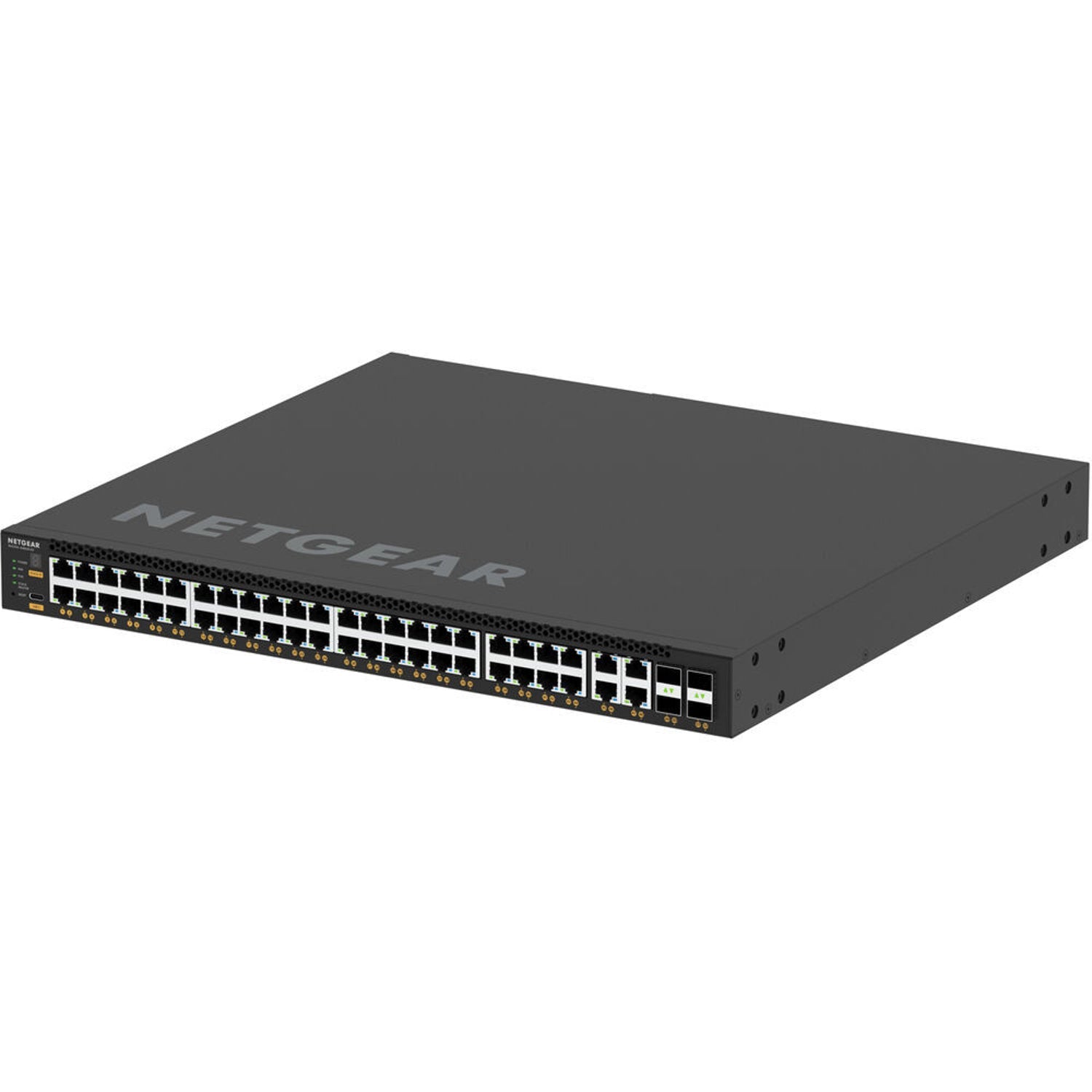

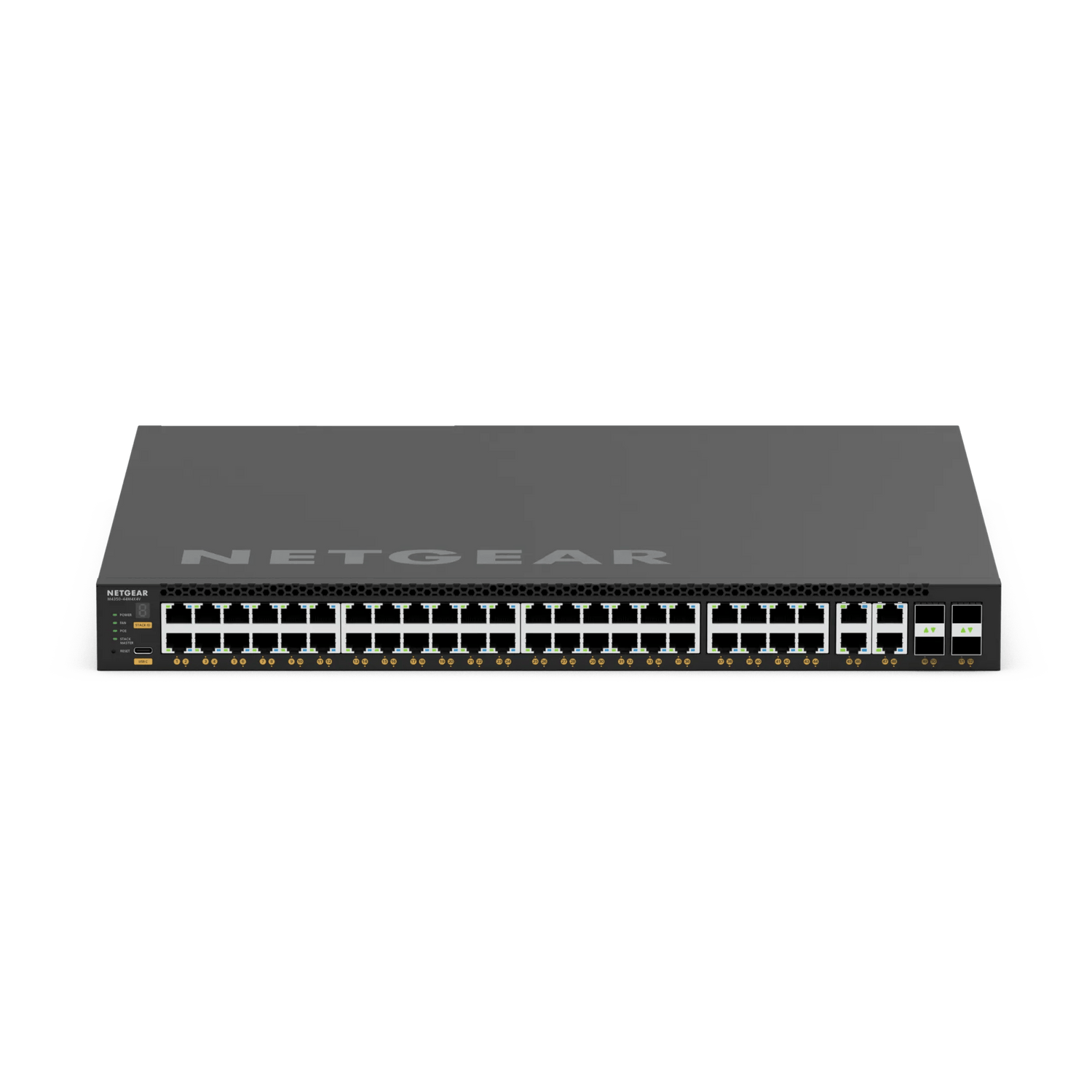

The NETGEAR M4350-44M4X4V is a full-width 1U fully managed switch with 44x 100M/1G/2.5G PoE++ ports, 4x 1G/2.5G/5G/10G PoE++ ports and 4x 10G/25G SFP28 uplinks. Switching capacity is 500 Gbps with 372 Mpps line-rate throughput.
PoE Budget from 194W to 3,314W
All 48 copper ports are Ultra90 PoE++ (IEEE 802.3bt, up to 90W) and remain compatible with 802.3af PoE and 802.3at PoE+. A fixed internal 550W power supply provides a 194W base PoE budget, and two modular power supply slots raise it to as much as 3,314W with APS2000W supplies on 220VAC, with support for 1+1 redundancy.
Designed for AV over IP
NETGEAR IGMP Plus, the NETGEAR AV user interface with pre-configured profiles and the NETGEAR Engage Controller simplify multicast setup for AV-over-IP deployments. AVB is supported, static, policy-based and dynamic routing are included, and Virtual Chassis stacking provides non-stop forwarding and hitless failover.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR M4350-44M4X4V Datasheet — Technical Specifications
General
| Product Name | NETGEAR M4350-44M4X4V Fully Managed Switch |
| Part Number | MSM4352-100NES |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| 2.5G PoE++ Ports | 44x 100M / 1G / 2.5G |
| 10G PoE++ Ports | 4x 1G / 2.5G / 5G / 10G |
| SFP28 Ports | 4x 10G / 25G |
| Total Ports | 52 |
| Console | USB Type-C console port (cable included) |
Performance
| Switching Fabric | 500 Gbps |
| Throughput | 372 Mpps |
| Latency | <5.61µs at 2.5G, <2.27µs at 10G copper, <0.75µs at 25G |
| Packet Buffer | 32Mb |
| CPU | Quad-core Cortex-A57 ARMv8 1.8GHz 64-bit |
| Memory | 2GB DDR4 |
| MAC Address Table | 16K |
| ARP / NDP Entries | 4K / 512 |
| VLANs | 4K |
| IP Multicast Routes | 512 IPv4 / 256 IPv6 |
| IGMP Groups | Up to 12K |
| DHCP Server | 2K leases; 256 IPv4 pools; 16 IPv6 pools |
PoE
| PoE Standard | Ultra90 PoE++ IEEE 802.3bt (60W, 75W, 90W), compatible with 802.3af PoE (15.4W) and 802.3at PoE+ (30W) |
| PoE Ports | 48 (44x 2.5G and 4x 10G) |
| PoE Budget | 194W with the internal 550W PSU; 394W with APS350W; 594W with APS600Wv2; 850W with APS920W; 1,786W with one APS2000W (220VAC); up to 3,314W maximum |
Power

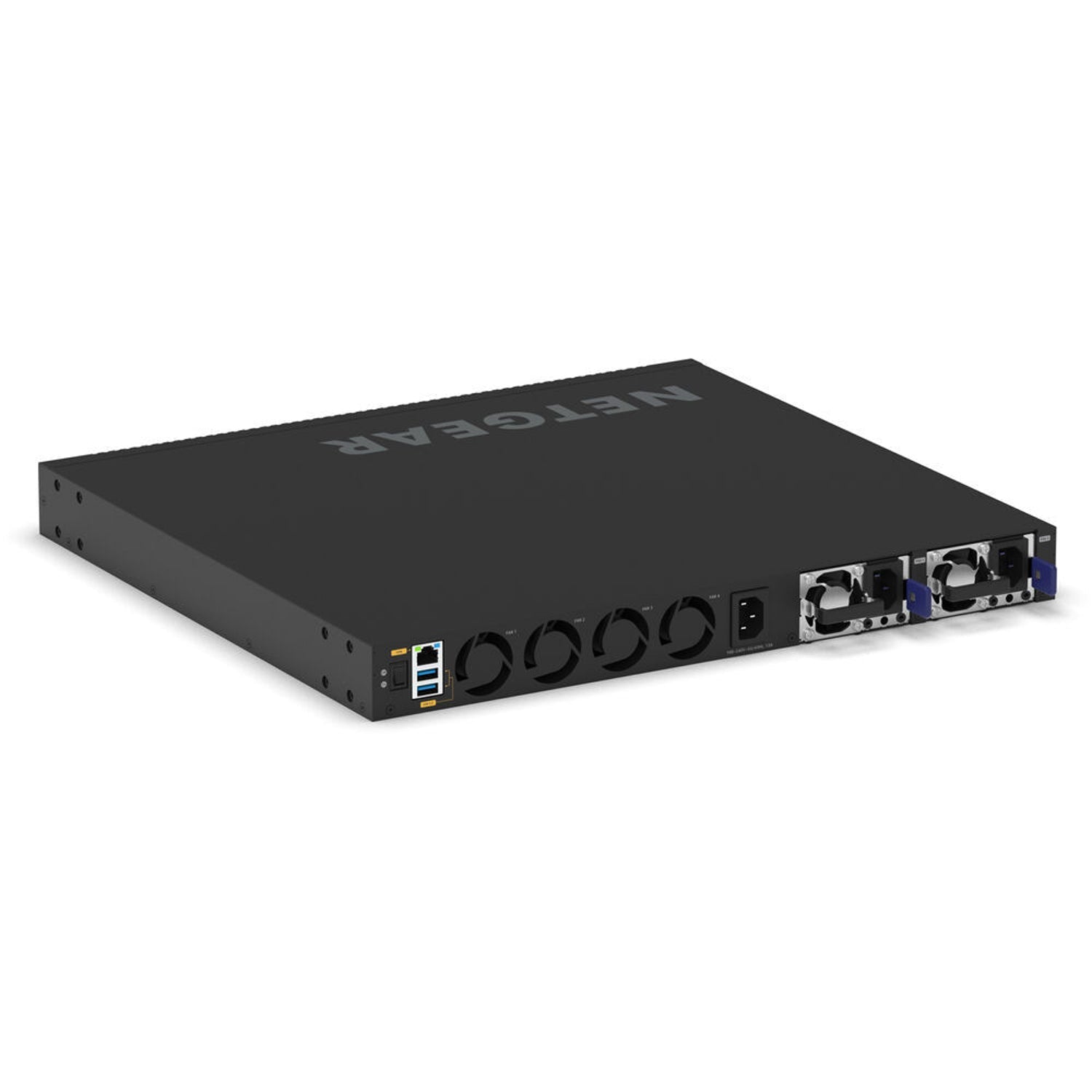

| Power Supply | 1x fixed internal 550W PSU (C14), plus 2 modular PSU slots (1+1 redundancy) |
| Compatible Modular PSUs | APS350W, APS600Wv2, APS920W, APS2000W |
| Power Consumption | Without PoE: 133.5W; standby: 56.5W (NETGEAR product page) |
Physical & Acoustics
| Form Factor | Full-width, 1U rack mount |
| Dimensions (W x H x D) | 440 x 43.2 x 400 mm |
| Weight | 7.34 kg (16.18 lb) (NETGEAR product page) |
| Acoustics (Quiet Mode) | 34 dBA at 25°C ambient (28% fan duty, 3,314W PoE) |
| Acoustics (Cool Mode) | 52 dBA at 45°C ambient (60% fan duty) |
Compatibility & Software Support
Power Supplies
The two modular slots accept NETGEAR APS350W (APS350W-100NES), APS600Wv2 (APS600W-200NES), APS920W (APS920W-100NES) and APS2000W (APS2000W-100NES) power supplies. The APS2000W delivers its full output on 220VAC.
Transceivers
The four SFP28 ports run at 10G or 25G. NETGEAR 10G SFP+ modules available from SourceIT include AXM761 10GBASE-SR (AXM761-10000S), AXM762 10GBASE-LR (AXM762-10000S), AXM763 10GBASE-LRM (AXM763-10000S) and AXM764 10GBASE-LR Lite (AXM764-10000S); check NETGEAR's compatibility list or ask us to confirm before ordering.
Management
Web browser GUI including the NETGEAR AV user interface with pre-configured AV profiles, plus CLI and SNMP. A USB Type-C console cable is included.
NETGEAR Engage Controller
The switch can be managed with the NETGEAR Engage Controller for AV-over-IP deployments.
AV Protocols
NETGEAR IGMP Plus enhanced multicast and AVB. NETGEAR's datasheet does not list the M4350-44M4X4V among the models with SMPTE ST 2110 PTP Boundary Clock and Grandmaster modes; choose the M4350-24M4X4V or M4350-16M4V if you need those. Stacking, AVB and PTP Transparent Clock are mutually exclusive: a stack cannot run AVB or PTP TC.
Package Contents & M4350 Series Ordering Information
In the Box
1x M4350-44M4X4V (MSM4352) switch, 1x power cord, 1x USB Type-C console cable, 2x sets of rack-mount brackets, 4x rubber footpads, 1x installation guide.
NETGEAR M4350 Series
| Model | Ports |
| M4350-24G4XF (GSM4328-100NES) | 24x 1G PoE+, 4x 10G |
| M4350-48G4XF (GSM4352-100NES) | 48x 1G PoE+, 4x 10G |
| M4350-8M2V (MSM4310-100NES) | 8x 2.5G PoE++, 2x 25G SFP28 (half-width) |
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 4x 25G via modular slot |
| M4350-24M4X4V (MSM4332-100NES) | 24x 2.5G PoE++, 4x 5G/10G PoE++, 4x 25G |
| M4350-44M4X4V (MSM4352-100NES) (this listing) | 44x 2.5G PoE++, 4x 10G PoE++, 4x 25G |
| M4350-24F4X (MSM4328F-100NES) | 24x 2.5G, 4x 10G combo with SFP+ |
| M4350-8X8F (XSM4316-100NES) | 8x 10G, 8x 10G SFP+ |
| M4350-12X12F (XSM4324-100NES) | 12x 10G, 12x 10G SFP+ |
| M4350-24X4V (XSM4328CV-100NES) | 24x 10G PoE+, 4x 25G |
| M4350-24F4V (XSM4328FV-100NES) | 24x 10G fibre, 4x 25G |
| M4350-36X4V (XSM4340CV-100NES) | 36x 10G PoE++, 4x 25G |
| M4350-24X8F8V (XSM4340V-100NES) | 24x 10G PoE++, 8x 10G fibre, 8x 25G |
| M4350-32F8V (XSM4340FV-100NES) | 32x 10G fibre, 8x 25G |
| M4350-16V4C (VSM4320C-100NES) | 16x 25G, 4x 100G |
| M4350-40X4C (XSM4344C-100NES) | 40x 10G PoE++, 4x 100G |
| M4350-40F4C (XSM4344FC-100NES) | 40x 10G fibre, 4x 100G |
| M4350-16C (CSM4316-100NES) | 16x 100G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Installation Guide | NETGEAR M4350 Series Installation Guide (PDF) |
| User Manual | NETGEAR M4350 Series User Manual (PDF) |
| NETGEAR product page | M4350-44M4X4V (MSM4352) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting MSM4352-100NES.
Frequently Asked Questions — NETGEAR M4350-44M4X4V
How many PoE ports does it have?
All 48 copper ports support Ultra90 PoE++ up to 90W: 44x 2.5G and 4x 10G multi-gigabit.
What is the PoE budget?
194W with the internal 550W power supply, rising with modular supplies (for example 850W with an APS920W) up to a maximum of 3,314W with APS2000W supplies on 220VAC.
Which power supplies can I add?
The two modular slots accept APS350W, APS600Wv2, APS920W and APS2000W power supplies, with support for 1+1 redundancy.
Does it support SMPTE ST 2110?
NETGEAR's datasheet does not list SMPTE ST 2110 PTP Boundary/Grandmaster Clock for this model. It supports AVB and NETGEAR IGMP Plus; for ST 2110 PTP, consider the M4350-24M4X4V.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
