NETGEAR AXM761P10 10GBASE-SR SFP+ Multimode Fibre Transceiver Module 10-Pack (LC)
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

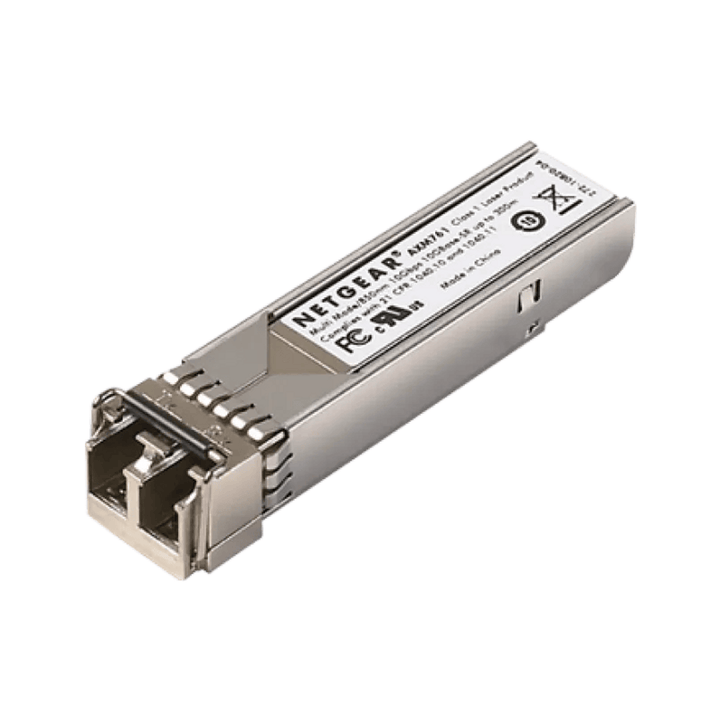

NETGEAR AXM761P10 ProSAFE 10GBASE-SR Multimode SFP+ Module 10-Pack (AXM761P10-10000S) - 5 Years Local Warranty
Ten AXM761 Modules in One Pack
The AXM761P10-10000S is NETGEAR's pack of 10 units of the AXM761 10GBASE-SR SFP+ transceiver, as listed in the NETGEAR M4250 and M7100 datasheets. It suits rollouts that need many short-reach 10G fibre links — uplinks, stacking and server connections across a building or data centre.
Short-Reach 10G Over Multimode Fibre

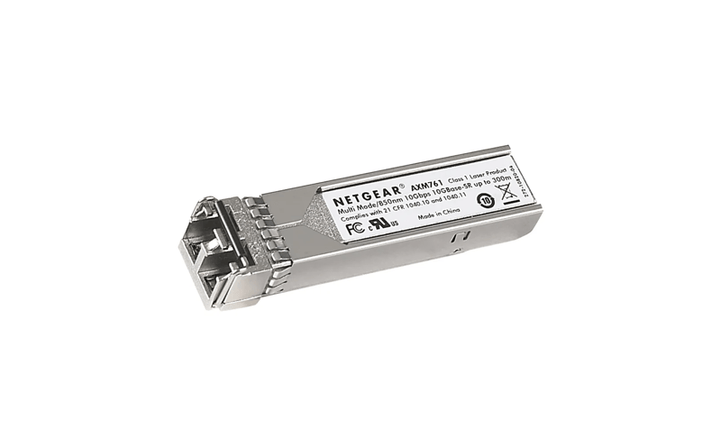

Each AXM761 operates at 850 nm with an LC duplex connector and complies with IEEE 802.3ae 10GBASE-SR. NETGEAR's datasheets rate it up to 300 m over OM3 and up to 550 m over OM4 50/125 µm fibre, and up to 33 m over legacy 62.5/125 µm fibre.
Low Power, Hot-Swappable
Each module draws less than 1.0 W, supports hot-swappable installation and removal, and is RoHS compliant. NETGEAR switches detect the AXM761 automatically when it is inserted.
Need help choosing? Email sales@sourceit.com.sg with your switch models, fibre grade and link count and we will confirm whether the 10-pack or single modules suit your rollout.
NETGEAR AXM761P10 Datasheet — Technical Specifications
General
| Product Name | NETGEAR ProSAFE AXM761 10GBASE-SR SFP+ Module, pack of 10 |
| Part Number | AXM761P10-10000S |
| Contents | 10 x AXM761 SFP+ modules |
| Module Type | SFP+, 10 Gigabit Ethernet |
| Local Warranty (Singapore) | 5 Years Local Warranty, supplied by SourceIT with a GST invoice |
Optical Interface (per module)
| Standard | IEEE 802.3ae, 10GBASE-SR |
| Wavelength | 850 nm |
| Fibre Type | Multimode, 50/125 µm or 62.5/125 µm |
| Connector | LC duplex |
Operating Distance
| 50/125 µm MMF (OM4) | Up to 550 m (1,804 ft) |
| 50/125 µm MMF (OM3) | Up to 300 m (984 ft) |
| 62.5/125 µm MMF (OM1/OM2) | Up to 33 m (108 ft) |
Power (per module)
| Power Consumption | < 1.0 W |
Environmental
| Operating Temperature | 0 to 70 °C (32–158 °F) |
| Storage Temperature | 0 to 85 °C (32–185 °F) |
Physical & Compliance
| Dimensions (per module) | 11.9 x 13.7 x 55.7 mm (0.46 x 0.53 x 2.19 in) |
| Environmental Compliance | RoHS |
| Installation | Hot-swappable |
Compatibility & Software Support
Supported Switches
NETGEAR states the AXM761 fits the SFP+ interfaces of select NETGEAR Managed switches, and that select Smart and Plus switches also accept 10 Gigabit SFP+ transceivers. The AXM761P10-10000S 10-pack is listed in the NETGEAR M4250 and M7100 series datasheet ordering tables, and the AXM761 appears in the M4300 datasheet and M4250 hardware installation guide. Please confirm your switch models with us before ordering.
Software
No drivers or software are needed — NETGEAR switches detect each module automatically.
Alternatives
Need just one or two? Order the single AXM761-10000S. For multimode runs beyond the SR limit on legacy fibre, see the AXM763 (10GBASE-LRM); for single-mode fibre, see the AXM762 (10 km) or AXM764 (2 km).
For very short 10G links between adjacent racks, NETGEAR direct attach cables are an alternative to a pair of modules: AXC761-10000S (1 m) and AXC763-10000S (3 m).
Package Contents & NETGEAR SFP/SFP+ Module Ordering Information
In the Box
10 x AXM761 SFP+ modules (NETGEAR AXM761P10-10000S pack of 10 units).
NETGEAR SFP / SFP+ Modules
| Model | Type / reach (from NETGEAR) | Part No. |
| AGM731F | 1000BASE-SX SFP, multimode, LC, up to 550 m (OM3) | AGM731F |
| AGM732F | 1000BASE-LX SFP, single-mode, LC, up to 10 km | AGM732F |
| AGM734 | 1000BASE-T copper SFP, RJ-45, up to 100 m | AGM734-10000S |
| AXM761 | 10GBASE-SR SFP+, multimode, LC, up to 300 m (OM3) | AXM761-10000S |
| AXM761 (10-pack) (this listing) | 10 x AXM761 10GBASE-SR SFP+ | AXM761P10-10000S |
| AXM762 | 10GBASE-LR SFP+, single-mode, LC, up to 10 km | AXM762-10000S |
| AXM763 | 10GBASE-LRM SFP+ (802.3aq), multimode, LC, up to 220 m (OM1/OM2) or 260 m (OM3/OM4) | AXM763-10000S |
| AXM764 | 10GBASE-LR Lite SFP+, single-mode, LC, up to 2 km | AXM764-10000S |
| AXM765 | 10GBASE-T copper SFP+, RJ-45, up to 80 m (Cat6a or better) | AXM765-20000S |
Datasheet & Downloads
| NETGEAR installation guide / specifications (AXM761) | AXM761 Installation Guide (PDF) |
| NETGEAR M4250 datasheet (module ordering table) | M4250 Series Datasheet (PDF) |
| NETGEAR M7100 datasheet (module ordering table) | M7100 Series Datasheet (PDF) |
| NETGEAR product page (AXM761) | AXM761 on netgear.com |
| NETGEAR support (AXM761) | AXM761 support page |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AXM761P10-10000S.
Frequently Asked Questions — NETGEAR AXM761P10
What is in the AXM761P10-10000S?
Ten NETGEAR AXM761 10GBASE-SR SFP+ modules — NETGEAR lists it as the AXM761 pack of 10 units.
Is each module the same as the single AXM761-10000S?
Yes. NETGEAR lists the AXM761P10-10000S as a pack of 10 units of the AXM761 10GBASE-SR SFP+ module, so the specifications are those of the AXM761.
How far can each module reach?
Per NETGEAR's datasheets: up to 550 m over OM4, 300 m over OM3 and 33 m over 62.5/125 µm multimode fibre.
Which switches does it support?
NETGEAR lists the AXM761 for SFP+ interfaces of select Managed, Smart and Plus switches, including the M4250, M4300 and M7100 series. Email us your switch models to confirm.
What warranty do I get with the AXM761P10?
5 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
