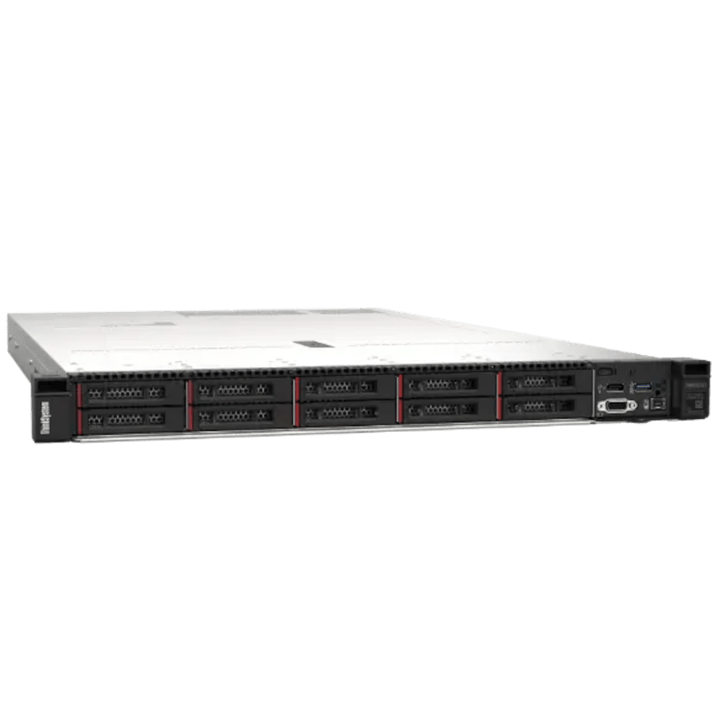

Lenovo ThinkSystem SR630 Rack Server

Lenovo ThinkSystem SR630 Rack Server (Advance CTO, Please Enquire for Further Information) - Local Warranty

Compact Enterprise Rack Server for Modern Workloads

Lenovo ThinkSystem SR630 Rack Server is a high-performance enterprise server platform designed for virtualization, cloud computing, databases, analytics, and business-critical applications. Built with a compact rack form factor, the SR630 delivers enterprise-grade performance and scalability while optimizing space utilization in modern data center environments.

Optimized for Virtualization and Business Applications

The Lenovo ThinkSystem SR630 supports demanding enterprise workloads including virtualization clusters, software-defined infrastructure, ERP systems, databases, and cloud environments. Its balanced architecture enables organizations to achieve strong performance while supporting business growth and increasing infrastructure demands.

Flexible Configure-To-Order Enterprise Platform

As an Advance CTO (Configure-To-Order) solution, the Lenovo ThinkSystem SR630 Rack Server offers customizable options for processors, memory, storage, networking, and expansion modules. Organizations can tailor configurations to match workload requirements and deployment objectives across various environments.

Designed for Enterprise and Data Center Deployment

The ThinkSystem SR630 is suitable for enterprises, government agencies, educational institutions, and service providers requiring reliable infrastructure platforms. Its rack-mounted design enables efficient deployment in data centers while maintaining performance, reliability, and manageability for mission-critical operations.

Technical Specifications

General
Model: Lenovo ThinkSystem SR630
Product Name: Lenovo ThinkSystem SR630 Rack Server (Advance CTO, Please Enquire for Further Information)
Product Type: Enterprise Rack Server
Form Factor: 1U Rack Server
Server Type: Configure-To-Order (CTO) Platform
Deployment: Virtualization, Cloud, Database, VDI, HPC, Hyperconverged Infrastructure
Usage Mode: High-density enterprise compute platform optimized for mixed workloads and datacenter environments

Processor Specifications
Processor Support: Up to 2 × Intel Xeon Scalable Processors

Supported CPU Families:
• Intel Xeon Scalable 1st Generation
• Intel Xeon Scalable 2nd Generation

Maximum CPU Cores: Up to 28 Cores per Processor
Maximum Configuration: Up to 56 Total Cores
Processor Socket: LGA3647
Maximum Processor TDP: Up to 205W
UPI Speed: Up to 10.4 GT/s
Cache Support: Up to 38.5 MB per CPU
Maximum Memory Speed: Up to 2933 MHz

Chipset Specifications
Chipset: Intel C624 Platform Controller Hub
Architecture: Intel Enterprise Platform

Memory Specifications
Memory Slots: 24 × DDR4 DIMM Slots
DIMMs per Processor: 12 DIMMs
Memory Channels: 6 Channels per CPU
Memory Type Support:
• RDIMM
• LRDIMM (Gen1 CPU only)
• 3DS RDIMM
• Intel Optane DC Persistent Memory (Gen2 only)

Memory Speed: Up to 2933 MHz

Maximum Memory Capacity:
• Up to 3TB using 3DS RDIMM
• Up to 7.5TB with Intel Optane Persistent Memory (App Direct Mode)
• Up to 6TB in Memory Mode with DCPMM

ECC Support: Supported
Memory Mirroring: Supported
Rank Sparing: Supported

Storage Specifications

Drive Bay Configurations Supported:
• Up to 4 × 3.5-inch Hot Swap Drives
• Up to 10 × 2.5-inch Hot Swap Drives
• Up to 10 × NVMe Drives
• Up to 2 × Rear 2.5-inch Drives
• Up to 2 × Internal M.2 Boot Drives

Storage Media Support:
• SAS HDD
• SATA HDD
• SAS SSD
• SATA SSD
• NVMe SSD

Boot Device Options:
• M.2 Modules
• Internal Boot Adapter
• NVMe Boot Devices

Expansion & GPU Support
PCIe Expansion Slots: Up to 3 × PCIe Slots
LOM Slot: Supported
OCP Adapter Support: Supported

GPU Support:
• Up to 3 × Single Width GPUs

Acceleration Support:
• AI Inference
• VDI Acceleration
• HPC Processing
• Visualization Workloads

Networking
Network Options:
• OCP Adapters
• LOM Network Adapters
• PCIe Network Cards

Ethernet Support:
• 1GbE
• 10GbE
• 25GbE
• 40GbE
• 100GbE

Management Port:
• 1 × Dedicated RJ-45 XClarity Management Port

Ports & Interfaces

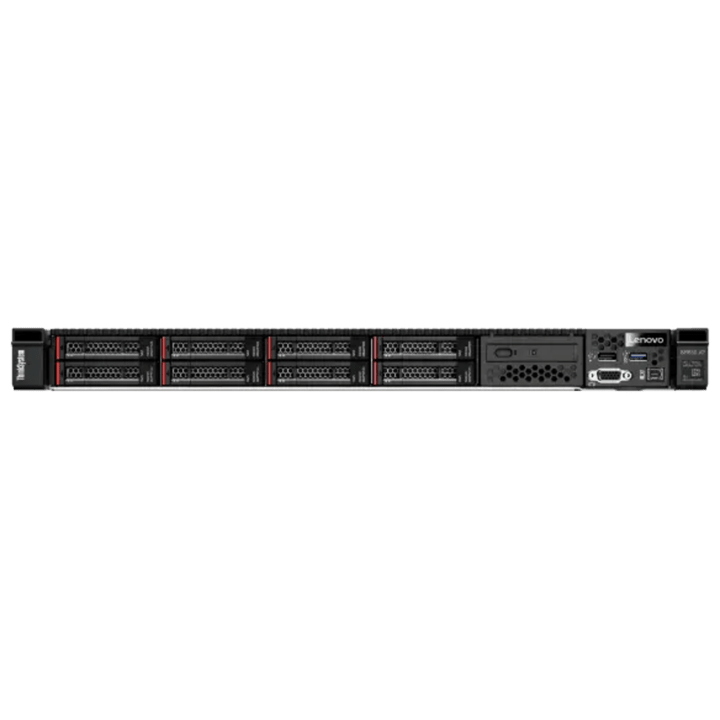

Front I/O:
• 1 × USB 3.0
• Optional VGA Port

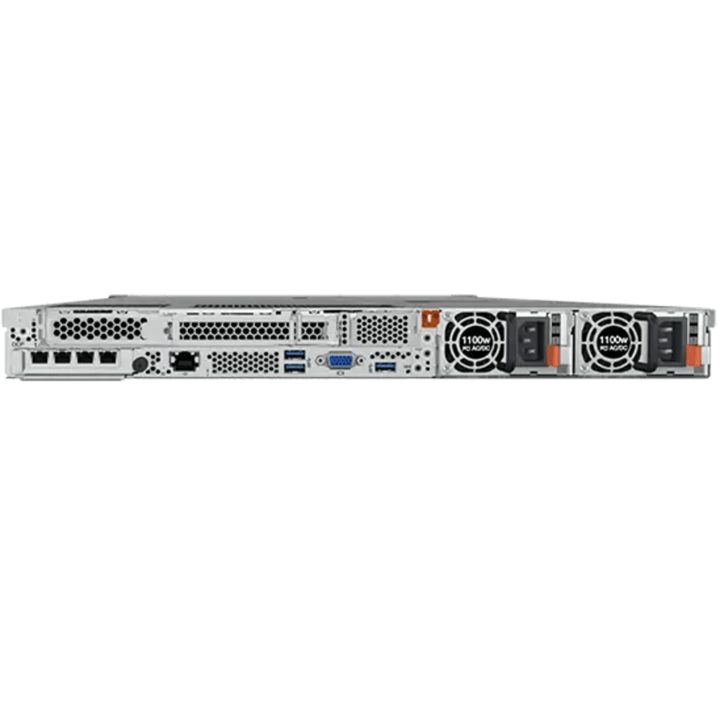

Rear I/O:
• 2 × USB 3.0
• 1 × VGA
• 1 × Dedicated Management Port

Optional:
• Serial Port Support

RAID & Storage Controller Support
RAID Support: Supported

Controller Options:
• ThinkSystem RAID Adapters
• SAS HBAs
• NVMe Controllers

RAID Levels:
• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10
• RAID 50 / 60 (controller dependent)

Management Features
Management Controller: Lenovo XClarity Controller (XCC)
Remote Management: Supported
Remote KVM: Supported
Firmware Updates: Supported
System Monitoring: Supported
REST API Automation: Supported
Predictive Failure Alerts: Supported

Power Specifications
Power Supply Type: Redundant Hot Swap PSU

Supported PSU Ratings:
• 550W
• 750W
• 1100W
• 1600W Platinum

Power Redundancy: Supported
Hot Swap PSU: Supported

Operating System Support
Supported Operating Systems:
• Microsoft Windows Server
• VMware ESXi
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• Ubuntu
• Nutanix AHV

Virtualization Platforms:
• Hyper-V
• VMware vSphere
• KVM

Physical Specifications
Form Factor: 1U Rack Mount
Height: 43 mm
Width: 482 mm (with latches)
Width: 434.4 mm (without latches)
Depth: 778.3 mm
Maximum Weight: Up to 19 kg

Performance Features
Dual Intel Xeon architecture
Up to 7.5TB memory scalability
NVMe optimized storage
PCIe expansion support
GPU acceleration ready
Virtualization optimized
Cloud deployment ready
Enterprise datacenter platform

Package Contents
Lenovo ThinkSystem SR630 Chassis
Rails Kit (CTO dependent)
Power Supplies (CTO dependent)
Documentation
Warranty Information

Key Features
1U rack server design
Dual Intel Xeon support
Up to 56 CPU cores
Up to 7.5TB memory support
Up to 10 NVMe drives
GPU acceleration ready
Lenovo XClarity management
Enterprise CTO platform

Typical Use Cases
Virtualization clusters
Private cloud deployment
Database workloads
VDI environments
Hyperconverged infrastructure
ERP systems
AI inference workloads
Enterprise datacenters

How to Configurate Server?

Step 1:
What is the Server Form Factor? Tower or Rackmount Server?
What is the number of CPU Core or Ram or HDD usable size require?
What is the number of CPU Processor? 1S or 2S or 4S?
What is the RAID Configuration? Any specific HDD or SSD? 7.2K or 10K?
What is the specific NIC is required? Base-T 1G or SFP+? Or Fibre Channel?
What is the number of year maintenance support required? Minimum 3 years

Step 2:
How many number of unit Server?
Any VM workload? Required any VMware license? Or Window OS Hyper-V?
How do you store data currently? Any NAS or SAN Storage?
How do you doing the backup? Required any backup proposal? IDPA 8TB?
Do you require burn-in test services?
Do you need hard disk retention services?
