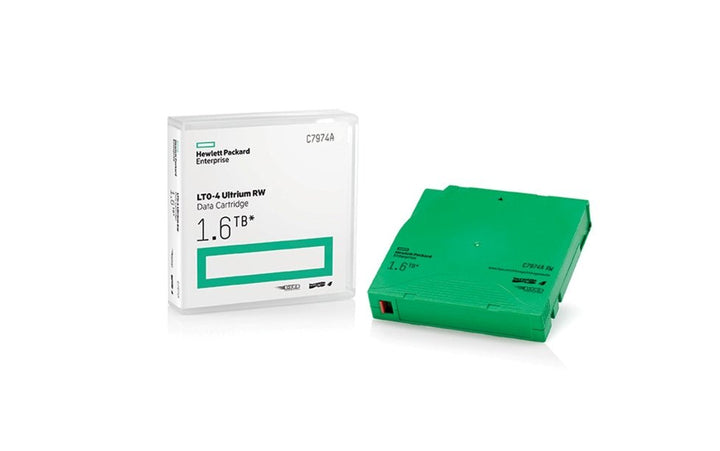

HPE LTO-4 Ultrium 1.6TB Data Cartridge

HPE LTO-4 Ultrium 1.6TB Data Cartridge (C7974A) - Local Warranty

Reliable LTO-4 Tape for Backup and Archival Storage

The HPE LTO-4 Ultrium 1.6TB Data Cartridge (C7974A) is designed for organisations that require dependable and cost-effective storage for backup and long-term data retention. As part of the LTO-4 Ultrium generation, this cartridge delivers consistent performance for enterprise backup environments, making it suitable for SMEs, data centres, and businesses managing essential data.

Up to 1.6TB Compressed Capacity for Efficient Storage

The LTO-4 cartridge offers up to 1.6TB compressed capacity, enabling organisations to store business-critical data efficiently on a single tape. This helps reduce storage complexity and improves backup efficiency, making it suitable for environments with moderate data storage and archival requirements.

Secure Data Protection with Encryption Support

The HPE LTO-4 Ultrium cartridge supports hardware-based encryption, helping protect sensitive data and meet compliance requirements. Tape-based storage also provides an offline air-gap, enhancing security against cyber threats such as ransomware and unauthorised access.

Consistent Performance for Backup Operations

LTO-4 technology delivers reliable data transfer performance for stable backup and restore operations. It is suitable for scheduled backups, disaster recovery planning, and archival workflows where consistent performance is required.

Cost-Effective Long-Term Storage Solution

Tape storage remains one of the most cost-effective solutions for long-term data retention. The HPE LTO-4 Ultrium cartridge is built for durability and extended archival life, making it suitable for organisations that require reliable storage over long periods while maintaining cost efficiency.

Technical Specification

General
• Product: HPE LTO-4 Ultrium Data Cartridge
• Model: C7974A
• Tape Technology: LTO-4 Ultrium
• Generation: 4th Generation LTO
• Media Type: Re-writable (RW)

Capacity
• Native Capacity: 800 GB
• Compressed Capacity: Up to 1.6 TB (2.0:1 compression ratio)

Performance
• Native Transfer Rate: Up to 120 MB/s
• Compressed Transfer Rate: Up to 240 MB/s
• Throughput: Approx. 864 GB/hour (compressed)

Compatibility
• Drive Compatibility: LTO-4 Ultrium tape drives
• Read/Write Compatibility:
 – Read/Write: LTO-4
 – Read/Write: LTO-3 (subject to drive support)

Durability & Reliability
• Archival Life: Up to 30 years
• Load/Unload Cycles: Up to 20,000
• Bit Error Rate: 1 × 10⁻¹⁹
• Cartridge Memory Chip: Built-in for media tracking and diagnostics

Media & Recording
• Base Material: Metal Particle
• Recording Technology: Linear Tape-Open (LTO)
• Data Tracks: 896
• Bit Density: Approx. 96 kbits/inch
• Tape Length: Approx. 820 m
• Tape Width: 12.65 mm
• Tape Thickness: Approx. 6.4 µm

Security & Management
• AES 256-bit hardware encryption (drive dependent)
• WORM (Write Once Read Many) version available
• Barcode label support for automated library environments

Physical
• Form Factor: Standard LTO Ultrium cartridge
• Dimensions: Approx. 113 × 111 × 21 mm
• Weight: Approx. 0.25 kg

Environmental
• Operating Temperature: 10°C to 45°C
• Storage Temperature: 16°C to 32°C
• Humidity: 20% to 80% non-condensing

Ideal Use Case
• Legacy backup and archival environments
• Cost-effective storage for older systems
• Long-term retention and compliance
• Air-gapped backup for data protection
