NETGEAR APM414SD 2x opticalCON QUAD Multimode Fibre Interface Card for M4350-16M4V
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
NETGEAR APM414SD 2x Neutrik opticalCON QUAD MMF Interface Card for M4350-16M4V (APM414SD-10000S) - Limited Lifetime Local Warranty

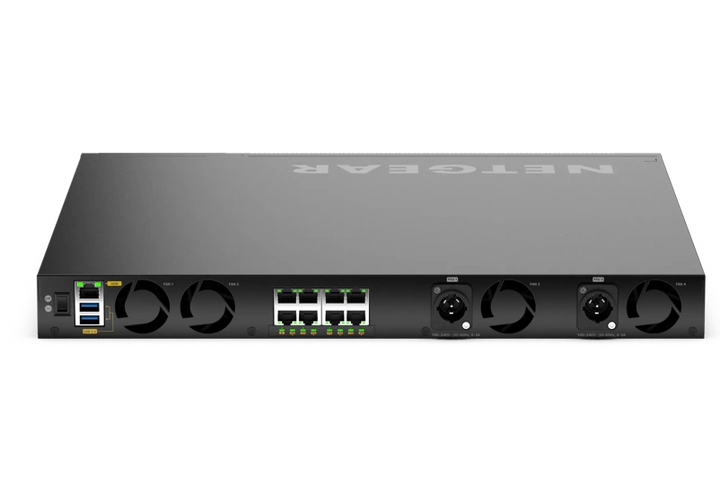

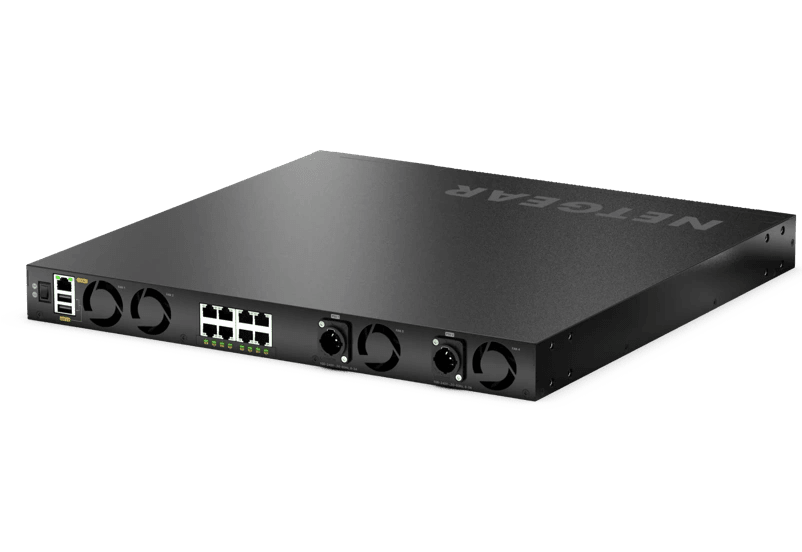

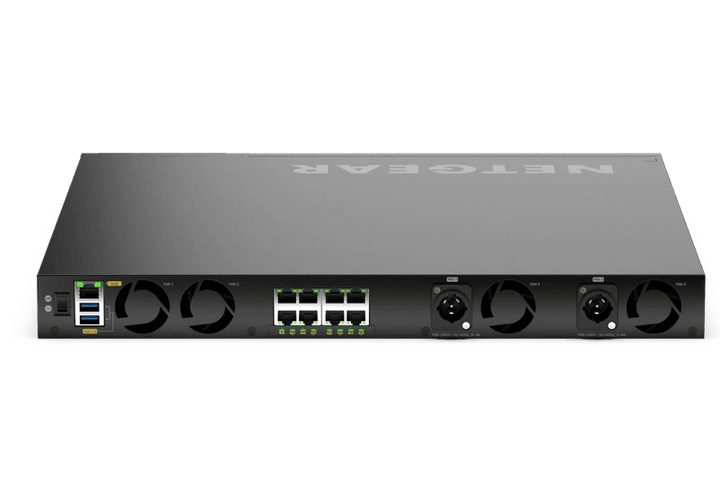

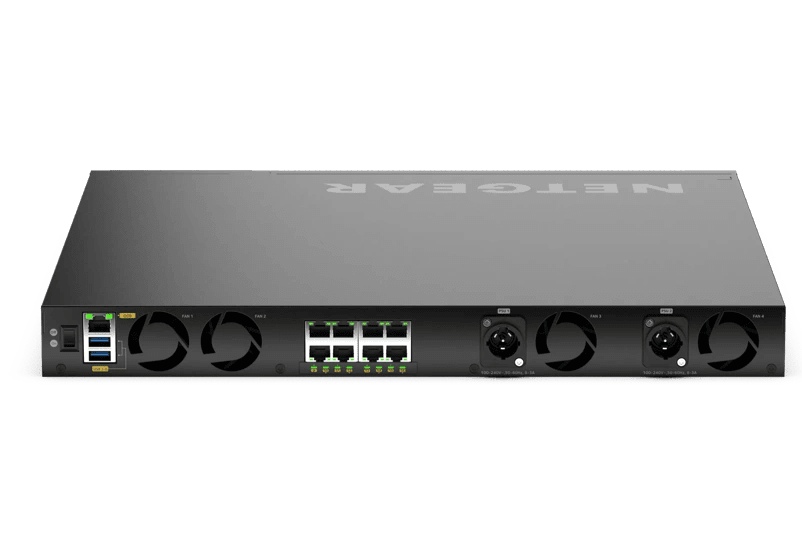

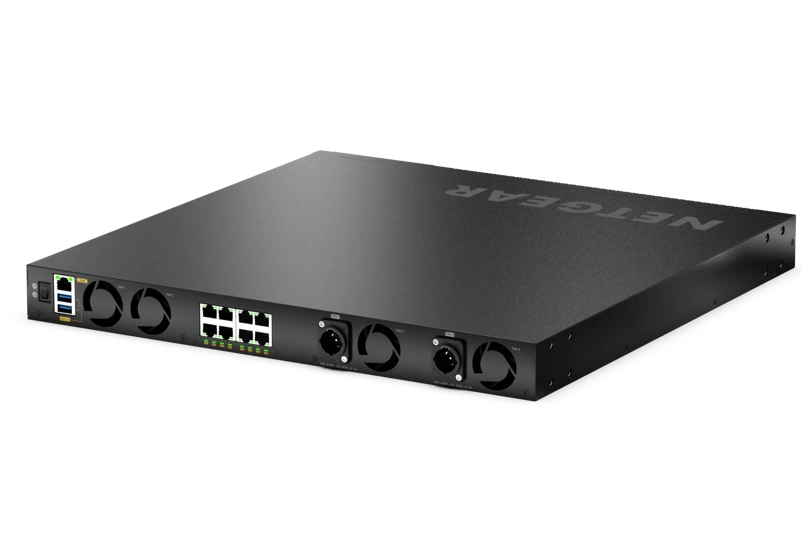

Neutrik opticalCON QUAD on the M4350-16M4V
The NETGEAR APM414SD is an interface card with two Neutrik opticalCON QUAD connectors for four multimode fibre (MMF) transceivers, running at 10G or 25G. It fits the modular slot of the NETGEAR M4350-16M4V (MSM4320) fully managed AV switch, which provides one slot for four ports at 10G or 25G.
Four Fibre Links over Two Connectors
With the APM414SD, four multimode fibre links reach the switch over two Neutrik opticalCON QUAD connectors instead of individual SFP28 modules. NETGEAR notes that the opticalCON QUAD connector cables are purchased from a third-party vendor.
One of Four APM414 Cards
NETGEAR offers four interface cards for this slot: APM414V (4x SFP28, pre-installed with the switch), APM414C (4x 10GBASE-T RJ-45), APM414SD (opticalCON QUAD, multimode fibre) and APM414LD (opticalCON QUAD, single-mode fibre). For single-mode fibre choose the APM414LD.
Not sure which model fits your project? Email sales@sourceit.com.sg with your requirements and we will confirm it for you.
NETGEAR APM414SD Datasheet — Technical Specifications
General
| Product Name | NETGEAR APM414SD Interface Card |
| Part Number | APM414SD-10000S |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Ports
| Connectors | 2x Neutrik opticalCON QUAD |
| Links | 4x multimode fibre (MMF) transceivers |
| Supported Speeds | 10G, 25G |
| Cables | Neutrik opticalCON QUAD connector cables must be purchased from a third-party vendor (per NETGEAR) |
Host Switch
| Compatible Switch | NETGEAR M4350-16M4V (MSM4320) |
| Host Slot | 1 modular slot for 4 ports 10G; 25G |
| Card Shipped with the Switch | APM414V (4x 25G SFP28), pre-installed |
Compatibility & Software Support
Compatible Switch
In the NETGEAR M4350 series datasheet, the M4350-16M4V (MSM4320-100NES) is the only model with a modular interface card slot.
Cabling
Use Neutrik opticalCON QUAD multimode fibre cables. NETGEAR states these must be purchased from a third-party vendor.
Installation
The card goes in the M4350-16M4V's modular slot in place of the pre-installed APM414V card. Follow the procedure in the NETGEAR M4350 Series Hardware Installation Guide (see Datasheet & Downloads).
Package Contents & APM414 Module Ordering Information
In the Box
1x NETGEAR APM414SD interface card. NETGEAR does not publish a separate package-contents list for the card. Email sales@sourceit.com.sg if you need it confirmed before ordering.
NETGEAR APM414 Interface Cards
| Model | Ports |
| APM414V (APM414V-10000S) | 4x standard 25G SFP28 (10G, 25G); pre-installed in the M4350-16M4V |
| APM414C (APM414C-10000S) | 4x standard 10GBASE-T RJ-45 (1G, 10G) |
| APM414SD (APM414SD-10000S) (this listing) | 2x Neutrik opticalCON QUAD for 4x multimode fibre (MMF) transceivers (10G, 25G) |
| APM414LD (APM414LD-10000S) | 2x Neutrik opticalCON QUAD for 4x single-mode fibre (SMF) transceivers (10G, 25G) |
Compatible Host Switch
| M4350-16M4V (MSM4320-100NES) | 16x 2.5G PoE++ (8x Neutrik etherCON), 1 modular slot for 4 ports 10G/25G |
Datasheet & Downloads
| Datasheet | NETGEAR M4350 Series Datasheet (PDF) |
| Product Brief | NETGEAR M4350 Series Product Brief (PDF) |
| Installation Guide | NETGEAR M4350-16M4V Installation Guide (PDF) |
| Hardware Installation Guide | NETGEAR M4350 Series Hardware Installation Guide (PDF) |
| NETGEAR product page | M4350-16M4V (MSM4320) on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting APM414SD-10000S.
Frequently Asked Questions — NETGEAR APM414SD
Which switches accept the APM414SD?
The NETGEAR M4350-16M4V (MSM4320). According to the M4350 datasheet, it is the only M4350 model with a modular interface card slot.
What speeds does it support?
10G and 25G, over four multimode fibre links.
What is the difference between the APM414SD and APM414LD?
The fibre type: the APM414SD is for multimode fibre (MMF) and the APM414LD is for single-mode fibre (SMF). Both have two Neutrik opticalCON QUAD connectors and run at 10G or 25G.
Are opticalCON QUAD cables included?
No. NETGEAR states that Neutrik opticalCON QUAD connector cables must be purchased from a third-party vendor.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
