Epson EB-695Wi Projector
PRODUCT DESCRIPTION
Epson EB-695Wi Ultra-Short Throw Interactive WXGA 3LCD Projector (V11H740052) - 3 Years Singapore Local Warranty
Finger Touch for Up to Six Users, Plus Two Interactive Pens
The EB-695Wi ships with a light curtain finger touch unit and two Easy Interactive Pens, so a wall or a plain dry-wipe board becomes a working surface. Epson's PC interactive tools track up to six fingers or two pens at once, and the PC-free annotation mode lets a teacher mark up a projected page with no computer connected at all. For Singapore classrooms and corporate training rooms, that turns a one-way presentation into a shared workspace without the capital cost of an interactive flat panel.
Ultra-Short Throw at 0.28 to 0.37 With No Shadows
Mounted directly above the board, the projector fills 60 to 100 inches from 35.4 to 60.1 cm, a throw ratio of 0.28 to 0.37. Someone writing at the board casts no shadow across their own work and is never looking into the lens. That is the practical requirement for an interactive projector: if the user has to stand aside to see what they have written, the interactivity is of little use. It also keeps the equipment out of walkways in a shallow room.
3,500 Lumens and 14,000:1 Contrast in a Lit Room
Epson rates the EB-695Wi at 3,500 lumens white light output and 3,500 lumens colour light output, with a 14,000:1 contrast ratio and up to 1.07 billion colours at 10-bit processing. Colour brightness equalling white brightness is a property of the 3LCD engine, so colour-coded annotation stays distinguishable rather than collapsing into similar tones once room lighting is on. Classrooms have to stay lit for note-taking and supervision, and this is the specification that decides whether the board remains readable while they are.
Whiteboard Mode, Network Control and a 16 W Speaker
A built-in whiteboard function works without a source device, and annotations can be saved and shared rather than wiped at the end of a session. A wired RJ45 port carries Epson's network projection and management tools, multi-PC projection and message broadcasting, and the projector supports Crestron RoomView, AMX Device Discovery, Extron IP Link and Control4. The 16 W monaural speaker and a dedicated microphone input cover a classroom without a separate sound system.
Epson EB-695Wi Datasheet — Technical Specifications
General
| Product | Epson EB-695Wi Ultra-Short Throw Interactive WXGA 3LCD Projector |
| Part Number (SKU) | V11H740052 |
| Projector Type | Ultra-short-throw interactive 3LCD lamp projector |
| Native Resolution | WXGA (1280 x 800), 16:10 |
| Brightness | 3,500 lm white light output; 3,500 lm colour light output |
| GTIN | 8715946619328 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Projection System | Epson 3LCD, 3-chip technology; RGB liquid crystal shutter |
| LCD Panel | 0.59" (D9, C2 Fine) |
| Contrast Ratio | 14,000:1 |
| Screen Size (projection distance) | 60” – 100” [35.4 – 60.1 cm]; 74.3” screen at 44.3 cm |
| Throw Ratio | 0.28 (zoom: wide), 0.37 (zoom: tele) |
| Zoom Ratio | 1.0 – 1.35 (digital zoom) |
| Lens | No optical zoom, manual focus; F-number 1.6; focal length 3.7 mm |
| Offset | 5.8: -4 |
| Colour Reproduction | Up to 1.07 billion colours; 10-bit colour processing |
| Keystone Correction | Vertical ±3°; horizontal ±3° |
Light Source
| Type | 250 W UHE lamp |
| Life (Normal / Eco) | 5,000 / 10,000 hours |
| Replacement Lamp | ELPLP91 |
Connectivity
| Digital Input | HDMI x 3 (1 supports MHL) |
| Video Input | D-Sub 15-pin RGB x 2 (Computer 2 in common with Monitor Out); RCA composite x 1 |
| Video Output | D-Sub 15-pin RGB x 1 (Computer 1 signal only) |
| Audio Input | Stereo mini x 3 |
| Audio Output | Stereo mini x 1 |
| Mic Input | Stereo mini x 1 |
| Control I/O | RS-232C D-Sub 9-pin x 1; interactive sync stereo mini in x 1 / out x 1; Touch Unit control Mini DIN 8-pin x 1 |
| USB | USB Type A x 1 (USB memory, document camera, firmware update, copy OSD settings); USB Type B x 1 (USB Display, mouse, keyboard, control, firmware update) |
| Network | RJ45 x 1 (100 Mbps) wired LAN; USB Type A x 1 for optional ELPAP10 LAN unit |
| Wireless Connectivity | Optional ELPAP10 wireless LAN unit |
| Wireless LAN Security | WPA/WPA2-Personal (with optional wireless LAN unit) |
Audio & Features
| Internal Speaker | 16 W monaural |
| PC Interactive Tools | Up to 2 Easy Interactive Pens and up to 6 fingers (Easy Interactive Tools Ver. 4.20) |
| PC-Free Annotation | Up to 2 Easy Interactive Pens and up to 2 fingers |
| Whiteboard Function | Yes |
| Control System Support | AMX Device Discovery, Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Control4 |
| Colour Modes | Dynamic, Presentation, Cinema, sRGB, Blackboard |
| Instant Off / Direct Power On / Auto Power On | Yes |
| Security | Kensington-style lock provision; padlock and security cable hole; wireless LAN unit lock; password protect function |
Physical & Environmental
| Dimensions (excluding feet, W x H x D) | 400 x 149 x 367 mm |
| Weight | 5.8 kg |
| Fan Noise (Normal / Eco) | 35 dB / 30 dB |
| Air Filter Maintenance Cycle | Up to 10,000 hours |
| Integrated Mount | Optional ELPMB46 |
Power
| Power Consumption (Normal / Eco) | 354 W / 309 W |
| Power Consumption (Networked Standby) | 2.3 W |
| Power Consumption (Energy Saving) | 0.37 W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and positioning

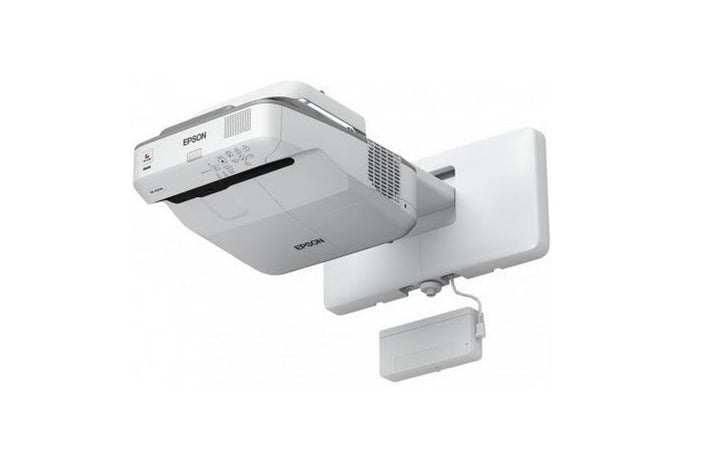

The EB-695Wi mounts on the optional ELPMB46 integrated mount directly above the projection surface, with the finger touch unit fitted above the image so its infrared curtain covers the whole working area. Allow for a 400 x 149 x 367 mm body and 5.8 kg on the wall fixing. Keystone correction is only ±3 degrees in each axis, so the mount must be square to the surface, and the surface itself needs to be genuinely flat because an ultra-short-throw lens exaggerates any bow.
What it connects to
Three HDMI inputs, one MHL-capable, plus two D-Sub 15-pin computer inputs and a composite RCA input cover a room PC, a visiting laptop, a document camera and legacy equipment together. A D-Sub output feeds a confidence monitor. Three stereo mini audio inputs, a microphone input and an audio output allow a radio mic to be mixed into the 16 W internal speaker or passed to a room amplifier. USB Type B carries USB Display over a single cable.
Interactivity and annotation
The supplied light curtain finger touch unit connects over a Mini DIN 8-pin control lead and a 5 m USB cable. Epson's Easy Interactive Tools support up to two pens and up to six fingers on a connected PC, and PC-free annotation supports up to two pens and two fingers with no computer at all. A whiteboard function is built in, and interactive sync in and out allow two units to be aligned side by side.
Network, control and accessories
The RJ45 port at 100 Mbps carries Epson network projection, control and management, multi-PC projection and message broadcasting, with Crestron RoomView, AMX Device Discovery, Extron IP Link and Control4 support and RS-232C serial control. Wireless LAN is the optional ELPAP10 unit. Epson lists the ELPLP91 lamp, ELPAF49 air filter and ELPKC31 USB extension cable as consumables and options. The non-interactive model in this chassis is the EB-685W.
Package Contents & Epson Ultra-Short-Throw Range
In the box
- EB-695Wi projector main unit
- Power cable (5 m)
- USB cable (5 m)
- Remote control with batteries (2 x AA)
- Setting plate
- Easy Interactive Pens x 2, with batteries (2 x AA)
- Pen tray, pen tip holder, soft pen tips x 4, hard pen tips x 2
- Light curtain finger touch unit
- Password protect sticker
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson Ultra-Short-Throw range
| Model | Resolution & light source |
| Epson EB-685W | WXGA, 3,500 lm, lamp |
| EB-695Wi (this listing) | WXGA, 3,500 lm, lamp, interactive |
| Epson EB-725W | WXGA, 4,000 lm, laser |
| Epson EB-725Wi | WXGA, laser, interactive |
| Epson EB-735F | Full HD, laser |
Datasheet & Downloads
Epson Singapore no longer lists a product page for this model. SourceIT can email the current data sheet revision, the user's guide and a formal quotation on request.
Frequently Asked Questions — Epson EB-695Wi
How many people can write on the board at the same time?
With a connected PC running Epson's Easy Interactive Tools, up to two pens and up to six fingers are tracked. In PC-free annotation mode the limit is two pens and two fingers.
Are the interactive pens and touch unit included?
Yes. Two Easy Interactive Pens with batteries, a pen tray, spare pen tips and the light curtain finger touch unit are all supplied in the box.
Does it need a special interactive whiteboard?
No. The finger touch unit projects an infrared curtain across the image area, so a flat wall or an ordinary dry-wipe board works. The surface does need to be genuinely flat.
Can it be used without a computer?
Yes. A whiteboard function and PC-free annotation are built in, so a presenter can write on the projected area with no source device connected.
Which lamp does it take and how long does it last?
The ELPLP91, a 250 W UHE lamp, rated at 5,000 hours in Normal mode and 10,000 hours in Eco. The air filter cycle is up to 10,000 hours.
Is wireless presenting included?
No. Wireless LAN is the optional ELPAP10 unit, supporting WPA/WPA2-Personal security once fitted. Wired RJ45 networking is standard.
What is the difference between the EB-695Wi and the EB-685W?
They share the chassis, lamp, brightness and optics. The EB-695Wi adds the interactive system: two pens, the finger touch unit, interactive sync ports and the whiteboard and annotation functions. The EB-685W is projection only.
What warranty and invoicing applies?
This unit carries local Singapore warranty, and SourceIT issues a GST invoice with every unit sold.
