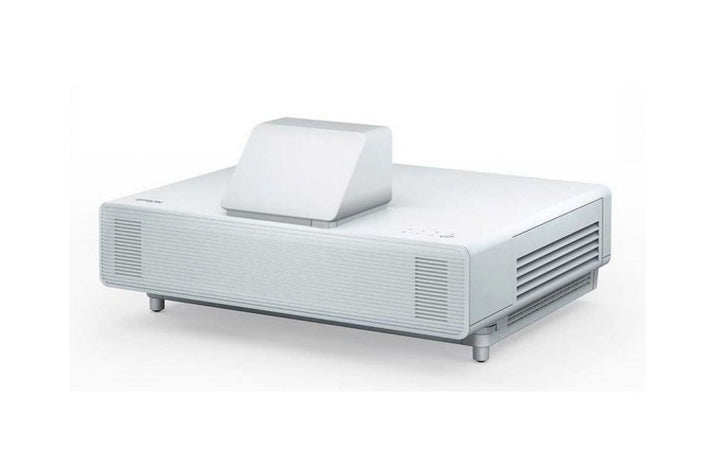

Epson EB-800F Projector
PRODUCT DESCRIPTION
Epson EB-800F Ultra-Short Throw Full HD Laser Projector (V11H923552) - 3 Years Singapore Local Warranty
5,000 Lumens of Full HD for Retail Windows, Lobbies and Digital Signage
The EB-800F is built for commercial display rather than the meeting room: 5,000 lumens of brightness and a dynamic contrast ratio of over 5,000,000:1 keep a Full HD image vivid in a retail unit with the shop lights on, in a hotel lobby, or in a showroom with daylight through the glass. The ultra-short throw lens projects up to 130 inches diagonal from a very short distance, so the projector can sit above a wall or behind a display fixture without eating into the floor area a retailer is trying to sell from.
360-Degree Projection onto Floors, Ceilings and Irregular Surfaces
Because the light source is a laser diode rather than a lamp, the EB-800F can be rotated 360 degrees in any direction — horizontally, vertically and rotationally — with no loss of brightness or image quality. That is what makes it a signage tool rather than a presentation projector: content can be thrown onto a floor for wayfinding, onto a ceiling for an installation, or onto a non-rectangular fixture. Black areas of the image are not projected, so a designer can build silhouetted, non-rectangular content instead of being trapped inside a rectangle.
HDBaseT and Three HDMI Inputs for a Real Installation
An HDBaseT input alongside three HDCP 2.3 HDMI inputs means the projector can sit a long cable run away from the source rack over a single shielded twisted pair, which is how permanent retail and lobby installations are actually wired. Two D-Sub 15-pin inputs, a composite input, RS-232C control and wired LAN complete the picture, with a USB Type B port carrying USB Display, mouse and keyboard, control and firmware updates. Edge blending and Quick Corner let several units be combined across a wide surface.
20,000 Hours of Laser With a 20,000-Hour Filter Cycle
The laser diode light source is rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode, and the air filter maintenance cycle is 20,000 hours, so a permanently installed unit needs almost no attention for years. Start-up takes eight to ten seconds to the Epson logo with a 30 second warm-up, and shutdown is instant. Networked standby draws 2.0 W and energy-saving standby 0.5 W, which matters when a fleet of signage projectors sits idle overnight across a site.
Epson EB-800F Datasheet — Technical Specifications
General
| Product | Epson EB-800F Ultra-Short Throw Full HD Laser Projector |
| Part Number (SKU) | V11H923552 |
| GTIN | 8715946680421 |
| Projector Type | Ultra-short throw laser projector for signage and commercial display |
| Projection Technology | 3LCD, RGB liquid crystal shutter projection system |
| Key Features | Quick Corner, edge blending, 360-degree multi-directional projection |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Native Resolution | Full HD 1080p |
| LCD Size | 0.62" (C2Fine) |
| Brightness | 5,000 lumens |
| Contrast Ratio | Over 5,000,000:1 |
| Maximum Image Size | Up to 130 inches |
| Screen Size (Zoom Wide) | 65" – 130" [39.2 – 80.3 cm] @ 16:9; 61" – 120" [39.5 – 79.6 cm] @ 16:6 |
| Screen Size (Zoom Tele) | 48" – 96" [39.2 – 80.3 cm] @ 16:9 |
| Lens Type | Manual focus, no optical zoom |
| Throw Ratio | 0.27 – 0.37 (wide to tele) |
| F-Number / Focal Length | 1.50 / 3.90 mm |
| Digital Zoom Ratio | 1 – 1.35 |
Light Source
| Type | Laser diode |
| Light Source Life (Normal / Extended) | 20,000 / 30,000 hours |
| Start-Up Period | Less than 8 – 10 seconds (Epson logo); warm-up period 30 seconds |
| Cool Down Period | Instant Off |
Connectivity

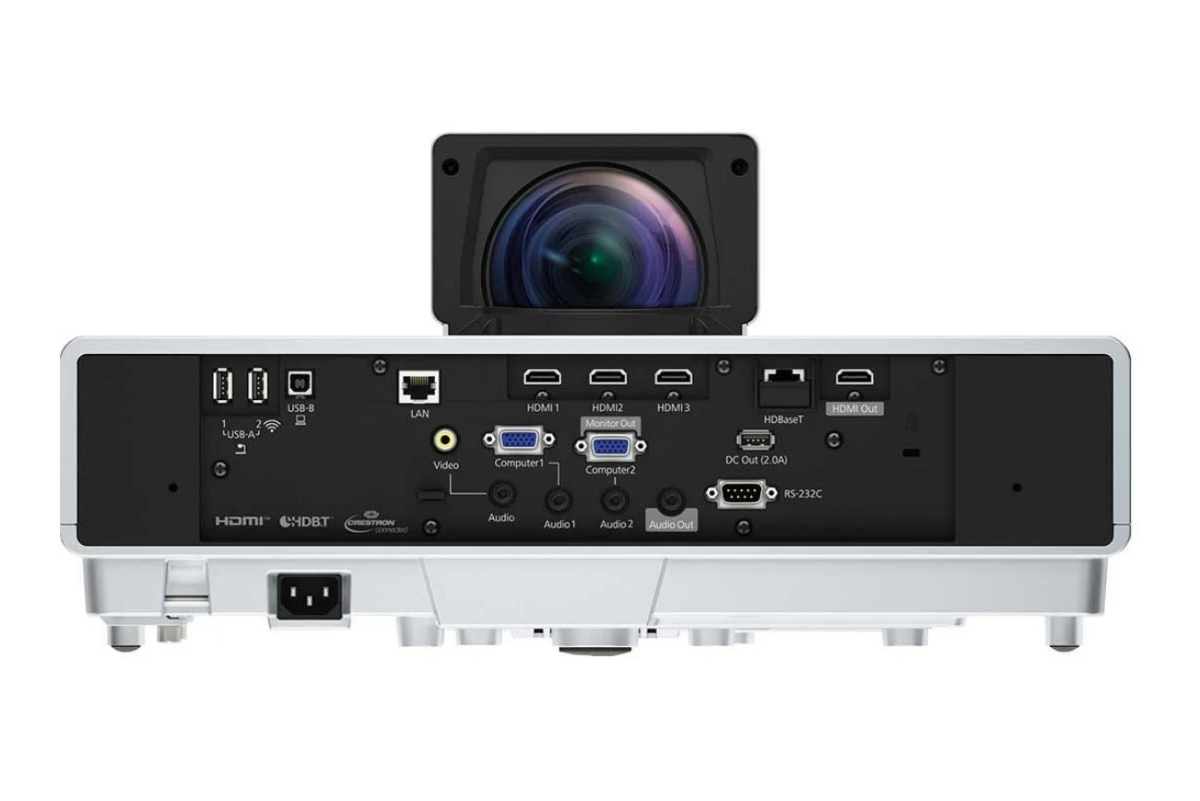

| Digital Input | HDMI x 3 (HDCP 2.3); HDBaseT x 1 (HDCP 2.3) |
| Analogue Input | D-Sub 15-pin x 2; Composite RCA x 1 |
| Audio Input / Output | Stereo mini jack x 3 in; stereo mini jack x 1 out |
| Control I/O | RS-232C (D-Sub 9-pin) x 1 |
| USB | Type B x 1 (USB Display, mouse, keyboard, control, firmware update, interactive, copy OSD settings); Type A x 2 (saving and reading data via USB memory, USB document camera) |
| Wired Network | Wired LAN RJ45 x 1 |
| Wireless Network | Wireless LAN via USB Type A (shared with memory I/O) using the optional ELPAP11 module |
| Wireless Standards | IEEE 802.11a/b/g/n/ac; infrastructure and Access Point (Wi-Fi Direct) |
| Wireless Security | Infrastructure: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP (PEAP, PEAP-TLS, EAP-TLS, EAP-Fast); Access Point: WPA2-PSK (AES) |
Audio & Features
| Internal Speakers | 8 W x 8 W stereo |
| Direct Power On / Off | Yes |
| Installation Features | Edge blending, Quick Corner, 360-degree rotation in any orientation |
Physical & Environmental
| Weight | Approx. 9.4 kg without cable cover; approx. 9.7 kg with cable cover |
| Dimensions Excluding Feet (W x H x D) | 458 x 209.5 x 375 mm |
| Air Filter Maintenance Cycle | 20,000 hours |
| Fan Noise (Normal / Quiet) | 36 dB / 27 dB |
| Operating Temperature (Multi-Projection Use) | 0 – 40 °C, 20% – 80% humidity, no condensation |
Power
| Power Consumption at 220 – 240 V (Normal / Extended) | 366 W / 262 W |
| Networked Standby / Energy Saving Standby | 2.0 W / 0.5 W |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting, orientation and placement
The EB-800F weighs approximately 9.4 kg without its cable cover and measures 458 x 209.5 x 375 mm, so the mount and structure must be specified properly — this is a commercial fixture, not a portable projector. The laser light source allows 360-degree installation: horizontal, vertical, inverted or rotated, with no brightness penalty, which is what makes floor and ceiling projection practical. The optional ELPMB62 setting plate is the Epson mounting accessory for this model.
What it connects to
Three HDCP 2.3 HDMI inputs plus an HDBaseT input cover both local sources and a long structured-cable run back to a source rack, which is how most permanent retail and lobby installations are wired. Two D-Sub 15-pin inputs and a composite input keep legacy players usable. A USB Type B port carries USB Display, mouse and keyboard, control and firmware updates; two USB Type A ports read content from USB memory or connect an Epson document camera. RS-232C is available for control systems.
Content, edge blending and creative projection
Black areas of the source image are simply not projected, so content can be shaped to a fixture rather than confined to a rectangle — the basis of most retail projection design work. Edge blending allows two or more units to be combined across a wide wall or an irregular surface, and Quick Corner handles geometry on a surface that is not square to the lens. Epson's Creative Projection app is supported for building and playing this kind of content.
Network and management
Wired LAN over RJ45 supports centralised monitoring and control of a fleet, which is essential when signage units are spread across a site. Wireless LAN is available through a USB Type A port using the optional Epson ELPAP11 module; note that this port is shared with memory I/O. The projector supports IEEE 802.11a/b/g/n/ac in both infrastructure and Wi-Fi Direct Access Point modes, with WPA2/WPA3-PSK and WPA2/WPA3-EAP security on infrastructure connections.
Related models on our store
The companion model in the same series is the Epson EB-805F. For an extreme short throw 4K Enhancement alternative, see the Epson EB-810E and Epson EB-815E. For classroom-focused ultra-short throw, see the Epson EB-770F.
Package Contents & Epson Ultra-Short Throw Range
In the box
- Epson EB-800F ultra-short throw Full HD laser projector
- Power cable, 1.8 m x 1
- Remote control with 2 x AA batteries
- Cable cover
- Foot for main unit
- Lens cap
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Optional accessories listed by Epson for this model
- Setting plate: ELPMB62
- Air filter: ELPAF56
- Wireless LAN unit: ELPAP11
Epson 7xx and 8xx ultra-short throw laser range
| Model | Resolution, brightness and interactivity |
| EB-725W | WXGA, 4,000 lm — not interactive |
| EB-725Wi | WXGA, 4,000 lm — pen interactive, finger touch optional |
| EB-735F | Full HD, 3,600 lm — not interactive |
| EB-760W | WXGA, 4,100 lm — not interactive, up to 150" |
| EB-760Wi | WXGA, 4,100 lm — interactive up to 100", Finger Touch Unit supported |
| EB-770F | Full HD, 4,100 lm — not interactive, up to 150" |
| EB-770Fi | Full HD, 4,100 lm — interactive up to 100", Finger Touch Unit supported |
| EB-800F (this listing) | Full HD, 5,000 lm — not interactive, HDBaseT, up to 130" |
| EB-805F | Full HD, 5,000 lm — not interactive, HDBaseT, up to 130" |
| EB-810E | Full HD with 4K Enhancement, 5,000 lm — extreme short throw, up to 160" |
| EB-815E | Full HD with 4K Enhancement, 5,000 lm — extreme short throw, up to 160" |
Datasheet & Downloads
- Epson Singapore — EB-800F Ultra-short Throw Full HD Laser Projector product page and full specifications
- Epson Singapore — EB-800F support, drivers and manuals
SourceIT can email the current data sheet revision on request together with a quotation.
Frequently Asked Questions — Epson EB-800F
What is the difference between the EB-800F and the EB-805F?
We checked this against Epson Singapore's own published data rather than guessing, and the honest answer is that Epson publishes an identical specification set for the two models: same 5,000 lumens, same Full HD 1080p panel, same over 5,000,000:1 contrast, same 0.27 – 0.37 throw ratio, same HDBaseT and three-HDMI connector panel, same 9.4 kg body, and the same supplied and optional accessory lists. They are supplied under different part numbers — V11H923552 for the EB-800F and V11H923652 for the EB-805F. Before you order, tell us which part number your specification, tender or existing site standard calls for and we will quote that exact one.
Is this an interactive projector?
No. The EB-800F is a display and signage projector with no pens and no touch unit. Its USB Type B port lists an interactive function in Epson's connector description, but this is not a BrightLink interactive model and no pens are supplied. If you need writing on the projected image, look at the EB-770Fi or the EB-760Wi instead.
Can it really be mounted upside down, sideways or pointing at the floor?
Yes. The laser light source allows the EB-800F to be rotated 360 degrees in any direction — horizontally, vertically and rotationally — with no loss of brightness or image quality. That is exactly what makes it suitable for floor projection, wayfinding, ceiling installations and projecting onto fixtures rather than flat walls. Use the optional ELPMB62 setting plate and specify the structure for a 9.4 kg unit.
What is HDBaseT for, and do I need it?
HDBaseT carries video, audio, control and network over a single shielded twisted-pair cable across a long distance, so the source equipment can live in a rack rather than next to the projector. If the projector is more than a few metres from the player or the head end — which it usually is in a retail unit or a lobby — HDBaseT is the clean way to wire it. For a short local run, HDMI is simpler and there are three HDMI inputs available.
How large an image can it produce, and from how far?
Epson specifies 65 to 130 inches at 16:9 in the wide zoom setting, with the lens 39.2 to 80.3 cm from the surface, and 61 to 120 inches at 16:6. The throw ratio is 0.27 to 0.37. That is a true ultra-short throw geometry designed to sit close to the surface and out of the way of people and stock.
Does it need a wireless module?
Yes, if you want wireless. Wired LAN over RJ45 is built in. Wireless LAN works through a USB Type A port using the optional Epson ELPAP11 module, and note that this port is shared with memory I/O — so plan whether the port is needed for USB content playback or for Wi-Fi. We can supply the ELPAP11 with the projector.
How much maintenance does it need in a permanent installation?
Very little. The laser diode light source is rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode, and the air filter maintenance cycle is 20,000 hours (the replacement filter is the ELPAF56). Standby consumption is 2.0 W networked and 0.5 W in energy-saving mode, which adds up across a site full of signage projectors.
What warranty and paperwork comes with it?
Every unit sold by SourceIT carries local Singapore warranty and is invoiced with a GST invoice. Support and warranty claims are handled locally rather than through an overseas grey-market channel.
