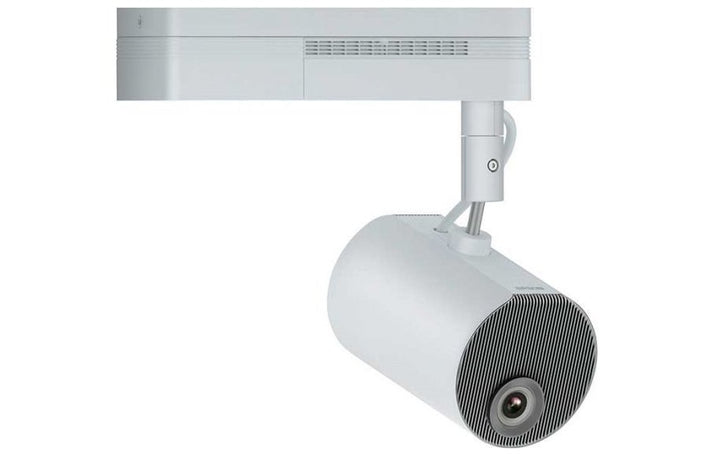

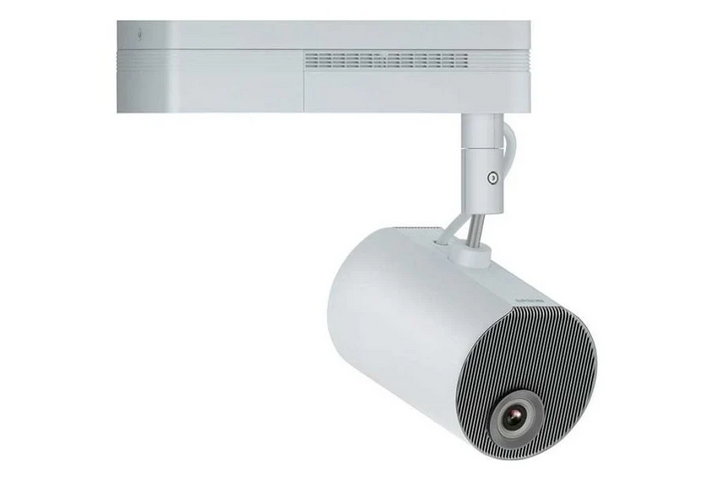

Epson EV-110 Projector
PRODUCT DESCRIPTION
Epson EV-110 LightScene WXGA 3LCD Laser Projector (V11HA22052) - 3 Years Singapore Local Warranty
A Projector Shaped Like a Spotlight, Built for Retail and Hospitality Interiors
The EV-110 LightScene is designed to disappear into a fitted-out space. Its projection head is a cylindrical Φ175 x 260 mm spotlight body that mounts on a lighting track, a wall, a ceiling or the optional floor stand, with the power supply unit as a separate 361 x 110 x 65 mm box that can be hidden above a ceiling or inside a joinery unit. Retailers, F&B operators, museums and hotel designers can therefore add moving content to a wall, a table, a product plinth or a display case without anything that looks like AV equipment appearing in the room.
2,200 Lumens of 3LCD Laser Light With Over 5,000,000:1 Contrast
Epson rates the EV-110 at 2,200 lumens of white light output and 2,200 lumens of colour light output, with a contrast ratio of over 5,000,000:1 from a WXGA 0.59-inch 3LCD panel. The matched white and colour figures matter for merchandising work: brand colours, fabric and food photography hold their saturation instead of drifting pale, which is the usual failing of single-chip projectors used for signage. Quiet mode drops output to 1,100 lumens where a darker environment or a shorter throw calls for it.
Sensor-Triggered Content Through the GPI Interface
The USB Type-A port doubles as a two-channel general purpose interface input, so a motion sensor, a lift-and-learn switch or a door contact can trigger a change of content on the projector itself — no media player, no PC and no separate control system. Content is held on an SD card (SDHC up to 32 GB, Class 10 or better) or pushed over the network, and the built-in contents player handles playlists, scheduled timetables and SD viewer playback of Motion JPEG video and JPEG, PNG, GIF and BMP stills. For a shopfront window or a gallery exhibit, that is the whole installation in one device.
Flexible Optics, Edge Blending and 20,000 Hours of Maintenance-Free Operation
A 1.38 – 2.19:1 throw ratio with powered zoom and focus covers 30 to 150 inches, and vertical and horizontal keystone of ±45° and ±40° plus Quick Corner and edge blending let several units cover a long wall or an irregular surface. The sealed laser engine is rated at 20,000 hours in normal and quiet modes and 30,000 hours in extended mode, with no lamp or filter service in between — important when the projector is on a track four metres up. Start-up is under nine seconds and shutdown is instant, which suits retail spaces on a timed power schedule.
Epson EV-110 Datasheet — Technical Specifications
General
| Product | Epson EV-110 LightScene Laser Projector (white) |
| Part Number (SKU) | V11HA22052 |
| Projection Technology | 3LCD, RGB liquid crystal shutter projection system |
| Native Resolution | WXGA, 1280 x 800 |
| Platform | Built-in contents player with playlists, timetable scheduling and SD viewer |
| Operating Time | Laser light source 20,000 hours normal and quiet / 30,000 hours extended |
| GTIN | 8715946686908 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| White Light Output | 2,200 lumens (normal) / 1,100 lumens (quiet) / 1,100 lumens (extended) |
| Colour Light Output | 2,200 lumens |
| Contrast Ratio | Over 5,000,000:1 |
| LCD Panel | 0.59 inch (D8, C2 fine) |
| Screen Size | 30 inches to 150 inches (0.88 – 4.51 m wide zoom; 1.41 – 7.16 m tele zoom) |
| Projection Distance (60-inch image) | 1.79 m (standard size) |
| Throw Ratio | 1.38 – 2.19:1 (wide to tele) |
| Zoom Ratio | 1 – 2.21 (1 – 1.58 optical, powered; 1 – 1.40 digital) |
| Lens | Powered optical zoom and powered focus, F1.51 – 1.92, focal length 18.2 – 28.4 mm |
| Keystone Correction | Vertical ±45° / horizontal ±40°, Quick Corner |
| Installation Features | Edge blending, GPI function |
Light Source
| Type | Laser diode |
| Rated Life | 20,000 hours normal / 20,000 hours quiet / 30,000 hours extended |
Connectivity
| Digital Input | HDMI x 1 |
| Network | Wired LAN RJ45 x 1 (100 Mbps); built-in wireless LAN |
| Wireless Standards | IEEE 802.11b/g/n (2.4 GHz) and 802.11a/n (5 GHz); infrastructure and access point modes |
| Wireless Security | Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP (PEAP, PEAP-TLS, EAP-TLS, EAP-Fast) |
| Memory | SD card x 1 (SDHC, up to 32 GB, Class 10 or better) |
| USB | USB Type-A x 1 (GPI in, 2 channel, or 5 V / 2 A power supply); USB Type-B x 1 (firmware update) |
| Audio Output | Stereo mini jack x 1; Bluetooth connection to external speakers |
Audio & Features
| Contents Player | Playlist, timetable (scheduled playlist), SD viewer |
| Playlist Content Types | Motion JPEG video (AVI) and photo (JPEG, PNG, GIF, BMP) |
| App Support | Epson Creative Projection App |
| Colour Modes | Dynamic, Normal |
| Fan Noise | 34 dB (normal) / 22 dB (eco) |
| Start-Up Period | Less than 9 seconds (warm-up 30 seconds) |
| Cool Down Period | Instant off |
| Direct Power On / Off | Yes / Yes |
Physical & Environmental
| Dimensions (excluding feet) | Projection unit Φ175 x D260 mm; power supply unit 361 x 110 x 65 mm (without cable cover) |
| Weight | Approx. 6.9 kg / 15.2 lbs (main unit and direct mount unit) |
| Operating Temperature | 5°C to 40°C below 2,286 m; 5°C to 35°C above 2,286 m; 20% – 80% humidity, no condensation |
| Operating Altitude | 0 m to 3,048 m (above 1,500 m with high altitude mode) |
| Mounting Options | Floor stand ELPMB55W (white); lighting track mounts ELPMB66W (white) and ELPMB66B (black) |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
| Power Consumption (220 – 240 V) | 149 W laser diode on, normal / 112 W quiet |
| Standby Power | 2.0 W network on / 0.40 W network off |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation
The EV-110 is a two-part system: a cylindrical projection head and a separate power supply unit that can be concealed. The head mounts on a standard lighting track using ELPMB66W or ELPMB66B, or stands on the floor with ELPMB55W, and can also be wall or ceiling fixed. It is designed to be aimed like a spotlight, including steeply downward onto tables, plinths and floors. Epson publishes an approximate weight of 6.9 kg for the main unit together with the direct mount unit, so plan the track or bracket loading on that basis rather than on the head alone.
What it connects to
One HDMI input takes a media player, a signage PC or a laptop. Content can equally live on the projector: an SD card slot (SDHC up to 32 GB, Class 10 or better) feeds the built-in playlist and timetable player. The USB Type-A port serves either as a two-channel GPI sensor input or as a 5 V / 2 A power supply for a small accessory, and USB Type-B is used for firmware updates. Audio goes out over a stereo mini jack or wirelessly to Bluetooth speakers.
Network and content management
A 100 Mbps RJ45 port and built-in dual-band wireless (802.11b/g/n on 2.4 GHz, 802.11a/n on 5 GHz) support both infrastructure and access point modes, with WPA2/WPA3-PSK and enterprise WPA2/WPA3-EAP security including PEAP, PEAP-TLS, EAP-TLS and EAP-Fast. Content can be uploaded over the network or by SD card, and the Epson Creative Projection App is available for creating and sending content.
Related Epson projectors on SourceIT
The (arriving shortly — ask us) is the same LightScene projector in a black finish for darker interiors and black lighting tracks.
Package Contents & Epson LightScene Range
In the box
Epson does not publish a box-contents list for this model on its product data page, so no inventory of accessories is claimed here. The floor stand and lighting track mounts (ELPMB55W, ELPMB66W, ELPMB66B) are listed by Epson as options and are not included. SourceIT can confirm exactly what ships in the carton before you order.
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson LightScene range
| Model | Finish and specification |
| EV-110 (this listing) | White, WXGA, 2,200 lumens |
| (arriving shortly — ask us) | Black, WXGA, 2,200 lumens |
Datasheet & Downloads
- Epson Singapore — EV-110 LightScene product page and full specifications
- Epson Singapore — EV-110 support, manuals and warranty
SourceIT can email the current data sheet revision for the EV-110 together with a quotation, including throw tables and mount drawings for a track or bracket layout.
Frequently Asked Questions — Epson EV-110
What is the difference between the EV-110 and the EV-115?
Finish. The EV-110 is the white version and the EV-115 is the black version of the same LightScene projector, with the same WXGA resolution, 2,200 lumens and feature set. Choose the one that matches your lighting track and ceiling.
How much does it weigh, and why do I see different figures?
Epson publishes approximately 6.9 kg (15.2 lbs) for the main unit together with the direct mount unit, and that is the figure to design a track or bracket around. Lower weights quoted elsewhere refer to a sub-assembly rather than the mounted product, so use Epson's 6.9 kg figure for structural loading.
Does it need a media player?
No. The built-in contents player runs playlists and scheduled timetables from an SD card (SDHC up to 32 GB, Class 10 or better), and handles Motion JPEG video plus JPEG, PNG, GIF and BMP stills. An HDMI input is there if you prefer an external source.
Can content be triggered by a sensor?
Yes. The USB Type-A port provides a two-channel general purpose interface (GPI) input, so a motion sensor or switch can change what is projected. The same port can instead supply 5 V / 2 A to a small accessory.
Can I use several units across one wall?
Yes. Edge blending, Quick Corner and ±45° vertical / ±40° horizontal keystone correction are provided for multi-unit and off-axis installations.
How bright is it really, and where does it suit?
2,200 lumens of both white and colour light output at over 5,000,000:1 contrast. That is aimed at accent projection onto walls, tables, plinths and display cases in retail, F&B, museum and hotel interiors rather than at a large screen in a bright atrium.
What maintenance does it need?
None for the light source within its rated life — 20,000 hours in normal and quiet modes and 30,000 hours in extended mode. There is no lamp to change, start-up is under nine seconds and shutdown is instant.
What warranty and invoicing do I get from SourceIT?
Every unit is sold with local Singapore warranty support and a GST invoice issued by SourceIT, ready for your company's claims and asset records.
