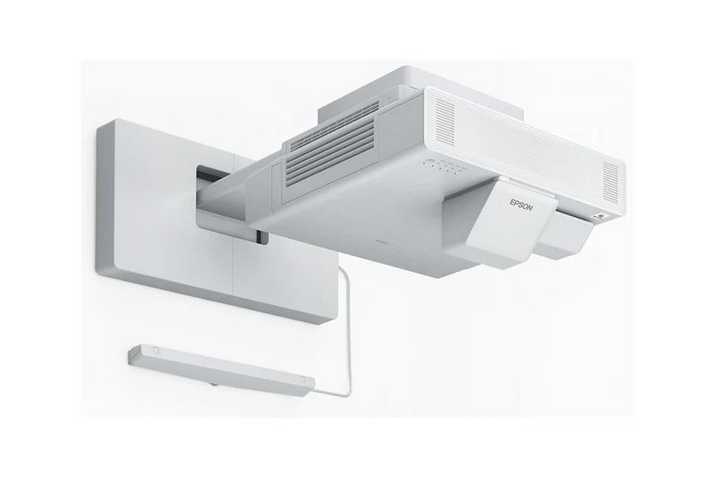

Epson EB-1485Fi Full HD 3LCD Projector
PRODUCT DESCRIPTION
Epson EB-1485Fi Full HD 3LCD Laser Projector (V11H919052) - 3 Years Singapore Local Warranty
Finger-Touch Interactivity for Boardrooms and Training Rooms
The EB-1485Fi turns an ordinary whiteboard or flat wall into a working surface that up to six people can write on at once, using a finger or either of the two supplied Easy Interactive Pens. Calibration is automatic, and hover and right-click behave the way a mouse does, so a facilitator can annotate a live spreadsheet without leaving the board. For Singapore boardrooms, tender rooms and corporate training suites that have outgrown a static screen, this removes the cost of a separate interactive flat panel while keeping a far larger working image than a 75-inch display can offer.
5,000 Lumens of Colour and White Brightness for Lit Rooms
Epson rates the EB-1485Fi at 5,000 lumens white light output and 5,000 lumens colour light output, dropping to 3,500 lumens in Eco mode. Because the 3LCD engine produces the same figure for colour as for white, charts and corporate palettes hold their saturation instead of washing to grey under downlights. Contrast is rated at over 5,000,000:1. In practice that means a meeting room with glass partitions and ceiling lighting does not need blinds drawn or lamps switched off for a financial model or a site drawing to stay legible from the back row.
Ultra-Short Throw From 0.27 to 0.37 With No Presenter Shadow
With a throw ratio of 0.27 to 0.37 the projector sits directly above the board, filling 65 to 100 inches at 16:9 or 61 to 120 inches in a 16:6 ultra-wide layout from a few centimetres of clearance. Nobody standing at the board casts a shadow across the image and nobody is dazzled by the lens while facing the room. That geometry suits the shallow meeting rooms and narrow classroom footprints common in Singapore commercial buildings, where a long-throw ceiling mount would place the projector in a walkway or force an awkward keystone correction.
Laser Light Source Rated to 20,000 Hours With HDBaseT Integration
The laser diode light source is rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode, with an electrostatic filter on a 20,000-hour maintenance cycle, so there is no lamp to schedule or budget for across a building's life. Three HDCP 2.3 HDMI inputs, an HDMI output and an HDBaseT input let an integrator run video, audio and control over a single Cat cable from a rack, while built-in wireless with switchable Screen Mirroring gives visitors a route onto the screen without touching the structured cabling.
Epson EB-1485Fi Datasheet — Technical Specifications
General
| Product | Epson EB-1485Fi Full HD 3LCD Laser Projector |
| Part Number (SKU) | V11H919052 |
| Projector Type | Ultra-short-throw interactive 3LCD laser installation projector |
| Native Resolution | Full HD 1080p |
| Brightness | 5,000 lm white and colour light output (3,500 lm Eco) |
| GTIN | 8715946673752 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Projection & Optics
| Projection System | RGB liquid crystal shutter projection system (3LCD) |
| LCD Panel | 0.62" C2Fine |
| Contrast Ratio | Over 5,000,000 : 1 |
| Screen Size (projection distance) | 65” – 100” [39.2 – 61.3 cm] @ 16:9; 61” – 120” [39.2 – 79.6 cm] @ 16:6 |
| Throw Ratio | 0.27 – 0.37 (wide to tele) |
| Lens | No optical zoom, manual focus; F-number 1.50; focal length 3.9 mm |
| Digital Zoom | 1.0 – 1.35 |
| Keystone Correction | Vertical / horizontal ±3° / ±3° |
| Quick Corner | Yes |
Light Source
| Type | Laser diode |
| Life (Normal / Extended) | 20,000 / 30,000 hours |
| Start-Up Period | Less than 8 seconds (warm-up 30 seconds) |
| Cool Down Period | Instant Off |
Connectivity
| Digital Input | HDMI x 3 (HDCP 2.3); HDBaseT x 1 (HDCP 2.3) |
| Digital Output | HDMI x 1 |
| Analogue Input | D-Sub 15-pin x 2 (blue, black); Composite RCA x 1 |
| Analogue Output | D-Sub 15-pin x 1 (black, in common with Computer 2) |
| Audio Input | Stereo mini jack x 3 |
| Audio Output | Stereo mini jack x 1 |
| Mic Input | Stereo mini x 1 |
| Control I/O | RS-232C D-Sub 9-pin x 1; Interactive Sync in x 1 / out x 1; Touch Unit control Mini DIN 8-pin x 1 |
| USB | USB Type A x 2; USB Type B x 2 |
| Network | Wireless built-in (Screen Mirroring or WLAN switchable); optional wireless LAN unit via USB Type A |
| Wireless LAN | IEEE 802.11a/b/g/n/ac; WPA2 / WPA3-PSK and WPA2 / WPA3-EAP |
Audio & Features
| Internal Speakers | 8 W x 8 W stereo |
| Interactive Pens | 2 (Easy Interactive Pen A & B), 161 x 24 mm |
| Finger Touch | Yes, up to 6 fingers |
| Interactive Technology | Infrared; connection to computer via USB or network |
| Calibration | Pen: auto / manual (25 points) |
| Interactive Functions | Hover, right click, auto adjust pen area |
| Touch Unit | 422 x 40 x 65 mm, 620 g |
Physical & Environmental
| Dimensions (excluding feet, W x H x D) | 458 x 209.5 x 375 mm |
| Weight | Approx. 9.8 kg |
| Fan Noise (Normal / Extended / Quiet) | 37 dB / 37 dB / 28 dB |
| Air Filter | Electrostatic filter, 20,000-hour maintenance cycle |
| Operating Temperature | 0 °C – 40 °C to 2,286 m; 0 °C – 35 °C above 2,286 m; 20% – 80% humidity, no condensation |
| Operating Altitude | 0 – 3,048 m (high altitude mode above 1,500 m) |
Power
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
| Direct Power On / Off | Yes |
Specifications are taken from Epson's published product data for this model. Where Epson does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and positioning

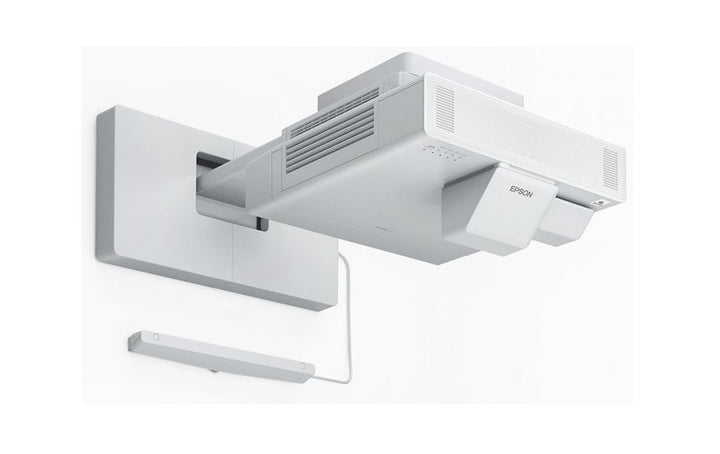

The EB-1485Fi is designed to be wall mounted directly above the projection surface on an Epson ultra-short-throw arm, with the Touch Unit fitted above the board so its infrared curtain covers the image area. Allow for the 458 x 209.5 x 375 mm body and approximately 9.8 kg when specifying the wall fixing and the backing behind plasterboard. Because the throw ratio is 0.27 to 0.37, the image size is set by how far the mount holds the lens from the wall, so the board position should be fixed before the bracket is drilled.
What it connects to
Three HDCP 2.3 HDMI inputs take a room PC, a laptop plate and a video bar or codec, and the HDMI output loops video on to a confidence monitor or a second display. Two D-Sub 15-pin inputs and a composite RCA input cover legacy sources still found in older meeting rooms. Audio arrives on three stereo mini jacks with a separate microphone input, and a stereo mini output feeds a room amplifier if the 8 W + 8 W internal speakers are not enough for the space.
Network, control and wireless
An HDBaseT input carries video, audio, Ethernet and serial control from a rack over a single cable, which keeps the ceiling void tidy on a fitted-out floor. RS-232C is available for control system integration, and built-in wireless can be switched between Screen Mirroring for guest devices and wireless LAN for managed ones, with WPA2 / WPA3-PSK and enterprise WPA2 / WPA3-EAP security so it can sit on a corporate SSID.
Interactivity and accessories
Two Easy Interactive Pens are supplied and up to six fingers are tracked at once through the Touch Unit, which connects on a Mini DIN 8-pin control lead. Interactive Sync in and out allow two units to be aligned side by side for a wide collaborative surface. Other interactive Epson models that share this workflow include the EB-770Fi and the EB-760Wi.
Package Contents & Epson Interactive Ultra-Short-Throw Range
In the box
- Epson EB-1485Fi projector main unit
- Easy Interactive Pen A and Easy Interactive Pen B
- Touch Unit
- Remote control with batteries
- Power cable
- User documentation
Package contents follow Epson's product data for this model; items not listed by Epson are not claimed here.
Epson Interactive Ultra-Short-Throw range
| Model | Resolution & light source |
| Epson EB-695Wi | WXGA, 3,500 lm, lamp |
| Epson EB-725Wi | WXGA, laser |
| Epson EB-760Wi | WXGA, laser |
| Epson EB-770Fi | Full HD 1080p, laser |
| EB-1485Fi (this listing) | Full HD 1080p, 5,000 lm, laser |
Datasheet & Downloads
SourceIT can email the current data sheet revision together with a formal quotation on request.
Frequently Asked Questions — Epson EB-1485Fi
Is the EB-1485Fi a laser or a lamp projector?
It uses a laser diode light source rated at 20,000 hours in Normal mode and 30,000 hours in Extended mode. There is no lamp to replace, and the electrostatic air filter has a 20,000-hour maintenance cycle.
How large an image does it produce and from what distance?
Epson publishes 65 to 100 inches at 16:9 from 39.2 to 61.3 cm, and 61 to 120 inches in a 16:6 ultra-wide layout from 39.2 to 79.6 cm. The throw ratio is 0.27 to 0.37, so it mounts directly above the projection surface.
How many people can write on the image at once?
Up to six fingers are tracked simultaneously, and two Easy Interactive Pens (Pen A and Pen B) are supported. Pen calibration can be automatic or manual across 25 points.
Does it need a special whiteboard or screen?
No. The Touch Unit projects an infrared curtain across the image area, so a flat wall or a standard dry-wipe board works. The surface does need to be genuinely flat, because an ultra-short-throw lens exaggerates any bow or ripple.
What does the 'Fi' in the model name mean?
In Epson's naming, the trailing 'i' marks an interactive model supplied with pens and a Touch Unit, and 'F' marks a Full HD 1080p panel. A model without the 'i' projects the same image but has no interactivity.
Can it be driven over a single cable from an equipment rack?
Yes. The HDBaseT input carries video, audio, Ethernet and serial control over one cable, and RS-232C is available separately for control system integration.
How does it differ from the EB-770Fi?
Both are Full HD interactive ultra-short-throw laser projectors. The EB-1485Fi is the brighter, larger-chassis model at 5,000 lumens with HDBaseT and an 8 W + 8 W stereo speaker system. Compare the published figures on each listing for the room you are fitting out.
What warranty and invoicing applies?
This unit carries local Singapore warranty, and SourceIT issues a GST invoice with every unit sold. Warranty registration and service are handled locally.
