Eaton 5SC1000i 1000VA Tower Models 230V

Eaton 5SC1000i 1000VA Tower Models 230V (9210-5395) - 3 Years Local Warranty

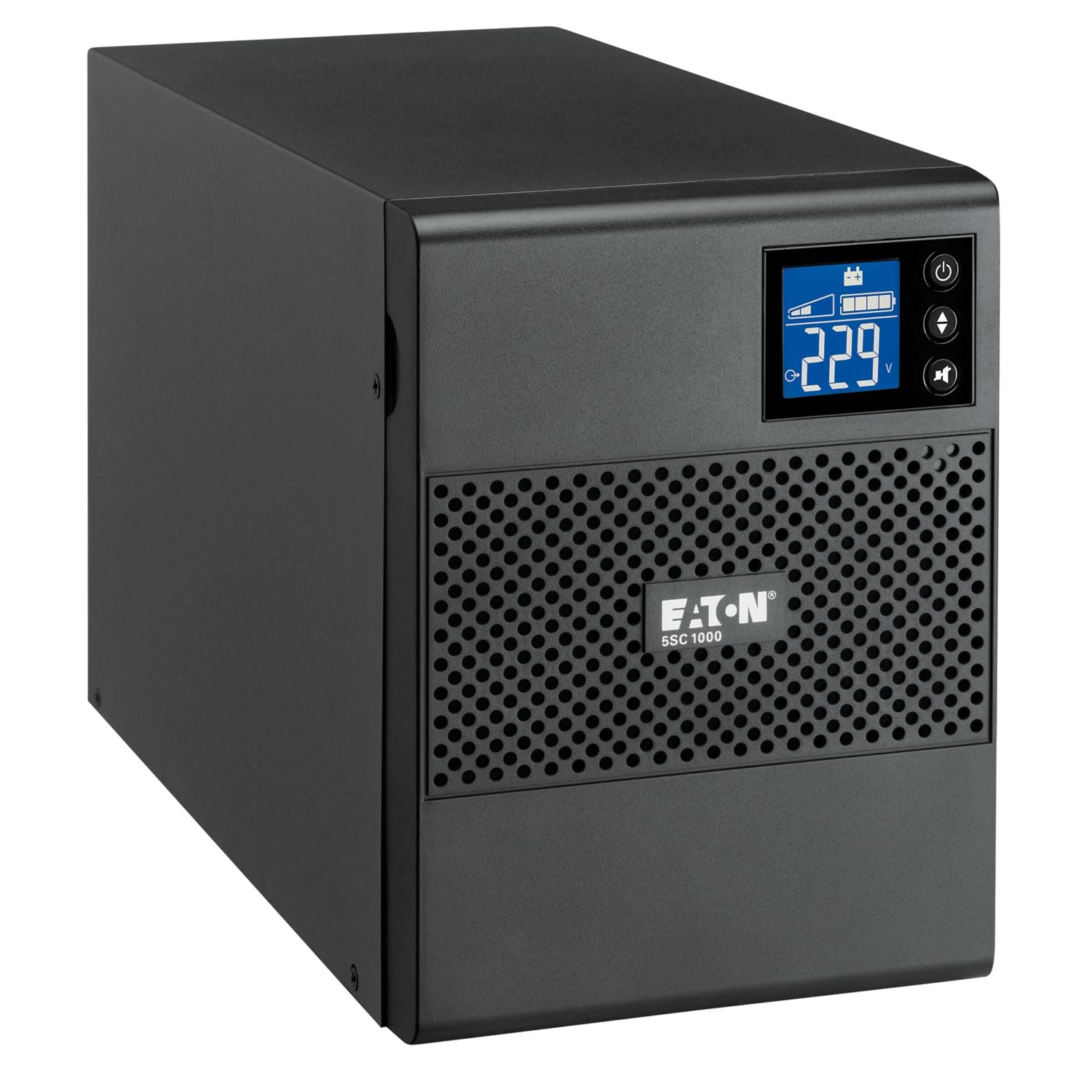

Eaton 5SC 1000VA Tower UPS - Reliable Power Protection

The Eaton 5SC 1000VA Tower UPS offers exceptional power backup for a variety of devices, including computers, routers, and networking equipment. With a 1000VA (or 700W) power rating, this UPS is designed to protect your critical devices from power disruptions, ensuring that your equipment remains operational during outages or surges. Ideal for home offices, small businesses, and sensitive electronics, the Eaton 5SC 1000VA guarantees reliable performance when you need it most.

Compact Design with High Efficiency

The Eaton 5SC 1000VA Tower UPS is designed to save space without compromising on performance. With its compact form factor, this UPS fits neatly into tight spaces, making it ideal for small workstations and environments where space is limited. Furthermore, the UPS is engineered with energy efficiency in mind, offering advanced features such as Energy Star compliance to help reduce power consumption. The unit also includes Automatic Voltage Regulation (AVR), which corrects minor voltage fluctuations, reducing the wear on your battery and extending its lifespan.

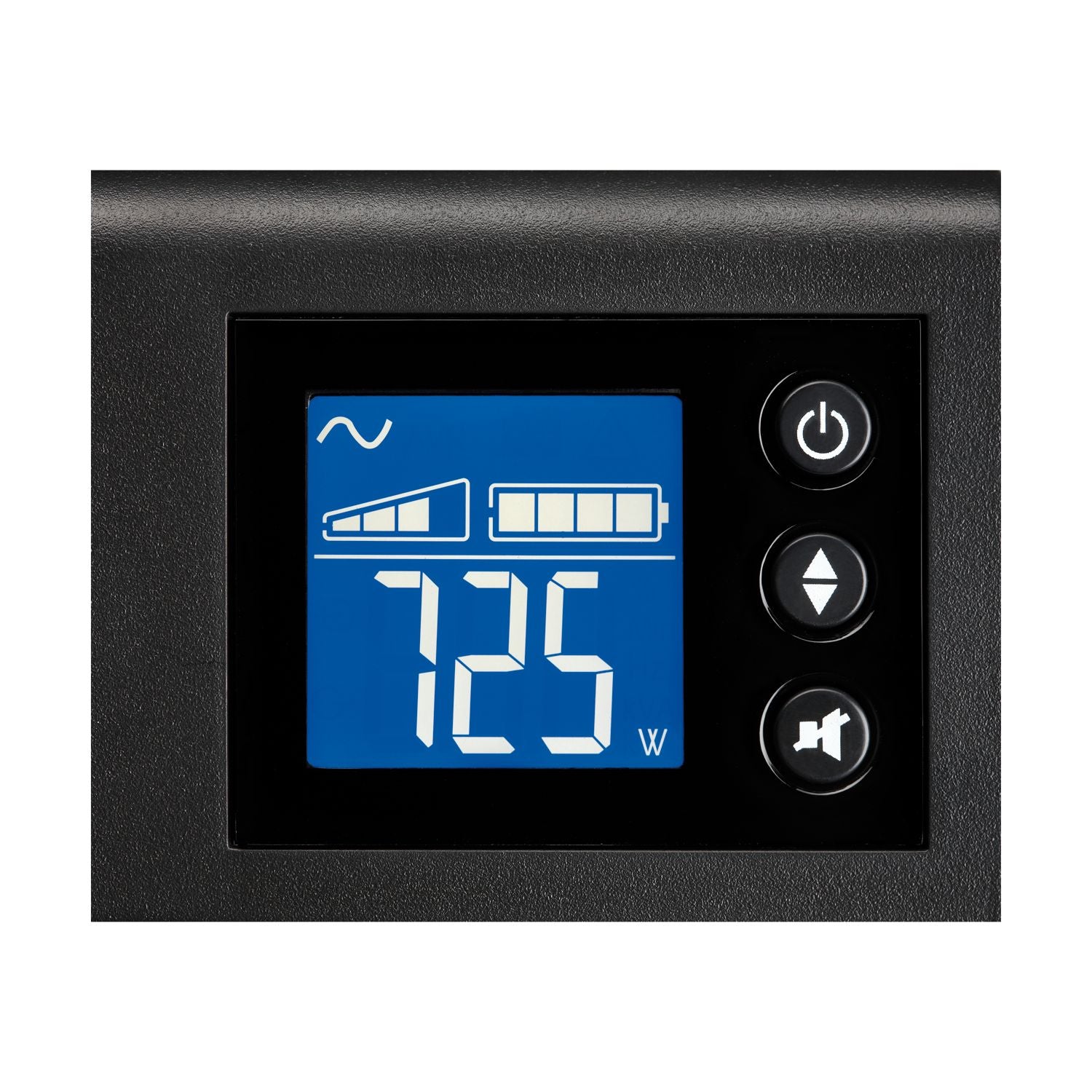

Versatile and User-Friendly LCD Display

Equipped with a user-friendly LCD display, the Eaton 5SC 1000VA Tower UPS provides clear and real-time information about system status, battery level, and load capacity. This allows users to easily monitor their UPS's performance and health, enabling proactive maintenance or alerts when required. The easy-to-read display helps ensure that users are always aware of the UPS's operating conditions, promoting smooth and hassle-free use.

Comprehensive Protection Against Power Surges

The Eaton 5SC 1000VA Tower UPS delivers superior protection against common electrical issues like power surges, blackouts, and brownouts. With its integrated surge protection, this UPS prevents potential damage to sensitive devices caused by electrical spikes, offering peace of mind and reliable defense against power quality issues. The Eaton 5SC ensures that devices are not only powered but also safeguarded from electrical threats, minimizing the risk of downtime or hardware damage.

Technical Specifications

General
Model: 5SC1000i
Part Number: 9210-5395
Product Name: Eaton 5SC1000i 1000VA Tower UPS 230V
Manufacturer: Eaton
Product Type: Line-Interactive UPS
UPS Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Form Factor: Tower
Power Capacity: 1000VA / 700W
Output Power Factor: 0.7
Input Voltage: 230V AC
Output Voltage: 220V / 230V / 240V Adjustable
Battery Technology: Maintenance-Free Sealed Lead Acid (VRLA)
Application: Tower Servers, Network Switches, NAS Storage, POS Systems, Security Systems, Workstations, Small Business IT Infrastructure
Warranty: 2 Years Standard Warranty

Power Specifications
Rated Capacity: 1000VA / 700W
UPS Topology: Line-Interactive
Output Power Factor: 0.7
Output Waveform: Pure Sine Wave
Input Voltage Range: 184V – 276V AC
Output Voltage: 220V / 230V / 240V Configurable
Output Voltage Range: 230V (+6% / -10%)
Input Frequency Range: 45Hz – 55Hz (50Hz System), 55Hz – 65Hz (60Hz System)
Output Frequency: 50Hz / 60Hz Auto-Sensing
Efficiency: Up to 96%
Automatic Voltage Regulation (AVR): Supported
Cold Start Capability: Supported
Auto Shutdown Function: Supported

Battery Specifications
Battery Type: Maintenance-Free Sealed Lead Acid (VRLA)
Battery Quantity: 2 Batteries
Battery Rating: 12V / 9Ah
Battery Management: Eaton ABM® Advanced Battery Management
Battery Charging Method: ABM or Constant Voltage Charging (User Selectable)
Battery Replacement: User Replaceable
Automatic Battery Test: Supported
Deep Discharge Protection: Supported
Extended Battery Capability: No

Runtime Specifications
Runtime at Full Load: Up to 5 Minutes
Runtime at 50% Load: Up to 13 Minutes
Runtime at 70% Load: Up to 9 Minutes
Runtime Monitoring: Supported
Load-Based Runtime Estimation: Supported

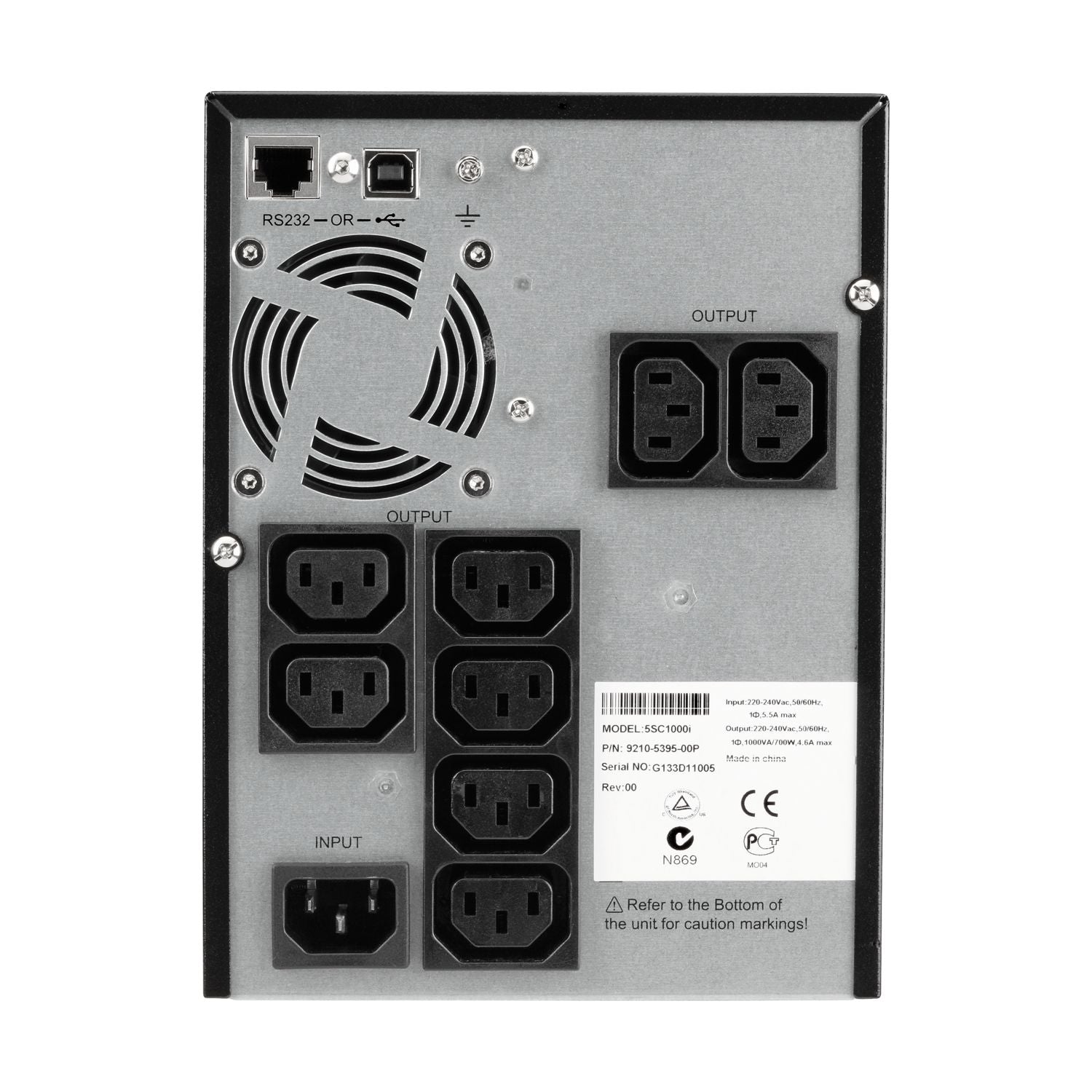

Input Specifications
Input Connector: IEC C14
Input Phase: Single Phase
Input Voltage Monitoring: Supported
Input Frequency Monitoring: Supported
Input Protection: Integrated
Nominal Frequency: 50Hz / 60Hz

Output Specifications
Total Output Outlets: 8
IEC C13 Outlets: 8
Output Phase: Single Phase
Output Voltage: 220V / 230V / 240V Adjustable
Pure Sine Wave Output: Supported
Critical Load Protection: Supported

Display & User Interface
Display Type: LCD Display
Real-Time Power Monitoring: Supported
Input Voltage Monitoring: Supported
Output Voltage Monitoring: Supported
Battery Status Monitoring: Supported
Load Monitoring: Supported
Runtime Estimation: Supported
Alarm Notifications: Supported
Status Configuration: Supported

Management & Communication
USB Port (HID Compliant): 1
RS232 Serial Port: 1
Ethernet Interface: Not Supported
SNMP Monitoring: Not Supported
Network Management Card: Not Supported
Software Compatibility: Eaton Intelligent Power Protector (IPP)
Remote Shutdown: Supported
Power Event Management: Supported

Protection Features
Line-Interactive Power Protection
Automatic Voltage Regulation (AVR)
Pure Sine Wave Output
Surge Protection
Brownout Protection
Overvoltage Protection
Undervoltage Protection
Short Circuit Protection
Overload Protection
Battery Deep Discharge Protection

Environmental Specifications
Operating Temperature: 0°C to 40°C
Operating Humidity: 0% – 90% Non-Condensing
Maximum Operating Altitude: 2000m
Noise Level: Less Than 40 dB at 1 Meter
BTU Rating: 143 BTU/hr

Design & Construction
Color: Black
Form Factor: Tower
Construction Type: Free Standing Model
Compact Tower Design: Supported
Rack Mountable: No
Front Status LCD Panel: Supported

Physical Specifications
Dimensions (W × H × D): 150 × 210 × 340 mm
Weight: 11.1 kg
Installation Type: Tower Only

Package Contents
Eaton 5SC1000i UPS
USB Communication Cable
RS232 Serial Cable
2 × IEC-to-IEC Power Cables
Quick Start Guide
Safety Instructions

Features
1000VA / 700W Capacity
Line-Interactive Technology
Pure Sine Wave Output
Automatic Voltage Regulation (AVR)
ABM® Battery Management Technology
LCD Status Display
USB & RS232 Connectivity
Compact Tower Design
96% Efficiency
User Replaceable Batteries
Ideal for Entry-Level Server Protection

Performance & Features
The Eaton 5SC1000i provides affordable and reliable power protection for entry-level servers, networking equipment, storage devices, and business workstations. Its line-interactive architecture with Automatic Voltage Regulation corrects voltage fluctuations without switching to battery power, extending battery life and improving efficiency. The pure sine wave output ensures compatibility with modern active PFC power supplies commonly used in IT equipment, while Eaton's ABM battery management technology helps extend battery service life by up to 50% compared to traditional charging methods.

Key Features
1000VA / 700W Capacity
Pure Sine Wave Output
Line-Interactive UPS Technology
Automatic Voltage Regulation (AVR)
96% Efficiency
8 × IEC C13 Outlets
LCD Display Interface
ABM® Battery Management
USB & RS232 Connectivity
Compact Tower Design
User Replaceable Batteries
Eaton Intelligent Power Protector Compatible

Typical Use Cases
Tower Servers
Small Business Servers
NAS Storage Systems
Network Switches
Firewalls
Retail POS Systems
Security & Surveillance Systems
Workstations
Telecommunications Equipment
Home Office Infrastructure
Small IT Closets
Branch Office Deployments

Certifications & Compliance
IEC/EN 62040-1
IEC/EN 62040-2
UL 1778
CE Certified
TÜV Certified
cTUVus Certified
EAC Certified

UPC / GTIN
UPC: 743172045164
