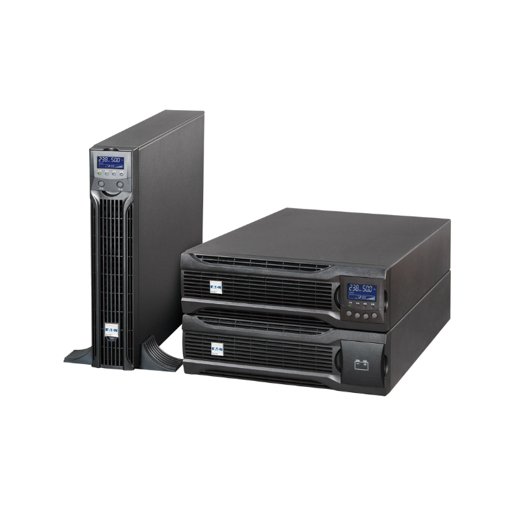

Eaton DX-RT 10kVA 10kW Online Double-Conversion Rack/Tower UPS with Internal Batteries
PRODUCT DESCRIPTION
Eaton DX-RT 10kVA/10kW Online Rack/Tower UPS (DXRT10KI-AP2, 9104-32686EA2) - 3 Years Local Warranty
10 kW of True Online Protection for Server Rooms and Critical Loads
The Eaton DX-RT DXRT10KI-AP2 is a 10 kVA / 10 kW online double-conversion UPS for Singapore server rooms, data cabinets, laboratories, clinics and industrial control panels. Double conversion rebuilds a clean sine wave output continuously, so connected equipment is isolated from sags, surges, spikes and frequency drift, with zero transfer time to battery.

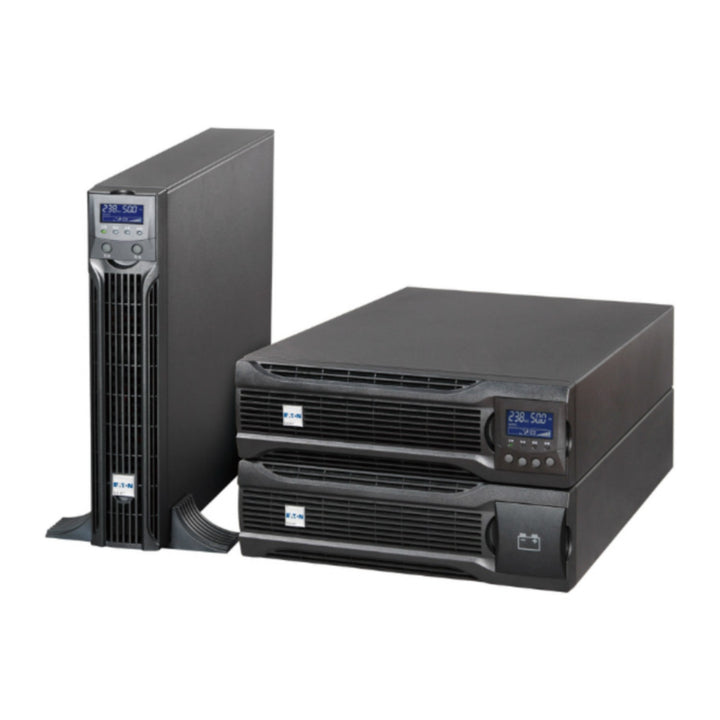

The unit converts between tower and rack installation, so it fits a comms-room floor today and a 19-inch rack when you consolidate.
Unity Power Factor: 10 kVA Means 10 kW
With an output power factor of 1, the full 10 kVA rating is usable as 10 kW of real power, which suits modern servers and storage with power-factor-corrected supplies.
The wide 110–275 VAC input window and 40–70 Hz input frequency range keep the UPS off battery through most utility disturbances and generator changeovers.
95% Online Efficiency, 98% in ECO Mode
Eaton rates the DX-RT at 95% efficiency in double-conversion mode and 98% in ECO mode, reducing heat load and running costs. Input power factor of 0.995 or better with under 3% current distortion makes it generator and wiring friendly.
Built-in Maintenance Bypass, Parallel-Ready and Network Manageable
A built-in maintenance bypass switch keeps the load powered from mains while the UPS is serviced. Up to 3 units can be paralleled for capacity or redundancy. USB, RS232, EPO and dry contacts are standard, and the card slot takes Eaton Network-M3 or Relay-MS cards for SNMP/web monitoring and automatic shutdown with Eaton IPM.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the DX-RT in Singapore with a full GST invoice and local warranty support. Eaton's East Asia datasheet lists a 3-year warranty, and Eaton's Singapore price list confirms 3 years on the UPS and its internal battery for this model.
Need help sizing a DX-RT or planning runtime? Email sales@sourceit.com.sg with your load in kW and target backup time.
Eaton DXRT10KI-AP2 Datasheet — Technical Specifications
General
| Product Name | Eaton DX-RT 10Ki (with internal batteries) |
| Catalogue Number | DXRT10KI-AP2 |
| Part Number (SKU) | 9104-32686EA2 |
| Range | Eaton DX-RT 6–10 kW |
| Topology | Online double conversion, single phase |
| Form Factor | Convertible tower / rack |
| Display | Graphical LCD + LED |
| Manufacturer Warranty | 3 years (Eaton DX-RT East Asia datasheet) |
| Local Warranty (Singapore) | 3 years on UPS and internal battery, supplied by SourceIT with a GST invoice |
Input
| Input Voltage Range | 110–275 VAC |
| Input Frequency | 40–70 Hz |
| Input Power Factor | ≥ 0.995 |
| Input Current Distortion | < 3% |
Output
| Rated Power | 10000 VA / 10000 W |
| Output Power Factor | 1 |
| Output Voltage | 208 / 220 / 230 / 240 VAC (selectable) |
| Voltage Regulation | ±1% |
| Output Frequency (battery mode) | 50/60 Hz ±0.1 Hz |
| Output Voltage Distortion | < 1% |
| Overload Capacity | 105–125% for 10 min; 125–150% for 30 s |
| Efficiency | 95% double conversion; 98% ECO mode |
| Maintenance Bypass Switch | Built-in |
| Parallel Capability | Up to 3 units (optional parallel kit) |
Battery
| Battery Type | Valve-regulated, maintenance-free sealed lead-acid |
| Battery Configuration | 16 pcs default (20 pcs optional) |
| Battery Voltage | 192 VDC default (adjustable 192/204/216/228/240 VDC) |
| Backup Time (Eaton published) | 2 min at full load / 8 min at 50% load |
| Charger Current | 0–4 A (default 2 A) |
Communications
| Standard Ports | USB, RS232, EPO, dry contact |
| Card Slot | 1 (Network-M3, INDGW-M2, Relay-MS options) |
| Software | Eaton Intelligent Power Manager (IPM) |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20 to 55 °C (without battery) |
| Humidity | 0–95%, non-condensing |
| Altitude | < 1000 m without derating; above 1000 m derate 1% per 100 m |
| Protection Level | IP20 |
| Approvals | CE |
Dimensions and weight: please refer to the Eaton datasheet linked below or ask us for the shipping dimensions of this configuration.
Compatibility & Software Support
What It Is Suited To
The DXRT10KI-AP2 suits multiple server racks, storage, telecom and CCTV head-ends, lab instruments and industrial or medical controls up to 10 kW. Keep the total continuous load under 10 kW with headroom for inrush and growth.
Monitoring and Shutdown
Use USB or RS232 for a single host, or fit an Eaton Network-M3 card for SNMP, web and email alerts and orderly multi-server or virtualised (VMware, Hyper-V) shutdown through Eaton Intelligent Power Manager. Relay-MS provides dry-contact signalling to building management systems.
Optional Accessories (Eaton)
Rack mounting rail kit, external battery modules (EBM), rack PDU, Network-M3 / INDGW-M2 / Relay-MS cards and a parallel kit are listed by Eaton as options. Ask us to quote the right combination.
Package Contents & DX-RT Ordering Information
In the Box
Eaton DX-RT UPS with user documentation. Eaton's datasheet does not list the carton contents, and the rail kit is an optional accessory, so confirm mounting hardware and cabling with us before ordering.
Eaton DX-RT 6–10 kW Range — Ordering Information
| DXRT6KI-AP2 | 6 kVA / 6 kW, internal batteries | 9104-12896EA2 |
| DXRT10KI-AP2 (this listing) | 10 kVA / 10 kW, internal batteries | 9104-32686EA2 |
| DXRT6KIXL-AP | 6 kVA / 6 kW, long-backup (external battery) | 9104-12897EA1 |
| DXRT10KIXL-AP | 10 kVA / 10 kW, long-backup (external battery) | 9104-32687EA1 |
| 744-A4089 | DX-RT maintenance bypass | 744-A4089 |
Extended Warranty
Eaton extended warranty options are available for the DX-RT when purchased together with the UPS. Ask us for pricing.
Datasheet & Downloads
| Eaton datasheet | Eaton DX-RT UPS Datasheet — East Asia (PDF) |
| Eaton user manual | Eaton DX-RT 6000/10000VA(XL) User Manual (PDF) |
| Eaton product page | Eaton DX-RT UPS (Singapore) |
| Eaton runtime graph | DXRT10Ki-AP battery runtime |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXRT10KI-AP2.
Frequently Asked Questions — Eaton DXRT10KI-AP2
What is the difference between the Ki and KiXL models?
The DXRT10KI-AP2 is the standard model with internal batteries. The XL (long-backup) model is intended for external battery modules and has a higher charger current (up to 12 A) for extended runtime.
How long will it run on battery?
Eaton publishes 2 minutes at full load and 8 minutes at 50% load. Runtime depends on actual load, battery age and temperature; send us your load in kW and we will estimate it or propose an XL configuration.
Can it be rack-mounted?
Yes. The DX-RT is convertible between tower and rack; the rack rail kit is an optional accessory.
Does it support network monitoring?
Yes. Fit an Eaton Network-M3 card in the card slot for SNMP/web monitoring and automatic shutdown via Eaton IPM.
What warranty do I get?
3 years on the UPS and internal battery, supplied by SourceIT with local Singapore support and a GST invoice.
