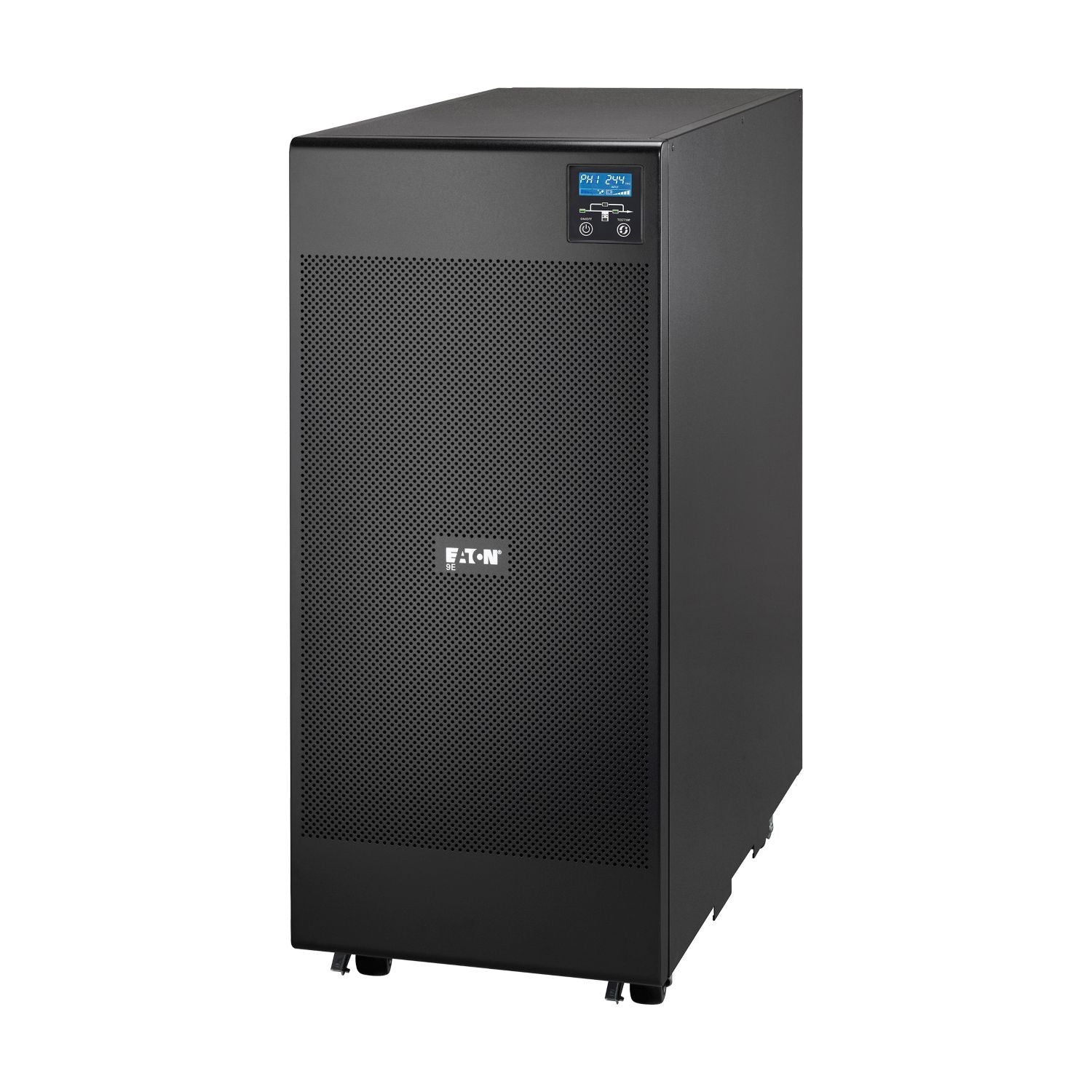

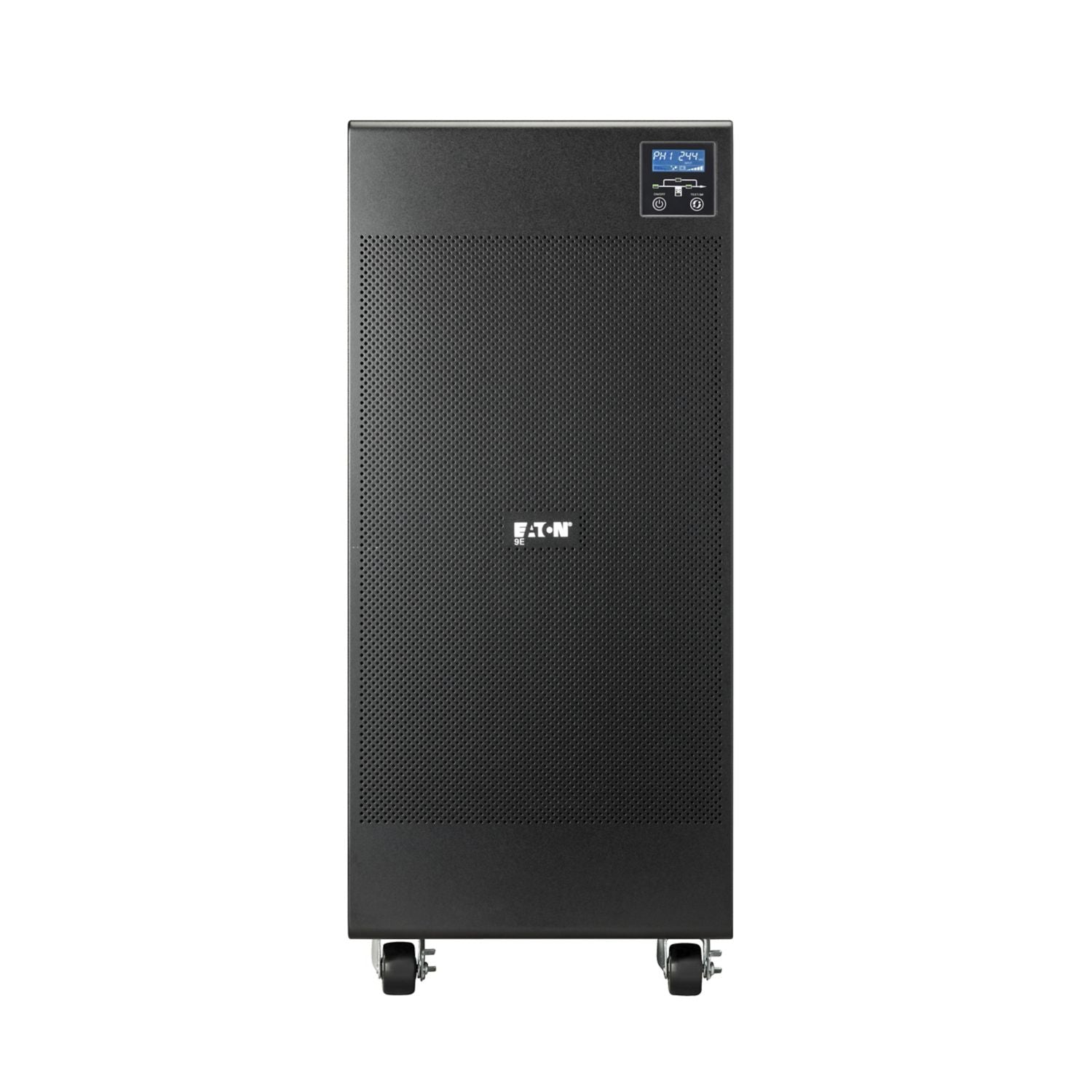

Eaton 9E 20kVA 16kW Online Double-Conversion Tower UPS, 3-Phase In / 1-Phase Out
PRODUCT DESCRIPTION
Eaton 9E 20000VA/16000W Online Tower UPS (9E20Ki, 9105-62201) - 3 Years Local Warranty
True Online Double-Conversion Protection
The Eaton 9E 9E20Ki is a 20000 VA / 16000 W online double-conversion tower UPS. It rebuilds a clean, regulated 230 V sine wave output continuously, so connected equipment is isolated from sags, surges, frequency drift and noise on the incoming supply, with zero transfer time to battery. It suits a server room, small data centre, lab or building services load that needs 16 kW of protected single-phase power.
Wide Input Window and High Input Power Factor
Eaton specifies an input voltage range of 176–276 V (110–276 V with derating) for single-phase input and an input power factor above 0.99, which keeps the load on the building supply or generator clean and lets the 9E ride through poor mains without going to battery.
Monitoring, Shutdown and Expandable Runtime
An LCD display shows status and measurements. USB (HID compliant) and RS232 ports plus one slot for an optional network card integrate with Eaton Intelligent Power Manager and Intelligent Power Protector for orderly shutdown. The internal bypass keeps the load powered if the UPS itself needs attention, and runtime can be extended with Eaton 9E external battery modules.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the Eaton 9E in Singapore with a full GST invoice and local warranty support. Eaton's Singapore price list gives this model 3 years on the UPS and internal battery.
Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Eaton 9E20KI Datasheet — Technical Specifications
General
| Product Name | Eaton 9E UPS |
| Catalogue Number | 9E20KI |
| Part Number (SKU) | 9105-62201 |
| Range | Eaton 9E |
| Topology | Online double-conversion |
| Form Factor | Tower (free standing) |
| Colour | Black |
| Local Warranty (Singapore) | 3 years on UPS and internal battery (Eaton Singapore price list), supplied by SourceIT with a GST invoice |
Power
| Rated Power | 20000 VA / 16000 W |
| Output Power Factor | 0.8 |
| Input Connection | Hardwired / fixed connection |
| Input Phase | 3 (single-phase output) |
| Input Nominal Voltage | 400 V / 230 V |
| Input Voltage Range | 176–276 V (110–276 V with derating) for single-phase input |
| Input Frequency Range | 45–66 Hz |
| Input Power Factor | >0.99 |
| Output Voltage | 230 V default (220/230/240 V) ±2% |
| Output Waveform | Sine wave (max. 3% distortion, linear load) |
| Output Phase | 1 |
| Internal Bypass | Yes |
| Efficiency at Max. Load | 93% |
Battery
| Internal Battery | 12 V / 9 Ah x 40, sealed lead-acid, replaceable |
| Battery Management | Automatic battery test, deep discharge protection |
| Extended Battery Capability | Yes (optional Eaton 9E EBM) |
Communications
| Communication Ports | USB (HID compliant), Serial (RS232), remote power off terminal, communication slot |
| Expansion Slot | One slot for optional communication card |
| Dry Contacts | Yes |
| User Interface | LCD display |
| Software | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Auto Shutdown | Yes |
Physical & Environmental
| Width / Height / Depth (as listed by Eaton) | 350 / 815.5 / 706 mm |
| Weight | 159.83 kg |
| Noise Level | <55 dB at 1 m |
| Operating Temperature | 0–40 °C |
| Relative Humidity | 0–95% non-condensing |
| Altitude | 3000 m |
| Certifications | IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
Compatibility & Software Support
What It Is Suited To
It suits a server room, small data centre, lab or building services load that needs 16 kW of protected single-phase power. Size by watts (16000 W) rather than VA, and leave headroom for growth.
Operating Systems and Software
The USB port is HID compliant, so Windows, macOS and Linux recognise the UPS natively. Eaton Intelligent Power Protector handles single-server shutdown; Eaton Intelligent Power Manager and an optional network card cover multiple servers and virtualised hosts.
Electrical Connection

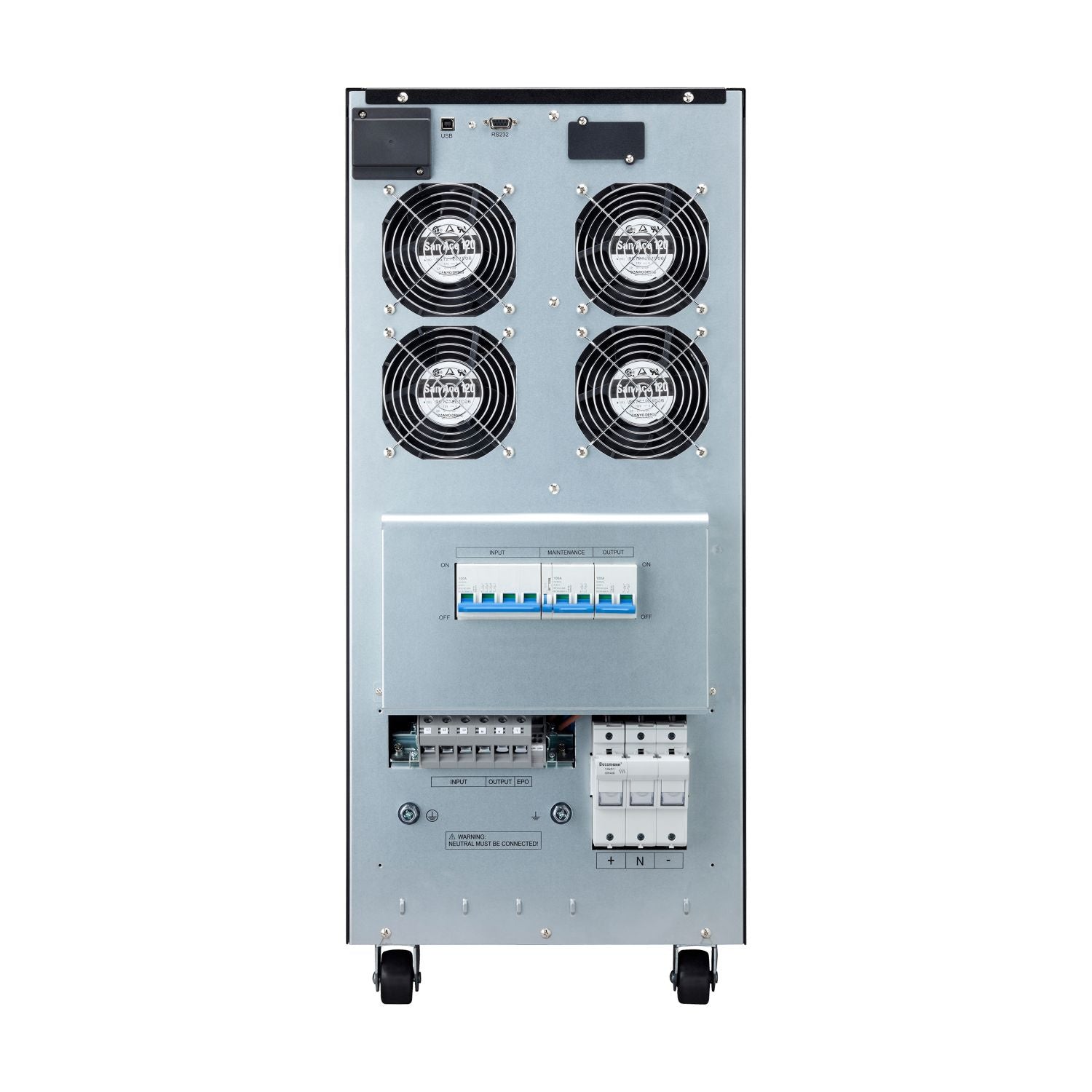

Eaton lists a hardwired (fixed) input connection, so installation should be done by a licensed electrician. This model takes a three-phase 400 V input and delivers single-phase 230 V output. Ask us about output connections and installation in Singapore.
Package Contents & 9E Ordering Information
In the Box
Eaton lists: UPS, USB cable, serial cable, user manual.
Eaton 9E Tower Range — Ordering Information
| 9E1000i | 1000 VA / 800 W | Tower | 9103-53904 |
| 9E2000i | 2000 VA / 1600 W | Tower | 9103-73929 |
| 9E3000i | 3000 VA / 2400 W | Tower | 9103-83968 |
| 9E6Ki | 6000 VA / 4800 W | Tower | 9104-12759 |
| 9E10Ki | 10000 VA / 8000 W | Tower | 9105-32343 |
| 9E15Ki | 15000 VA / 12000 W | Tower | 9105-52106 |
| 9E20Ki (this listing) | 20000 VA / 16000 W | Tower | 9105-62201 |
Extended Warranty
Ask us about Eaton extended warranty options for this range, purchased together with the UPS.
Datasheet & Downloads
| Eaton specifications | Eaton 9E20KI specifications (eaton.com) |
| Eaton datasheet | Eaton 9E UPS datasheet (PDF) |
| Eaton user guide | Eaton 9E user guide (PDF) |
| Eaton services | Eaton UPS and battery services (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 9E20KI.
Frequently Asked Questions — Eaton 9E20KI
What does online double-conversion mean?
The load always runs from the UPS inverter, so there is no transfer time to battery and the output is regulated at all times. It is the right choice for servers, storage and sensitive equipment.
How long will it run on battery?
Runtime depends on the load. Eaton does not quote a single figure on its specification page; send us your load in watts and we will size the batteries, including external battery modules if needed.
Can I add more batteries?
Yes. Eaton lists extended battery capability for this model via Eaton 9E external battery modules.
What supply does it need?
Eaton lists a three-phase input (400 V / 230 V nominal) with single-phase 230 V output and a hardwired input. A licensed electrician should install it; Eaton lists a weight of 159.83 kg.
What warranty do I get?
3 years on the UPS and internal battery per Eaton's Singapore price list, supplied by SourceIT with local support and a GST invoice.
