Eaton DX-RT 6kVA 6kW Online Double-Conversion Rack/Tower UPS with Internal Batteries
PRODUCT DESCRIPTION
Eaton DX-RT 6kVA/6kW Online Rack/Tower UPS (DXRT6KI-AP2, 9104-12896EA2) - 3 Years Local Warranty
True Online Protection for Server Rooms, Labs and Critical Equipment
The Eaton DX-RT DXRT6KI-AP2 is a 6 kVA / 6 kW online double-conversion UPS for Singapore server rooms, network cabinets, laboratories, clinics and light industrial equipment. Double conversion rebuilds a clean sine wave output from the DC bus at all times, so connected loads are isolated from sags, surges, spikes and frequency drift on the incoming supply, with zero transfer time to battery.

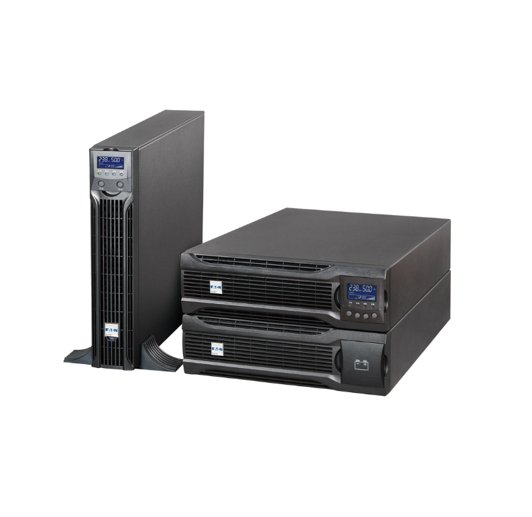

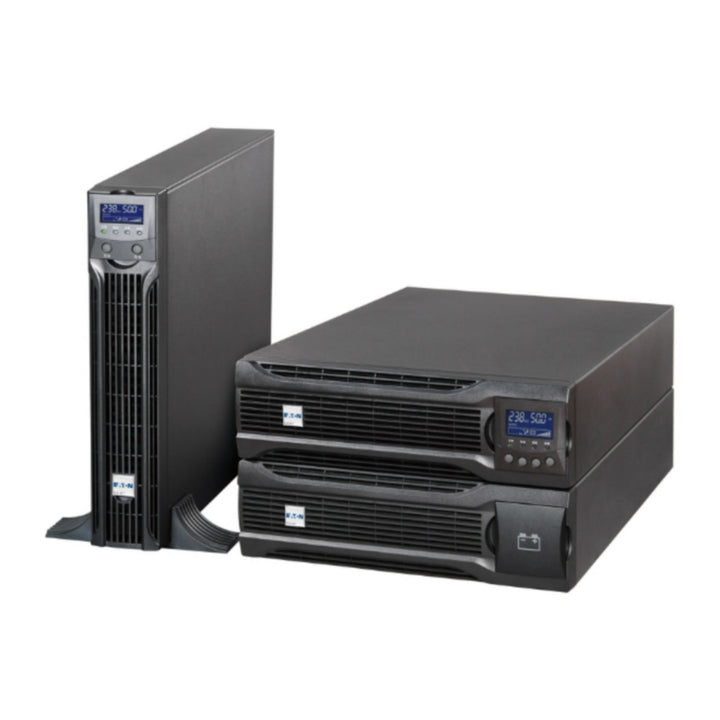

The unit is convertible between tower and rack installation, so the same UPS can sit on the floor of a comms room today and move into a 19-inch rack later.
Unity Power Factor: 6 kVA Means 6 kW
With an output power factor of 1, the full 6 kVA rating is available as 6 kW of real power. Modern servers and storage with active power-factor-corrected supplies can use the whole rating, which is not the case with older 0.8 or 0.9 PF designs.
The wide 110–275 VAC input window and 40–70 Hz input frequency range let the UPS stay off battery through most utility disturbances and generator changeovers, preserving battery life for real outages.
95% Online Efficiency, 98% in ECO Mode
Eaton rates the DX-RT at 95% efficiency in double-conversion mode and 98% in ECO mode, keeping heat and running costs down in small rooms where air-conditioning capacity is limited. Input power factor is 0.995 or better with under 3% input current distortion, so it is friendly to generators and building wiring.
Built-in Maintenance Bypass, Parallel-Ready and Network Manageable
A built-in maintenance bypass switch lets the load stay powered from mains while the UPS is serviced. Up to 3 units can be paralleled for capacity or redundancy with the optional parallel kit. USB, RS232, EPO and dry contacts are standard, and a card slot accepts Eaton Network-M3 or Relay-MS cards for SNMP/web monitoring and automatic shutdown with Eaton IPM software.
Supplied Locally with GST Invoice and 3-Year Warranty
SourceIT supplies the DX-RT in Singapore with a full GST invoice and local warranty support. Eaton's East Asia datasheet lists a 3-year warranty, and Eaton's Singapore price list confirms 3 years on the UPS and its internal battery for this model.
Need help sizing a DX-RT or planning runtime? Email sales@sourceit.com.sg with your load in kW and target backup time.
Eaton DXRT6KI-AP2 Datasheet — Technical Specifications
General
| Product Name | Eaton DX-RT 6Ki (with internal batteries) |
| Catalogue Number | DXRT6KI-AP2 |
| Part Number (SKU) | 9104-12896EA2 |
| Range | Eaton DX-RT 6–10 kW |
| Topology | Online double conversion, single phase |
| Form Factor | Convertible tower / rack |
| Display | Graphical LCD + LED |
| Manufacturer Warranty | 3 years (Eaton DX-RT East Asia datasheet) |
| Local Warranty (Singapore) | 3 years on UPS and internal battery, supplied by SourceIT with a GST invoice |
Input
| Input Voltage Range | 110–275 VAC |
| Input Frequency | 40–70 Hz |
| Input Power Factor | ≥ 0.995 |
| Input Current Distortion | < 3% |
Output
| Rated Power | 6000 VA / 6000 W |
| Output Power Factor | 1 |
| Output Voltage | 208 / 220 / 230 / 240 VAC (selectable) |
| Voltage Regulation | ±1% |
| Output Frequency (battery mode) | 50/60 Hz ±0.1 Hz |
| Output Voltage Distortion | < 1% |
| Overload Capacity | 105–125% for 10 min; 125–150% for 30 s |
| Efficiency | 95% double conversion; 98% ECO mode |
| Maintenance Bypass Switch | Built-in |
| Parallel Capability | Up to 3 units (optional parallel kit) |
Battery
| Battery Type | Valve-regulated, maintenance-free sealed lead-acid |
| Battery Configuration | 16 pcs default (20 pcs optional) |
| Battery Voltage | 192 VDC default (adjustable 192/204/216/228/240 VDC) |
| Backup Time (Eaton published) | 4 min at full load / 11 min at 50% load |
| Charger Current | 0–4 A (default 1.6 A) |
Communications
| Standard Ports | USB, RS232, EPO, dry contact |
| Card Slot | 1 (Network-M3, INDGW-M2, Relay-MS options) |
| Software | Eaton Intelligent Power Manager (IPM) |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20 to 55 °C (without battery) |
| Humidity | 0–95%, non-condensing |
| Altitude | < 1000 m without derating; above 1000 m derate 1% per 100 m |
| Protection Level | IP20 |
| Approvals | CE |
Dimensions and weight: please refer to the Eaton datasheet linked below or ask us for the shipping dimensions of this configuration.
Compatibility & Software Support
What It Is Suited To
The DXRT6KI-AP2 suits a full rack of servers and switches, storage arrays, telecom and CCTV head-ends, lab instruments and medical or industrial controls up to 6 kW. Keep the total continuous load under 6 kW with some headroom for start-up surges and future growth.
Monitoring and Shutdown
Use the USB or RS232 port for a single host, or fit an Eaton Network-M3 card in the card slot for SNMP, web and email alerts and orderly multi-server or virtualised (VMware, Hyper-V) shutdown through Eaton Intelligent Power Manager. Relay-MS provides dry-contact signalling to building management systems.
Optional Accessories (Eaton)
Rack mounting rail kit, external battery modules (EBM), rack PDU, Network-M3 / INDGW-M2 / Relay-MS cards and a parallel kit are listed by Eaton as options. Ask us to quote the right combination for your cabinet.
Package Contents & DX-RT Ordering Information
In the Box
Eaton DX-RT UPS with user documentation. Eaton's datasheet does not list the carton contents, and the rail kit is an optional accessory, so confirm mounting hardware and cabling with us before ordering.
Eaton DX-RT 6–10 kW Range — Ordering Information
| DXRT6KI-AP2 (this listing) | 6 kVA / 6 kW, internal batteries | 9104-12896EA2 |
| DXRT10KI-AP2 | 10 kVA / 10 kW, internal batteries | 9104-32686EA2 |
| DXRT6KIXL-AP | 6 kVA / 6 kW, long-backup (external battery) | 9104-12897EA1 |
| DXRT10KIXL-AP | 10 kVA / 10 kW, long-backup (external battery) | 9104-32687EA1 |
| 744-A4089 | DX-RT maintenance bypass | 744-A4089 |
Extended Warranty
Eaton extended warranty options are available for the DX-RT when purchased together with the UPS. Ask us for pricing.
Datasheet & Downloads
| Eaton datasheet | Eaton DX-RT UPS Datasheet — East Asia (PDF) |
| Eaton user manual | Eaton DX-RT 6000/10000VA(XL) User Manual (PDF) |
| Eaton product page | Eaton DX-RT UPS (Singapore) |
| Eaton runtime graph | DXRT6Ki-AP battery runtime |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting DXRT6KI-AP2.
Frequently Asked Questions — Eaton DXRT6KI-AP2
What is the difference between the Ki and KiXL models?
The DXRT6KI-AP2 is the standard model with internal batteries. The XL (long-backup) model is intended for external battery modules and has a higher charger current (up to 12 A) for extended runtime.
How long will it run on battery?
Eaton publishes 4 minutes at full load and 11 minutes at 50% load. Runtime depends on actual load, battery age and temperature; send us your load in kW and we will estimate it or propose an XL configuration.
Can it be rack-mounted?
Yes. The DX-RT is convertible between tower and rack; the rack rail kit is an optional accessory.
Does it support network monitoring?
Yes. Fit an Eaton Network-M3 card in the card slot for SNMP/web monitoring and automatic shutdown via Eaton IPM.
What warranty do I get?
3 years on the UPS and internal battery, supplied by SourceIT with local Singapore support and a GST invoice.
