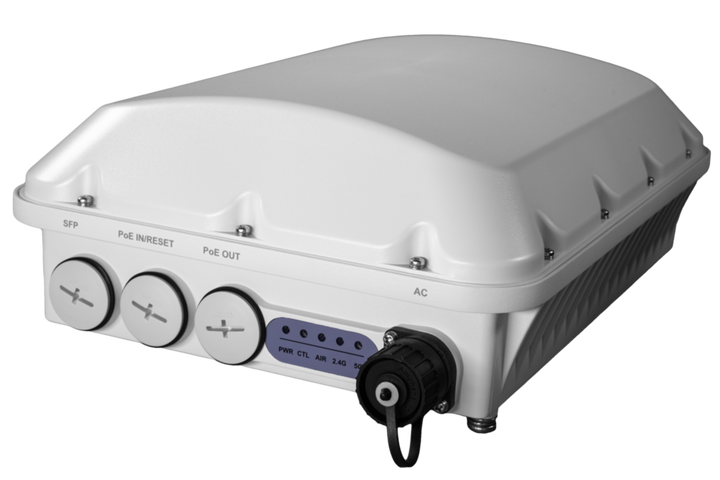

RUCKUS T750 Outdoor Wi-Fi 6 4x4:4 Access Point
PRODUCT DESCRIPTION
RUCKUS T750 Outdoor Wi-Fi 6 4x4:4 Access Point with 2.5G and SFP+ Backhaul (901-T750-WW01) - Local Warranty
Flagship Outdoor Wi-Fi 6 for Stadiums, Parks and Transport Hubs
The RUCKUS T750 is a dual-band 802.11ax (Wi-Fi 6) outdoor access point with 4x4:4 radios and 160 MHz channels. RUCKUS rates it at up to 2400 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz, with up to 1,024 clients per AP, for high-density public venues such as airports, amusement parks and stadiums and for bandwidth-heavy uses such as 4K video streaming.
Managed by a RUCKUS Controller
This is the standard edition (part number prefix 901-), managed from a RUCKUS controller or management platform rather than running as a self-contained Unleashed network. RUCKUS lists SmartZone, ZoneDirector, cloud and standalone management for the T750.
2.5G, Fiber and PoE Out
Backhaul runs over a 2.5 Gbps Ethernet port or an SFP/SFP+ fiber slot (1 or 10 Gbps). A second Gigabit port can power a camera or another device with 26 W PoE out when the AP itself is fed by 802.3bt PoE.
Omnidirectional T750 with USB and IoT
The T750 is the omnidirectional version, with BeamFlex+ adaptive antennas with polarization diversity, a USB 2.0 port and built-in BLE and Zigbee for IoT. For aimed sector coverage, see the T750SE.
Supplied in Singapore with Local Warranty
RUCKUS sells the T750 with a limited one-year warranty. SourceIT supplies it locally in Singapore with a GST invoice. The unit is IP-67 rated for -40°C to 65°C and ships with a mounting bracket; the power adapter is not included. Email sales@sourceit.com.sg with your site layout for a coverage plan and bill of materials.
RUCKUS T750 901-T750-WW01 Datasheet — Technical Specifications
General
| Product Name | RUCKUS T750 Outdoor Access Point |
| Part Number | 901-T750-WW01 |
| Edition | Standard (non-Unleashed) AP for controller or platform management; Unleashed version is 9U1-T750-WW01 |
| Manufacturer Warranty | Limited one-year warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band, concurrent 2.4 GHz and 5 GHz |
| MIMO / Streams | 4x4:4; 4 spatial streams for both SU-MIMO and MU-MIMO |
| Supported Data Rates | 802.11ax 4 to 2400 Mbps; 802.11ac 6.5 to 1732 Mbps; 802.11n 6.5 to 600 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 1148 Mbps; 5 GHz 2400 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Channelization | 20, 40, 80, 160 MHz |
| Client Capacity | Up to 1024 clients per AP |
| SSIDs | Up to 31 per AP |
| Antenna | Internal omnidirectional BeamFlex+ adaptive antenna with polarization diversity; gain 2.4 GHz 1.6 dBi, 5 GHz 3.4 dBi |
| IoT | Built-in BLE and Zigbee |
Interfaces & Power
| Ethernet | 1 x 2.5 Gbps and 1 x 10/100/1000 Mbps RJ-45 |
| PoE Out | PSE out (26 W) available on the 1GbE port |
| Fiber Backhaul | SFP (1 Gbps) / SFP+ (10 Gbps) |
| USB | 1 x USB 2.0, Type A |
| GPS | Built-in (RUCKUS ordering table: -XX01 and -XX51 builds include GPS) |
| 802.3bt PoE (Class 7) | 57 W (maximum functionality, with PSE out) |
| 802.3at PoE+ | 24.2 W (reduced functionality, without PSE out) |
Radio Management
| Features | BeamFlex+ adaptive antennas with polarization diversity, ChannelFly dynamic channel management, SmartMesh self-healing wireless meshing |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i |
Physical & Environmental
| Dimensions | 34.64 cm (L) x 24.06 cm (W) x 10.17 cm (H) |
| Weight | 2.84 kg (6.27 lbs) |
| Mounting | Mounting bracket included |
| Operating Temperature | -40°C to 65°C (-40°F to 145°F) |
| Ingress Protection | IP-67 |
| Wind Survivability | Up to 266 km/h (165 mph) |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac, Wi-Fi CERTIFIED 6, WPA2/WPA3 |
| Safety / Other | EN 60950-1 safety, EN 60601-1-2 medical, EN 61000-4-2/3/5 immunity, EN 50121-1 railway EMC |
Figures are taken from the RUCKUS T750 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS T750 data sheet lists SmartZone, ZoneDirector, cloud and standalone management. For controller-less Wi-Fi, order the Unleashed part instead.
Powering It
For full functionality including PSE out, feed the AP from 802.3bt Class 7 PoE (57 W). On 802.3at it runs with reduced functionality and no PSE out (24.2 W). RUCKUS offers 60 W PoE injectors for this.
Mixing with Other RUCKUS Gear
Outdoor T-series APs join the same controller-managed network as indoor R-series and H-series APs. Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS T750 outdoor access point with a mounting bracket (per the RUCKUS data sheet). The power adapter is not included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2, omni | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2, omni, DC/USB/IoT | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2, sector + external antenna | 901-T350-WW51 |
| RUCKUS T750 (this listing) | Outdoor Wi-Fi 6, 4x4:4, omni | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4, sector + external antenna | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power, Mounting & Antenna Accessories
RUCKUS lists the 902-0180-XX00 60W PoE injector, the 902-1180-XX00 multi-gigabit (2.5/5/10GBASE-T) 60W PoE injector, the 902-0125-0000 secure articulating mounting bracket, the 902-0134-0000 weatherized aluminium outdoor bracket, and SFP/SFP+ optics E1MG-LX-OM, E1MG-SX-OM, E1MG-SX-OM-8, 10G-SFPP-SR, 10G-SFPP-LR, 10G-SFPP-USR and 10G-SFPP-ER. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS T750 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS T750 Outdoor Access Point |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-T750-WW01.
Frequently Asked Questions — RUCKUS T750 901-T750-WW01
What is the difference between 901-T750-WW01 and 9U1-T750-WW01?
Same T750 hardware. 901- is the standard AP for SmartZone, ZoneDirector, cloud or standalone management; 9U1- ships with Unleashed (embedded controller).
What is the difference between the T750 and T750SE?
The T750 uses an omnidirectional BeamFlex+ antenna and has a USB 2.0 port. The T750SE uses a 120° sector antenna (6.0 dBi / 8.0 dBi) with connectors for an external antenna. Both are 4x4:4 Wi-Fi 6 with 2.5G, SFP/SFP+ and PoE out.
What PoE does it need?
802.3bt Class 7 (57 W) for full functionality including 26 W PoE out. It also runs on 802.3at (24.2 W) with reduced functionality and no PoE out.
How many devices can it handle?
RUCKUS rates the T750 series at up to 1,024 clients and up to 31 SSIDs per AP.
What warranty do I get?
RUCKUS sells the T750 with a limited one-year warranty; SourceIT supplies it with local support and a GST invoice.
