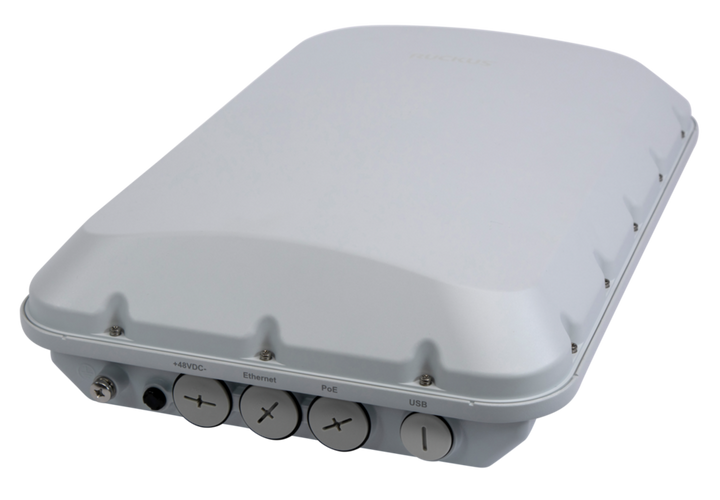

RUCKUS T670sn Outdoor Wi-Fi 7 Sector Antenna Access Point
PRODUCT DESCRIPTION
RUCKUS T670sn Outdoor Wi-Fi 7 Sector Antenna Access Point (901-T670-WW51) - Limited Lifetime Local Warranty
Outdoor Wi-Fi 7 with a Programmable Sector Antenna
The RUCKUS T670sn is an outdoor 802.11be (Wi-Fi 7) access point with a software-programmable sector antenna that switches between narrow and wide coverage. RUCKUS designs it for stadiums, arenas and other high-density outdoor venues, and rates it at up to 768 clients per AP.
SmartZone or RUCKUS One Managed
This is the standard edition (part number prefix 901-) for networks run from RUCKUS SmartZone controllers or the RUCKUS One cloud platform. RUCKUS lists Unleashed support as forthcoming.
Narrow or Wide Beam, up to 12.8 dBi
Antenna gain reaches 12.8 dBi in narrow mode and 11.3 dBi in wide mode. Horizontal coverage is 40°/100° at 2.4 GHz, 25°/110° at 5 GHz and 30°/100° at 6 GHz (narrow/wide), letting you aim capacity at seating sections rather than spill it across the venue.
Built for the Outdoors
IP-67 weatherproofing, a -40°C to 65°C operating range and 165 mph wind survivability, with built-in GPS and a 5/2.5/1 GbE PoE port. Mounting brackets are included in the box.
Supplied in Singapore with Local Warranty
RUCKUS sells the T670sn with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. The power adapter is not included. Email sales@sourceit.com.sg with your venue layout for a coverage design and bill of materials.
RUCKUS T670sn 901-T670-WW51 Datasheet — Technical Specifications
General
| Product Name | RUCKUS T670sn Outdoor Access Point |
| Part Number | 901-T670-WW51 |
| RUCKUS Description | T670sn XX tri-band 11be outdoor 2+2+2 AP |
| Edition | Standard (non-Unleashed) AP, part number prefix 901- |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radio Modes | Tri-band 2x2:2 (2.4/5/6 GHz); dual-band 2x2:2 (2.4 GHz) + 4x4:4 (5 GHz) |
| Combined Data Rate | 9.34 Gbps tri-band; 6.454 Gbps dual-band (per the RUCKUS product page) |
| Peak PHY Rate | 2.4 GHz 689 Mbps; 5 GHz 5765 Mbps (4x4) or 2882 Mbps (2x2); 6 GHz 5765 Mbps |
| Channelization | 20, 40, 80, 160, 320 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| Client Capacity | Up to 768 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | Programmable sector antenna, software-switchable narrow/wide; gain up to 12.8 dBi (narrow), 11.3 dBi (wide) |
| Horizontal Beamwidth (narrow/wide) | 2.4 GHz 40°/100°; 5 GHz 25°/110° (varies by chain); 6 GHz 30°/100° |
| Peak Tx Power | 2.4 GHz 26 dBm (2x2); 5 GHz 25 dBm (2x2), 28 dBm (4x4); 6 GHz 25 dBm (2x2) |
| Rx Sensitivity (2.4 GHz HT20) | MCS0 -97 dBm; MCS7 -79 dBm |
| GPS | Built-in |
Interfaces & Power
| Ethernet | 1 x 1/2.5/5 GbE (PoE in) + 1 x 1 GbE |
| PoE | 802.3af/at/bt |
| DC Input | 48 V DC terminal block |
| 802.3bt / PoH / uPoE | 35 W max |
| 802.3at PoE+ | 25.5 W max |
Security
| Wireless Security | WPA3, WPA3-SAE, OWE, Dynamic PSK, DPSK3 |
| Other | TPM 2.0, Secure Boot |
Physical & Environmental
| Dimensions | 42.1 cm (L) x 29.1 cm (W) x 10.8 cm (H) |
| Weight | 3.24 kg (7.15 lbs); 4.47 kg with bracket |
| Mounting | Wall, pole, flat surface; brackets included in the box |
| Weatherproofing | IP-67 |
| Wind Survivability | 165 mph |
| Operating Temperature | -40°C to 65°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax/be |
| Safety / Other | IEC/EN/UL safety, EN medical EMC, railway, UL plenum, EN human safety / RF exposure, WEEE & RoHS |
Figures are taken from the RUCKUS T670sn data sheet and product page. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-. The RUCKUS T670sn data sheet lists SmartZone and RUCKUS One management, with Unleashed support forthcoming. Ask us to confirm current firmware support for your chosen platform before you deploy.
Regional Operation
RUCKUS quotes 9.34 Gbps in tri-band mode and 6.454 Gbps in dual-band mode. 6 GHz availability depends on local regulations — ask us to confirm the operating mode for your deployment in Singapore.
What It Is Suited To
RUCKUS positions the T670sn for stadiums, arenas and other high-density outdoor venues, and for hospitality, education, MDU and service-provider deployments that need directional outdoor coverage. For omnidirectional coverage see the T670 (901-T670-WW01).
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS T670sn outdoor access point with mounting brackets (per the RUCKUS ordering information). Power adapter not included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn (this listing) | Outdoor Wi-Fi 7, sector antenna | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit PoE injector (60 W), the 902-0134-0000 secure articulating bracket with 10° increments and the 902-0183-XX00 spare cable gland. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS T670sn Data Sheet (PDF) |
| RUCKUS product page | RUCKUS T670sn Outdoor Access Point |
| RUCKUS support | RUCKUS T670sn support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-T670-WW51.
Frequently Asked Questions — RUCKUS T670sn 901-T670-WW51
What does the sector antenna do?
It focuses coverage into a narrow or wide horizontal beam (software-switchable), with up to 12.8 dBi gain in narrow mode — ideal for aiming Wi-Fi at stadium seating or other defined outdoor areas.
T670sn or T670?
Both are outdoor Wi-Fi 7 APs with the same radios and 768-client rating. The T670 has omnidirectional BeamFlex+ antennas; the T670sn has a programmable sector antenna and a larger enclosure (4.47 kg with bracket).
What PoE does it need?
802.3bt / PoH / uPoE (35 W max). 802.3at (25.5 W max) is also listed in the RUCKUS data sheet.
Is it weatherproof?
Yes — IP-67, -40°C to 65°C, and rated for 165 mph wind survivability.
What warranty do I get?
RUCKUS sells the T670sn with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
