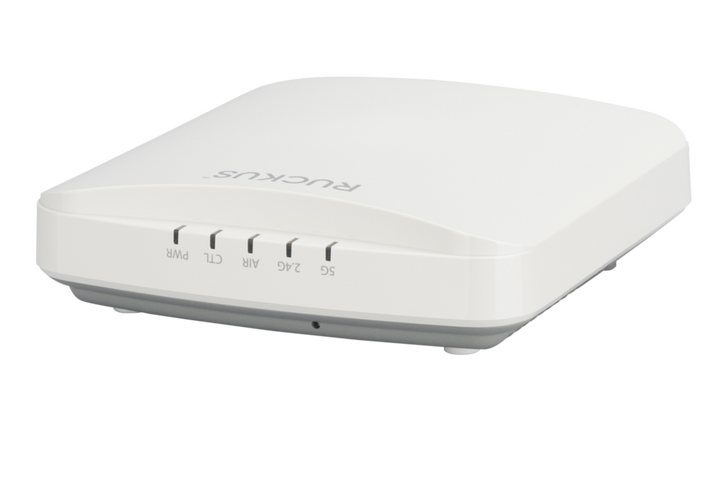

RUCKUS R350 Indoor Wi-Fi 6 2x2:2 Access Point
PRODUCT DESCRIPTION
RUCKUS R350 Indoor Wi-Fi 6 2x2:2 Access Point (901-R350-WW02) - Limited Lifetime Local Warranty
Entry-Level Wi-Fi 6 for Small Businesses, Retail and Branch Offices
The RUCKUS R350 is a dual-band 802.11ax (Wi-Fi 6) indoor access point with 2x2:2 radios on both 2.4 GHz and 5 GHz. RUCKUS rates it at up to 1774 Mbps (802.11ax) and up to 256 clients per AP, and positions it for small and medium-size businesses, retail locations, restaurants and multi-tenant small and branch offices.
Standard Edition for Controller or Cloud Management
This is the standard edition (part number prefix 901-) for networks run from a RUCKUS SmartZone controller or cloud management. For controller-less Wi-Fi with no controller or subscription, the Unleashed part 9U1-R350-WW02 is the one to order.
BeamFlex Adaptive Antennas
RUCKUS BeamFlex adaptive antennas provide up to 64 unique antenna patterns per band, steering signal towards clients to keep connections strong in busy spaces.
IoT Ready
A USB 2.0 Type A port accepts an optional pluggable BLE and Zigbee IoT module, so the same ceiling mount can later serve IoT sensors as well as Wi-Fi clients. The R350 is plenum rated (UL 2043).
Supplied in Singapore with Local Warranty
RUCKUS sells the R350 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. The R350 does not include a power adaptor. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS R350 901-R350-WW02 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R350 Indoor Access Point |
| Part Number | 901-R350-WW02 |
| Edition | Standard (non-Unleashed) AP; Unleashed version is 9U1-R350-WW02 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band 2.4 GHz and 5 GHz |
| MIMO / Streams | 2x2:2 (5 GHz) and 2x2:2 (2.4 GHz); 2x2 SU-MIMO and MU-MIMO |
| Channelization | 20, 40, 80 MHz |
| Supported Data Rates | 802.11ax 4 to 1774 Mbps; 802.11ac 6.5 to 867 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 574 Mbps; 5 GHz 1200 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 256 clients per AP |
| SSIDs | Up to 16 per AP |
| Antenna | BeamFlex adaptive antennas, up to 64 unique patterns per band; gain up to 3 dBi |
| Max Tx Power | 2.4 GHz 23 dBm; 5 GHz 23 dBm (varies by country, band and MCS rate) |
| Min Receive Sensitivity | -101 dBm |
| IoT | Optional pluggable BLE and Zigbee IoT module via the USB port |
Interfaces & Power
| Ethernet | 1 x 1GbE port, RJ-45 |
| USB | 1 x USB 2.0, Type A |
| PoE | 12.62 W (full functionality) |
| DC Input | 11.4 W |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK |
| Other | WIPS/WIDS, 802.1X authenticator & supplicant, device fingerprinting |
Physical & Environmental
| Dimensions | 14.60 cm (L) x 15.59 cm (W) x 3.93 cm (H) |
| Weight | 368 g (13 oz) |
| Mounting | Wall, drop ceiling, desk; secure bracket sold separately |
| Physical Security | Hidden latching mechanism, T-bar Torx |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac, Wi-Fi CERTIFIED 6, WPA3-Enterprise/Personal, Enhanced Open, Agile Multiband, Passpoint, Vantage, WMM |
| Safety / Other | EN 60950-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R350 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. RUCKUS lists the R350 hardware as supported by SmartZone, ZoneDirector, Unleashed, standalone and cloud management. If you want controller-less Wi-Fi with no controller or subscription, order the Unleashed part 9U1-R350-WW02 instead.
Mixing with Other RUCKUS Gear
Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported. The single 1GbE port works with standard PoE switch ports.
What It Is Suited To
RUCKUS positions the R350 for low-density enterprise and hotspot environments: small and medium-size businesses, retail locations, restaurants, and multi-tenant small offices and branch offices.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS R350 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS data sheet). No power adaptor is included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 (this listing) | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-0162 24W PoE injector, the 902-0173 12V 1.0A 12W power adapter, the 902-0120-0000 accessory mounting bracket and the 902-0195-0000 T-bar ceiling mount kit. Ask us to add the right option (with the Singapore plug variant) to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R350 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R350 Indoor Access Point |
| RUCKUS support | RUCKUS indoor AP support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-R350-WW02.
Frequently Asked Questions — RUCKUS R350 901-R350-WW02
What is the difference between 901-R350-WW02 and 9U1-R350-WW02?
Same R350 hardware. 901- is the standard AP for SmartZone or cloud management; 9U1- ships with Unleashed (embedded controller, no controller or subscription needed).
Is the R350 Wi-Fi 6 or Wi-Fi 7?
Wi-Fi 6 (802.11ax), dual-band 2.4 GHz and 5 GHz. For entry-level Wi-Fi 7, see the R370.
How is it powered?
By PoE (12.62 W at full functionality) or a 12 V DC adapter (11.4 W). No power adaptor is in the box.
How many devices can it handle?
RUCKUS rates the R350 at up to 256 clients and up to 16 SSIDs per AP.
What warranty do I get?
RUCKUS sells the R350 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
