RUCKUS H550 Wall-Plate Wi-Fi 6 Access Point, 802.3af PoE Out
PRODUCT DESCRIPTION
RUCKUS H550 Wall-Plate Wi-Fi 6 2x2:2 Access Point with 802.3af PoE Out (901-H550-WW00) - Limited Lifetime Local Warranty
Converged In-Room Connectivity for Hotels, Residences and MDUs

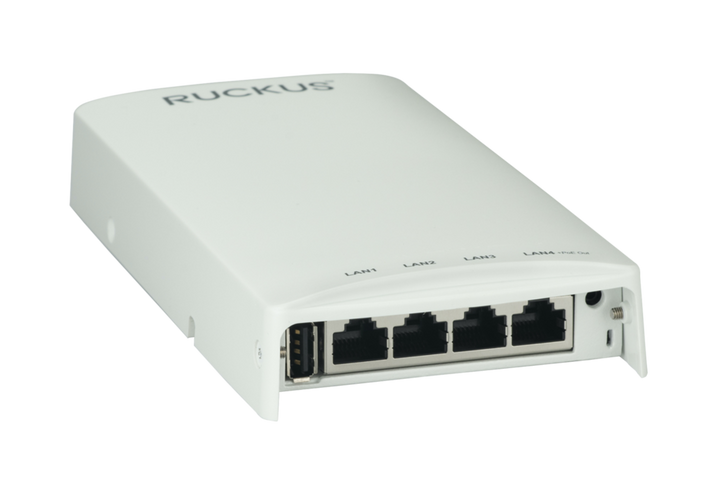

The RUCKUS H550 is a wall-mounted dual-band 802.11ax (Wi-Fi 6) 2x2:2 access point with a built-in four-port gigabit switch, dual-concurrent BLE and Zigbee, and a USB port. RUCKUS rates it at up to 1774 Mbps (802.11ax) and up to 512 clients per AP, and designed it for hotel guest rooms, student residence halls, apartments and other MDUs.
Controller-Managed Edition
This is the standard edition (part number prefix 901-) for networks run from a RUCKUS SmartZone or ZoneDirector controller, or from cloud management. For controller-less Wi-Fi, the Unleashed part 9U1-H550-WW00 is the one to order.
802.3af PoE Out (WW00)
This -WW00 version has four 1GbE LAN ports, one of which supplies 802.3af PoE out; the -WW02 version supplies 48 V passive PoE out instead. Wire in IP phones, IPTV boxes and other in-room devices from the same wall plate.
Fits a Standard Wall Box
The H550 installs over an electrical wall box or a standard US or EU single-gang wall jack, with an optional bracket for surface mounting. It takes an 802.3bt (Class 5) PoE uplink.
Supplied in Singapore with Local Warranty
RUCKUS sells the H550 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your room count for a bill of materials.
RUCKUS H550 901-H550-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS H550 Wall-Plate Access Point |
| Part Number | 901-H550-WW00 |
| Edition | Standard (non-Unleashed) AP; Unleashed version is 9U1-H550-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Concurrent dual-band 2.4 GHz and 5 GHz |
| MIMO / Streams | 2x2:2 (2.4 GHz and 5 GHz); 2x2 SU-MIMO and MU-MIMO |
| Channelization | 20, 40, 80 MHz |
| Supported Data Rates | 802.11ax 4 to 1774 Mbps; 802.11ac 6.5 to 867 Mbps; 802.11n 6.5 to 300 Mbps |
| Peak PHY Rate | 2.4 GHz 574 Mbps; 5 GHz 1200 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 512 clients per AP |
| SSIDs | 8 per radio |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity; gain up to 1 dBi |
| Max Tx Power | 2.4 GHz 19 dBm; 5 GHz 22 dBm (aggregate) |
| Min Receive Sensitivity | -100 dBm |
| IoT | Integrated BLE and Zigbee (dual concurrent) |
Interfaces & Power
| Uplink | 1 x 1GbE RJ-45, PoE in 802.3bt Class 5 |
| LAN Ports | 4 x 1GbE RJ-45, one PoE out port (802.3af on -WW00; 48 V passive on -WW02) |
| PoE Out Power | 8.4 W to 12.95 W depending on power mode |
| USB | 1 x USB 2.0, Type A (disabled on 802.3af) |
| 802.3af | 12.54 W, PoE out disabled |
| 802.3at | 15.9 W, PoE out disabled |
| 802.3bt / uPoE | 24.91 W to 32.21 W, PoE out enabled |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE |
| Other | WIPS/WIDS, 802.1X authenticator and supplicant |
Physical & Environmental
| Dimensions | 89.5 mm (W) x 178.5 mm (L) x 29.3 mm (H) |
| Weight | 278 g without bracket; 350 g with bracket |
| Mounting | Electrical wall box; standard US and EU single-gang wall jack; optional bracket |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED 6, WPA3-Enterprise/Personal |
| Safety / Other | EN 60950-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS H550 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS H550 data sheet lists SmartZone, ZoneDirector, Unleashed, standalone and cloud management for the H550 hardware. If you want controller-less Wi-Fi with no controller or subscription, order the Unleashed part 9U1-H550-WW00 instead.
Mixing with Other RUCKUS Gear
SmartMesh gives self-healing mesh links, and the H550 works with Cloudpath, the SPoT location engine, RUCKUS Analytics and SmartCell Insight. An 802.3bt-capable PoE switch port, such as a RUCKUS ICX, is needed to enable PoE out.
What It Is Suited To
RUCKUS positions the H550 for converged services in hospitality and residential locations — hotel guest rooms, student residence halls, apartments and other MDU structures — where phones, set-top boxes and IoT devices share the wall plate with Wi-Fi.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS H550 wall-plate access point. The RUCKUS data sheet does not publish the box contents; the surface-mount bracket 902-0136-0000 is listed as an optional accessory.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 (this listing) | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-0180 60W PoE injector, the 902-2170 50W power supply and the 902-0136-0000 optional surface-mount bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS H550 Data Sheet (PDF) |
| RUCKUS data sheet (web) | RUCKUS H550 Data Sheet (HTML) |
| RUCKUS product page | RUCKUS H550 Access Point |
| RUCKUS support | RUCKUS H550 support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-H550-WW00.
Frequently Asked Questions — RUCKUS H550 901-H550-WW00
What is the difference between 901-H550-WW00 and 901-H550-WW02?
Same H550 hardware apart from the PoE out port: -WW00 supplies 802.3af PoE out, -WW02 supplies 48 V passive PoE out. Pick the one that matches the device you will power from the wall plate.
And 901- versus 9U1-?
Same hardware. 901- is the standard AP for SmartZone, ZoneDirector or cloud management; 9U1- ships with Unleashed (embedded controller, no controller or subscription needed).
What PoE does it need?
802.3bt (Class 5) or uPoE for PoE out (24.91 W to 32.21 W). On 802.3at (15.9 W) or 802.3af (12.54 W) the PoE out port is disabled.
How many wired devices can I connect?
Four through the 1GbE LAN ports, one of which can power a device.
What warranty do I get?
RUCKUS sells the H550 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
