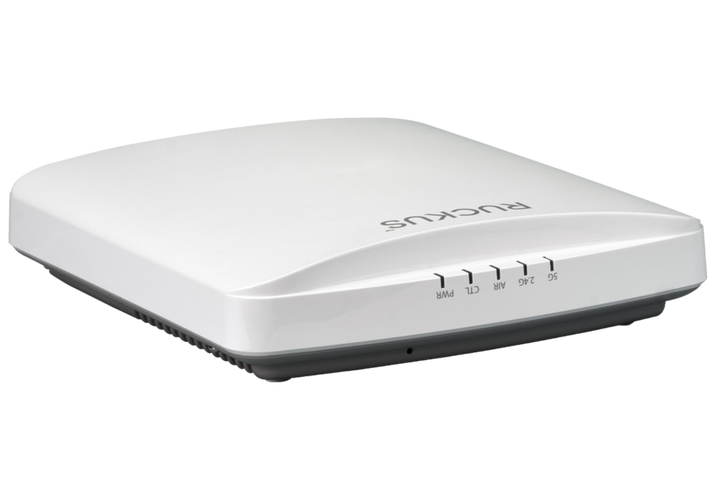

RUCKUS R650 Indoor Wi-Fi 6 4x4:4 Access Point
PRODUCT DESCRIPTION
RUCKUS R650 Indoor Wi-Fi 6 4x4:4 Access Point (901-R650-WW00) - Limited Lifetime Local Warranty
Mid-Range Wi-Fi 6 for Offices, Classrooms, Libraries and Retail
The RUCKUS R650 is a dual-band, dual-concurrent 802.11ax (Wi-Fi 6) indoor access point with 4x4:4 on 5 GHz and 2x2:2 on 2.4 GHz — six spatial streams in total. RUCKUS rates it at up to 2400 Mbps (802.11ax) and up to 512 clients per AP for medium-density deployments.
Standard Edition for Controller or Cloud Management
This is the standard edition (part number prefix 901-) for networks run from a RUCKUS SmartZone controller or cloud management. For controller-less Wi-Fi with no controller or subscription, the Unleashed part 9U1-R650-WW00 is the one to order.
2.5GbE Backhaul
One of its two Ethernet ports is 2.5 Gbps, so the R650 can pass more than a gigabit of Wi-Fi traffic to a multi-gigabit switch port. The second port is 1GbE.
BeamFlex+ and Built-In IoT
BeamFlex+ adaptive antennas with polarization diversity focus signal towards clients, and onboard BLE and Zigbee radios plus a USB 2.0 port let the AP serve IoT devices alongside Wi-Fi.
Supplied in Singapore with Local Warranty
RUCKUS sells the R650 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. The R650 does not include a power adaptor; RUCKUS specifies 802.3at PoE+ for full functionality. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS R650 901-R650-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R650 Indoor Access Point |
| Part Number | 901-R650-WW00 |
| Edition | Standard (non-Unleashed) AP; Unleashed version is 9U1-R650-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band, dual-concurrent 2.4 GHz and 5 GHz |
| MIMO / Streams | 4x4:4 (5 GHz) and 2x2:2 (2.4 GHz); 4x4 SU-MIMO and MU-MIMO |
| Channelization | 20, 40, 80, 160/80+80 MHz |
| Supported Data Rates | 802.11ax 4 to 2400 Mbps; 802.11ac 6.5 to 1732 Mbps; 802.11n 6.5 to 600 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 574 Mbps; 5 GHz 2400 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 512 clients per AP |
| SSIDs | Up to 31 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity; gain up to 3 dBi |
| Max Tx Power | 2.4 GHz 26 dBm; 5 GHz 28 dBm |
| IoT | Onboard BLE and Zigbee |
Interfaces & Power
| Ethernet | 1 x 2.5GbE and 1 x 1GbE, 802.3af/at PoE in, LLDP |
| USB | 1 x USB 2.0, Type A |
| 802.3af PoE | 12.25 W (reduced functionality: 2.4 GHz 2x2, 5 GHz 2x4, 2nd port/IoT/USB disabled) |
| 802.3at PoE+ | 21.59 W (full functionality) |
| DC Input | 21.46 W |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE |
| Other | WIPS/WIDS, 802.1X, 802.11r/k/v |
Physical & Environmental
| Dimensions | 22.4 cm (L) x 19.4 cm (W) x 4.7 cm (H) |
| Weight | 0.854 kg (1.88 lbs) |
| Mounting | Wall, acoustic ceiling, desk; secure bracket sold separately |
| Physical Security | Hidden latching mechanism, T-bar Torx, bracket 902-0120-0000 Torx screw & padlock (sold separately) |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax, Passpoint, Vantage |
| Safety / Other | EN 60950-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R650 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. RUCKUS lists the R650 hardware as supported by SmartZone, ZoneDirector, Unleashed, standalone and cloud management. If you want controller-less Wi-Fi with no controller or subscription, order the Unleashed part 9U1-R650-WW00 instead.
Mixing with Other RUCKUS Gear
Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported. The 2.5GbE port only pays off on a 2.5GbE-capable switch port.
What It Is Suited To
RUCKUS positions the R650 for office buildings, K-12 classrooms, libraries and retail venues seeing more Wi-Fi devices, non-Wi-Fi IoT devices and bandwidth-hungry applications.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS R650 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS data sheet). No power adaptor is included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 (this listing) | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-0180 60W PoE injector, the 902-1180 multi-gigabit (2.5/5/10GBASE-T) 60W PoE injector, the 902-1170 48V 0.75A 36W power supply, the 902-0120-0000 spare mounting bracket and the 902-0195-0000 T-bar ceiling mount kit. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R650 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R650 Indoor Access Point |
| RUCKUS support | RUCKUS R650 support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-R650-WW00.
Frequently Asked Questions — RUCKUS R650 901-R650-WW00
What is the difference between 901-R650-WW00 and 9U1-R650-WW00?
Same R650 hardware. 901- is the standard AP for SmartZone or cloud management; 9U1- ships with Unleashed (embedded controller, no controller or subscription needed).
Is the R650 4x4 on both bands?
No. It is 4x4:4 on 5 GHz and 2x2:2 on 2.4 GHz (six spatial streams). For 4x4:4 on both bands, see the R750.
What PoE does it need?
802.3at PoE+ (21.59 W) for full functionality. On 802.3af (12.25 W) it runs with reduced radio chains and the second port, IoT and USB disabled.
Do I need a multi-gigabit switch?
Not to run it, but the 2.5GbE port only pays off on a 2.5GbE-capable switch port.
What warranty do I get?
RUCKUS sells the R650 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
