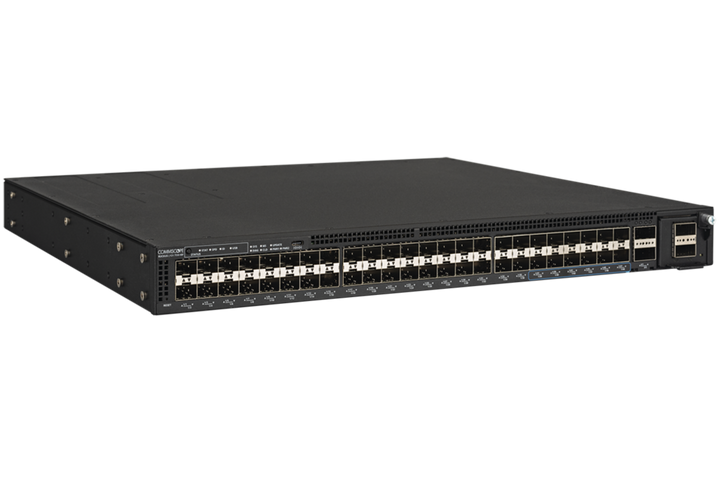

RUCKUS ICX 7850-48FS-E2-RMT3 48-Port 10G SFP+ MACsec Switch Bundle with 3-Year Remote Support
PRODUCT DESCRIPTION
RUCKUS ICX 7850-48FS-E2-RMT3 48-Port 10G SFP+ MACsec Stackable Switch Bundle with 2 AC power supplies, 5 fans and 3 years 24x7 remote support (ICX7850-48FS-E2-RMT3) - Limited Lifetime Local Warranty
10G Fibre Aggregation with MACsec
The RUCKUS ICX 7850-48FS-E2-RMT3 is a stackable RUCKUS ICX 7850 switch with 48 x 1/10 GbE SFP+ downlinks supporting 128/256-bit MACsec (with the ICX-MACSEC-LIC licence) and LRM optics, plus 8 x 40/100 GbE QSFP28 ports for uplinks or stacking; the QSFP28 ports can also break out to 4 x 10 GbE or 4 x 25 GbE.
This part number is a bundle: RUCKUS ships it with 2 AC power supplies and 5 fans (front-to-back airflow). It also includes 3 years of RUCKUS 24x7 remote support. Transceivers and cables are sold separately.
2.56 Tbps Switching and Stacking up to 12 Units
RUCKUS rates the ICX 7850-48FS at 2.56 Tbps switching capacity and 3.8 Bpps forwarding, with 0.8 µs average latency and a 32 MB packet buffer. Up to 12 switches can be stacked, with 9.6 Tbps aggregated stacking bandwidth and up to 10 km between stacked switches, and the stack is managed as a single switch.
Layer 3 Routing, Upgradable by Licence
Base software includes IPv4/IPv6 static routes, RIP v1/v2 and ECMP. The ICX7850-PREM-LIC advanced Layer 3 licence adds OSPF v2/v3, BGP4/BGP4+, VRRP v3, PIM, PBR, VRF-lite, MSDP and BGP EVPN VXLAN.
Cloud or On-Premises Management
The RUCKUS data sheet lists RUCKUS One (cloud) and RUCKUS SmartZone (on premises) management for the ICX 7850, alongside the CLI.
Supplied in Singapore with Local Warranty
RUCKUS covers ICX 7850 switches with the RUCKUS Assurance Limited Lifetime Warranty and 90 days of free technical support (this -RMT3 part extends that with 3 years of 24x7 remote support). SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your port, uplink and stacking plan for a quote.
RUCKUS ICX 7850-48FS-E2-RMT3 ICX7850-48FS-E2-RMT3 Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 7850-48FS-E2-RMT3 Switch |
| Part Number | ICX7850-48FS-E2-RMT3 |
| RUCKUS Description | RUCKUS ICX 7850 with 48x 1/10GbE SFP+ and 8x 40/100 QSFP28 ports, 2 AC power supplies and 5 fans included, front to back airflow, MACsec. |
| Form Factor | Stackable rack-mount switch, 43.7 mm (1.72 in) high |
| Manufacturer Warranty | RUCKUS Assurance Limited Lifetime Warranty; 90 days technical support included; plus 3 years 24x7 remote support (RMT3) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Downlink Ports | 48 x 1/10 GbE SFP+ with 128/256-bit MACsec (licence) and LRM support |
| Uplink / Stacking | 8 x 40/100 GbE QSFP28 (up to 8 usable for stacking; breakout to 4 x 10/25 GbE) |
| QSFP28 Breakout | Native 40 GbE or 100 GbE, or 4 x 10 GbE / 4 x 25 GbE breakout (breakout with stacking from FastIron 10.0.20b_cd1) |
| MACsec | 128/256-bit MACsec on the SFP+ ports, enabled by the ICX-MACSEC-LIC licence |
| PoE | No |
Performance
| Switching Capacity | 2.56 Tbps |
| Forwarding Rate | 3.8 Bpps |
| Average Latency | 0.8 µs |
| Packet Buffer | 32 MB |
| MAC Addresses | Up to 288k |
| VLANs | 4,095 |
| IPv4 Routes (hardware) | Up to 300k |
| IPv6 Routes (hardware) | Up to 35k |
Stacking
| Stack Size | Up to 12 switches |
| Stacking Ports | Up to 8 x QSFP28 |
| Aggregated Stacking Bandwidth | 9.6 Tbps |
| Maximum Stacking Distance | 10 km |
Layer 3
| Base | IPv4/IPv6 static routes, RIP v1/v2, ECMP |
| With ICX7850-PREM-LIC | OSPF v2/v3, BGP4/BGP4+, VRRP v3, PIM, PBR, VRF-lite, MSDP, BGP EVPN VXLAN |
Power & Cooling
| Power Supplies | Included: 2 AC power supplies (bundle) |
| Supply Options | RPS19-E / RPS19-I 650 W AC; RPS19DC-E / RPS19DC-I 650 W DC (2 x 650 W rated maximum) |
| Fans | 5 x ICX-FAN12 (included in bundle, front-to-back airflow) |
| Airflow | Front-to-back (-E parts) or back-to-front (-I parts); this bundle ships front-to-back |
| Power Consumption | 336.5 W typical; 443.1 W maximum (25°C) |
| Heat Dissipation | 1149 BTU/hr typical; 1512 BTU/hr maximum |
| Acoustic Level | 50.3 dBA (25°C) |
| MTBF (25°C) | 307,563 hours |
Physical & Environmental
| Dimensions | 43.7 mm (H) x 440 mm (W) x 444.5 mm (D) |
| Weight | 9.1 kg (20 lb) (switch) |
| Operating Temperature | 0°C to 45°C at sea level |
| Operating Humidity | 10% to 90% at 50°C, non-condensing |
Figures are taken from the RUCKUS ICX 7850 Switch data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud) or RUCKUS SmartZone (on premises), plus the CLI.
Ports & Optics
The 48 x SFP+ ports accept 1 and 10 GbE optics (including 10GBASE-LRM) or DAC cables, with 128/256-bit MACsec encryption enabled by the ICX-MACSEC-LIC licence; the 8 x QSFP28 ports handle 40/100G uplinks or stacking. Transceivers and cables are ordered separately.
Power Supplies & Fans
RPS19-E / RPS19-I (650 W AC) and RPS19DC-E / RPS19DC-I (650 W DC) power supplies, and ICX-FAN12-E / ICX-FAN12-I fans; -E is front-to-back, -I is back-to-front airflow. The -E2 bundle ships with front-to-back parts.
Licences
ICX7850-PREM-LIC adds advanced Layer 3 (OSPF, BGP, VRRP, PIM, PBR, VRF). ICX-MACSEC-LIC adds 128/256-bit MACsec encryption on this 48FS model — confirm with us whether it is included with your order.
Package Contents & RUCKUS ICX 7850 Ordering Information
In the Box
One RUCKUS ICX 7850-48FS switch with 2 AC power supplies and 5 fans (front-to-back airflow). 3 years of RUCKUS 24x7 remote support is included with this part number. Transceivers and cables are not included. Confirm rack-mount kit requirements with us before ordering.
RUCKUS ICX 7850 Switches — Ordering Information
| RUCKUS ICX 7850-32Q | 32 x 40/100G QSFP28; PSU/fans sold separately | ICX7850-32Q |
| RUCKUS ICX 7850-32Q-E2 | 32 x 40/100G QSFP28; bundle with 2 AC PSU, 6 fans, front-to-back | ICX7850-32Q-E2 |
| RUCKUS ICX 7850-48C | 48 x 1/10G RJ-45 10GBASE-T + 8 x 40/100G QSFP28; PSU/fans sold separately | ICX7850-48C |
| RUCKUS ICX 7850-48C-E2 | 48 x 1/10G RJ-45 + 8 x 40/100G; bundle with 2 AC PSU, 5 fans, front-to-back | ICX7850-48C-E2 |
| RUCKUS ICX 7850-48F | 48 x 1/10/25G SFP28 + 8 x 40/100G QSFP28; PSU/fans sold separately | ICX7850-48F |
| RUCKUS ICX 7850-48F-E2 | 48 x 1/10/25G SFP28 + 8 x 40/100G; bundle with 2 AC PSU, 5 fans | ICX7850-48F-E2 |
| RUCKUS ICX 7850-48FS | 48 x 1/10G SFP+ + 8 x 40/100G QSFP28, MACsec; PSU/fans sold separately | ICX7850-48FS |
| RUCKUS ICX 7850-48FS-E2 | 48 x 1/10G SFP+ + 8 x 40/100G, MACsec; bundle with 2 AC PSU, 5 fans, front-to-back | ICX7850-48FS-E2 |
| RUCKUS ICX 7850-48FS-E2-RMT3 (this listing) | As 48FS-E2, plus 3 years 24x7 remote support | ICX7850-48FS-E2-RMT3 |
Licences & Accessories
ICX7850-PREM-LIC advanced Layer 3 licence; ICX-MACSEC-LIC (48FS only); RPS19-E/-I AC and RPS19DC-E/-I DC power supplies; ICX-FAN12-E/-I fans.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 7850 Switch Data Sheet |
| RUCKUS product page | RUCKUS ICX 7850-48FS |
| RUCKUS support | RUCKUS ICX 7850 Campus Switches — Support |
| Technical specifications | RUCKUS ICX 7850 Switch Technical Specifications |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX7850-48FS-E2-RMT3.
Frequently Asked Questions — RUCKUS ICX 7850-48FS-E2-RMT3 ICX7850-48FS-E2-RMT3
Are power supplies and fans included?
Yes. This bundle includes 2 AC power supplies and 5 fans (front-to-back airflow). Transceivers and cables are ordered separately.
Does it support PoE?
No. The ICX 7850 is an aggregation/core switch without PoE; power access points from an access switch such as the ICX 8200 or ICX 7550.
Does it support MACsec encryption?
Yes. The 48 x SFP+ ports support 128/256-bit MACsec, enabled with the ICX-MACSEC-LIC licence. The 48FS is the only ICX 7850 model with MACsec.
How many switches can I stack?
Up to 12 ICX 7850 switches per stack, with 9.6 Tbps aggregated stacking bandwidth and up to 10 km between stacked switches.
Does it do Layer 3 routing?
Static routes, RIP and ECMP are included. OSPF, BGP, VRRP v3, PIM, PBR, VRF-lite and BGP EVPN VXLAN need the ICX7850-PREM-LIC licence.
What warranty and support come with it?
The RUCKUS Assurance Limited Lifetime Warranty and 90 days of technical support, plus 3 years of RUCKUS 24x7 remote support with this -RMT3 part, supplied by SourceIT with local support and a GST invoice.
