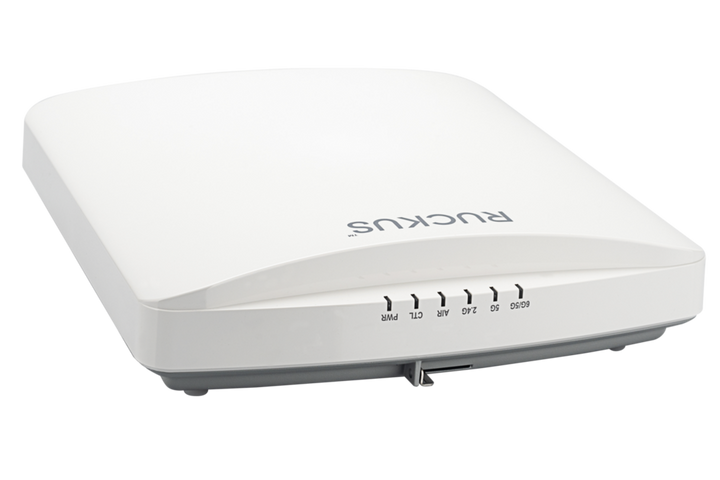

RUCKUS R760 Indoor Wi-Fi 6E Tri-Radio 4x4:4 Access Point
PRODUCT DESCRIPTION
RUCKUS R760 Indoor Wi-Fi 6E Tri-Radio 4x4:4 Access Point (901-R760-WW00) - Limited Lifetime Local Warranty
Multi-Gigabit Wi-Fi 6E
The RUCKUS R760 brings RUCKUS Wi-Fi optimization to the 6 GHz band: a tri-concurrent 802.11ax (Wi-Fi 6E) indoor access point with 4x4:4 on each of 2.4, 5 and 6 GHz — 12 spatial streams and an 8.35 Gbps combined data rate. RUCKUS rates it at up to 1,536 clients per AP.
Managed by a RUCKUS Controller
This is the standard edition (part number prefix 901-), managed from a RUCKUS controller rather than running as a self-contained Unleashed network. RUCKUS lists SmartZone and standalone operation in the R760 data sheet.
10 GbE Uplink and Built-In IoT
One 10 Gbps PoE Ethernet port and one 1 Gbps port, onboard Zigbee/BLE for the RUCKUS IoT Suite, and a USB 2.0 port.
Ultra-High-Density Technology Suite
BeamFlex+ adaptive antennas (4,000+ patterns per band), Airtime Decongestion, Transient Client Management and SmartMesh keep performance up for 4K video and latency-sensitive voice and data.
Supplied in Singapore with Local Warranty
RUCKUS sells the R760 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. An adjustable acoustic drop-ceiling bracket is included; no power adapter. Email sales@sourceit.com.sg with your venue plan for a design and bill of materials.
RUCKUS R760 901-R760-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R760 Indoor Access Point |
| Part Number | 901-R760-WW00 |
| Edition | Standard (non-Unleashed) AP for controller or platform management |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax, Wi-Fi 6E |
| Radios | Tri-radio, tri-band concurrent 2.4 GHz, 5 GHz and 6 GHz |
| MIMO / Streams | 4x4:4 on each band (12 spatial streams); 4x4 SU-MIMO and MU-MIMO |
| Channelization | 20, 40, 80, 160/80+80 MHz |
| Supported Data Rates | 802.11ax 4 to 4804 Mbps; 802.11ac 6.5 to 1732 Mbps; 802.11n 6.5 to 600 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 1148 Mbps; 5 GHz 2400 Mbps; 6 GHz 4800 Mbps; 8.35 Gbps combined |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| Client Capacity | Up to 1,536 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity, 4,000+ patterns per band; gain up to 4 dBi |
| Max Tx Power | 22 dBm per chain (2.4, 5 and 6 GHz) |
| IoT | Onboard Zigbee/BLE (RUCKUS IoT Suite) |
Interfaces & Power
| Ethernet | 1 x 10 Gbps (PoE in) + 1 x 1 Gbps, RJ-45 |
| PoE | 802.3at/bt |
| USB | 1 x USB 2.0, Type A |
| DC Power | 38.3 W (both ports, USB and Zigbee/BLE enabled) |
| 802.3bt / PoH / uPoE | 36.08 W (both ports, USB and Zigbee/BLE enabled) |
| 802.3at PoE+ | 25.5 W — 1 Gbps port, USB and Zigbee/BLE disabled; Tx power reduced to 13-16 dBm |
Security
| Wireless Security | WPA-PSK, WPA2 AES, WPA3 SAE, WPA3 Enterprise, 802.11w, Dynamic PSK, OWE |
| Other | WIPS/WIDS |
Physical & Environmental
| Dimensions | 27.2 cm (L) x 24.3 cm (W) x 5.9 cm (H) |
| Weight | 1.79 kg (3.95 lbs) |
| Mounting | Wall, acoustic ceiling, desk; secure bracket sold separately |
| Physical Security | Hidden latching mechanism, safety cable, bracket 902-0120-0000 (sold separately) |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a, b, g, n, ac, 6, 6E, Passpoint R3, Vantage R2 |
| Safety / Other | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R760 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS R760 data sheet lists SmartZone and standalone management, with cloud management marked as future support at the time of publication. Ask us to confirm current RUCKUS One support for your deployment before ordering.
Mixing with Other RUCKUS Gear
The 6 GHz band needs Wi-Fi 6E clients; older 802.11a/b/g/n/ac/ax devices use 2.4 and 5 GHz. For the full 10 GbE uplink, pair the R760 with a 10GBASE-T PoE switch such as the RUCKUS ICX range.
What It Is Suited To
RUCKUS positions the R760 for transit hubs, auditoriums, stadiums and conference centres, and for data-intensive streaming such as 4K video.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS R760 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS ordering information). No power adapter is included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 (this listing) | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit (2.5/5/10GBASE-T) 60W PoE injector, the 902-2171-XX00 universal 48V/50W power adapter and the 902-0120-0000 spare mounting bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R760 Data Sheet (PDF) |
| RUCKUS data sheet (web) | RUCKUS R760 Data Sheet (HTML) |
| RUCKUS product page | RUCKUS R760 Access Point |
| RUCKUS support | RUCKUS R760 support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-R760-WW00.
Frequently Asked Questions — RUCKUS R760 901-R760-WW00
Does the R760 need a controller?
Yes — the 901- part is a standard AP for controller or platform management. RUCKUS lists SmartZone and standalone operation in the R760 data sheet.
What power does it need?
802.3bt / PoH / uPoE for all features (36.08 W), or DC at 38.3 W. On 802.3at (25.5 W) the 1 Gbps port, USB and Zigbee/BLE are disabled and transmit power drops to 13-16 dBm.
Does it need a 10 GbE switch?
To use its full uplink, yes — the main port runs at up to 10 Gbps.
R760 or R560?
The R760 is 4x4:4 per band with a 10 GbE port (8.35 Gbps combined); the R560 is 2x2:2 per band with a 5 GbE port (4.7 Gbps). Both support up to 1,536 clients.
What warranty do I get?
RUCKUS sells the R760 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
