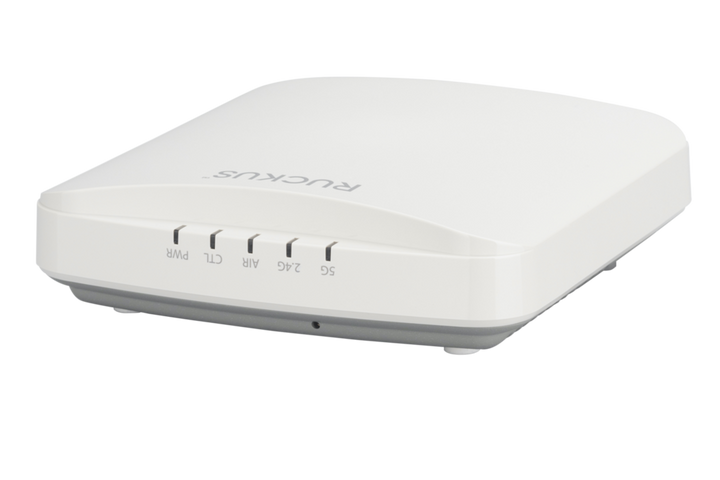

Ruckus R350 Indoor Wi‑Fi 6 2×2:2 Access Point

Ruckus Network R350 Entry-Level Wi-Fi 6 2x2:2 Indoor Access Point (9U1-R350-WW02) - Local Warranty

Upgrade Your Wi-Fi with the Ruckus R350 Entry-Level Wi-Fi 6 Access Point

The Ruckus R350 is an entry-level indoor access point designed to bring the power of Wi-Fi 6 to small and medium-sized businesses. With its 2x2:2 MIMO (Multiple Input, Multiple Output) configuration, the R350 delivers fast, reliable wireless connectivity with improved capacity, coverage, and efficiency compared to previous Wi-Fi standards. Ideal for environments like offices, retail spaces, and educational institutions, this access point is built to handle modern network demands while providing exceptional value.

Key Features

Wi-Fi 6 (802.11ax) Technology

The Ruckus R350 is powered by Wi-Fi 6 (802.11ax), the latest wireless standard, offering enhanced speeds, greater capacity, and better performance in high-density environments. Wi-Fi 6 ensures that more devices can connect simultaneously without degrading network performance, making it ideal for busy workplaces and public spaces.

2x2:2 MIMO Configuration

Equipped with a 2x2:2 MIMO antenna setup, the R350 supports two spatial streams for both uplink and downlink communications. This configuration maximizes data throughput and reduces interference, providing a stable and reliable Wi-Fi connection even in crowded areas.

Improved Network Efficiency

Wi-Fi 6 introduces technologies like OFDMA (Orthogonal Frequency-Division Multiple Access) and MU-MIMO (Multi-User, Multiple Input, Multiple Output), which allow multiple devices to transmit and receive data simultaneously, improving overall network efficiency and reducing latency, ensuring seamless connections for users.

Seamless Coverage & Performance

The R350 offers excellent range and coverage, ensuring that users can enjoy reliable connectivity throughout the indoor environment. Whether you're in a large office or a multi-floor building, the R350's intelligent antenna design and signal optimization ensure that every corner of your space remains well-covered.

Easy Management & Deployment

The R350 is designed for simple deployment and management. With Ruckus' cloud and controller-based management options, you can easily set up and monitor your network from anywhere. Its intuitive interface ensures smooth integration into your existing infrastructure.

Technical Specifications

General
Model: R350
Part Number: 9U1-R350-WW02
Product Name: Ruckus R350 Entry-Level Wi-Fi 6 2x2:2 Indoor Access Point
Manufacturer: Ruckus Networks
Product Type: Enterprise Indoor Wireless Access Point
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
Radio Architecture: Dual-Band Concurrent 2x2:2 MU-MIMO
Deployment Type: Indoor Enterprise WLAN
Mounting Options: Ceiling Mount, Wall Mount, T-Bar Mount
Management Options: RUCKUS One, SmartZone, ZoneDirector, Unleashed
Target Environment: Small Business, Enterprise Branch Offices, Education, Retail, Hospitality, Healthcare
Warranty: Limited Lifetime Warranty (Region Dependent)

Wireless Specifications
Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
Backward Compatibility: 802.11a/b/g/n/ac Wave 2
Frequency Bands: 2.4 GHz and 5 GHz
Radio Configuration: Dual-Band Concurrent
Spatial Streams: 2x2:2 MU-MIMO
Maximum Aggregate Throughput: Up to 1.77 Gbps
2.4 GHz Data Rate: Up to 574 Mbps
5 GHz Data Rate: Up to 1,201 Mbps
Maximum Concurrent Clients: Up to 512 Devices
Channel Width Support: 20 MHz, 40 MHz, 80 MHz
Modulation: Up to 1024-QAM
OFDMA: Supported
MU-MIMO: Supported
Downlink MU-MIMO: Supported
Target Wake Time (TWT): Supported
BSS Coloring: Supported
Beamforming: Supported
Airtime Fairness: Supported
Band Steering: Supported
Load Balancing: Supported

BeamFlex Technology
Antenna Type: Integrated Directional Antenna System
BeamFlex: Supported
Adaptive Antenna Technology: Supported
Automatic RF Optimization: Supported
Coverage Enhancement: Supported
Interference Mitigation: Supported
Signal Optimization: Supported
Roaming Enhancement: Supported

RF Specifications
Transmit Power Control: Dynamic and Manual Configuration
Automatic Channel Selection: Supported
RF Monitoring: Supported
Dynamic RF Management: Supported
Interference Detection: Supported
Coverage Optimization: Supported
SmartRoam Technology: Supported

Network Features
IPv4 Support: Supported
IPv6 Support: Supported
Layer 2 Bridging: Supported
VLAN Support: Supported
Dynamic VLAN Assignment: Supported
Guest Networking: Supported
Captive Portal: Supported
Wireless Mesh Networking: Supported
Mesh Backhaul: Supported
Quality of Service (QoS): Supported
Application Visibility: Supported
Traffic Prioritization: Supported
Bandwidth Limiting: Supported
Client Isolation: Supported
Fast Roaming: Supported

Security Features
WPA2-Personal: Supported
WPA2-Enterprise: Supported
WPA3-Personal: Supported
WPA3-Enterprise: Supported
Enhanced Open (OWE): Supported
802.1X Authentication: Supported
RADIUS Authentication: Supported
Dynamic PSK (DPSK): Supported
MAC Authentication: Supported
Role-Based Access Control: Supported
Rogue AP Detection: Supported
Secure Boot: Supported
Secure Firmware Validation: Supported

Wired Connectivity
Ethernet Ports: 1 x Gigabit Ethernet Port
Ethernet Standards: 10/100/1000 Mbps
PoE Standard: IEEE 802.3af / IEEE 802.3at
USB Port: Not Available
Management Access: Web GUI, CLI, SNMP, Cloud Management

Power Specifications
Power Input: IEEE 802.3af PoE or IEEE 802.3at PoE+
External Power Adapter: Optional
Maximum Power Consumption: Approximately 12.95W
Energy Efficient Operation: Supported
Power Saving Features: Supported

Management & Monitoring
RUCKUS One Cloud Management: Supported
SmartZone Management: Supported
ZoneDirector Management: Supported
Unleashed Management: Supported
Web-Based Management: Supported
SNMP Monitoring: Supported
Remote Monitoring: Supported
Firmware Upgrades: Supported
Centralized Configuration: Supported
Real-Time Analytics: Supported
Network Health Monitoring: Supported
Client Analytics: Supported
Event Logging: Supported
Remote Diagnostics: Supported

Voice & Collaboration Optimization
Wi-Fi Multimedia (WMM): Supported
Voice Prioritization: Supported
Video Prioritization: Supported
VoIP Optimization: Supported
Microsoft Teams Optimization: Supported
Zoom Optimization: Supported
Cisco Webex Optimization: Supported
Fast Roaming for Voice Devices: Supported
Low Latency Communications: Supported

Supported Management Platforms
RUCKUS One Cloud
RUCKUS SmartZone
RUCKUS ZoneDirector
RUCKUS Unleashed

Design & Construction
Color: White
Form Factor: Indoor Access Point
Mounting Type: Ceiling, Wall, T-Bar
Enclosure Material: Commercial-Grade Polycarbonate
Deployment Location: Indoor Use Only
Enterprise-Class Construction: Supported
Compact Design: Supported

Environmental Specifications
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 95% Non-Condensing

Physical Specifications
Dimensions: 160 mm x 160 mm x 33 mm
Weight: Approximately 0.35 kg
Color: White
Mounting Options: Ceiling, Wall, T-Bar Mount

Package Contents
Ruckus R350 Wi-Fi 6 Indoor Access Point
Mounting Bracket Kit
Installation Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Technology
Dual-Band 2x2:2 MU-MIMO Architecture
Up to 1.77 Gbps Aggregate Throughput
BeamFlex Adaptive Antenna Technology
OFDMA and Target Wake Time Support
Gigabit Ethernet Connectivity
WPA3 Enterprise Security
Enterprise-Class Wireless Performance
Mesh Networking Support
Cloud or Controller-Based Management
Optimized for Small and Medium Deployments
Cost-Effective Enterprise Wi-Fi Solution

Performance & Features
Designed for small to medium enterprise wireless deployments
Delivers reliable Wi-Fi 6 connectivity with improved efficiency and capacity
Provides enhanced coverage through BeamFlex adaptive antenna technology
Optimizes wireless performance in challenging RF environments
Supports voice, video, and cloud collaboration applications
Reduces network congestion with OFDMA and MU-MIMO technologies
Offers enterprise-grade security and centralized management
Ideal for branch offices, classrooms, retail outlets, and hospitality environments
Provides a cost-effective migration path from Wi-Fi 5 to Wi-Fi 6
Supports hybrid workplace and digital transformation initiatives

Typical Use Cases
Small Business Networks
Branch Offices
Classrooms and Educational Facilities
Retail Stores
Hotels and Hospitality Venues
Healthcare Clinics
Remote Offices
Professional Services Firms
Meeting Rooms
Reception Areas
Hybrid Workplace Deployments
Managed Wi-Fi Service Environments
Enterprise Edge Deployments
Guest Wi-Fi Networks
Business-Critical Wireless Connectivity Applications
