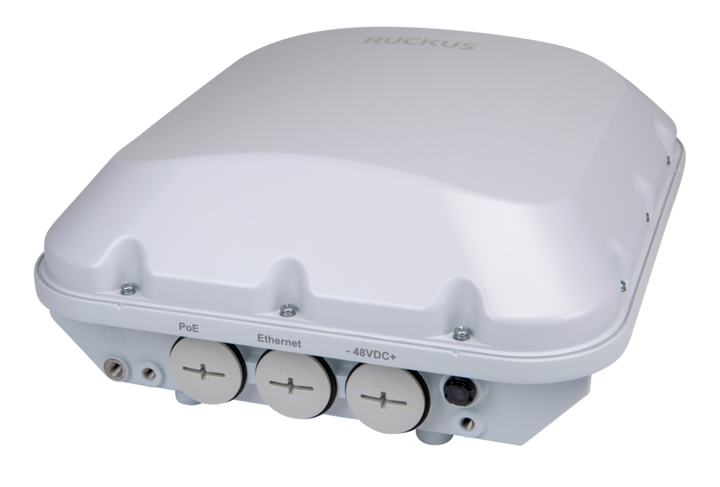

RUCKUS T670 Outdoor Wi-Fi 7 Access Point
PRODUCT DESCRIPTION
RUCKUS T670 Outdoor Wi-Fi 7 2x2:2 Access Point (901-T670-WW01) - Local Warranty
High-Performance Outdoor Wi-Fi 7
The RUCKUS T670 is an outdoor 802.11be (Wi-Fi 7) access point built for transit hubs, stadiums, conference centres and other high-traffic outdoor spaces carrying 4K/8K video and latency-sensitive voice and data. RUCKUS rates it at up to 768 concurrent users, with -100 dBm receive sensitivity at 5 GHz.
SmartZone or RUCKUS One Managed
This is the standard edition (part number prefix 901-) for networks run from RUCKUS SmartZone controllers or the RUCKUS One cloud platform. The Unleashed edition of the same hardware is 9U1-T670-WW01.
Tri-Band or Dual-Band by Region
RUCKUS specifies tri-band operation (2.4 + 5 + 6 GHz, 2x2:2 each, up to 9.34 Gbps) for the US and Canada, and dual-band operation (2.4 + 5 GHz) for global use with a maximum physical data rate of 6.454 Gbps. The radios can be software-configured to 2x2 (2.4 GHz) + 4x4:4 (5 GHz).
Built for the Outdoors
IP-67 weatherproofing, a -40°C to 65°C operating range and 165 mph wind survivability, with the mounting bracket included in the box. Built-in GPS supports Automated Frequency Coordination (AFC), and a 5/2.5/1 GbE port removes the wired backhaul bottleneck.
Supplied in Singapore with Local Warranty
SourceIT supplies the T670 locally in Singapore with a GST invoice and local warranty support. The power adapter is not included. Email sales@sourceit.com.sg with your site plan for a coverage design and bill of materials.
RUCKUS T670 901-T670-WW01 Datasheet — Technical Specifications
General
| Product Name | RUCKUS T670 Outdoor Access Point |
| Part Number | 901-T670-WW01 |
| RUCKUS Description | T670 XX tri-band 11be outdoor 2+2+2 AP |
| Edition | Standard (non-Unleashed) AP, part number prefix 901-; Unleashed version is 9U1-T670-WW01 |
| Manufacturer Warranty | RUCKUS limited warranty — the data sheet quotes both a limited lifetime warranty and, in the ordering information for this part, a one-year limited warranty; ask SourceIT to confirm the term |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radio Modes | Tri-band 2x2:2 (2.4/5/6 GHz) for US and Canada; dual-band (2.4 + 5 GHz) for global use; software-configurable 2x2 (2.4 GHz) + 4x4:4 (5 GHz) |
| Combined Data Rate | Tri-band up to 9.34 Gbps; dual-band (global) up to 6.454 Gbps |
| Supported Data Rates | 802.11be 4 to 5765 Mbps; 802.11ax 4 to 4804 Mbps; 802.11ac 6.5 to 866 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 689 Mbps; 5 GHz 5765 Mbps (4x4:4) or 2882 Mbps (2x2:2); 6 GHz 5765 Mbps |
| Channelization | 20, 40, 80, 160, 320 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| Wi-Fi 7 Features | MLO (Multi-Link Operation), preamble puncturing, 4K QAM |
| Client Capacity | Up to 768 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity (PD-MRC), 4,000+ patterns per band; gain up to 3.2 dBi |
| Peak Tx Power | 2.4 GHz 25 dBm; 5 GHz 25 dBm (2x2), 28 dBm (4x4); 6 GHz 25 dBm |
| Max EIRP | 2.4 GHz 28.2 dBm; 5 GHz 28.2 dBm (2x2), 31.2 dBm (4x4); 6 GHz 28.2 dBm |
| Rx Sensitivity | -100 dBm at 5 GHz |
| GPS | Built-in, for AFC |
Interfaces & Power
| Ethernet | 1 x 100M/1/2.5/5 GbE (PoE in) + 1 x 10M/100M/1 GbE; LLDP |
| PoE | 802.3af/at/bt, Cat 5e or better |
| DC Input | 48 V DC terminal block |
| Max Power / 802.3bt | 32 W (full operation on 802.3bt / uPoE / PoH) |
| 802.3at PoE+ | 25.5 W, reduced Tx power (2.4 GHz 19-22 dBm, 5 GHz 20-21 dBm, 6 GHz 20 dBm) |
Security
| Wireless Security | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, DPSK3 |
| Other | WIPS/WIDS, TPM 2.0, Secure Boot; web authentication, guest access, Hotspot 2.0, captive portal, WISPr |
Physical & Environmental
| Dimensions | 24.8 cm (L) x 23.8 cm (W) x 10.8 cm (H) |
| Weight | 1.97 kg (4.34 lbs) |
| Mounting | Wall, pole, flat surface; bracket included in the box |
| Weatherproofing | IP-67 |
| Wind Survivability | 165 mph |
| Operating Temperature | -40°C to 65°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7), Passpoint, Vantage |
| Safety / Other | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS T670 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS data sheet lists SmartZone and RUCKUS One for the T670, with Unleashed support noted as a future release at the time of publication.
Mixing with Other RUCKUS Gear
The T670 sits alongside the indoor Wi-Fi 7 R370, R575, R670 and R770 in the same SmartZone or RUCKUS One network. RUCKUS AI provides analytics and Cloudpath handles security and policy.
What It Is Suited To
RUCKUS positions the T670 for transit hubs, stadiums, conference centres and other high-traffic outdoor spaces, with airtime decongestion and transient client management for heavily congested environments. For long, narrow coverage areas see the sector-antenna T670sn (901-T670-WW51).
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS T670 outdoor access point with mounting bracket (per the RUCKUS data sheet). Power adapter not included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 (this listing) | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7, sector antenna | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit PoE injector (60 W), the 902-0125-0000 secure articulating mounting bracket, the 902-0134-0000 secure articulating bracket with 10° increments and the 902-1121-0000 spare cable gland for the RJ-45 port. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS T670 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS T670 Outdoor Access Point |
| RUCKUS support | RUCKUS T670 support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-T670-WW01.
Frequently Asked Questions — RUCKUS T670 901-T670-WW01
What is the difference between 901-T670-WW01 and 9U1-T670-WW01?
Same T670 hardware. 901- is the standard AP for SmartZone or RUCKUS One management; 9U1- ships with Unleashed firmware.
Will it run tri-band in Singapore?
RUCKUS specifies tri-band (with 6 GHz) for the US and Canada and dual-band 2.4 + 5 GHz for global use. Ask us to confirm the operating mode for your deployment.
What PoE does it need?
802.3bt / uPoE / PoH for full operation (32 W). On 802.3at (25.5 W) transmit power is reduced.
Is it weatherproof?
Yes — IP-67, -40°C to 65°C, and rated for 165 mph wind survivability. A spare cable gland for the RJ-45 port is available as 902-1121-0000.
T670 or T670sn?
The T670 uses omnidirectional BeamFlex+ antennas (up to 3.2 dBi). The T670sn has a programmable sector antenna (up to 12.8 dBi) for stadium seating and other directional coverage.
