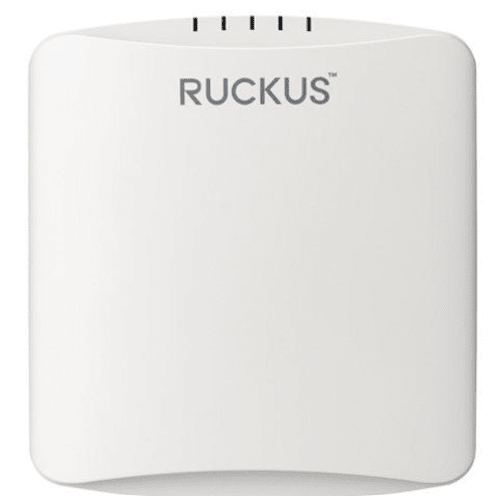

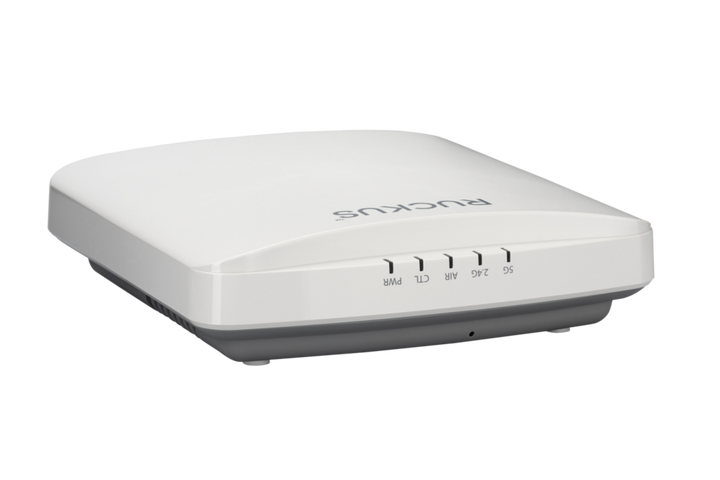

Ruckus R550 Indoor Wi‑Fi 6 2×2:2 Access Point

Ruckus Network R550 Mid-Tier Wi-Fi 6 2x2:2 Indoor Access Point (9U1-R550-WW00) - Local Warranty

Upgrade Your Wi-Fi with the Ruckus R550 Mid-Tier Wi-Fi 6 Access Point

The Ruckus R550 is a high-performance mid-tier indoor access point designed to deliver Wi-Fi 6 (802.11ax) connectivity to small and medium-sized enterprises. With its advanced 2x2:2 MIMO (Multiple Input, Multiple Output) configuration, the R550 offers faster speeds, higher capacity, and improved efficiency compared to earlier Wi-Fi standards. This access point is perfect for environments where high-density traffic and seamless connectivity are essential, such as offices, retail spaces, and educational institutions.

Wi-Fi 6 (802.11ax) Technology

The Ruckus R550 features the latest Wi-Fi 6 standard, providing faster speeds, greater capacity, and improved performance in dense environments. Wi-Fi 6 supports more simultaneous device connections, ensuring that your network can handle high-bandwidth applications without compromising performance, making it ideal for busy workspaces and high-traffic areas.

2x2:2 MIMO Configuration

With its 2x2:2 MIMO antenna configuration, the R550 optimizes data throughput and enhances signal quality for both uplink and downlink communications. This setup ensures a reliable and stable Wi-Fi connection, even in areas with high device density, allowing users to experience uninterrupted connectivity.

OFDMA and MU-MIMO Technologies

The R550 supports Wi-Fi 6 technologies such as Orthogonal Frequency-Division Multiple Access (OFDMA) and Multi-User, Multiple Input, Multiple Output (MU-MIMO). These technologies allow for more efficient data transmission, reducing latency and improving overall network efficiency. As a result, the R550 can handle more devices and applications simultaneously without a loss in performance.

Seamless Coverage and High Performance

Designed to deliver strong Wi-Fi coverage across large areas, the R550 ensures that users enjoy fast and reliable connectivity throughout the environment. Whether in an office, classroom, or retail setting, this access point guarantees excellent range and performance, ensuring your network remains efficient even as the number of connected devices grows.

Easy Setup and Management

The R550 is easy to deploy and manage. With Ruckus’ cloud-based or controller-based management options, you can quickly set up, monitor, and troubleshoot your network from anywhere. The R550’s user-friendly interface and seamless integration with your existing infrastructure make it an ideal choice for businesses looking to modernize their wireless networks with minimal effort.

Technical Specifications

General
Model: R550
Part Number: 9U1-R550-WW00
Product Name: Ruckus R550 Mid-Tier Wi-Fi 6 2x2:2 Indoor Access Point
Manufacturer: Ruckus Networks
Product Type: Enterprise Indoor Wireless Access Point
Wireless Standard: IEEE 802.11ax (Wi-Fi 6)
Radio Architecture: Dual-Band Concurrent 2x2:2 MU-MIMO
Deployment Type: Indoor Enterprise WLAN
Mounting Options: Ceiling Mount, Wall Mount, T-Bar Mount
Management Options: RUCKUS One, SmartZone, ZoneDirector, Unleashed
Target Environment: Enterprise, Education, Hospitality, Healthcare, Retail, Government
Warranty: Limited Lifetime Warranty (Region Dependent)

Wireless Specifications
Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6)
Backward Compatibility: 802.11a/b/g/n/ac Wave 2
Frequency Bands: 2.4 GHz and 5 GHz
Radio Configuration: Dual-Band Concurrent
Spatial Streams: 2x2:2 MU-MIMO
Maximum Aggregate Throughput: Up to 1.77 Gbps
2.4 GHz Data Rate: Up to 574 Mbps
5 GHz Data Rate: Up to 1,201 Mbps
Maximum Concurrent Clients: Up to 512 Devices
Channel Width Support: 20 MHz, 40 MHz, 80 MHz
Modulation: Up to 1024-QAM
OFDMA: Supported
MU-MIMO: Supported
Downlink MU-MIMO: Supported
Target Wake Time (TWT): Supported
BSS Coloring: Supported
Beamforming: Supported
Airtime Fairness: Supported
Band Steering: Supported
Load Balancing: Supported

BeamFlex+ Smart Antenna Technology
Antenna Type: Integrated Adaptive Antenna Array
BeamFlex+: Supported
ChannelFly: Supported
Dynamic Antenna Pattern Selection: Supported
Automatic RF Optimization: Supported
Coverage Enhancement: Supported
Interference Mitigation: Supported
Signal Optimization: Supported
Roaming Optimization: Supported
Dead Spot Reduction: Supported

RF Specifications
Transmit Power Control: Dynamic and Manual Configuration
Automatic Channel Selection: Supported
RF Monitoring: Supported
Dynamic RF Management: Supported
Interference Detection: Supported
Coverage Optimization: Supported
SmartRoam Technology: Supported
Real-Time RF Analytics: Supported

Network Features
IPv4 Support: Supported
IPv6 Support: Supported
Layer 2 Bridging: Supported
Layer 3 Routing: Supported
VLAN Support: Supported
Dynamic VLAN Assignment: Supported
Guest Networking: Supported
Captive Portal: Supported
Wireless Mesh Networking: Supported
Mesh Backhaul: Supported
Quality of Service (QoS): Supported
Application Visibility: Supported
Traffic Prioritization: Supported
Bandwidth Limiting: Supported
Client Isolation: Supported
Fast Roaming: Supported

Security Features
WPA2-Personal: Supported
WPA2-Enterprise: Supported
WPA3-Personal: Supported
WPA3-Enterprise: Supported
Enhanced Open (OWE): Supported
802.1X Authentication: Supported
RADIUS Authentication: Supported
LDAP Authentication: Supported
Dynamic PSK (DPSK): Supported
MAC Authentication: Supported
Role-Based Access Control: Supported
Rogue AP Detection: Supported
Rogue Client Detection: Supported
Secure Boot: Supported
Secure Firmware Validation: Supported

Wired Connectivity
Ethernet Ports: 1 x 2.5 Gigabit Ethernet Port
Ethernet Standards: 10/100/1000/2500 Mbps
PoE Standard: IEEE 802.3af / IEEE 802.3at PoE+
USB Port: 1 x USB 2.0
Management Access: Web GUI, CLI, SNMP, Cloud Management

Power Specifications
Power Input: IEEE 802.3at PoE+
802.3af Support: Supported (Feature Dependent)
External Power Adapter: Optional
Maximum Power Consumption: Approximately 15.4W
Energy Efficient Operation: Supported
Power Saving Features: Supported

Management & Monitoring
RUCKUS One Cloud Management: Supported
SmartZone Management: Supported
ZoneDirector Management: Supported
Unleashed Management: Supported
Web-Based Management: Supported
SNMP Monitoring: Supported
Remote Monitoring: Supported
Firmware Upgrades: Supported
Centralized Configuration: Supported
Real-Time Analytics: Supported
Network Health Monitoring: Supported
Client Analytics: Supported
Application Analytics: Supported
Event Logging: Supported
Remote Diagnostics: Supported
Packet Capture: Supported

Voice & Collaboration Optimization
Wi-Fi Multimedia (WMM): Supported
Voice Prioritization: Supported
Video Prioritization: Supported
VoIP Optimization: Supported
Microsoft Teams Optimization: Supported
Zoom Optimization: Supported
Cisco Webex Optimization: Supported
Fast Roaming for Voice Devices: Supported
Low Latency Communications: Supported

Supported Management Platforms
RUCKUS One Cloud
RUCKUS SmartZone
RUCKUS ZoneDirector
RUCKUS Unleashed

Design & Construction
Color: White
Form Factor: Indoor Access Point
Mounting Type: Ceiling, Wall, T-Bar
Enclosure Material: Commercial-Grade Polycarbonate
Deployment Location: Indoor Use Only
Enterprise-Class Construction: Supported
Low-Profile Design: Supported

Environmental Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 95% Non-Condensing

Physical Specifications
Dimensions: 180 mm x 180 mm x 42 mm
Weight: Approximately 0.5 kg
Color: White
Mounting Options: Ceiling, Wall, T-Bar Mount

Package Contents
Ruckus R550 Wi-Fi 6 Indoor Access Point
Mounting Bracket Kit
Installation Guide
Regulatory Documentation

Key Features
Wi-Fi 6 (802.11ax) Enterprise Access Point
Dual-Band 2x2:2 MU-MIMO Architecture
Up to 1.77 Gbps Aggregate Throughput
BeamFlex+ Adaptive Antenna Technology
ChannelFly Intelligent RF Optimization
2.5 Gigabit Ethernet Uplink Port
OFDMA and Target Wake Time Support
WPA3 Enterprise Security
Enterprise Mesh Networking Support
Cloud, Controller-Based or Controllerless Deployment
Advanced Voice and Video Optimization
Designed for Medium-Density Enterprise Deployments

Performance & Features
Designed for medium-density enterprise wireless environments
Delivers consistent Wi-Fi 6 performance for modern business applications
Provides superior coverage through BeamFlex+ adaptive antenna technology
Optimizes RF performance automatically using ChannelFly technology
Supports voice, video, cloud collaboration, and SaaS applications
Reduces congestion through OFDMA and MU-MIMO efficiencies
Enables seamless roaming across enterprise WLAN deployments
Offers enterprise-grade security and centralized management capabilities
Supports hybrid workplace and digital transformation initiatives
Provides an ideal balance of performance, coverage, and affordability

Typical Use Cases
Corporate Offices
Meeting Rooms and Boardrooms
Educational Institutions
Hotels and Hospitality Venues
Healthcare Facilities
Retail Stores
Government Agencies
Branch Offices
Professional Services Firms
Hybrid Workplace Deployments
Microsoft Teams Rooms Connectivity
Zoom Rooms Connectivity
Managed Wi-Fi Services Projects
Enterprise Wireless LAN Deployments
Business-Critical Wireless Infrastructure Applications
