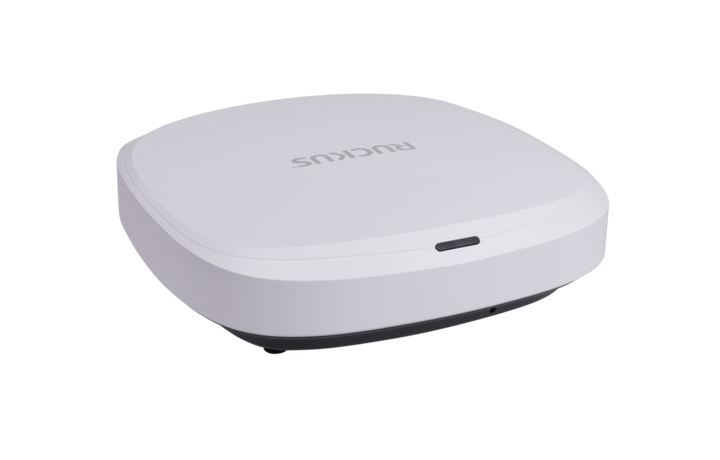

RUCKUS R575 Indoor Wi-Fi 7 Tri-Band Access Point
PRODUCT DESCRIPTION
RUCKUS R575 Indoor Wi-Fi 7 Tri-Band 2x2:2 Access Point (901-R575-WW00) - Limited Lifetime Local Warranty
Tri-Band Wi-Fi 7 for Hospitality, Education and Enterprise
The RUCKUS R575 is a tri-band 802.11be (Wi-Fi 7) indoor access point with 2x2:2 radios on each of 2.4 GHz, 5 GHz and 6 GHz, for a combined data rate of 9.3 Gbps. RUCKUS rates it at up to 512 clients per AP and designs it for hospitality, MDU, education and enterprise spaces such as classrooms, hallways and meeting rooms.
SmartZone or RUCKUS One Managed
This is the standard edition (part number prefix 901-) for networks run from RUCKUS SmartZone controllers or the RUCKUS One cloud platform. The RUCKUS data sheet also lists RUCKUS Unleashed management.
Dual 2.5 GbE Ports
Two 100M/1/2.5 GbE ports (one with PoE in) give the R575 multi-gigabit backhaul, and 320 MHz channels on 6 GHz take full advantage of Wi-Fi 7 clients.
BeamFlex+ and Converged IoT
BeamFlex+ adaptive antennas with polarization diversity offer 4,000+ unique antenna patterns per band. An integrated BLE or Zigbee IoT radio, a USB 2.0 port, TPM 2.0 and Secure Boot make the R575 a converged, secure access point for Wi-Fi and IoT.
Supplied in Singapore with Local Warranty
RUCKUS sells the R575 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. A ceiling bracket is included; the R575 has no DC jack and is powered by PoE. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS R575 901-R575-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R575 Indoor Access Point |
| Part Number | 901-R575-WW00 |
| Edition | Standard (non-Unleashed) AP, part number prefix 901- |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radios | Tri-band 2.4 GHz, 5 GHz and 6 GHz |
| MIMO / Streams | 2x2:2 on each band (2 spatial streams per band) |
| Combined Data Rate | 9.3 Gbps |
| Peak PHY Rate | 2.4 GHz 689 Mbps; 5 GHz 2882 Mbps; 6 GHz 5765 Mbps |
| Channelization | 20, 40, 80, 160, 320 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| 6 GHz Mode | LPI (per RUCKUS ordering information) |
| Client Capacity | Up to 512 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity, 4,000+ unique patterns per band; gain up to 4 dBi |
| Peak Tx Power | 25 dBm (2.4, 5 and 6 GHz) |
| IoT | Integrated BLE or Zigbee (one IoT radio) |
Interfaces & Power
| Ethernet | 2 x 100M/1/2.5GbE, one with PoE in |
| USB | 1 x USB 2.0, Type A |
| 802.3at PoE+ | 25.5 W max, 20.17 W average (full functionality: dual 2.5GbE, USB and IoT enabled; 22 dBm per band) |
| 802.3af PoE | 12.95 W max, 11.73 W average (one 2.5GbE port, USB and IoT disabled, single chain per band at 22 dBm) |
| Typical Consumption | Idle 9.38 W; typical 10.54 W |
| DC Jack | None |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, DPSK3 |
| Other | TPM 2.0, Secure Boot |
Physical & Environmental
| Dimensions | 19.85 cm (L) x 19.85 cm (W) x 4.85 cm (H) |
| Weight | 0.828 kg (1.825 lbs) |
| Mounting | Wall, acoustic ceiling, desk |
| Physical Security | Kensington security slot; secure bracket 902-0120-0000 sold separately |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7 pending at data sheet date), Passpoint, Vantage |
| Safety / Other | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE, RoHS, ISTA 2A |
Figures are taken from the RUCKUS R575 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS R575 data sheet lists SmartZone, RUCKUS Unleashed and RUCKUS One management. Ask us to confirm current firmware support for your chosen platform before you deploy.
Mixing with Other RUCKUS Gear
RUCKUS AI provides network analytics and Cloudpath handles security and policy. Use an 802.3at PoE+ switch port to keep the second 2.5GbE port, USB and IoT radio enabled.
What It Is Suited To
RUCKUS positions the R575 for hospitality, MDU, education and enterprise spaces such as classrooms, hallways and meeting rooms.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS R575 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS ordering information). No power adapter is included; the R575 has no DC jack.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 (this listing) | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit (2.5/5/10GBASE-T) PoE injector (60 W), the 902-0120-0000 spare accessory mounting bracket and the 902-0196-0000 T-bar bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R575 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R575 Indoor Access Point |
| RUCKUS support | RUCKUS R575 support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-R575-WW00.
Frequently Asked Questions — RUCKUS R575 901-R575-WW00
R575 or R670?
Both are tri-band Wi-Fi 7 with 2x2:2 per band. The R575 has two 2.5 GbE ports and supports up to 512 clients; the R670 has a 5 GbE port and supports up to 768 clients.
Is it tri-band?
Yes. 2.4 GHz, 5 GHz and 6 GHz, with up to 320 MHz channels on 6 GHz (LPI mode per the RUCKUS ordering information).
What PoE does it need?
802.3at PoE+ (25.5 W max) for full functionality. On 802.3af (12.95 W max) it runs one 2.5 GbE port with USB and IoT disabled. There is no DC jack.
How many devices can it handle?
RUCKUS rates the R575 at up to 512 clients and up to 36 SSIDs per AP.
What warranty do I get?
RUCKUS sells the R575 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
