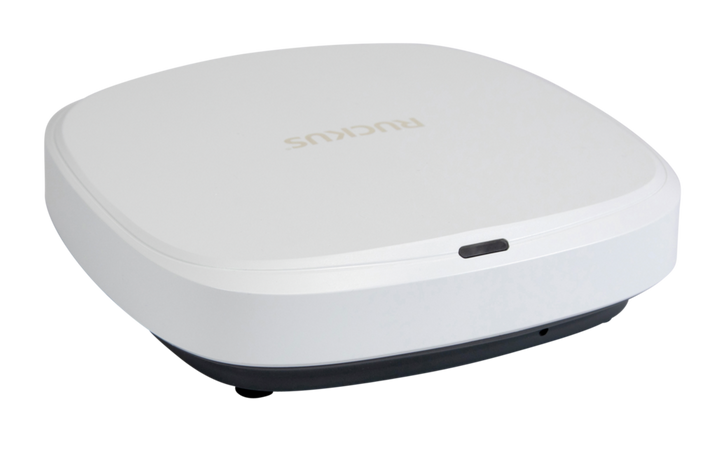

RUCKUS R370 Indoor Wi-Fi 7 2x2:2 Access Point
PRODUCT DESCRIPTION
RUCKUS R370 Indoor Wi-Fi 7 2x2:2 Access Point (901-R370-WW02) - Limited Lifetime Local Warranty
Entry-Level Wi-Fi 7 for Smaller Venues
The RUCKUS R370 is a dual-band, dual-concurrent 802.11be (Wi-Fi 7) indoor access point with 2x2:2 radios on 2.4 GHz and 5 GHz and a combined data rate of up to 3.57 Gbps. RUCKUS positions it as a cost-effective way to bring enterprise-class Wi-Fi to economy hotels and motels, small and medium-size businesses, retail, restaurants, multi-tenant small offices, student housing and branch offices.
SmartZone or RUCKUS One Managed
This is the standard edition (part number prefix 901-) for networks run from RUCKUS SmartZone controllers or the RUCKUS One cloud platform. For controller-less Wi-Fi, the Unleashed part 9U1-R370-WW02 is the one to order.
2.5GbE Uplink, Compact Design
A single 2.5 GbE port keeps the uplink ahead of the radios, and the compact, low-profile 15 x 15 cm housing suits visually sensitive areas such as hotel rooms, classrooms and small offices. RUCKUS rates the R370 at up to 256 concurrent clients per AP.
RUCKUS Radio Management
ChannelFly dynamically finds the least congested Wi-Fi channels, SmartCast manages traffic prioritisation, and features such as polarization diversity with maximal ratio combining (PD-MRC), adaptive band balancing, client load balancing, airtime fairness and SmartRoam help keep clients on the best connection.
Supplied in Singapore with Local Warranty
RUCKUS sells the R370 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. The R370 does not include a power adapter or PoE injector. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS R370 901-R370-WW02 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R370 Indoor Access Point |
| Part Number | 901-R370-WW02 |
| Edition | Standard (non-Unleashed) AP; Unleashed version is 9U1-R370-WW02 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radios | Dual-band, dual-concurrent 2.4 GHz and 5 GHz |
| MIMO / Streams | 2x2:2 (2.4 GHz) and 2x2:2 (5 GHz); 2x2 SU-MIMO and MU-MIMO |
| Combined Data Rate | Up to 3.57 Gbps (802.11be) |
| Peak PHY Rate | 2.4 GHz 688 Mbps; 5 GHz 2882 Mbps |
| Channelization | 20, 40, 80, 160 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 256 clients per AP |
| SSIDs | Up to 16 per AP (8 per band) |
| Antenna Gain | Up to 4 dBi |
| Peak Tx Power | 2.4 GHz 23 dBm; 5 GHz 23 dBm (aggregate) |
Interfaces & Power
| Ethernet | 1 x 2.5 GbE, RJ-45 |
| DC Input | 48 V DC power jack |
| 48 V DC | 20 W (full functionality: 2.4 GHz 2x2 20 dBm, 5 GHz 2x2 20 dBm Tx) |
| 802.3at PoE+ | 12.94 W (reduced Tx power: 2.4 GHz 2x2 14 dBm, 5 GHz 2x2 14.5 dBm) |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK |
| Other | WIPS/WIDS |
Physical & Environmental
| Dimensions | 15.0 cm (L) x 15.0 cm (W) x 3.80 cm (H) |
| Weight | 390 g (13.76 oz) |
| Mounting | Wall, drop ceiling, desk (bracket sold separately) |
| Physical Security | Hidden latching mechanism |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED 7 (pending at data sheet date), WPA2/WPA3 Enterprise and Personal |
| Safety / Other | EN 60950-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R370 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS R370 data sheet lists RUCKUS One, SmartZone and RUCKUS Unleashed management. If you want controller-less Wi-Fi with no controller or subscription, order the Unleashed part 9U1-R370-WW02 instead.
Mixing with Other RUCKUS Gear
RUCKUS AI provides network analytics and Cloudpath handles security and policy. SmartMesh wireless meshing gives self-healing mesh links.
Cabling
RUCKUS notes the R370 works with existing PoE switches and Cat 5e cabling.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS R370 access point. Per the RUCKUS data sheet, the mounting bracket is sold separately and no power adapter or PoE injector is included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 (this listing) | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit PoE injector (60 W), the 902-1170-XX00 48 V 36 W power adapter, the 902-0120-0000 accessory mounting bracket and the 902-0196-0000 T-bar ceiling mount kit. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R370 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R370 Indoor Access Point |
| RUCKUS support | RUCKUS R370 support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-R370-WW02.
Frequently Asked Questions — RUCKUS R370 901-R370-WW02
What is the difference between 901-R370-WW02 and 9U1-R370-WW02?
Same R370 hardware. 901- is the standard AP for SmartZone or RUCKUS One management; 9U1- ships with Unleashed (embedded controller, no controller or subscription needed).
Is the R370 tri-band?
No. It is dual-band Wi-Fi 7 (2.4 GHz and 5 GHz, 2x2:2 each). For tri-band Wi-Fi 7 with 6 GHz, see the R575, R670 or R770.
What power does it need?
RUCKUS lists 20 W on the 48 V DC input for full functionality; on 802.3at PoE+ the R370 draws 12.94 W and runs at reduced transmit power.
How many devices can it handle?
RUCKUS rates the R370 at up to 256 clients and up to 16 SSIDs per AP.
What warranty do I get?
RUCKUS sells the R370 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
