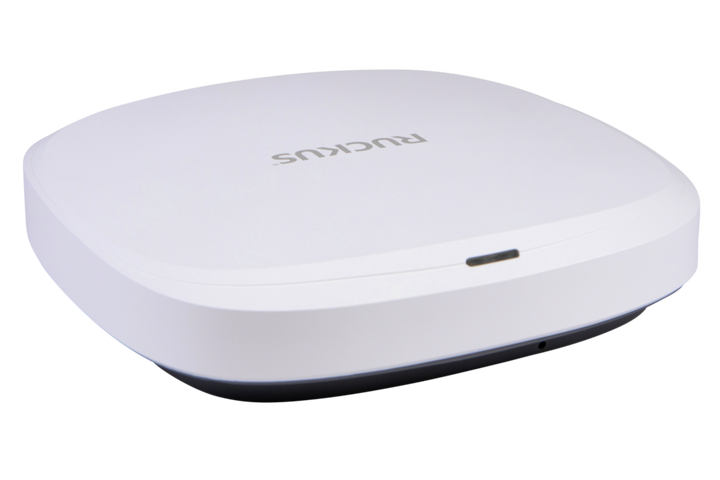

RUCKUS R670 Indoor Wi-Fi 7 Tri-Band Access Point
PRODUCT DESCRIPTION
RUCKUS R670 Indoor Wi-Fi 7 Tri-Band 2x2:2 Access Point (901-R670-WW00) - Limited Lifetime Local Warranty
High-Performance Tri-Band Wi-Fi 7
The RUCKUS R670 is a tri-band concurrent 802.11be (Wi-Fi 7) indoor access point with 2x2:2 radios on 2.4 GHz, 5 GHz and 6 GHz, for a combined data rate of 9.34 Gbps. It can be software-configured to dual-band mode with 4x4:4 on 5 GHz. RUCKUS rates it at up to 768 clients per AP and positions it for guest rooms, classrooms and meeting rooms carrying 4K/8K video and latency-sensitive voice and data.
SmartZone or RUCKUS One Managed
This is the standard edition (part number prefix 901-) for networks run from RUCKUS SmartZone controllers or the RUCKUS One cloud platform. The controller-less Unleashed edition of the same hardware is 9U1-R670-WW00.
5 Gbps Ethernet Backhaul
One 5/2.5/1 GbE PoE port removes the wired backhaul bottleneck, with a second 1 GbE port for a local device. Wi-Fi 7 features include 320 MHz channels, Multi-Link Operation (MLO) and preamble puncturing.
BeamFlex+ and Converged IoT
BeamFlex+ adaptive antennas offer 4,000+ unique antenna patterns per band, steering signal per device on a packet-by-packet basis. An onboard BLE or Zigbee IoT radio (Matter and Thread capable), a USB 2.0 port, TPM 2.0 and Secure Boot round out the converged design.
Supplied in Singapore with Local Warranty
RUCKUS sells the R670 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. An adjustable acoustic drop-ceiling bracket is included; the power adapter is not. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS R670 901-R670-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R670 Indoor Access Point |
| Part Number | 901-R670-WW00 |
| RUCKUS Description | R670 XX tri-band 11be indoor 2+2+2 AP |
| Edition | Standard (non-Unleashed) AP, part number prefix 901-; Unleashed version is 9U1-R670-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radios | Tri-band concurrent 2.4 GHz, 5 GHz and 6 GHz; software-configurable dual-band mode |
| MIMO / Streams | 2x2:2 in all three bands (tri-band mode); 2x2 (2.4 GHz) + 4x4:4 (5 GHz) in dual-band mode; SU-MIMO and MU-MIMO |
| Combined Data Rate | 9.34 Gbps |
| Supported Data Rates | 802.11be 4 to 5765 Mbps; 802.11ax 4 to 4804 Mbps; 802.11ac 6.5 to 866 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 689 Mbps; 5 GHz 5765 Mbps (4x4:4) or 2882 Mbps (2x2:2); 6 GHz 5765 Mbps |
| Channelization | 20, 40, 80, 160, 320 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| 6 GHz Modes | LPI and SP with AFC |
| Wi-Fi 7 Features | MLO (Multi-Link Operation), preamble puncturing |
| Client Capacity | Up to 768 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity, 4,000+ patterns per band; gain up to 4 dBi |
| Peak Tx Power | 2.4 GHz 25 dBm (2x2); 5 GHz 25 dBm (2x2), 28 dBm (4x4); 6 GHz 25 dBm (2x2) |
| IoT | Integrated BLE or Zigbee (one IoT radio), Matter & Thread capable |
Interfaces & Power
| Ethernet | 1 x 100M/1/2.5/5 GbE (PoE in) + 1 x 10M/100M/1 GbE, RJ-45; LLDP |
| PoE | 802.3af/at/bt, Cat 5e or better |
| USB | 1 x USB 2.0, Type A |
| DC Input | 48 V DC power jack |
| DC / 802.3bt / PoH / uPoE | 35 W (full functionality: both Ethernet ports, USB 3 W and IoT enabled) |
| 802.3at PoE+ | 25.5 W (USB disabled; Tx reduced to 2.4 GHz 20 dBm, 5 GHz 20 dBm, 6 GHz 21 dBm) |
Security
| Wireless Security | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, DPSK3 |
| Other | WIPS/WIDS, TPM 2.0, Secure Boot |
Physical & Environmental
| Dimensions | 22 cm (L) x 22 cm (W) x 4.9 cm (H) |
| Weight | 1.02 kg (2.25 lbs) |
| Mounting | Wall, acoustic ceiling, desk; bracket 902-0120-0000; secure bracket sold separately |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7), Passpoint, Vantage |
| Safety / Other | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R670 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. RUCKUS lists SmartZone, RUCKUS Unleashed and RUCKUS One management for the R670; for controller-less Unleashed out of the box, order 9U1-R670-WW00 instead.
Mixing with Other RUCKUS Gear
RUCKUS AI (formerly RUCKUS Analytics) provides network analytics and Cloudpath handles security and policy. Wi-Fi 7 clients get the full 802.11be feature set; 802.11a/b/g/n/ac/ax devices remain supported. Use an 802.3bt switch port (35 W) to keep USB enabled and full transmit power.
What It Is Suited To
RUCKUS positions the R670 for guest rooms, classrooms and meeting rooms, with airtime decongestion and transient client management for busy spaces.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS R670 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS ordering information). Power adapter not included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 (this listing) | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7, sector antenna | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit PoE injector (60 W), the 902-1170-XX00 48 V 36 W power supply, the 902-0120-0000 accessory mounting bracket and the 902-0196-0000 T-bar bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R670 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R670 Indoor Access Point |
| RUCKUS support | RUCKUS R670 support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-R670-WW00.
Frequently Asked Questions — RUCKUS R670 901-R670-WW00
What is the difference between 901-R670-WW00 and 9U1-R670-WW00?
Same R670 hardware. 901- is the standard AP for SmartZone or RUCKUS One management; 9U1- ships with Unleashed (embedded controller, no controller or subscription needed).
R670 or R770?
Both are tri-band Wi-Fi 7. The R670 has 2x2:2 on 5 GHz in tri-band mode, a 5 GbE port and up to 768 clients; the R770 runs 4x4:4 on 5 GHz, has a 10 GbE port and supports up to 1,024 clients.
What PoE does it need?
802.3bt / PoH / uPoE (35 W) for full functionality. On 802.3at (25.5 W) USB is disabled and transmit power is reduced.
Does it support 6 GHz?
Yes — 2x2:2 on 6 GHz with 320 MHz channels, LPI and SP (with AFC) modes.
What warranty do I get?
RUCKUS sells the R670 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
