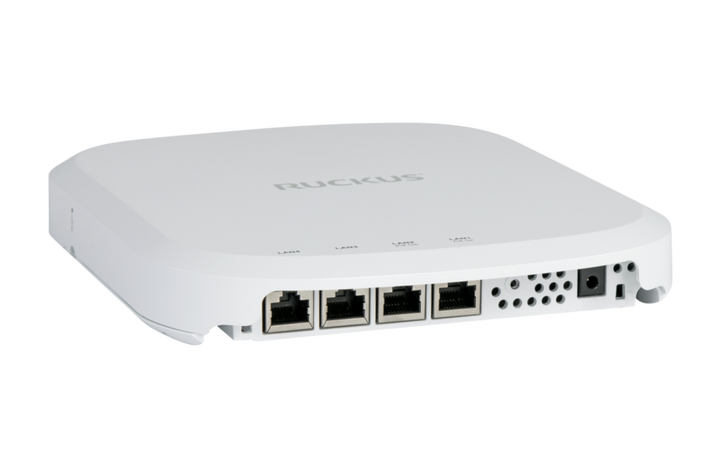

RUCKUS H670 Wall-Plate Wi-Fi 7 Tri-Band Access Point, PoE Out
PRODUCT DESCRIPTION
RUCKUS H670 Wall-Plate Wi-Fi 7 Tri-Band 2x2:2 Access Point (901-H670-WW00) - Limited Lifetime Local Warranty
Wired + Wireless Wi-Fi 7 for Every Room
The RUCKUS H670 is a wall-mounted Wi-Fi 7 tri-band concurrent indoor access point with 2x2:2 radios on 2.4 GHz, 5 GHz and 6 GHz, for a combined data rate of up to 9.34 Gbps. RUCKUS designs it for hotel rooms, student housing, MDUs and meeting rooms, and rates it at up to 768 clients per AP.
SmartZone or RUCKUS One Managed
This is the standard edition (part number prefix 901-). The RUCKUS data sheet lists SmartZone, RUCKUS Unleashed and RUCKUS One management.
5 GbE Uplink, Four 2.5 GbE Ports with PoE Out
A 5/2.5/1 GbE PoE-in uplink feeds four 2.5 GbE downlink ports for TVs, IPTV boxes, phones and other in-room devices. Up to two of them supply PoE out (one 802.3at or two 802.3af) when the AP runs on DC or 802.3bt power.
Wi-Fi 7 and Converged IoT
Multi-Link Operation (MLO), preamble puncturing, 4K QAM and 320 MHz channels, with BeamFlex+ adaptive antennas choosing from more than 4,000 patterns in real time. Integrated BLE and Zigbee radios are Matter and Thread gateway capable, and TPM 2.0 with Secure Boot protects the device.
Supplied in Singapore with Local Warranty
RUCKUS sells the H670 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. A wall mounting bracket is included; the power adapter is not. Email sales@sourceit.com.sg with your room count for a bill of materials.
RUCKUS H670 901-H670-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS H670 Wall-Plate Access Point |
| Part Number | 901-H670-WW00 |
| RUCKUS Description | H670 XX00 tri-band Wi-Fi 7 wall mount AP |
| Edition | Standard (non-Unleashed) AP, part number prefix 901- |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radios | Tri-band concurrent 2.4 GHz, 5 GHz and 6 GHz |
| MIMO / Streams | 2x2:2 in each band |
| Combined Data Rate | 9.34 Gbps |
| Peak PHY Rate | 2.4 GHz 689 Mbps; 5 GHz 2882 Mbps; 6 GHz 5765 Mbps |
| Channelization | 20, 40, 80, 160, 320 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| 6 GHz Mode | LPI |
| Wi-Fi 7 Features | MLO (Multi-Link Operation), preamble puncturing, 4K QAM |
| Client Capacity | Up to 768 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | BeamFlex+ adaptive antennas, 4,000+ patterns; gain up to 3 dBi |
| Peak Tx Power | 2.4 GHz 19 dBm; 5 GHz 22 dBm; 6 GHz 22 dBm (2x2) |
| IoT | Integrated BLE and Zigbee; Matter & Thread gateway capable |
Interfaces & Power
| Uplink | 1 x 100M/1/2.5/5 GbE (PoE in) |
| Downlink | 4 x 10M/100M/1/2.5 GbE, up to 2 with PoE out |
| PoE Out | 1 x 802.3at or 2 x 802.3af, with DC or 802.3bt (Class 6) power |
| PoE In | 802.3at/bt (Class 6), Cat 5e or better |
| DC Input | 48 V DC power jack |
| DC Power | 48.55 W max (all ports, IoT and PoE out enabled) |
| 802.3bt Class 6 / PoH / uPoE | 45.74 W average, 51 W LLDP (full functionality incl. PoE out) |
| 802.3at PoE+ | 25.5 W (5 GbE uplink, LAN ports, IoT and all radios enabled; no PoE out) |
Security
| Wireless Security | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK, DPSK3 |
| Other | TPM 2.0, Secure Boot |
Physical & Environmental
| Dimensions | 182.6 mm x 222.1 mm x 32 mm |
| Weight | 808 g (1.78 lb) with bracket |
| Mounting | Wall bracket (included) |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7) |
| Safety / Other | IEC/EN/UL safety, medical EMC, railway, plenum, RoHS & WEEE |
Figures are taken from the RUCKUS H670 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS H670 data sheet lists SmartZone, RUCKUS Unleashed and RUCKUS One management. Ask us to confirm current firmware support for your chosen platform before you deploy.
Powering It
Feed it from an 802.3bt (Class 6) switch port or 48 V DC to use PoE out on the downlink ports. On 802.3at the AP runs all radios and LAN ports but provides no PoE out.
What It Is Suited To
RUCKUS positions the H670 for hotel rooms, student housing, MDUs and meeting rooms, where one wall plate delivers both Wi-Fi 7 and wired ports for in-room devices.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS H670 access point with wall mounting bracket (per the RUCKUS ordering information). Power adapter not included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 (this listing) | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7, sector antenna | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit PoE injector (60 W) and the 902-1170-XX00 power supply (48 V, 1.04 A, 50 W). Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS H670 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS H670 Indoor Access Point |
| RUCKUS support | RUCKUS H670 support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-H670-WW00.
Frequently Asked Questions — RUCKUS H670 901-H670-WW00
How many wired ports does it have?
One 5 GbE uplink (PoE in) and four 2.5 GbE downlink ports, up to two of which can supply PoE out.
What power do I need for PoE out?
802.3bt (Class 6) or 48 V DC. On 802.3at the AP works fully except PoE out.
H670 or H550?
The H670 is tri-band Wi-Fi 7 (9.34 Gbps) with 2.5 GbE downlinks and a 5 GbE uplink; the H550 is dual-band Wi-Fi 6.
Does it support 6 GHz?
Yes — 2x2:2 on 6 GHz with 320 MHz channels, in LPI mode.
What warranty do I get?
RUCKUS sells the H670 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
