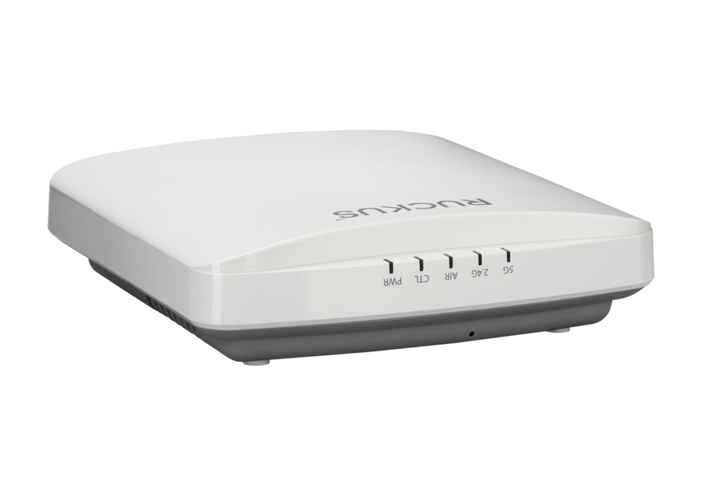

RUCKUS R550 Indoor Wi-Fi 6 2x2:2 Access Point
PRODUCT DESCRIPTION
RUCKUS R550 Indoor Wi-Fi 6 2x2:2 Access Point (901-R550-WW00) - Limited Lifetime Local Warranty
Mid-Tier Wi-Fi 6 for Classrooms, Offices and Medium-Size Venues
The RUCKUS R550 is a dual-band, dual-concurrent 802.11ax (Wi-Fi 6) indoor access point with 2x2:2 radios on both 2.4 GHz and 5 GHz. RUCKUS rates it at up to 1774 Mbps (802.11ax) and up to 512 client connections per AP, built for rooms where the number of connected devices keeps rising.
SmartZone or RUCKUS One Managed
This is the standard edition (part number prefix 901-) for networks run from RUCKUS SmartZone controllers or RUCKUS One cloud management. For controller-less Wi-Fi, the Unleashed part 9U1-R550-WW00 is the one to order.
BeamFlex+ Adaptive Antennas
RUCKUS BeamFlex+ adaptive antennas choose from up to 64 antenna patterns to focus signal towards clients, helping keep throughput up in busy RF environments with many devices.
Converged AP with Built-In IoT Radio
The R550 has onboard BLE and Zigbee (one switchable IoT radio), two 1GbE Ethernet ports and a USB 2.0 port for future wireless add-ons, so it can serve IoT sensors as well as Wi-Fi clients from the same ceiling mount.
Supplied in Singapore with Local Warranty
RUCKUS sells the R550 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. The R550 does not include a power adapter, PoE injector or secure mounting bracket; RUCKUS recommends 802.3at PoE+ for full functionality. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS R550 901-R550-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R550 Indoor Access Point |
| Part Number | 901-R550-WW00 |
| Edition | Standard (non-Unleashed) AP; Unleashed version is 9U1-R550-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band, dual-concurrent 2.4 GHz and 5 GHz |
| MIMO / Streams | 2x2:2 (5 GHz) and 2x2:2 (2.4 GHz); 2x2 SU-MIMO and MU-MIMO |
| Supported Data Rates | 802.11ax 4 to 1774 Mbps; 802.11ac 6.5 to 867 Mbps; 802.11n 6.5 to 300 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 574 Mbps; 5 GHz 1200 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 512 clients per AP |
| SSIDs | Up to 31 per AP |
| Antenna | BeamFlex+ adaptive antennas, up to 64 patterns; gain up to 3 dBi |
| Max Tx Power | 2.4 GHz 26 dBm; 5 GHz 25 dBm |
| IoT | Onboard BLE and Zigbee (one switchable radio) |
Interfaces & Power
| Ethernet | 2 x 1GbE ports, 802.3af/at PoE in, LLDP |
| USB | 1 x USB 2.0, Type A |
| 802.3af PoE | 12.71 W (reduced functionality: 2.4 GHz 2x2 @19 dBm, 5 GHz 2x2 @18 dBm, 2nd port/IoT/USB disabled) |
| 802.3at PoE+ | 18.71 W (full functionality) |
| 12 VDC Input | 16.58 W (full functionality) |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE |
| Other | IPS/WIDS, 802.1X authentication, device fingerprinting |
Physical & Environmental
| Dimensions | 17.60 cm (L) x 19.02 cm (W) x 4.78 cm (H) |
| Weight | 0.562 kg (1.24 lbs) |
| Mounting | Wall, acoustic ceiling, desk; adjustable acoustic drop-ceiling bracket included |
| Physical Security | Hidden latching mechanism, Kensington lock slot |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac, Wi-Fi CERTIFIED 6, WPA3-Enterprise/Personal, Enhanced Open, Agile Multiband, Passpoint, Vantage, WMM |
| Safety / Other | EN 60950-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R550 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The R550 hardware is supported by RUCKUS SmartZone, ZoneDirector, Unleashed, standalone and cloud (RUCKUS One) management. If you want controller-less Wi-Fi with no controller or subscription, order the Unleashed part 9U1-R550-WW00 instead.
Mixing with Other RUCKUS Gear
Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported. Use an 802.3at PoE+ switch port to keep the second Ethernet port, IoT radio and USB enabled.
What It Is Suited To
RUCKUS positions the R550 for classrooms, office spaces and medium-size venues with growing device counts.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS R550 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS data sheet). No power adapter, PoE injector or secure mounting bracket is included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 (this listing) | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-0162-UK00 24W PoE injector (UK plug), the 902-1169-XX00 12V 2.0A power supply, the 902-0120-0000 secure mounting bracket for R-series APs and the 902-0195-0000 T-bar ceiling mount kit. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R550 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R550 Indoor Access Point |
| RUCKUS support | RUCKUS indoor AP support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-R550-WW00.
Frequently Asked Questions — RUCKUS R550 901-R550-WW00
What is the difference between 901-R550-WW00 and 9U1-R550-WW00?
Same R550 hardware. 901- is the standard AP for SmartZone or RUCKUS One management; 9U1- ships with Unleashed (embedded controller, no controller or subscription needed).
Is the R550 Wi-Fi 6 or Wi-Fi 7?
Wi-Fi 6 (802.11ax), dual-band 2.4 GHz and 5 GHz. For Wi-Fi 7, see the R370, R575, R670 or R770.
What PoE does it need?
802.3at PoE+ (18.71 W) for full functionality. It runs on 802.3af (12.71 W) with reduced transmit power and the second port, IoT radio and USB disabled.
How many devices can it handle?
RUCKUS rates the R550 at up to 512 clients and up to 31 SSIDs per AP.
What warranty do I get?
RUCKUS sells the R550 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
