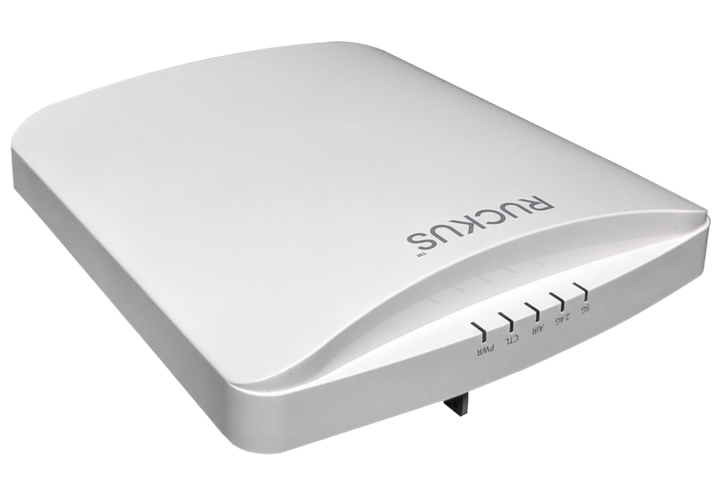

RUCKUS R750 Indoor Wi-Fi 6 4x4:4 Access Point
PRODUCT DESCRIPTION
RUCKUS R750 Indoor Wi-Fi 6 4x4:4 Access Point (901-R750-WW00) - Limited Lifetime Local Warranty
High-Density Wi-Fi 6 for Auditoriums, Transit Hubs and Large Classrooms
The RUCKUS R750 is a dual-band, dual-concurrent 802.11ax (Wi-Fi 6) indoor access point with 4x4:4 radios on both 2.4 GHz and 5 GHz. RUCKUS rates it at up to 2400 Mbps (802.11ax) and up to 1024 clients per AP, aimed at high-traffic indoor spaces and streaming applications such as 4K video.
Standard Edition for Controller or Cloud Management
This is the standard edition (part number prefix 901-) for networks run from a RUCKUS SmartZone controller or cloud management. For controller-less Wi-Fi with no controller or subscription, the Unleashed part 9U1-R750-WW00 is the one to order.
BeamFlex+ with 4,000+ Antenna Patterns
RUCKUS BeamFlex+ adaptive antennas with polarization diversity provide more than 4,000 unique antenna patterns per band, and work without client feedback so legacy devices benefit too.
2.5GbE Backhaul and Built-In IoT
One 2.5 Gbps and one 1 Gbps Ethernet port, onboard BLE and Zigbee radios and a USB 2.0 port make the R750 a converged AP for Wi-Fi and IoT.
Supplied in Singapore with Local Warranty
RUCKUS sells the R750 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. The R750 does not include a power adaptor; RUCKUS specifies 802.3at PoE+ for full functionality. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS R750 901-R750-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R750 Indoor Access Point |
| Part Number | 901-R750-WW00 |
| Edition | Standard (non-Unleashed) AP; Unleashed version is 9U1-R750-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Radios | Dual-band, dual-concurrent 2.4 GHz and 5 GHz |
| MIMO / Streams | 4x4:4 (5 GHz) and 4x4:4 (2.4 GHz); 4x4 SU-MIMO and MU-MIMO |
| Channelization | 20, 40, 80, 160/80+80 MHz |
| Supported Data Rates | 802.11ax 4 to 2400 Mbps; 802.11ac 6.5 to 1732 Mbps; 802.11n 6.5 to 600 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 1148 Mbps; 5 GHz 2400 Mbps |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | Up to 1024 clients per AP |
| SSIDs | Up to 31 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity, 4,000+ unique patterns per band; gain up to 3 dBi |
| Max Tx Power | 2.4 GHz 26 dBm; 5 GHz 28 dBm |
| IoT | Onboard BLE and Zigbee |
Interfaces & Power
| Ethernet | 1 x 2.5GbE and 1 x 1GbE, 802.3af/at/bt PoE in, LLDP |
| USB | 1 x USB 2.0, Type A |
| 802.3af PoE | 12.54 W (reduced functionality: 2x4 radios, 2nd port/IoT/USB disabled) |
| 802.3at PoE+ | 22.34 W (full functionality) |
| DC Input | 22.69 W |
Security
| Wireless Security | WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE |
| Other | WIPS/WIDS, 802.1X authenticator & supplicant, device fingerprinting |
Physical & Environmental
| Dimensions | 23.5 cm (L) x 20.6 cm (W) x 6.2 cm (H) |
| Weight | 1.01 kg (2.23 lbs) |
| Mounting | Wall, acoustic ceiling, desk; secure bracket sold separately |
| Physical Security | Hidden latching mechanism, T-bar Torx, bracket 902-0120-0000 Torx screw & padlock (sold separately) |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax, Passpoint, Vantage |
| Safety / Other | EN 60950-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R750 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. RUCKUS lists the R750 hardware as supported by SmartZone, ZoneDirector, Unleashed, standalone and cloud management. If you want controller-less Wi-Fi with no controller or subscription, order the Unleashed part 9U1-R750-WW00 instead.
Mixing with Other RUCKUS Gear
Wi-Fi 6 clients get the full 802.11ax feature set; 802.11a/b/g/n/ac devices remain supported. Pair the 2.5GbE port with a multi-gigabit PoE+ switch port for full throughput.
What It Is Suited To
RUCKUS positions the R750 for transit hubs, auditoriums, conference centres, large meeting halls, general enterprise spaces and large classrooms, including latency-sensitive voice and 4K video.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS R750 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS data sheet). No power adaptor is included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 (this listing) | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-0180 60W PoE injector, the 902-1180 multi-gigabit (2.5/5/10GBASE-T) 60W PoE injector, the 902-1170 48V 0.75A 36W power supply, the 902-0120-0000 spare mounting bracket and the 902-0195-0000 T-bar ceiling mount kit. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R750 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R750 Indoor Access Point |
| RUCKUS support | RUCKUS R750 support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-R750-WW00.
Frequently Asked Questions — RUCKUS R750 901-R750-WW00
What is the difference between 901-R750-WW00 and 9U1-R750-WW00?
Same R750 hardware. 901- is the standard AP for SmartZone or cloud management; 9U1- ships with Unleashed (embedded controller, no controller or subscription needed).
R650 or R750?
The R750 is 4x4:4 on both bands with up to 1024 clients; the R650 is 4x4:4 on 5 GHz and 2x2:2 on 2.4 GHz with up to 512 clients.
What PoE does it need?
802.3at PoE+ (22.34 W) for full functionality. On 802.3af (12.54 W) it runs with reduced radios and the second port, IoT and USB disabled.
How many devices can it handle?
RUCKUS rates the R750 at up to 1024 clients and up to 31 SSIDs per AP.
What warranty do I get?
RUCKUS sells the R750 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
