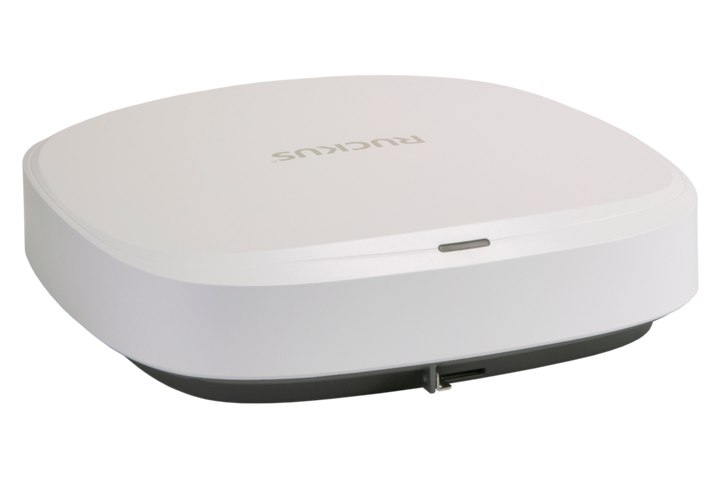

RUCKUS R770 Indoor Wi-Fi 7 Tri-Band Access Point
PRODUCT DESCRIPTION
RUCKUS R770 Indoor Wi-Fi 7 Tri-Band 2x2:2 + 4x4:4 + 2x2:2 Access Point (901-R770-WW00) - Limited Lifetime Local Warranty
Very-High-Performance Tri-Radio Wi-Fi 7
The RUCKUS R770 is a tri-band concurrent 802.11be (Wi-Fi 7) indoor access point with 2x2:2 on 2.4 GHz, 4x4:4 on 5 GHz and 2x2:2 on 6 GHz, for a combined maximum rate of 12.22 Gbps. RUCKUS rates it at up to 1,024 clients per AP and builds it for large meeting halls, general enterprise spaces and large classrooms.
SmartZone or RUCKUS One Managed
This is the standard edition (part number prefix 901-) for networks run from RUCKUS SmartZone controllers or the RUCKUS One cloud platform. For controller-less Wi-Fi, the Unleashed part 9U1-R770-WW00 is the one to order.
10 GbE Uplink
One 10/5/2.5/1 GbE PoE port removes the wired backhaul bottleneck on multi-gigabit networks, with a second 1 GbE port. Wi-Fi 7 features include 320 MHz channels on 6 GHz, with 6 GHz LPI and SP (AFC) support.
BeamFlex+ and Converged IoT
BeamFlex+ adaptive antennas offer 4,000+ unique antenna patterns per band. An onboard BLE or Zigbee IoT radio, a USB 2.0 port, TPM 2.0 and Secure Boot make the R770 a converged access point for Wi-Fi and IoT.
Supplied in Singapore with Local Warranty
RUCKUS sells the R770 with a limited lifetime warranty. SourceIT supplies it locally in Singapore with a GST invoice. An adjustable acoustic drop-ceiling bracket is included; the power adapter is not. Email sales@sourceit.com.sg with your floor plan and user count for a layout and bill of materials.
RUCKUS R770 901-R770-WW00 Datasheet — Technical Specifications
General
| Product Name | RUCKUS R770 Indoor Access Point |
| Part Number | 901-R770-WW00 |
| Edition | Standard (non-Unleashed) AP; Unleashed version is 9U1-R770-WW00 |
| Manufacturer Warranty | Limited lifetime warranty (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Wireless
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Radios | Tri-band concurrent 2.4 GHz, 5 GHz and 6 GHz; software-configurable to 2x2 (2.4 GHz) + 4x4 (5 GHz) dual-band mode |
| MIMO / Streams | 2x2:2 (2.4 GHz and 6 GHz), 4x4:4 (5 GHz); SU-MIMO and MU-MIMO |
| Combined Data Rate | 12.22 Gbps |
| Supported Data Rates | 802.11be 4 to 5765 Mbps; 802.11ax 4 to 4804 Mbps; 802.11ac 6.5 to 866 Mbps; 802.11n 6.5 to 600 Mbps; 802.11a/g 6 to 54 Mbps; 802.11b 1 to 11 Mbps |
| Peak PHY Rate | 2.4 GHz 689 Mbps; 5 GHz 5765 Mbps; 6 GHz 5765 Mbps |
| Channelization | 20, 40, 80, 160, 320 MHz |
| Supported Channels | 2.4 GHz: 1-13; 5 GHz: 36-64, 100-144, 149-165; 6 GHz: 1-233 |
| 6 GHz Modes | LPI and SP with AFC |
| Client Capacity | Up to 1,024 clients per AP |
| SSIDs | Up to 36 per AP |
| Antenna | BeamFlex+ adaptive antennas with polarization diversity, 4,000+ patterns per band; gain up to 4 dBi |
| Peak Tx Power | 2.4 GHz 26 dBm; 5 GHz 28 dBm; 6 GHz 25 dBm |
| IoT | Integrated BLE or Zigbee (one IoT radio); Matter & Thread in a future update |
Interfaces & Power
| Ethernet | 1 x 100M/1/2.5/5/10G (PoE in) + 1 x 10M/100M/1G, RJ-45 |
| PoE | 802.3af/at/bt, Cat 6a or better |
| USB | 1 x USB 2.0, Type A |
| DC Power | 32 W (average/RMS) |
| 802.3bt / PoH / uPoE | 32 W average, 40 W peak (LLDP) |
| 802.3at PoE+ | 25.5 W |
Security
| Wireless Security | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3, WPA3-SAE, OWE, PMF (802.11w), Dynamic PSK |
| Other | WIPS/WIDS, TPM 2.0, Secure Boot |
Physical & Environmental
| Dimensions | 23.3 cm (L) x 23.3 cm (W) x 5.9 cm (H) |
| Weight | 1.36 kg (3 lbs) |
| Mounting | Wall, acoustic ceiling, desk; bracket 902-0120-0000 |
| Physical Security | Padlock feature; secure bracket sold separately |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | Up to 95%, non-condensing |
Certifications
| Wi-Fi Alliance | Wi-Fi CERTIFIED a/b/g/n/ac/ax/be (Wi-Fi 6, Wi-Fi 7), Passpoint, Vantage |
| Safety / Other | IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, EN 60601-1-2, EN 61000-4-2/3/5, EN 50121-1/4, IEC 61373, UL 2043, EN 62311, WEEE & RoHS, ISTA 2A |
Figures are taken from the RUCKUS R770 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
This is the standard (non-Unleashed) edition, part number prefix 901-, for networks run from a RUCKUS controller or management platform. The RUCKUS R770 data sheet lists SmartZone, RUCKUS Unleashed and RUCKUS One management. If you want controller-less Wi-Fi with no controller or subscription, order the Unleashed part 9U1-R770-WW00 instead.
Mixing with Other RUCKUS Gear
For the full 10 GbE uplink, pair the R770 with a multi-gigabit PoE switch and Cat 6a cabling. RUCKUS AI provides network analytics and Cloudpath handles security and policy.
What It Is Suited To
RUCKUS positions the R770 for large meeting halls, general enterprise spaces and large classrooms running 4K/8K video and latency-sensitive voice and data.
Package Contents & RUCKUS Access Point Ordering Information
In the Box
One RUCKUS R770 access point with an adjustable acoustic drop-ceiling bracket (per the RUCKUS ordering information). Power adapter not included.
RUCKUS Access Points (Non-Unleashed, 901-) — Ordering Information
| RUCKUS R350 | Wi-Fi 6, 2x2:2, indoor | 901-R350-WW02 |
| RUCKUS R370 | Dual-band Wi-Fi 7, indoor | 901-R370-WW02 |
| RUCKUS R550 | Wi-Fi 6, 2x2:2, indoor | 901-R550-WW00 |
| RUCKUS R560 | Wi-Fi 6E tri-radio, 2x2:2, indoor | 901-R560-WW00 |
| RUCKUS R575 | Tri-band Wi-Fi 7, indoor | 901-R575-WW00 |
| RUCKUS R650 | Wi-Fi 6, 4+2 streams, indoor | 901-R650-WW00 |
| RUCKUS R670 | Tri-band Wi-Fi 7, indoor | 901-R670-WW00 |
| RUCKUS R676 | Tri-band Wi-Fi 7, indoor | 901-R676-WW51 |
| RUCKUS R750 | Wi-Fi 6, 4x4:4, indoor | 901-R750-WW00 |
| RUCKUS R760 | Wi-Fi 6E tri-radio, 4x4:4, indoor | 901-R760-WW00 |
| RUCKUS R770 (this listing) | Tri-band Wi-Fi 7, indoor | 901-R770-WW00 |
| RUCKUS R850 | Wi-Fi 6, 8x8:8, indoor | 901-R850-WW00 |
| RUCKUS H350 | Wall-plate Wi-Fi 6, 2x2:2 | 901-H350-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 802.3af PoE out | 901-H550-WW00 |
| RUCKUS H550 | Wall-plate Wi-Fi 6, 48 V passive PoE out | 901-H550-WW02 |
| RUCKUS H670 | Wall-plate tri-band Wi-Fi 7 | 901-H670-WW00 |
| RUCKUS T350c | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW20 |
| RUCKUS T350d | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW40 |
| RUCKUS T350se | Outdoor Wi-Fi 6, 2x2:2 | 901-T350-WW51 |
| RUCKUS T750 | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW01 |
| RUCKUS T750SE | Outdoor Wi-Fi 6, 4x4:4 | 901-T750-WW51 |
| RUCKUS T670 | Outdoor Wi-Fi 7 | 901-T670-WW01 |
| RUCKUS T670sn | Outdoor Wi-Fi 7 | 901-T670-WW51 |
Power & Mounting Accessories
RUCKUS lists the 902-1180-XX00 multigigabit PoE injector (60 W), the 902-1170-XX00 48 V 36 W power supply, the 902-0120-0000 accessory mounting bracket and the 902-0196-0000 T-bar bracket. Ask us to add the right option to your quote.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS R770 Data Sheet (PDF) |
| RUCKUS product page | RUCKUS R770 Access Point |
| RUCKUS support | RUCKUS indoor AP support & documentation |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 901-R770-WW00.
Frequently Asked Questions — RUCKUS R770 901-R770-WW00
What is the difference between 901-R770-WW00 and 9U1-R770-WW00?
Same R770 hardware. 901- is the standard AP for SmartZone or RUCKUS One management; 9U1- ships with Unleashed (embedded controller, no controller or subscription needed).
R770 or R670?
The R770 runs 4x4:4 on 5 GHz, has a 10 GbE port and supports up to 1,024 clients (12.22 Gbps combined). The R670 has 2x2:2 on each band in tri-band mode, a 5 GbE port and up to 768 clients (9.34 Gbps).
What PoE does it need?
802.3bt / PoH / uPoE for full functionality (32 W average, 40 W peak). RUCKUS also lists 802.3at at 25.5 W.
What cabling do I need for 10 GbE?
RUCKUS specifies Cat 6a or better for PoE on the multi-gigabit port.
What warranty do I get?
RUCKUS sells the R770 with a limited lifetime warranty; SourceIT supplies it with local support and a GST invoice.
